U.S. DEPARTMENT OF TRANSPORTATION
FEDERAL AVIATION ADMINISTRATION
Air Traffic Organization Policy

ORDER
JO 7110.65V
Effective Date:
April 3, 2014


Subject:  Air Traffic Control


Section 3. Flight Progress Strips

2-3-1. GENERAL

Unless otherwise authorized in a facility directive, use flight progress strips to post current data on air traffic and clearances required for control and other air traffic control services. To prevent misinterpretation when data is hand printed, use standard hand-printed characters.
En route: Flight progress strips must be posted.

REFERENCE-
FAAO JO 7210.3, Para
6-1-6, Flight Progress Strip Usage.

a. Maintain only necessary current data and remove the strips from the flight progress boards when no longer required for control purposes. To correct, update, or preplan information:

1. Do not erase or overwrite any item. Use an “X” to delete a climb/descend and maintain arrow, an at or above/below symbol, a cruise symbol, and unwanted altitude information. Write the new altitude information immediately adjacent to it and within the same space.

2. Do not draw a horizontal line through an altitude being vacated until after the aircraft has reported or is observed (valid Mode C) leaving the altitude.

3. Preplanning may be accomplished in red pencil.

b. Manually prepared strips must conform to the format of machine-generated strips and manual strip preparation procedures will be modified simultaneously with the operational implementation of changes in the machine-generated format. (See FIG 2-3-1.)

c. Altitude information may be written in thousands of feet provided the procedure is authorized by the facility manager, and is defined in a facility directive, i.e. 5,000 feet as 5, and 2,800 as 2.8.

NOTE-
A slant line crossing through the number zero and underline of the letter “s” on handwritten portions of flight progress strips are required only when there is reason to believe the lack of these markings could lead to misunderstanding. A slant line crossing through the number zero is required on all weather data.

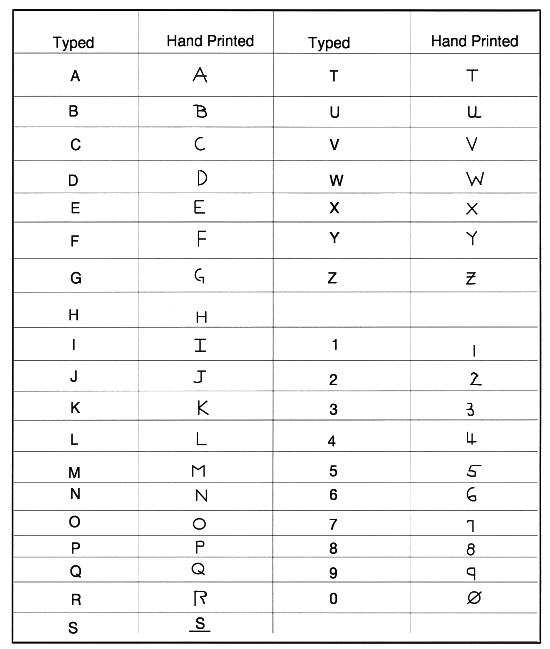

FIG 2-3-1
Standard Recording of Hand-printed Characters


2-3-2. EN ROUTE DATA ENTRIES

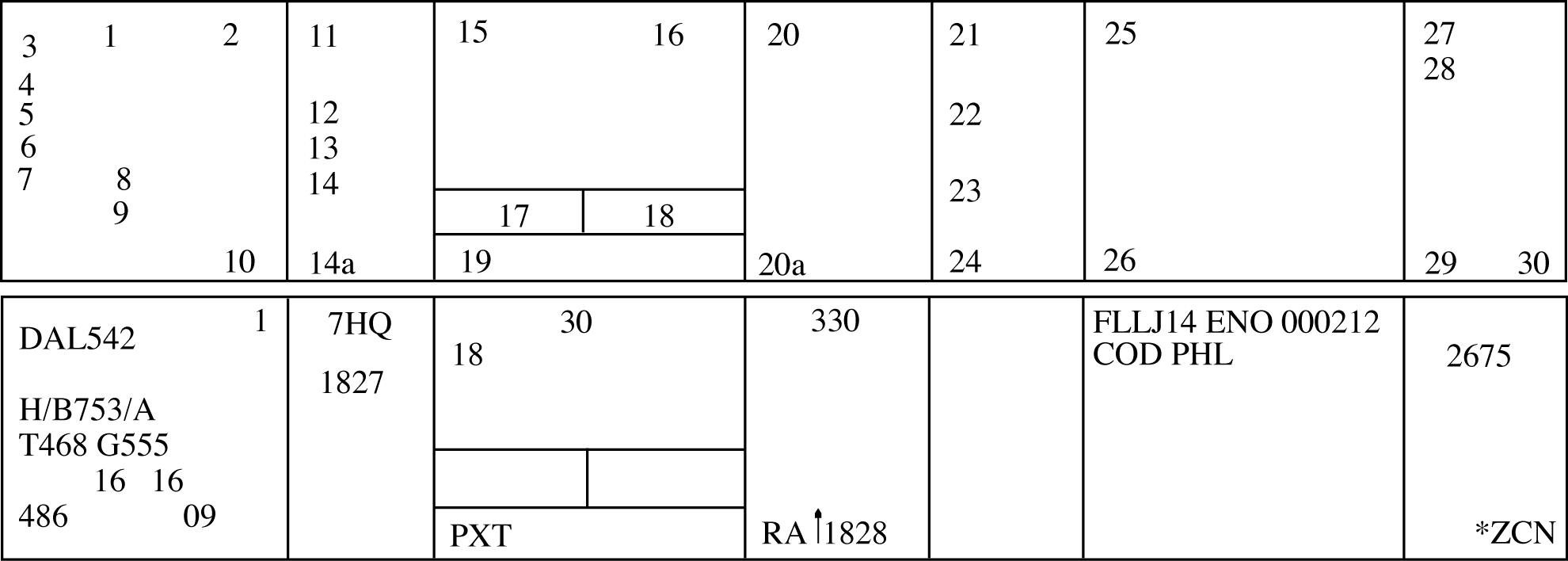

FIG 2-3-2
Flight Progress Strip
(7230-19)

atc0203_At Anchor4

a. Information recorded on the flight progress strips (FAA Forms 7230-19) must be entered in the correspondingly numbered spaces:

TBL 2-3-1

Block

Information Recorded

1.

Verification symbol if required.

2.

Revision number.
DSR-Not used.

3.

Aircraft identification.

4.

Number of aircraft if more than one, heavy aircraft indicator “H/” if appropriate, type of aircraft, and aircraft equipment suffix.

5.

Filed true airspeed.

6.

Sector number.

7.

Computer identification number if required.

8.

Estimated ground speed.

9.

Revised ground speed or strip request (SR) originator.

10.

Strip number.
DSR- Strip number/Revision number.

11.

Previous fix.

12.

Estimated time over previous fix.

13.

Revised estimated time over previous fix.

Block

Information Recorded

14.

Actual time over previous fix, or actual departure time entered on first fix posting after departure.

14a.

Plus time expressed in minutes from the previous fix to the posted fix.

15.

Center-estimated time over fix (in hours and minutes), or clearance information for departing aircraft.

16.

Arrows to indicate if aircraft is departing (↑) or arriving (↓).

17.

Pilot-estimated time over fix.

18.

Actual time over fix, time leaving holding fix, arrival time at nonapproach control airport, or symbol indicating cancellation of IFR flight plan for arriving aircraft, or departure time (actual or assumed).

19.

Fix. For departing aircraft, add proposed departure time.

20.

Altitude information (in hundreds of feet) or as noted below.

NOTE-

Altitude information may be written in thousands of feet provided the procedure is authorized by the facility manager, and is defined in a facility directive, i.e. FL 330 as 33, 5,000 feet as 5, and 2,800 as 2.8.

Block

Information Recorded

20a.

OPTIONAL USE, when voice recorders are operational;
REQUIRED USE, when the voice recorders are not operating and strips are being use at the facility. This space is used to record reported RA events. The letters RA followed by a climb or descent arrow (if the climb or descent action is reported) and the time (hhmm) the event is reported.

21.

Next posted fix or coordination fix.

22.

Pilot's estimated time over next fix.

23.

Arrows to indicate north (↑), south (↓), east (→), or west (←) direction of flight if required.

24.

Requested altitude.

NOTE-

Altitude information may be written in thousands of feet provided the procedure is authorized by the facility manager, and is defined in a facility directive, i.e., FL 330 as 33, 5,000 feet as 5, and 2,800 as 2.8.

25.

Point of origin, route as required for control and data relay, and destination.

Block

Information Recorded

26.

Pertinent remarks, minimum fuel, point out/radar vector/speed adjustment information or sector/position number (when applicable in accordance with para 2-2-1, Recording Information), or NRP. High Altitude Redesign (HAR) or Point-to-point (PTP) may be used at facilities actively using these programs.

27.

Mode 3/A beacon code if applicable.

28.

Miscellaneous control data (expected further clearance time, time cleared for approach, etc.).

29-30.

Transfer of control data and coordination indicators.

b. Latitude/longitude coordinates may be used to define waypoints and may be substituted for nonadapted NAVAIDs in space 25 of domestic en route flight progress strips provided it is necessary to accommodate a random RNAV or GNSS route request.

c. Facility air traffic managers may authorize the optional use of spaces 13, 14, 14a, 22, 23, 24, and 28 for point out information, radar vector information, speed adjustment information, or transfer of control data.

2-3-3. OCEANIC DATA ENTRIES

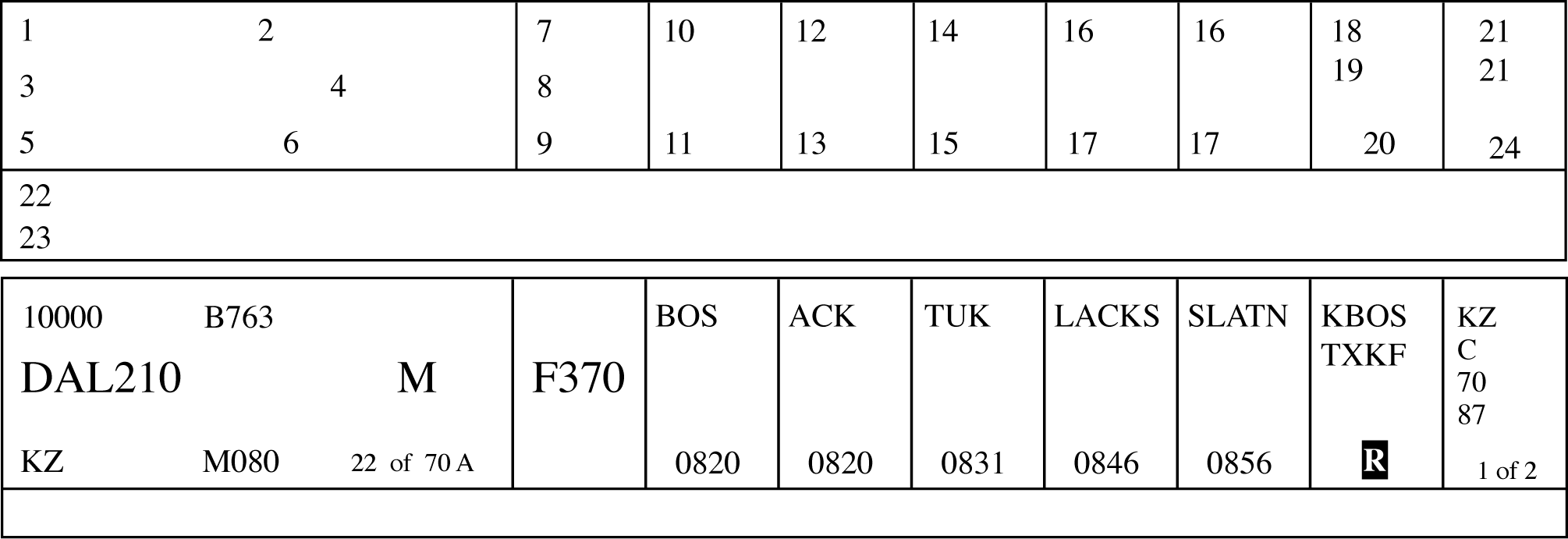

FIG 2-3-3

atc0203_At Anchor3

a. The Ocean21 system displays information on electronic flight progress strips and, in the event of a catastrophic system failure, will print flight progress strips with data in the corresponding numbered spaces:

TBL 2-3-2

Block

Information Recorded

1.

Mode 3/A beacon code, if applicable.

2.

Number of aircraft, if more than one, and type of aircraft.

3.

Aircraft identification.

4.

Reduced separation flags.
Indicators are available for:
M - Mach Number Technique (MNT),
R - Reduced MNT,
D or 3 - Distance-based longitudinal separation using 50 NM (D) or 30 NM (3), and
W- Reduced Vertical Separation Minimum (RVSM).
These flags are selectable for aircraft whose flight plans contain the required equipment qualifiers for each separation criteria.

5.

Controlling sector number.

6.

Filed airspeed or assigned Mach number/True airspeed.

7.

Reported flight level. May contain an indicator for a flight that is climbing (↑) or descending (↓). Reports from Mode C, ADS or position reports are displayed in that order of preference.

8.

Cleared flight level. May contain an indicator for a future conditional altitude ( * ) that cannot be displayed.

Block

Information Recorded

9.

Requested flight level, if applicable.

10.

Previously reported position.

11.

Actual time over previously reported position.

12.

Last reported position.

13.

Actual time over last reported position.

14.

Next reporting position.

15.

In-conformance pilot's estimate or controller-accepted pilot's estimate for next reporting position.

16.

Future reporting position(s).

17.

System estimate for future reporting position(s).

18.

Departure airport or point of origin.

19.

Destination airport or filed point of flight termination.

20.

Indicators. Indicators and toggles for displaying or suppressing the display of the route of flight (F), second flight profile (2), radar contact (A), annotations (&), degraded Required Navigation Performance (RNP, indicator R) and clearance restrictions (X).

21.

Coordination indicator(s).

22.

Annotations.

23.

Clearance restrictions and conditions (may be multiple lines).

24.

Strip number and total number of strips (printed strips only).

b. Standard annotations and abbreviations for Field 22 may be specified by facility directives.

2-3-4. TERMINAL DATA ENTRIES

a. Arrivals:

Information recorded on the flight progress strips (FAA Forms 7230-7.1, 7230-7.2, and 7230-8) must be entered in the correspondingly numbered spaces. Facility managers can authorize omissions and/or optional use of spaces 2A, 8A, 8B, 9A, 9B, 9C, and 10-18, if no misunderstanding will result. These omissions and/or optional uses must be specified in a facility directive.

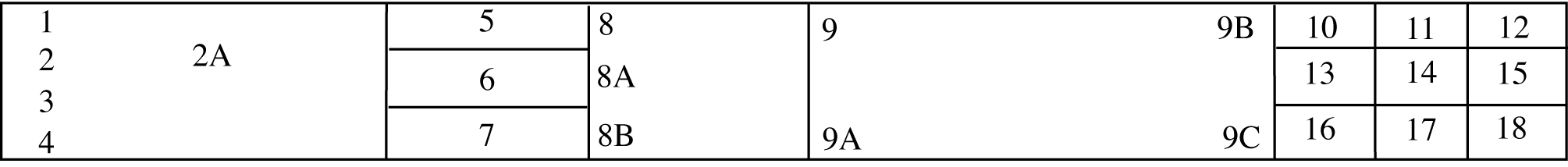

FIG 2-3-4

atc0203_At Anchor2

TBL 2-3-3

Block

Information Recorded

1.

Aircraft identification.

2.

Revision number (FDIO locations only).

2A.

Strip request originator. (At FDIO locations this indicates the sector or position that requested a strip be printed.)

3.

Number of aircraft if more than one, heavy aircraft indicator “H/” if appropriate, type of aircraft, and aircraft equipment suffix.

4.

Computer identification number if required.

5.

Secondary radar (beacon) code assigned.

6.

(FDIO Locations.) The previous fix will be printed.
(Non-FDIO Locations.) Use of the inbound airway. This function is restricted to facilities where flight data is received via interphone when agreed upon by the center and terminal facilities.

7.

Coordination fix.

8.

Estimated time of arrival at the coordination fix or destination airport.

8A.

OPTIONAL USE.

Block

Information Recorded

8B.

OPTIONAL USE, when voice recorders are operational;
REQUIRED USE, when the voice recorders are not operating and strips are being used at the facility. This space is used to record reported RA events when the voice recorders are not operational and strips are being used at the facility. The letters RA followed by a climb or descent arrow (if the climb or descent action is reported) and the time (hhmm) the event is reported.

9.

Altitude (in hundreds of feet) and remarks.

NOTE-

Altitude information may be written in thousands of feet provided the procedure is authorized by the facility manager, and is defined in a facility directive, i. e., FL 230 as 23, 5,000 feet as 5, and 2,800 as 2.8.

9A.

Minimum fuel, destination airport/point out/radar vector/speed adjustment information. Air traffic managers may authorize in a facility directive the omission of any of these items, except minimum fuel, if no misunderstanding will result.

NOTE-

Authorized omissions and optional use of spaces must be specified in the facility directive concerning strip marking procedures.

9B.

OPTIONAL USE.

9C.

OPTIONAL USE.

10-18.

Enter data as specified by a facility directive. Radar facility personnel need not enter data in these spaces except when nonradar procedures are used or when radio recording equipment is inoperative.

b. Departures:

Information recorded on the flight progress strips (FAA Forms 7230-7.1, 7230-7.2, and 7230-8) must be entered in the correspondingly numbered spaces. Facility managers can authorize omissions and/or optional use of spaces 2A, 8A, 8B, 9A, 9B, 9C, and 10-18, if no misunderstanding will result. These omissions and/or optional uses must be specified in a facility directive.

FIG 2-3-5

atc0203_At Anchor1

TBL 2-3-4

Block

Information Recorded

1.

Aircraft identification.

2.

Revision number (FDIO locations only).

2A.

Strip request originator. (At FDIO locations this indicates the sector or position that requested a strip be printed.)

3.

Number of aircraft if more than one, heavy aircraft indicator “H/” if appropriate, type of aircraft, and aircraft equipment suffix.

4.

Computer identification number if required.

5.

Secondary radar (beacon) code assigned.

6.

Proposed departure time.

7.

Requested altitude.

NOTE-

Altitude information may be written in thousands of feet provided the procedure is authorized by the facility manager, and is defined in a facility directive, i. e., FL 230 as 23, 5,000 feet as 5, and 2,800 as 2.8.

8.

Departure airport.

8A.

OPTIONAL USE.

Block

Information Recorded

8B.

OPTIONAL USE, when voice recorders are operational;
REQUIRED USE, when the voice recorders are not operating and strips are being used at the facility. This space is used to record reported RA events when the voice recorders are not operational and strips are being used at the facility. The letters RA followed by a climb or descent arrow (if the climb or descent action is reported) and the time (hhmm) the event is reported.

9.

Computer-generated: Route, destination, and remarks. Manually enter altitude/altitude restrictions in the order flown, if appropriate, and remarks.

9.

Hand-prepared: Clearance limit, route, altitude/altitude restrictions in the order flown, if appropriate, and remarks.

NOTE-

Altitude information may be written in thousands of feet provided the procedure is authorized by the facility manager, and is defined in a facility directive, i.e., FL 230 as 23, 5,000 feet as 5, and 2,800 as 2.8.

9A.

OPTIONAL USE.

9B.

OPTIONAL USE.

9C.

OPTIONAL USE.

10-18.

Enter data as specified by a facility directive. Items, such as departure time, runway used for takeoff, check marks to indicate information forwarded or relayed, may be entered in these spaces.

c. Overflights:

Information recorded on the flight progress strips (FAA Forms 7230-7.1, 7230-7.2, and 7230-8) must be entered in the correspondingly numbered spaces. Facility managers can authorize omissions and/or optional use of spaces 2A, 8A, 8B, 9A, 9B, 9C, and 10-18, if no misunderstanding will result. These omissions and/or optional uses must be specified in a facility directive.

FIG 2-3-6

atc0203_At Anchor0

TBL 2-3-5

Block

Information Recorded

1.

Aircraft identification.

2.

Revision number (FDIO locations only).

2A.

Strip request originator. (At FDIO locations this indicates the sector or position that requested a strip be printed.)

3.

Number of aircraft if more than one, heavy aircraft indicator “H/” if appropriate, type of aircraft, and aircraft equipment suffix.

4.

Computer identification number if required.

5.

Secondary radar (beacon) code assigned.

6.

Coordination fix.

7.

Overflight coordination indicator (FDIO locations only).

NOTE-

The overflight coordination indicator identifies the facility to which flight data has been forwarded.

8.

Estimated time of arrival at the coordination fix.

8A.

OPTIONAL USE.

Block

Information Recorded

8B.

OPTIONAL USE, when voice recorders are operational;
REQUIRED USE, when the voice recorders are not operating and strips are being used at the facility. This space is used to record reported RA events when the voice recorders are not operational and strips are being used at the facility. The letters RA followed by a climb or descent arrow (if the climb or descent action is reported) and the time (hhmm) the event is reported.

9.

Altitude and route of flight through the terminal area.

NOTE-

Altitude information may be written in thousands of feet provided the procedure is authorized by the facility manager, and is defined in a facility directive, i.e., FL 230 as 23, 5,000 feet as 5, and 2,800 as 2.8.

9A.

OPTIONAL USE.

9B.

OPTIONAL USE.

9C.

OPTIONAL USE.

10-18.

Enter data as specified by a facility directive.

NOTE-
National standardization of items (10 through 18) is not practical because of regional and local variations in operating methods; e.g., single fix, multiple fix, radar, tower en route control, etc.

d. Air traffic managers at automated terminal radar facilities may waive the requirement to use flight progress strips provided:

1. Backup systems such as multiple radar sites/systems or single site radars with CENRAP are utilized.

2. Local procedures are documented in a facility directive. These procedures should include but not be limited to:

(a) Departure areas and/or procedures.

(b) Arrival procedures.

(c) Overflight handling procedures.

(d) Transition from radar to nonradar.

(e) Transition from ARTS to non-ARTS.

(f) Transition from ASR to CENRAP.

(g) Transition to or from ESL.

3. No misunderstanding will occur as a result of no strip usage.

4. Unused flight progress strips, facility developed forms and/or blank notepads must be provided for controller use.

5. Facilities must revert to flight progress strip usage if backup systems referred to in subpara d1 are not available.

e. Air traffic managers at FDIO locations may authorize reduced lateral spacing between fields so as to print all FDIO data to the left of the strip perforation. When using FAA Form 7230-7.2, all items will retain the same relationship to each other as they do when the full length strip (FAA Form 7230-7.1) is used.

2-3-5. AIRCRAFT IDENTITY

Indicate aircraft identity by one of the following using combinations not to exceed seven alphanumeric characters:

a. Civil aircraft, including the air­carrier letter­digit registration number which can include the letter “T” for air taxi, the letter “L” for MEDEVAC, or the 3­letter company designator specified in FAA Order JO 7340.2, Contractions, followed by the trip or flight number. Use the operating air carrier's company name in identifying equipment interchange flights.

EXAMPLE-
“N12345.”
“TN5552Q.”
“AAl192.”
“LN751B.”

NOTE-
The letter “L” is not to be used for air carrier/air taxi MEDEVAC aircraft.

b. Military Aircraft.

1. Prefixes indicating branch of service and/or type of mission followed by the last 5 digits of the serial number (the last 4 digits for CFC and CTG). (See TBL 2-3-6 and TBL 2-3-7.)

2. Pronounceable words of 3, 4, 5, and 6 letters followed by a 4-, 3-, 2-, or 1-digit number.

EXAMPLE-
“SAMP Three One Six.”

3. Assigned double-letter 2-digit flight number.

4. Navy or Marine fleet and training command aircraft, one of the following:

(a) The service prefix and 2 letters (use phonetic alphabet equivalent) followed by 2 or 3 digits.

TBL 2-3-6
Branch of Service Prefix

Prefix

Branch

A

U.S. Air Force

C

U.S. Coast Guard

G

Air or Army National Guard

R

U.S. Army

VM

U.S. Marine Corps

VV

U.S. Navy

CFC

Canadian Forces

CTG

Canadian Coast Guard

TBL 2-3-7
Military Mission Prefix

Prefix

Mission

E

Medical Air Evacuation

F

Flight Check

L

LOGAIR (USAF Contract)

RCH

AMC (Air Mobility Command)

S

Special Air Mission

(b) The service prefix and a digit and a letter (use phonetic alphabet equivalent) followed by 2 or 3 digits.

5. Aircraft carrying the President, Vice President, and/or their family members will use the identifiers in the following tables. See TBL 2-3-8 and TBL 2-3-9.

TBL 2-3-8
President and Family

Service

President

Family

Air Force

AF1

EXEC1F

Marine

VM1

EXEC1F

Navy

VV1

EXEC1F

Army

RR1

EXEC1F

Coast Guard

C1

EXEC1F

Guard

G1

EXEC1F

Commercial

EXEC1

EXEC1F

TBL 2-3-9
Vice President and Family

Service

Vice President

Family

Air Force

AF2

EXEC2F

Marine

VM2

EXEC2F

Navy

VV2

EXEC2F

Army

RR2

EXEC2F

Coast Guard

C2

EXEC2F

Guard

G2

EXEC2F

Commercial

EXEC2

EXEC2F

c. Special-use. Approved special-use identifiers.

2-3-6. AIRCRAFT TYPE

Use the approved codes listed in Appendix A through Appendix C to indicate aircraft type.

2-3-7. USAF/USN UNDERGRADUATE PILOTS

To identify aircraft piloted by solo USAF/USN undergraduate student pilots (who may occasionally request revised clearances because they normally are restricted to flight in VFR conditions), the aircraft identification in the flight plan must include the letter “Z” as a suffix. Do not use this suffix, however, in ground-to-air communication.

NOTE-
USAF solo students who have passed an instrument certification check may penetrate cloud layers in climb or descent only. Requests for revised clearances to avoid clouds in level flight can still be expected. This does not change the requirement to use the letter “Z” as a suffix to the aircraft identification.

REFERENCE-
FAAO JO 7110.65, Para 2-4-20, Aircraft Identification.
FAAO JO 7610.4, Chapter 12, Section 10, USAF Undergraduate Flying Training (UFT)/Pilot Instructor Training (PIT)/Introduction To Fighter Fundamentals.

2-3-8. AIRCRAFT EQUIPMENT SUFFIX

a. Indicate, for both VFR and IFR operations, the aircraft's radar transponder, DME, or navigation capability by adding the appropriate symbol, preceded by a slant. (See TBL 2-3-10.)

b. GNSS­equipped aircraft:

1. Have an equipment suffix of /G, /L, /S, or /V.

2. May be determined by executing an ICAO flight plan readout and verifying a filed “G” in the ICAO equipment list.

3. May be determined by verifying with the pilot that the aircraft is GNSS­equipped.

c. When forwarding this information, state the aircraft type followed by the word "slant" and the appropriate phonetic letter equivalent of the suffix.

EXAMPLE-
“Cessna Three-ten slant Tango.”
“A-Ten slant November.”
“F-Sixteen slant Papa.”
“Seven-sixty-seven slant Golf.”

d. Utilize aircraft equipment suffix /H to indicate “RVSM-capable, no transponder.”

NOTE-
/H is for ATC use only. Users are not authorized to file this suffix.

2-3-9. CLEARANCE STATUS

Use an appropriate clearance symbol followed by a dash (-) and other pertinent information to clearly show the clearance status of an aircraft. To indicate delay status use:

a. The symbol “H” at the clearance limit when holding instructions have been included in the aircraft's original clearance. Show detailed holding information following the dash when holding differs from the established pattern for the fix; i.e., turns, leg lengths, etc.

b. The symbols “F” or “O” to indicate the clearance limit when a delay is not anticipated.

TBL 2-3-10
Aircraft Equipment Suffixes

Navigation Capability

Transponder Capability

Suffix









RVSM

Any

Failed transponder or Failed Mode C capability

/H

No GNSS, No RNAV

Transponder with Mode C

/W

RNAV, No GNSS

Transponder with Mode C

/Z

GNSS

Transponder with Mode C

/L



No RVSM

No DME

No transponder

/X

Transponder with no Mode C

/T

Transponder with Mode C

/U

DME

No transponder

/D

Transponder with no Mode C

/B

Transponder with Mode C

/A

TACAN

No transponder

/M

Transponder with no Mode C

/N

Transponder with Mode C

/P

RNAV,
No GNSS

No transponder

/Y

Transponder with no Mode C

/C

Transponder with Mode C

/I

GNSS

No transponder

/V

Transponder with no Mode C

/S

Transponder with Mode C

/G

2-3-10. CONTROL SYMBOLOGY

Use authorized control and clearance symbols or abbreviations for recording clearances, reports, and instructions. Control status of aircraft must always be current. You may use:

a. Plain language markings when it will aid in understanding information.

b. Locally approved identifiers. Use these only within your facility and not on teletypewriter or interphone circuits.

c. Plain sheets of paper or locally prepared forms to record information when flight progress strips are not used. (See TBL 2-3-11 and TBL 2-3-12.)

d. Control Information Symbols.
(See FIG 2-3-7 and FIG 2-3-8.)

REFERENCE-
FAAO JO 7110.65, Para 4-5-3, Exceptions.

TBL 2-3-11
Clearance Abbreviations

Abbreviation

Meaning

A

Cleared to airport (point of intended landing)

B

Center clearance delivered

C

ATC clears (when clearance relayed through non-ATC facility)

CAF

Cleared as filed

D

Cleared to depart from the fix

F

Cleared to the fix

H

Cleared to hold and instructions issued

L

Cleared to land

N

Clearance not delivered

O

Cleared to the outer marker

PD

Cleared to climb/descend at pilot's discretion

Q

Cleared to fly specified sectors of a NAVAID defined in terms of courses, bearings, radials or quadrants within a designated radius.

T

Cleared through (for landing and takeoff through intermediate point)

V

Cleared over the fix

X

Cleared to cross (airway, route, radial) at (point)

Z

Tower jurisdiction

TBL 2-3-12
Miscellaneous Abbreviations

Abbreviation

Meaning

BC

Back course approach

CT

Contact approach

FA

Final approach

FMS

Flight management system approach

GPS

GPS approach

I

Initial approach

ILS

ILS approach

MA

Missed approach

MLS

MLS approach

NDB

Nondirectional radio beacon approach

OTP

VFR conditions-on-top

PA

Precision approach

PT

Procedure turn

RA

Resolution advisory (Pilot reported TCAS event)

RH

Runway heading

RNAV

Area navigation approach

RP

Report immediately upon passing (fix/altitude)

RX

Report crossing

SA

Surveillance approach

SI

Straight-in approach

TA

TACAN approach

TL

Turn left

TR

Turn right

VA

Visual approach

VR

VOR approach

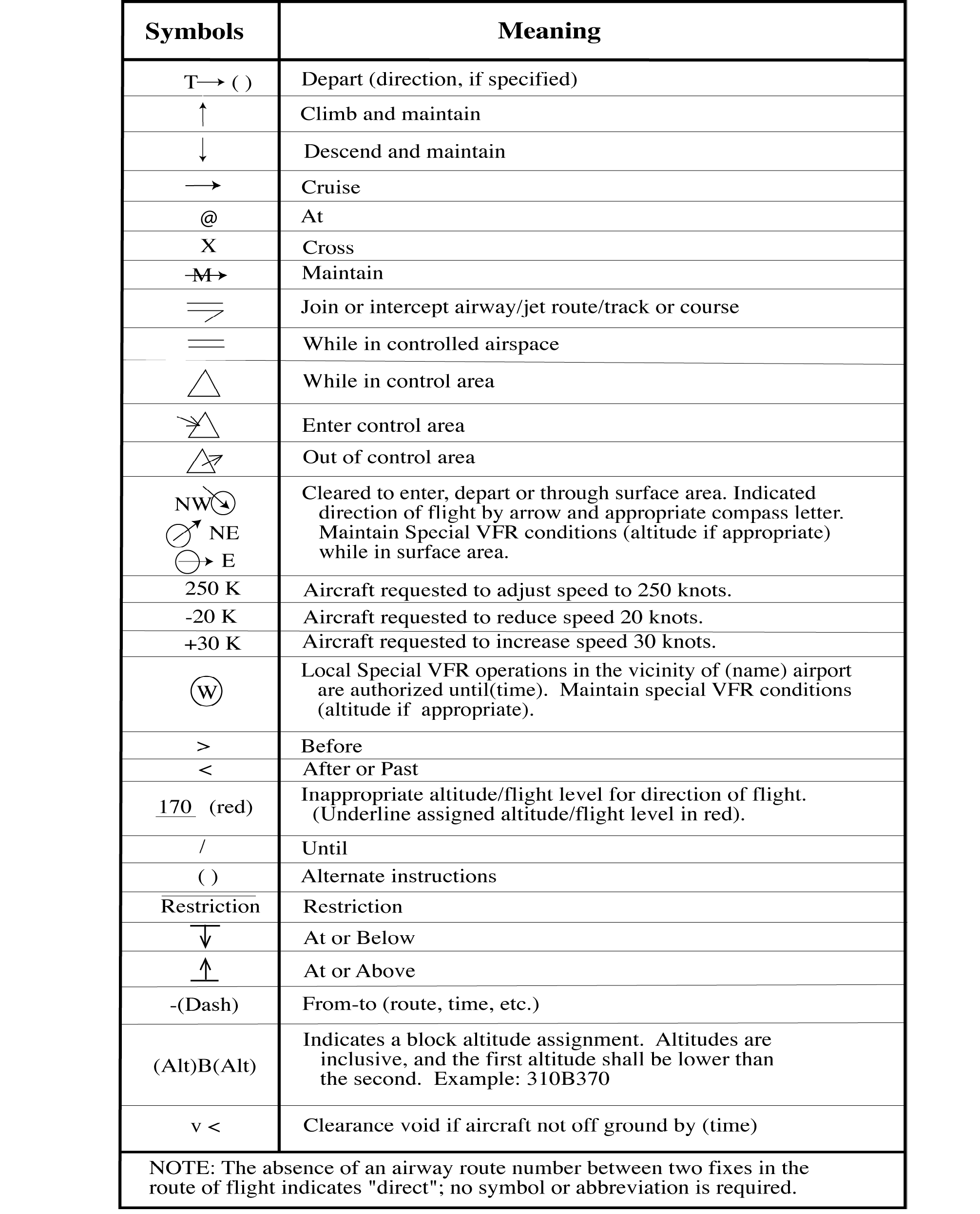

FIG 2-3-7
Control Information Symbols [Part 1]

atc0203_Auto1

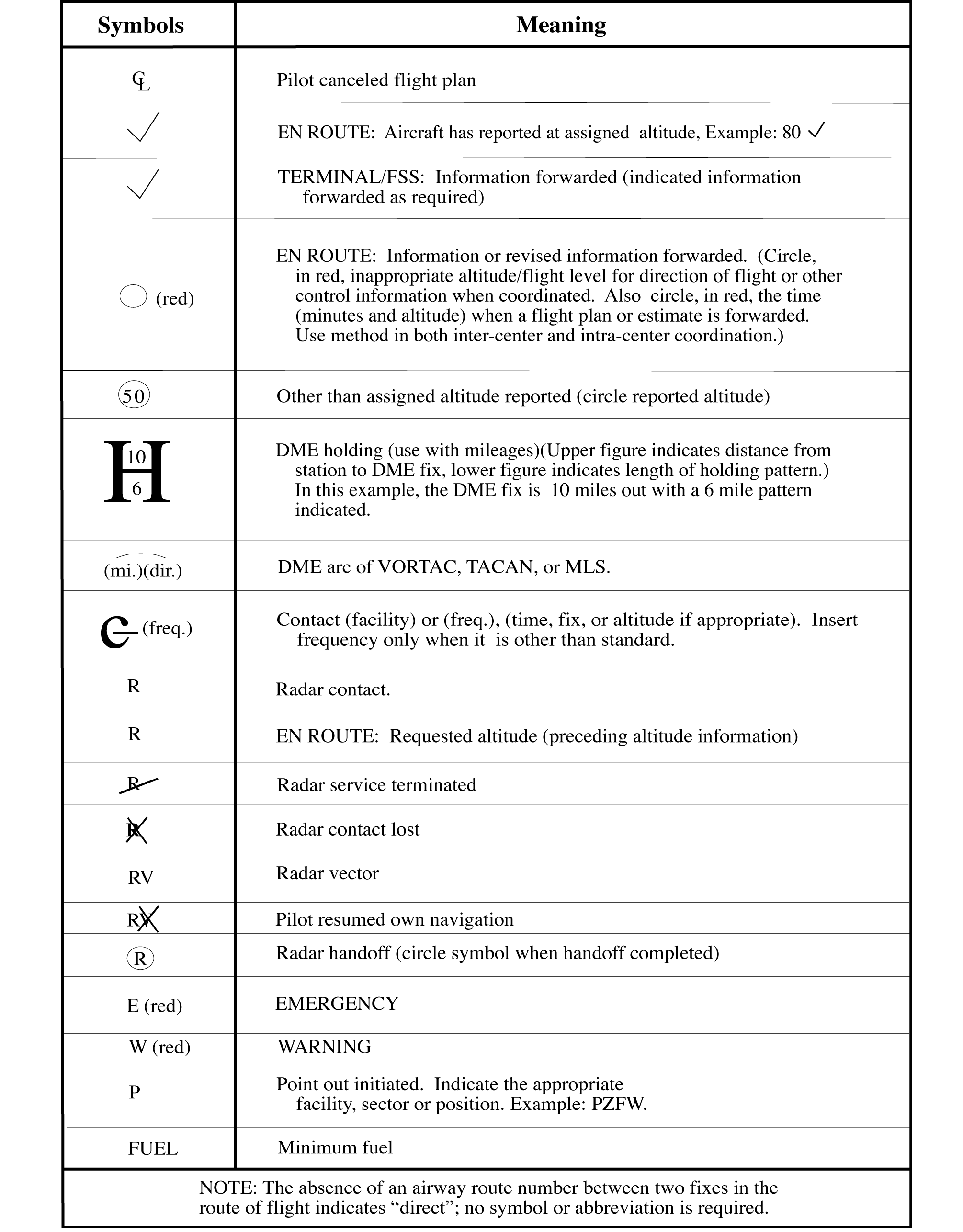

FIG 2-3-8
Control Information Symbols [Part 2]

atc0203_Auto0

Return to Air Traffic Publications Library Return to Order Home Page Return to Table of Contents
