The Mapping Table shows the relationship between this storyboard design, the NextGen Flight 2020, the TBO Vision 2025 operational scenarios, and four general Phases of Flight.
Storyboard Story Chapters
"NextGen Flight 2020" Video Series
Phases of Flight
Vision Paper Use Case (operational scenarios)
Domain
Introduction
-
-
-
-
Pre-Flight
Pre-Flight
Flight Planning
Strategic Traffic Flow Planning
Planning
Departure
Surface/Departure
Pushback
Taxi
Takeoff
Climb
Departures from a Busy Environment with Multiple Nearby Airport
Departures from a Typical Environment
Surface
Terminal
En Route Cruise
En Route
Domestic
Oceanic Cruise
En Route Operation—Generic
En Route Operation given Weather
En Route
Arrival
Arrivals/Surface
Descent
Approach
Landing
Taxi
Flight Closing
Arrivals to a Busy Environment with Multiple Nearby Airports
Developed by Verification & Validation Strategies & Practices Branch at the William J. Hughes Technical Center
Intro
Trajectory Based Operations (TBO) is an Air Traffic Management (ATM) method for strategically planning,
managing, and optimizing flights throughout the NAS by using time-based management,
information exchange between air and ground systems, and the aircraft’s ability to fly
precise paths in time and space. TBO will be scaled appropriately to satisfy operational
conditions throughout the NAS and adapt for varying levels of demand and traffic complexity.
The FAA has worked to replace its foundational infrastructure, which accommodates state-of-the-art enabling technologies and advanced capabilities. This storyboard is
based on the FAA's "Vision for TBO Operations" and depicts a typical flight with TBO capability
in the NAS in 2025
The vision of TBO Capabilities centers on automation driven negotiated time-based flight trajectories between airspace users and Air Navigation Service Provider (ANSP) stakeholders. “Together, time-based management and Precision Based Navigation (PBN) comprise a four-dimensional (4D) trajectory (latitude, longitude, altitude, and time) that airspace users negotiate with the Air Navigation Service Providers to identify a solution that best accommodates both their needs.”
“The time parameter provides a common planning reference across all phases of flight,
including pre-departure.”
Preflight is the phase of flight where strategic traffic flow planning and trajectory collaboration of each specific flight occurs, well in advance of the day’s scheduled
pushback/engine start, to establish a strategic flight plan for the flight for an efficient,
on-time arrival.
Airspace operators and the Airspace Navigation Service Provider exchange information to create efficient, gate-to-gate trajectories and de-conflicted schedules that conform to
traffic flow-management constraints and maintain local spacing between aircraft
with airborne separation assistance.
With Trajectory Based Operations, ground-based tools, aircraft software and avionic capabilities provide controllers, traffic managers, dispatchers, and pilots with the tools to make the NAS more predictable and efficient across tower, terminal, and en route domains. This allows operators to optimize their
flight paths given their preferred tradeoffs among fuel use and travel time between
origin and destination pairs.
Departure is the phase of flight in which an aircraft transitions from taxing on
the ground to flying in the air and consists of Pushback, Taxi, Takeoff, and Climb.
The integration of surface and departure operations enables controllers to
efficiently sequence aircraft to and from the gate, through the surface movement area,
to the runway where the aircraft will depart. This integration mitigates congested taxiways
and prevents long taxi queues to better achieve departure fixes on time and merge aircraft into
their assigned overhead streams slots.
Frequently, many flights plan to depart around the same time from an airport.
Surface Operations provide the operators with more efficient pushback and taxiing times that
best meets the strategic plan or trajectory time objectives while on the surface movement area.
Coordinated departure operations help to efficiently sequence aircraft to the overhead
departure fix within the targeted compliance threshold and merge aircraft into overhead stream slots on time.

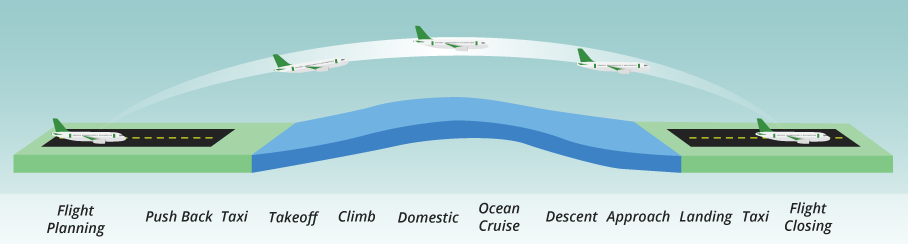

En Route Cruise is the phase of flight where the majority of the flight is spent. The aircraft is in the air, cruising in level flight. Optimum cruise altitude depends upon the weight
of the aircraft but it is typically more fuel efficient to fly as high as we can
for as long as we can.
Automation systems monitor the aircraft’s trajectory in accordance with the universally
agreed four-dimensional strategic plan and maintain the separation of aircraft based on time intervals
using designated points in space called meter points.
Coordination and collaboration enables
tactical flight rerouting to avoid weather impacted airspace
sectors based on user preferred four-dimensional strategic plans while
continuing to achieve specific crossing times over designated points in
space until reaching the destination.
Arrival is the phase of flight when the aircraft transitions from En Route flight
into Terminal flight and descends from cruise altitude to initial approach altitude. The aircraft
will merge and sequence into multiple flows of traffic through top of descent down to the runway(s).
Automation systems on the ground and in the aircraft exchange information
and assist in determining the best descent point by integrating aircraft performance characteristics
with known air traffic, airspace, meteorological, obstacle clearance, and environmental constraints
expected to be encountered during the arrival, through top of descent, down to the runway(s).
Time based automation capabilities assist controllers with spacing and speed
control to better deliver aircraft to the runway throughout the descent within the terminal airspace
while permitting operators to fly optimized profile descents, which permit aircraft to fly continuous-descent profiles,
optimized for each individual aircraft.
