North Pacific Ocean Route Charts

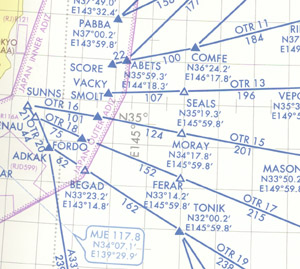

Sample North Pacific route chart. North Pacific Route Charts are designed for FAA Controllers to monitor transoceanic flights. The charts show established intercontinental air routes, including reporting points with geographic positions. Composite Chart 48x41 1/2 inches, Area Charts 52x40 1/2 inches. All charts are shipped unfolded. Revised every 56 days.

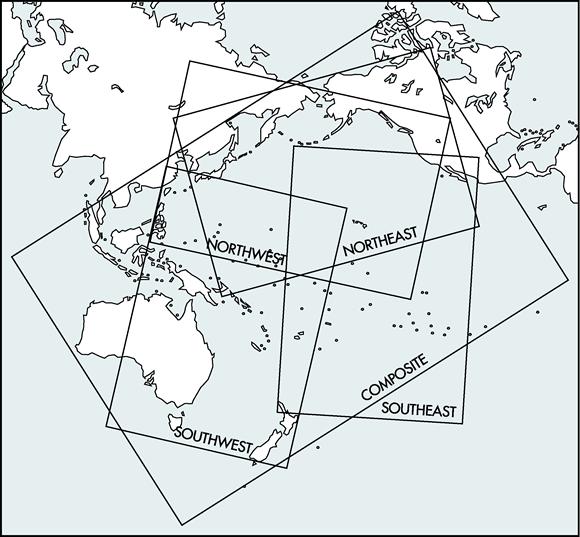

A separate index shows the coverage of North Pacific Route Charts

FAA Product ID and Scale
Product Product ID Nautical miles/inch Scale
North Pacific Route Chart Northeast PORCNEAZ 95.9 1:7,000,000
North Pacific Route Chart Northwest PORCNWAZ 95.9 1:7,000,000
North Pacific Route Chart Southeast PORCSEAZ 95.9 1:7,000,000
North Pacific Route Chart Southwest PORCSWAZ 95.9 1:7,000,000
North Pacific Route Chart Composite PORCPAZ 164.0 1:12,000,000
North Pacific Route Chart Set PORCSZ
