Pilot�s Approach on Glide Angle
Approach Light Systems (ALS) provide the basic means to transition from instrument flight to visual flight for landing. Operational requirements dictate the sophistication and configuration of the approach light system for a particular runway.

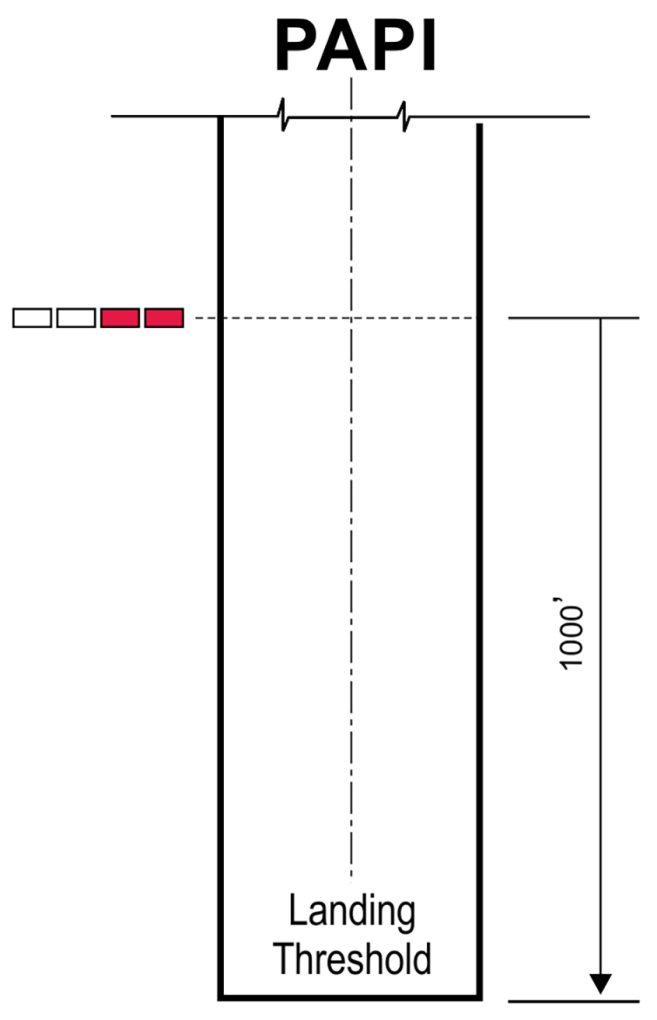

PAPI (Precision Approach Path Indicators) primarily assists by providing visual glide slope guidance in non-precision approaches environment. These systems have an effective visual range of at least 3 miles during the day and up to 20 miles at night. The row of light units is normally installed on the left side of the runway and the glide path indications are as two red and two white (2 red 2 red dots) when on proper glide path angle of approach. Light combinations indicate when slightly high (3 white 3 white dots), significantly high (4 white 4 white dots), slightly low (3 red 3 red dots) and significantly low (4 red 4 red dots).

Play this video
PAPI Approaches Duration: 7.07 minutes

Video shows the side by side comparison of a series of approaches into an airport. The benefit of the comparison is to see and understand the superior clarity of LED lighting systems over the more traditional incandescent lighting systems.
The video contains no audio.

FAA Navigation Services Technical Lead:

Donald Lampkins - (202) 267-7332

Pilot�s Approach on Glide Angle
Current Status: There are 938 PAPIs in the NAS. Major manufacturers include New Bedford Panoramex (709), Sonicraft (116) and AVW (101). PAPIs are used to replace Visual Approach Slope Indicator Lights (VASI), and to support Commercial Aviation Safety Team (CAST) and Land and Hold Short Operations (LASHO) new requirements. The FAA is researching replacing incandescent lamps with more efficient Light Emitting Diode (LED) lamps.

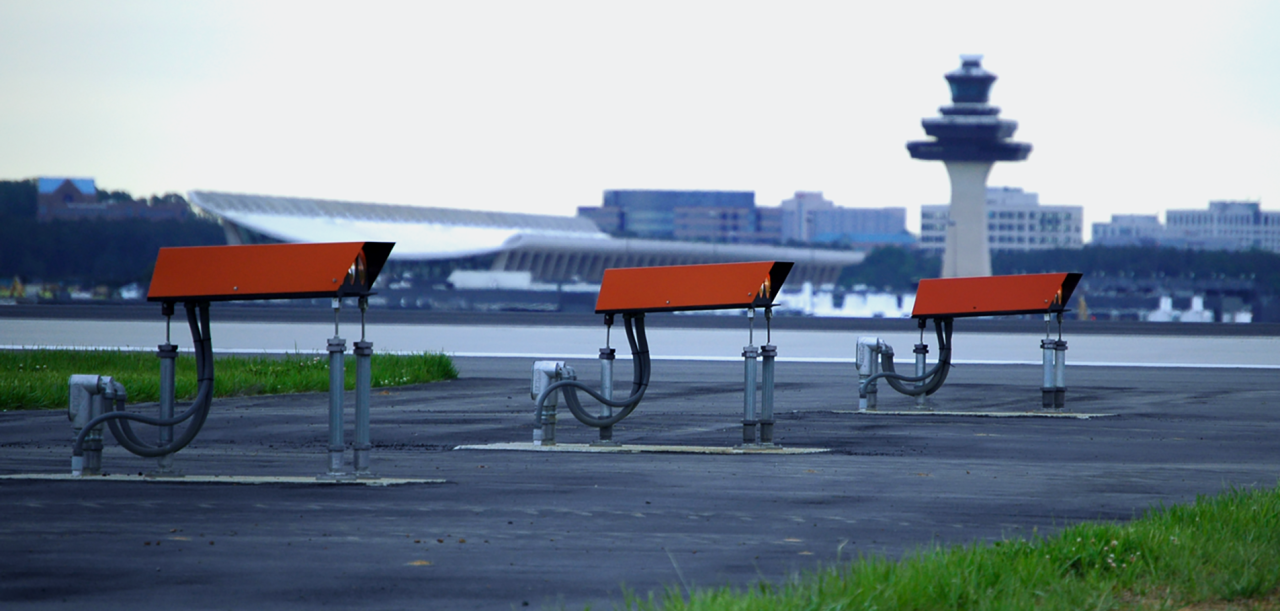

Typical PAPI Light Fixture                        LHA Fixtures: 4 in a row
