California

Fresno, California
Fresno Yosemite International
ICAO Identifier KFAT

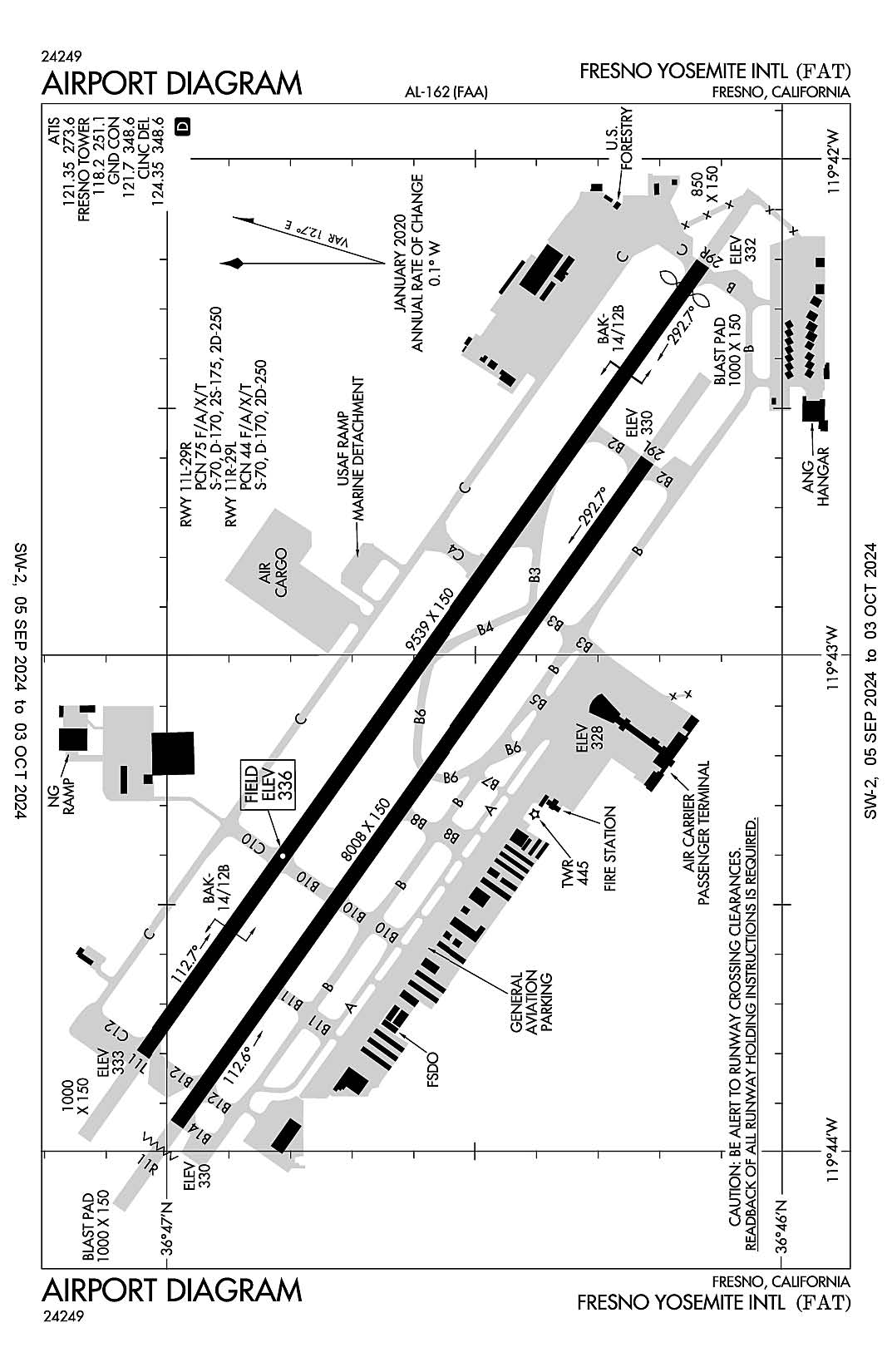

An airport diagram for Fresno Yosemite International (ICAO Identifier KFAT).

Fresno, CA
Fresno Yosemite Intl
ICAO Identifier KFAT

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 36-46-35.6N / 119-43-7.8W
2.2.2 From City: 5 miles NE of FRESNO, CA
2.2.3 Elevation: 335.5 ft
2.2.5 Magnetic Variation: 13E (2020)
2.2.6 Airport Contact: KEVIN R. MEIKLE
4995 E CLINTON WAY
FRESNO, CA 93727 (559-621-4500)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100, A++
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I B certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 11L
2.12.2 True Bearing: 125
2.12.3 Dimensions: 9539 ft x 150 ft
2.12.4 PCN: 75 F/A/X/T
2.12.5 Coordinates: 36-47-2.406N / 119-43-48.3081W
2.12.6 Threshold Elevation: 333 ft
2.12.6 Touchdown Zone Elevation: 335.5 ft

2.12.1 Designation: 29R
2.12.2 True Bearing: 305
2.12.3 Dimensions: 9539 ft x 150 ft
2.12.4 PCN: 75 F/A/X/T
2.12.5 Coordinates: 36-46-7.8228N / 119-42-12.6898W
2.12.6 Threshold Elevation: 332 ft
2.12.6 Touchdown Zone Elevation: 332.6 ft

2.12.1 Designation: 11R
2.12.2 True Bearing: 125
2.12.3 Dimensions: 8008 ft x 150 ft
2.12.4 PCN: 44 F/A/X/T
2.12.5 Coordinates: 36-46-59.0217N / 119-43-56.7171W
2.12.6 Threshold Elevation: 330 ft
2.12.6 Touchdown Zone Elevation: 332.9 ft

2.12.1 Designation: 29L
2.12.2 True Bearing: 305
2.12.3 Dimensions: 8008 ft x 150 ft
2.12.4 PCN: 44 F/A/X/T
2.12.5 Coordinates: 36-46-13.2042N / 119-42-36.4402W
2.12.6 Threshold Elevation: 329.9 ft
2.12.6 Touchdown Zone Elevation: 330.7 ft

AD 2.13 Declared Distances
2.13.1 Designation: 11L
2.13.2 Take-off Run Available: 9539
2.13.3 Take-off Distance Available: 9539
2.13.4 Accelerate-Stop Distance Available: 9279
2.13.5 Landing Distance Available: 9279

2.13.1 Designation: 29R
2.13.2 Take-off Run Available: 9539
2.13.3 Take-off Distance Available: 9539
2.13.4 Accelerate-Stop Distance Available: 9539
2.13.5 Landing Distance Available: 9227

2.13.1 Designation: 11R
2.13.2 Take-off Run Available: 8008
2.13.3 Take-off Distance Available: 8008
2.13.4 Accelerate-Stop Distance Available: 8008
2.13.5 Landing Distance Available: 8008

2.13.1 Designation: 29L
2.13.2 Take-off Run Available: 8008
2.13.3 Take-off Distance Available: 8008
2.13.4 Accelerate-Stop Distance Available: 8008
2.13.5 Landing Distance Available: 8008

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 11L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 29R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 11R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 29L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ANG OPS
2.18.3 Channel: 140
2.18.5 Hours of Operation:

2.18.1 Service Designation: ANG OPS
2.18.3 Channel: 298.3
2.18.5 Hours of Operation:

2.18.1 Service Designation: APCH/P DEP/P (091-239)
2.18.3 Channel: 132.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (091-239)
2.18.3 Channel: 323.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (240-090)
2.18.3 Channel: 119.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (240-090)
2.18.3 Channel: 351.95
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S DEP/S (S/SE VISALIA AREA)
2.18.3 Channel: 118.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S DEP/S (S/SE VISALIA AREA)
2.18.3 Channel: 268.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: ATIS
2.18.3 Channel: 121.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: ATIS
2.18.3 Channel: 273.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 124.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (240-090)
2.18.3 Channel: 119.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (091-239)
2.18.3 Channel: 132.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (091-239)
2.18.3 Channel: 323.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (240-090)
2.18.3 Channel: 351.95
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 251.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: NG OPS
2.18.3 Channel: 40.95
2.18.5 Hours of Operation:

2.18.1 Service Designation: NG OPS
2.18.3 Channel: 132
2.18.5 Hours of Operation:

2.18.1 Service Designation: NG OPS
2.18.3 Channel: 255.8
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 11L. Magnetic variation: 13E
2.19.2 ILS Identification: RPW
2.19.5 Coordinates: 36-47-10.81N / 119-43-56.63W
2.19.6 Site Elevation: 347.1 ft

2.19.1 ILS Type: Localizer for runway 11L. Magnetic variation: 13E
2.19.2 ILS Identification: RPW
2.19.5 Coordinates: 36-46-2.54N / 119-42-3.44W
2.19.6 Site Elevation: 331.3 ft

2.19.1 ILS Type: DME for runway 29R. Magnetic variation: 13E
2.19.2 ILS Identification: FAT
2.19.5 Coordinates: 36-47-10.81N / 119-43-56.63W
2.19.6 Site Elevation: 347.1 ft

2.19.1 ILS Type: Glide Slope for runway 29R. Magnetic variation: 13E
2.19.2 ILS Identification: FAT
2.19.5 Coordinates: 36-46-18.84N / 119-42-23.4799W
2.19.6 Site Elevation: 332 ft

2.19.1 ILS Type: Localizer for runway 29R. Magnetic variation: 13E
2.19.2 ILS Identification: FAT
2.19.5 Coordinates: 36-47-8.2801N / 119-43-58.6W
2.19.6 Site Elevation: 333.7 ft

General Remarks:

MILITARY: SVC: RWY 29R AND 11L A-GEAR CABLE AVBL UPON REQ ONLY; DEFAULT POSN DOWN.

MILITARY: ANG: CTC ANG OPS FOR LCL BIRD WATCH COND (BWC).

SERVICE- JET AIR START UNIT (JASU): (AM32A-60) 2(AGPU)

FRESNO YOSEMITE INTL IS NOISE SENSITIVE; NOISE ABATEMENT PROCEDURES IN EFFECT.

SERVICE - FUEL: ROSS AVIATION, C559-251-1555

RETRACTABLE BAK-12/14 AVBL ON RY 11L AND RY 29R ARE KEPT IN RECESSED POSITION UNTIL REQ FOR USE; TWR MUST BE NOTIFIED AT LEAST 5 SECONDS PRIOR TO ENGAGEMENT SO THAT THE AG CABLE MAY BE RAISED.

POSSIBLE WAKE TURBULENCE OR WIND SHEAR ARR TO RY 29L OR DEP FM RY 11R. JET TESTING CONDUCTED AT AIR NATIONAL GUARD RAMP LCTD AT SE CORNER OF ARPT.

SERVICE-FUEL: SIGNATURE FLIGHT SUPPORT, C559-981-2490

NO MULT APCHS AND LNDGS MON-SAT 2200-0700 AND SUN 1800-1000.

LGTD RY DISTANCE REMAINING MARKERS ON SOUTH SIDE OF RY 11R/29L; LGTD RY DISTANCE REMAINING MARKERS BOTH SIDES OF RY 11L/29R- 11L DRM ON NORTH SIDE; 29R DRM ON SOUTH SIDE.

NUMEROUS BIRDS INVOF ARPT.

Los Angeles, California
Los Angeles International
ICAO Identifier KLAX

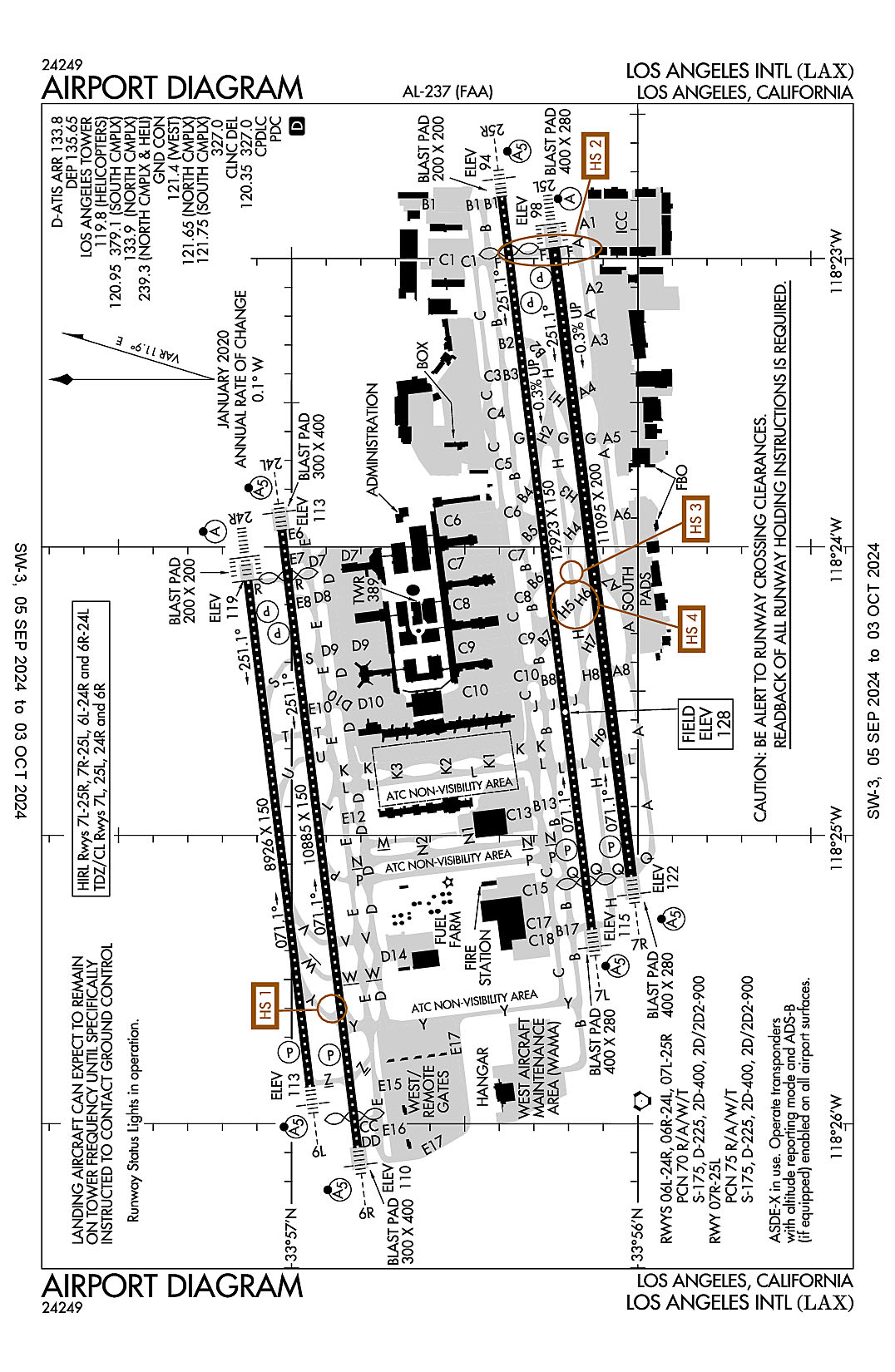

An airport diagram for Los Angeles International (ICAO Identifier KLAX).

Los Angeles, CA
Los Angeles Intl
ICAO Identifier KLAX

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 33-56-32.987N / 118-24-28.975W
2.2.2 From City: 9 miles SW of LOS ANGELES, CA
2.2.3 Elevation: 127.8 ft
2.2.5 Magnetic Variation: 12E (2020)
2.2.6 Airport Contact: VIJI PRASAD
ONE WORLD WAY
LOS ANGELES, CA 90009 (424-646-8251)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I E certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 06L
2.12.2 True Bearing: 83
2.12.3 Dimensions: 8926 ft x 150 ft
2.12.4 PCN: 70 R/A/W/T
2.12.5 Coordinates: 33-56-56.8049N / 118-25-52.1755W
2.12.6 Threshold Elevation: 113.1 ft
2.12.6 Touchdown Zone Elevation: 118.8 ft

2.12.1 Designation: 24R
2.12.2 True Bearing: 263
2.12.3 Dimensions: 8926 ft x 150 ft
2.12.4 PCN: 70 R/A/W/T
2.12.5 Coordinates: 33-57-7.5741N / 118-24-7.0161W
2.12.6 Threshold Elevation: 118.9 ft
2.12.6 Touchdown Zone Elevation: 122.4 ft

2.12.1 Designation: 06R
2.12.2 True Bearing: 83
2.12.3 Dimensions: 10885 ft x 150 ft
2.12.4 PCN: 70 R/A/W/T
2.12.5 Coordinates: 33-56-48.5368N / 118-26-4.8042W
2.12.6 Threshold Elevation: 109.9 ft
2.12.6 Touchdown Zone Elevation: 116.2 ft

2.12.1 Designation: 24L
2.12.2 True Bearing: 263
2.12.3 Dimensions: 10885 ft x 150 ft
2.12.4 PCN: 70 R/A/W/T
2.12.5 Coordinates: 33-57-1.6678N / 118-23-56.5656W
2.12.6 Threshold Elevation: 112.9 ft
2.12.6 Touchdown Zone Elevation: 122.5 ft

2.12.1 Designation: 25R
2.12.2 True Bearing: 263
2.12.3 Dimensions: 12923 ft x 150 ft
2.12.4 PCN: 70 R/A/W/T
2.12.5 Coordinates: 33-56-23.5604N / 118-22-47.2005W
2.12.6 Threshold Elevation: 94.3 ft
2.12.6 Touchdown Zone Elevation: 103.8 ft

2.12.1 Designation: 07L
2.12.2 True Bearing: 83
2.12.3 Dimensions: 12923 ft x 150 ft
2.12.4 PCN: 70 R/A/W/T
2.12.5 Coordinates: 33-56-7.9864N / 118-25-19.4335W
2.12.6 Threshold Elevation: 114.8 ft
2.12.6 Touchdown Zone Elevation: 127.8 ft

2.12.1 Designation: 07R
2.12.2 True Bearing: 83
2.12.3 Dimensions: 11095 ft x 200 ft
2.12.4 PCN: 75 R/A/W/T
2.12.5 Coordinates: 33-56-1.1378N / 118-25-8.466W
2.12.6 Threshold Elevation: 121.7 ft
2.12.6 Touchdown Zone Elevation: 127.6 ft

2.12.1 Designation: 25L
2.12.2 True Bearing: 263
2.12.3 Dimensions: 11095 ft x 200 ft
2.12.4 PCN: 75 R/A/W/T
2.12.5 Coordinates: 33-56-14.5069N / 118-22-57.7701W
2.12.6 Threshold Elevation: 97.8 ft
2.12.6 Touchdown Zone Elevation: 103.7 ft

AD 2.13 Declared Distances
2.13.1 Designation: 06L
2.13.2 Take-off Run Available: 8926
2.13.3 Take-off Distance Available: 8926
2.13.4 Accelerate-Stop Distance Available: 8566
2.13.5 Landing Distance Available: 8566

2.13.1 Designation: 24R
2.13.2 Take-off Run Available: 8926
2.13.3 Take-off Distance Available: 8926
2.13.4 Accelerate-Stop Distance Available: 8926
2.13.5 Landing Distance Available: 8926

2.13.1 Designation: 06R
2.13.2 Take-off Run Available: 10285
2.13.3 Take-off Distance Available: 10285
2.13.4 Accelerate-Stop Distance Available: 10285
2.13.5 Landing Distance Available: 9748

2.13.1 Designation: 24L
2.13.2 Take-off Run Available: 10285
2.13.3 Take-off Distance Available: 10285
2.13.4 Accelerate-Stop Distance Available: 10285
2.13.5 Landing Distance Available: 9483

2.13.1 Designation: 25R
2.13.2 Take-off Run Available: 12091
2.13.3 Take-off Distance Available: 12091
2.13.4 Accelerate-Stop Distance Available: 12091
2.13.5 Landing Distance Available: 11134

2.13.1 Designation: 07L
2.13.2 Take-off Run Available: 12091
2.13.3 Take-off Distance Available: 12091
2.13.4 Accelerate-Stop Distance Available: 12091
2.13.5 Landing Distance Available: 11259

2.13.1 Designation: 07R
2.13.2 Take-off Run Available: 11095
2.13.3 Take-off Distance Available: 11095
2.13.4 Accelerate-Stop Distance Available: 11095
2.13.5 Landing Distance Available: 11095

2.13.1 Designation: 25L
2.13.2 Take-off Run Available: 11095
2.13.3 Take-off Distance Available: 11095
2.13.4 Accelerate-Stop Distance Available: 11095
2.13.5 Landing Distance Available: 11095

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 06L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 24R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 06R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 24L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 25R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 07L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 07R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 25L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: CD/P
2.18.3 Channel: 120.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 327
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (ARR)
2.18.3 Channel: 133.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (DEP)
2.18.3 Channel: 135.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P (WEST)
2.18.3 Channel: 121.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (NORTH-CMPLX)
2.18.3 Channel: 121.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (SOUTH CMPLX)
2.18.3 Channel: 121.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 327
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (HELICOPTERS)
2.18.3 Channel: 119.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P IC (SOUTH CMPLX)
2.18.3 Channel: 120.95
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P IC (NORTH CMPLX)
2.18.3 Channel: 133.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P IC (NORTH CMPLX & HELI)
2.18.3 Channel: 239.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P IC (SOUTH CMPLX)
2.18.3 Channel: 379.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: OPS (SAMSO FLT OPS)
2.18.3 Channel: 372.2
2.18.5 Hours of Operation:

2.18.1 Service Designation: RAMP CTL (TXL C10 0630L-2330L)
2.18.3 Channel: 129.325
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RAMP CTL (TXL C7 0600L-2300L)
2.18.3 Channel: 129.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RAMP CTL (TXL C6 0600L-2300L)
2.18.3 Channel: 129.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RAMP CTL (TXL C9 0530L-2230L)
2.18.3 Channel: 130.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RAMP CTL (TXL C8 0500L-2359L)
2.18.3 Channel: 130.85
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RAMP CTL (TXL D9)
2.18.3 Channel: 131.45
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: SFRA
2.18.3 Channel: 128.55
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 06L. Magnetic variation: 12E
2.19.2 ILS Identification: UWU
2.19.5 Coordinates: 33-56-50.7522N / 118-26-26.6221W
2.19.6 Site Elevation: 139.3 ft

2.19.1 ILS Type: Glide Slope for runway 06L. Magnetic variation: 12E
2.19.2 ILS Identification: UWU
2.19.5 Coordinates: 33-56-54.5859N / 118-25-39.8249W
2.19.6 Site Elevation: 110.5 ft

2.19.1 ILS Type: Localizer for runway 06L. Magnetic variation: 12E
2.19.2 ILS Identification: UWU
2.19.5 Coordinates: 33-57-8.5767N / 118-23-57.1965W
2.19.6 Site Elevation: 108.5 ft

2.19.1 ILS Type: DME for runway 24R. Magnetic variation: 12E
2.19.2 ILS Identification: OSS
2.19.5 Coordinates: 33-56-50.7522N / 118-26-26.6221W
2.19.6 Site Elevation: 139.3 ft

2.19.1 ILS Type: Glide Slope for runway 24R. Magnetic variation: 12E
2.19.2 ILS Identification: OSS
2.19.5 Coordinates: 33-57-2.4082N / 118-24-18.522W
2.19.6 Site Elevation: 116.7 ft

2.19.1 ILS Type: Localizer for runway 24R. Magnetic variation: 12E
2.19.2 ILS Identification: OSS
2.19.5 Coordinates: 33-56-53.1648N / 118-26-27.6839W
2.19.6 Site Elevation: 125.5 ft

2.19.1 ILS Type: DME for runway 06R. Magnetic variation: 12E
2.19.2 ILS Identification: GPE
2.19.5 Coordinates: 33-56-49.9191N / 118-26-22.7714W
2.19.6 Site Elevation: 134.3 ft

2.19.1 ILS Type: Glide Slope for runway 06R. Magnetic variation: 12E
2.19.2 ILS Identification: GPE
2.19.5 Coordinates: 33-56-53.3646N / 118-25-47.3623W
2.19.6 Site Elevation: 108 ft

2.19.1 ILS Type: Localizer for runway 06R. Magnetic variation: 12E
2.19.2 ILS Identification: GPE
2.19.5 Coordinates: 33-57-2.4125N / 118-23-49.2874W
2.19.6 Site Elevation: 106.3 ft

2.19.1 ILS Type: DME for runway 24L. Magnetic variation: 12E
2.19.2 ILS Identification: HQB
2.19.5 Coordinates: 33-56-49.9191N / 118-26-22.7714W
2.19.6 Site Elevation: 134.3 ft

2.19.1 ILS Type: Glide Slope for runway 24L. Magnetic variation: 12E
2.19.2 ILS Identification: HQB
2.19.5 Coordinates: 33-57-2.31N / 118-24-18.51W
2.19.6 Site Elevation: 116.7 ft

2.19.1 ILS Type: Localizer for runway 24L. Magnetic variation: 12E
2.19.2 ILS Identification: HQB
2.19.5 Coordinates: 33-56-46.746N / 118-26-22.2482W
2.19.6 Site Elevation: 123.4 ft

2.19.1 ILS Type: DME for runway 07L. Magnetic variation: 12E
2.19.2 ILS Identification: IAS
2.19.5 Coordinates: 33-56-4.8698N / 118-25-24.8206W
2.19.6 Site Elevation: 104.3 ft

2.19.1 ILS Type: Glide Slope for runway 07L. Magnetic variation: 12E
2.19.2 ILS Identification: IAS
2.19.5 Coordinates: 33-56-7.743N / 118-24-56.7237W
2.19.6 Site Elevation: 119.8 ft

2.19.1 ILS Type: Localizer for runway 07L. Magnetic variation: 12E
2.19.2 ILS Identification: IAS
2.19.5 Coordinates: 33-56-24.7529N / 118-22-35.5432W
2.19.6 Site Elevation: 90 ft

2.19.1 ILS Type: DME for runway 25R. Magnetic variation: 12E
2.19.2 ILS Identification: CFN
2.19.5 Coordinates: 33-56-4.8698N / 118-25-24.8206W
2.19.6 Site Elevation: 104.3 ft

2.19.1 ILS Type: Glide Slope for runway 25R. Magnetic variation: 12E
2.19.2 ILS Identification: CFN
2.19.5 Coordinates: 33-56-17.8773N / 118-23-10.1796W
2.19.6 Site Elevation: 97.5 ft

2.19.1 ILS Type: Localizer for runway 25R. Magnetic variation: 12E
2.19.2 ILS Identification: CFN
2.19.5 Coordinates: 33-56-7.2503N / 118-25-26.6262W
2.19.6 Site Elevation: 119.3 ft

2.19.1 ILS Type: DME for runway 07R. Magnetic variation: 12E
2.19.2 ILS Identification: MKZ
2.19.5 Coordinates: 33-56-3.1899N / 118-25-20.7882W
2.19.6 Site Elevation: 126 ft

2.19.1 ILS Type: Glide Slope for runway 07R. Magnetic variation: 12E
2.19.2 ILS Identification: MKZ
2.19.5 Coordinates: 33-55-59.9253N / 118-24-55.0492W
2.19.6 Site Elevation: 118.2 ft

2.19.1 ILS Type: Localizer for runway 07R. Magnetic variation: 12E
2.19.2 ILS Identification: MKZ
2.19.5 Coordinates: 33-56-15.7853N / 118-22-45.2443W
2.19.6 Site Elevation: 92.5 ft

2.19.1 ILS Type: DME for runway 25L. Magnetic variation: 12E
2.19.2 ILS Identification: LAX
2.19.5 Coordinates: 33-56-3.1899N / 118-25-20.7882W
2.19.6 Site Elevation: 126 ft

2.19.1 ILS Type: Glide Slope for runway 25L. Magnetic variation: 12E
2.19.2 ILS Identification: LAX
2.19.5 Coordinates: 33-56-17.7739N / 118-23-10.2139W
2.19.6 Site Elevation: 97.3 ft

2.19.1 ILS Type: Localizer for runway 25L. Magnetic variation: 12E
2.19.2 ILS Identification: LAX
2.19.5 Coordinates: 33-55-59.8649N / 118-25-20.8676W
2.19.6 Site Elevation: 118.4 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 15E
2.19.2 Navigation Aid Identification: LAX
2.19.5 Coordinates: 33-55-59.3368N / 118-25-55.246W
2.19.6 Site Elevation: 185 ft

General Remarks:

TWY D BTN TWY D7 AND D8 (N OF TRML ONE) CLSD TO ACFT WITH WINGSPAN GTR THAN 157 FT.

SIMUL ACFT OPNS PROHIBITED ON TWYS L AND H9 BTWN RWYS 07L/25R AND 07R/25L.

MILITARY AF: ALL MIL AIRCREWS MUST CTC 61 ABW/CP FLT OPS FOR PRK LCTN/INSTR. NO GOVT TRANSPORTATION, QTRS OR SECURITY AVBL. VIP NOTIFICATION PRO APPLY. USER FEES ASSESSED USING AVCARD CREDIT. CTC ATLANTIC AVIATION FBO 131.6 INBD. INBD RELAY ETA, VIP CODE, SVC RQ 30 MIN PRIOR TO ARR.

SBND TURN NOT AVBL FROM WEST REMOTE GATE 408 AND WEST REMOTE GATE 409

RWY STATUS LGTS IN OPN.

RWY 7R/25L PREFERRED EMERG RWY.

AMERICAN EAGLE TRML SOUTHBOUND TAXING ACFT USE MNM PWR DUE TO BLAST HAZ.

ANY ACFT THAT COMES TO A STOP OR HAS ITS MOMENTUM INTRPD WHILE TURNING AND TAXING INTO ITS PRKG PSN, MUST STOP AND BE TOWED.

TURB MAY BE DEFLECTED UPWARD FM THE BLAST FENCE 180 FT E OF RWY 25R.

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

PRACTICE INSTRUMENT APPROACHES & TOUCH AND GO LANDINGS ARE PROHIBITED.

NMRS BIRDS ON AND IN VCNTY OF ARPT.

WEST REMOTE GATES: ACFT USE OF OPEN GATES AS TAXI PATH IS PROHIBITED (GATES 406, 407, 408, 409).

NOISE SENS ARPT ON WESTERLY TAKEOFFS NO TURNS BEFORE CROSSING SHORELINE OVER-OCEAN APCHS UTILIZED 0000-0630.

PILOTS SHOULD USE CTN FOR POSS LASER ACT IN THE LAX AREA.

ACFT USE MINIMAL PWR WHEN TXG VCNTY TRMLS DUE BLAST HAZ.

MILITARY RSTD: ALL MIL ACFT OFFL BUS ONLY, MIN 24 HR PPR, CTC 61 ABW/CP FLT OPS DSN 633-3779/4014, C310-653-3779/4014.

ACFT WITH LEN GTR THAN 240 FT ARE PROHIBITED ON TXLS C7, C8 AND C9 BTN TXL C AND TWY B.

ACFT WITH WINGSPAN GTR THAN 198 FT OBND FM TXL D8 MAY NOT TURN WBND ONTO TXL D.

ACFT WITH WINGSPAN GTR THAN 155 FT WB ON TXL C ARE NOT AUTHD TO MAKE LEFT TURN ON TWY C10 UNDER PWR.

FOR ACFT WITH WINGSPAN GTR THAN 214 FT CTC LAX AIRSIDE OPS (424)-646-5292 FOR ARPT RESTRICTIONS.

MAJOR CONSTRUCTION ON AIRPORT, DAILY.

SIMUL ACFT OPNS PROHIBITED ON TWY H2 AND G BTN RWYS 07L/25R AND 07R/25L.

Oakland, California
Metropolitan Oakland International
ICAO Identifier KOAK

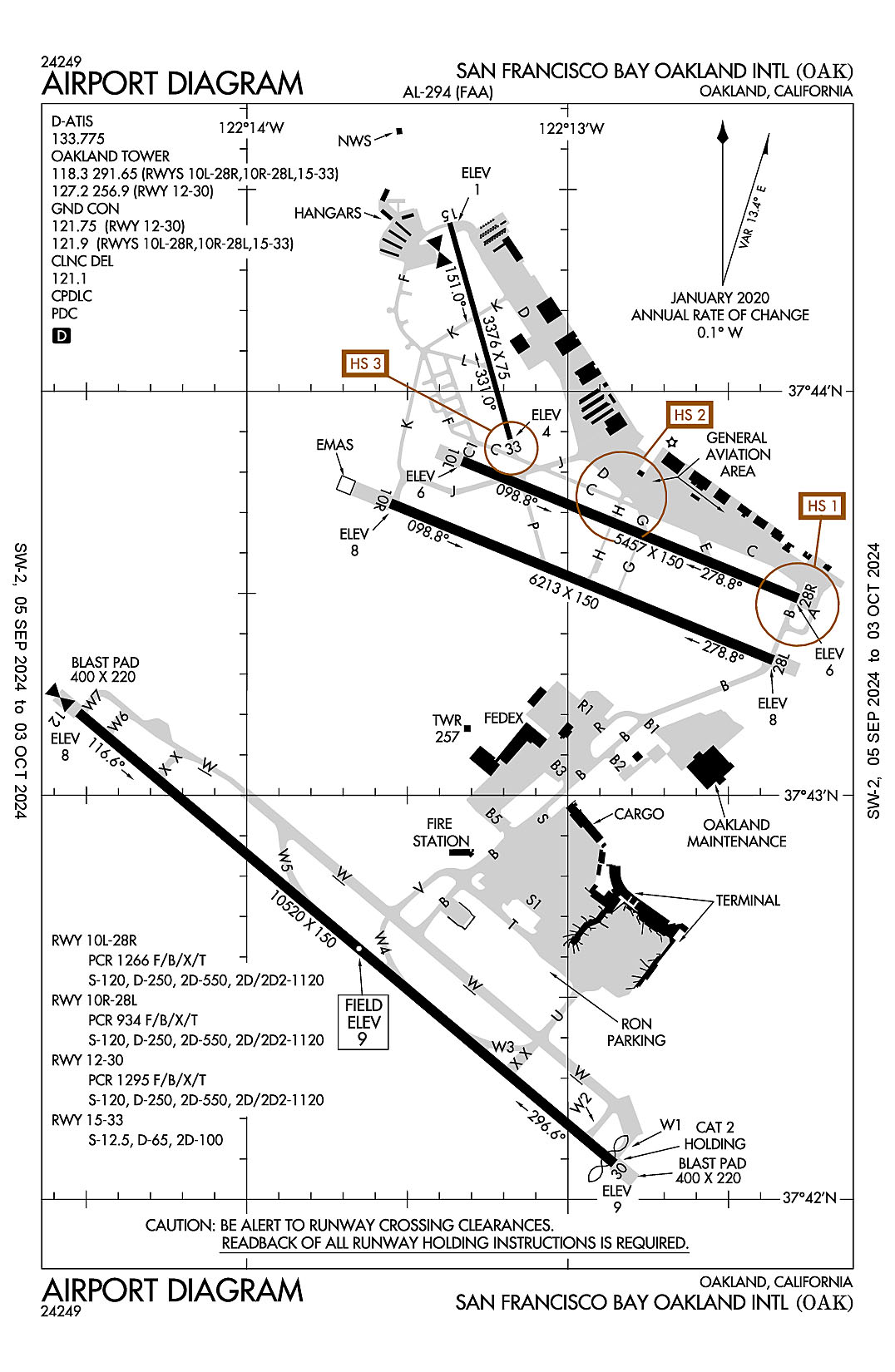

An airport diagram for Metropolitan Oakland International (ICAO Identifier KOAK).

Oakland, CA
Metropolitan Oakland Intl
ICAO Identifier KOAK

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 37-43-16.5N / 122-13-16.1W
2.2.2 From City: 4 miles S of OAKLAND, CA
2.2.3 Elevation: 9 ft
2.2.5 Magnetic Variation: 14E (2015)
2.2.6 Airport Contact: MATT DAVIS
METROPOLITAN OAKLAND INTL ARPT
OAKLAND, CA 94621 (510-563-6436)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I D certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 28R
2.12.2 True Bearing: 292
2.12.3 Dimensions: 5458 ft x 150 ft
2.12.4 PCN: 69 F/C/W/T
2.12.5 Coordinates: 37-43-29.3247N / 122-12-16.9329W
2.12.6 Threshold Elevation: 5.8 ft
2.12.6 Touchdown Zone Elevation: 6.8 ft

2.12.1 Designation: 10L
2.12.2 True Bearing: 112
2.12.3 Dimensions: 5458 ft x 150 ft
2.12.4 PCN: 69 F/C/W/T
2.12.5 Coordinates: 37-43-49.6865N / 122-13-19.8481W
2.12.6 Threshold Elevation: 5.5 ft
2.12.6 Touchdown Zone Elevation: 6.3 ft

2.12.1 Designation: 28L
2.12.2 True Bearing: 292
2.12.3 Dimensions: 6213 ft x 150 ft
2.12.4 PCN: 97 F/B/W/T
2.12.5 Coordinates: 37-43-20.178N / 122-12-21.6341W
2.12.6 Threshold Elevation: 8.2 ft
2.12.6 Touchdown Zone Elevation: 8.7 ft

2.12.1 Designation: 10R
2.12.2 True Bearing: 112
2.12.3 Dimensions: 6213 ft x 150 ft
2.12.4 PCN: 97 F/B/W/T
2.12.5 Coordinates: 37-43-43.345N / 122-13-33.2509W
2.12.6 Threshold Elevation: 8.1 ft
2.12.6 Touchdown Zone Elevation: 9 ft

2.12.1 Designation: 12
2.12.2 True Bearing: 130
2.12.3 Dimensions: 10520 ft x 150 ft
2.12.4 PCN: 71 F/A/W/T
2.12.5 Coordinates: 37-43-12.2256N / 122-14-31.6133W
2.12.6 Threshold Elevation: 8.3 ft
2.12.6 Touchdown Zone Elevation: 8.6 ft

2.12.1 Designation: 30
2.12.2 True Bearing: 310
2.12.3 Dimensions: 10520 ft x 150 ft
2.12.4 PCN: 71 F/A/W/T
2.12.5 Coordinates: 37-42-5.3735N / 122-12-51.3251W
2.12.6 Threshold Elevation: 9 ft
2.12.6 Touchdown Zone Elevation: 9 ft

2.12.1 Designation: 15
2.12.2 True Bearing: 164
2.12.3 Dimensions: 3376 ft x 75 ft
2.12.4 PCN:
2.12.5 Coordinates: 37-44-25.0497N / 122-13-22.1076W
2.12.6 Threshold Elevation: 1.5 ft
2.12.6 Touchdown Zone Elevation: 4.6 ft

2.12.1 Designation: 33
2.12.2 True Bearing: 344
2.12.3 Dimensions: 3376 ft x 75 ft
2.12.4 PCN:
2.12.5 Coordinates: 37-43-52.9005N / 122-13-10.826W
2.12.6 Threshold Elevation: 3.9 ft
2.12.6 Touchdown Zone Elevation: 4.6 ft

AD 2.13 Declared Distances
2.13.1 Designation: 28R
2.13.2 Take-off Run Available: 5458
2.13.3 Take-off Distance Available: 5458
2.13.4 Accelerate-Stop Distance Available: 5458
2.13.5 Landing Distance Available: 5458

2.13.1 Designation: 10L
2.13.2 Take-off Run Available: 5458
2.13.3 Take-off Distance Available: 5458
2.13.4 Accelerate-Stop Distance Available: 5336
2.13.5 Landing Distance Available: 5336

2.13.1 Designation: 28L
2.13.2 Take-off Run Available: 6213
2.13.3 Take-off Distance Available: 6213
2.13.4 Accelerate-Stop Distance Available: 6213
2.13.5 Landing Distance Available: 6213

2.13.1 Designation: 10R
2.13.2 Take-off Run Available: 6213
2.13.3 Take-off Distance Available: 6213
2.13.4 Accelerate-Stop Distance Available: 6213
2.13.5 Landing Distance Available: 6213

2.13.1 Designation: 12
2.13.2 Take-off Run Available: 10000
2.13.3 Take-off Distance Available: 10000
2.13.4 Accelerate-Stop Distance Available: 10000
2.13.5 Landing Distance Available: 10000

2.13.1 Designation: 30
2.13.2 Take-off Run Available: 10000
2.13.3 Take-off Distance Available: 10000
2.13.4 Accelerate-Stop Distance Available: 10000
2.13.5 Landing Distance Available: 10000

2.13.1 Designation: 15
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 33
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 28R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 10L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 28L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 10R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 12
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 30
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 15
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 33
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: CD/P
2.18.3 Channel: 121.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 133.775
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P (RWY 12/30)
2.18.3 Channel: 121.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (RWY 10L/28R, 10R/28L, 15/33)
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 10L/28R, 10R/28L, 15/33)
2.18.3 Channel: 118.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 12/30)
2.18.3 Channel: 127.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 12/30)
2.18.3 Channel: 256.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 10L/28R, 10R/28L, 15/33)
2.18.3 Channel: 291.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/S
2.18.3 Channel: 124.9
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 28R. Magnetic variation: 14E
2.19.2 ILS Identification: OAK
2.19.5 Coordinates: 37-43-28.5955N / 122-12-30.6206W
2.19.6 Site Elevation: 3.3 ft

2.19.1 ILS Type: Localizer for runway 28R. Magnetic variation: 14E
2.19.2 ILS Identification: OAK
2.19.5 Coordinates: 37-43-54.55N / 122-13-34.86W
2.19.6 Site Elevation: 5.2 ft

2.19.1 ILS Type: Glide Slope for runway 12. Magnetic variation: 14E
2.19.2 ILS Identification: AAZ
2.19.5 Coordinates: 37-43-2.9276N / 122-14-22.8383W
2.19.6 Site Elevation: 3.3 ft

2.19.1 ILS Type: Localizer for runway 12. Magnetic variation: 14E
2.19.2 ILS Identification: AAZ
2.19.5 Coordinates: 37-42-2.2539N / 122-12-46.6503W
2.19.6 Site Elevation: 7.2 ft

2.19.1 ILS Type: DME for runway 30. Magnetic variation: 14E
2.19.2 ILS Identification: INB
2.19.5 Coordinates: 37-43-29.85N / 122-14-58.1W
2.19.6 Site Elevation: 18 ft

2.19.1 ILS Type: Glide Slope for runway 30. Magnetic variation: 14E
2.19.2 ILS Identification: INB
2.19.5 Coordinates: 37-42-9.7514N / 122-13-5.6277W
2.19.6 Site Elevation: 4.3 ft

2.19.1 ILS Type: Localizer for runway 30. Magnetic variation: 14E
2.19.2 ILS Identification: INB
2.19.5 Coordinates: 37-43-29.8732N / 122-14-58.1043W
2.19.6 Site Elevation: 9.3 ft

2.19.1 Navigation Aid Type: VOR/DME. Magnetic variation: 17E
2.19.2 Navigation Aid Identification: OAK
2.19.5 Coordinates: 37-43-33.3223N / 122-13-24.9086W
2.19.6 Site Elevation: 13.4 ft

General Remarks:

100 FT LGTD MICROWAVE ANT TWR LCTD 1320 FT WSW OF OAK VORTAC; S OF UPWIND END OF RWY 28L.

TWY A, E, G, H BTN RWY 28R AND TWY C MAX ACFT WT 150,000 LBS.

PREFERENTIAL RWY USE PROGRAM IN EFFECT 2200-0600. NORTH FLD PREF ARR RWY 28L, NORTH FLD PREF DEP RWYS 10R OR 28R. IF THESE RWYS UNACCEPTABLE FOR SAFETY OR ATC INSTRN THEN RWY 12/30 MUST BE USED.

TWY C BTN TWY G & J MAX ACFT WEIGHT 90,000 LBS SINGLE; 144,000 LBS DUAL; 257,000 LBS TANDEM.

400 FT BY 220 FT BLAST PAD RWY 12 AND RWY 30.

TWY P MAX ACFT WT 116,000 LBS SINGLE; 190,000 LBS DUAL; 305,000 LBS DUAL TANDEM; 735,000 LBS DOUBLE DUAL TANDEM.

NOISE ABATEMENT PROCS N/A IN EMERGS OR WHENEVER RWY 12/30 IS CLSD DUE TO MAINT, SAFETY, WINDS OR WX.

RWY 15/33 CLSD TO ACR ACFT.

FOR NOISE ABATEMENT INFO CTC NOISE ABATEMENT OFC AT (510) 563-6463.

TWY C BTN RWY 28R & TWY G AND TWYS B, J, AND D MAX ACFT WT 861,000 LBS.

TWY K BTN TWY J AND INT TWYS F, L, K MAX ACFT WT 33000 LBS SINGLE; 45000 LBS DUAL; TANDEM NA.

24 HR NOISE ABATEMENT PROCEDURE - TBJT AND TURBOFAN PWRD ACFT, TURBOROPS OVER 17,000 LBS, FOUR-ENGINE RECIPROCATING PWRD ACFT, AND SURPLUS MIL ACFT OVER 12,500 POUNDS SHOULD NOT DEP RWYS 28L & 28R OR LAND ON RWYS 10R & 10L.

TWY C BTN TWY J & F MAX ACFT WEIGHT 76,000 LBS SINGLE; 115,000 LBS DUAL; 257,000 LBS TANDEM (DUAL TANDEM NA).

BIRDS ON & INVOF ARPT.

RWYS 30, 28R AND RWY 28L DIST RMNG SIGNS L SIDE.

ACFT WITH EXPERIMENTAL OR LTD CERTIF HAVING OVER 1000 HORSEPOWER OR 4000 LBS ARE RSTRD TO RWY 12/30.

TWY K BTN TWY D & INT TWYS F, L, K MAX ACFT WEIGHT 56,000 LBS SINGLE; 70,000 LBS DUAL; 130,000 LBS TANDEM.

TWY G & H BTN RWY 28L & 28R: MAX ACFT WT 12,500 LBS.

Ontario, California
Ontario International
ICAO Identifier KONT

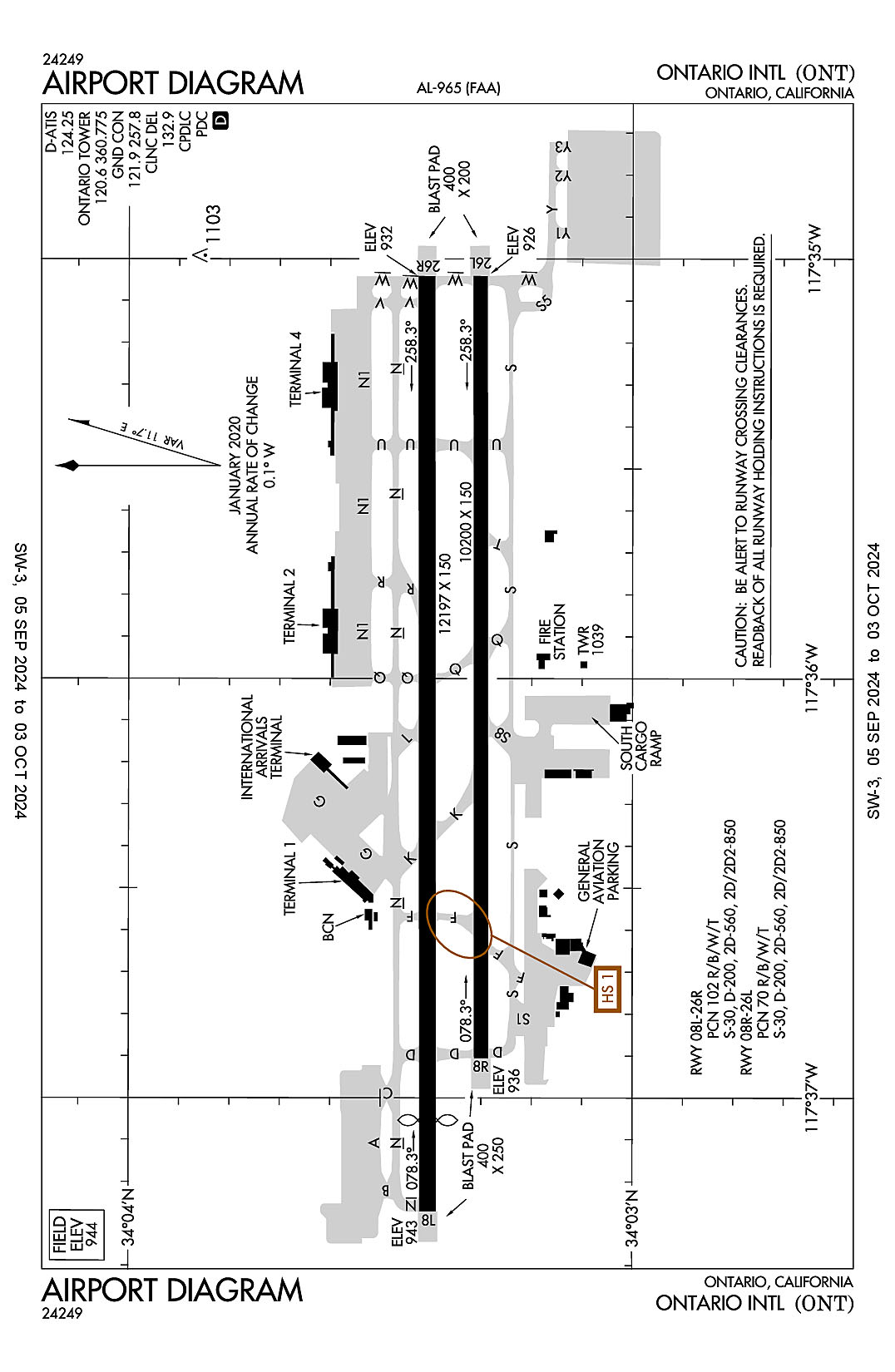

An airport diagram for Ontario International (ICAO Identifier KONT).

Ontario, CA
Ontario Intl
ICAO Identifier KONT

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 34-3-21.651N / 117-36-4.275W
2.2.2 From City: 2 miles E of ONTARIO, CA
2.2.3 Elevation: 944.1 ft
2.2.5 Magnetic Variation: 12E (2020)
2.2.6 Airport Contact: MARK THORPE
1923 EAST AVION STREET
ONTARIO, CA 91761 (909-544-5300)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I D certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 08L
2.12.2 True Bearing: 90
2.12.3 Dimensions: 12197 ft x 150 ft
2.12.4 PCN: 102 R/B/W/T
2.12.5 Coordinates: 34-3-24.7651N / 117-37-22.1586W
2.12.6 Threshold Elevation: 943.2 ft
2.12.6 Touchdown Zone Elevation: 944.1 ft

2.12.1 Designation: 26R
2.12.2 True Bearing: 270
2.12.3 Dimensions: 12197 ft x 150 ft
2.12.4 PCN: 102 R/B/W/T
2.12.5 Coordinates: 34-3-24.8259N / 117-34-57.2057W
2.12.6 Threshold Elevation: 931.8 ft
2.12.6 Touchdown Zone Elevation: 931.8 ft

2.12.1 Designation: 08R
2.12.2 True Bearing: 90
2.12.3 Dimensions: 10200 ft x 150 ft
2.12.4 PCN: 70 R/B/W/T
2.12.5 Coordinates: 34-3-17.8579N / 117-36-58.4219W
2.12.6 Threshold Elevation: 936 ft
2.12.6 Touchdown Zone Elevation: 936 ft

2.12.1 Designation: 26L
2.12.2 True Bearing: 270
2.12.3 Dimensions: 10200 ft x 150 ft
2.12.4 PCN: 70 R/B/W/T
2.12.5 Coordinates: 34-3-17.9013N / 117-34-57.1985W
2.12.6 Threshold Elevation: 926.2 ft
2.12.6 Touchdown Zone Elevation: 926.2 ft

AD 2.13 Declared Distances
2.13.1 Designation: 08L
2.13.2 Take-off Run Available: 12197
2.13.3 Take-off Distance Available: 12197
2.13.4 Accelerate-Stop Distance Available: 12197
2.13.5 Landing Distance Available: 11200

2.13.1 Designation: 26R
2.13.2 Take-off Run Available: 12197
2.13.3 Take-off Distance Available: 12197
2.13.4 Accelerate-Stop Distance Available: 12197
2.13.5 Landing Distance Available: 12197

2.13.1 Designation: 08R
2.13.2 Take-off Run Available: 10200
2.13.3 Take-off Distance Available: 10200
2.13.4 Accelerate-Stop Distance Available: 10200
2.13.5 Landing Distance Available: 10200

2.13.1 Designation: 26L
2.13.2 Take-off Run Available: 10200
2.13.3 Take-off Distance Available: 10200
2.13.4 Accelerate-Stop Distance Available: 10200
2.13.5 Landing Distance Available: 10200

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 08L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 26R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 08R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 26L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: CD/P
2.18.3 Channel: 118.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 124.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 120.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 360.775
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 08L. Magnetic variation: 12E
2.19.2 ILS Identification: AOD
2.19.5 Coordinates: 34-3-21.2425N / 117-36-59.9428W
2.19.6 Site Elevation: 935.9 ft

2.19.1 ILS Type: Localizer for runway 08L. Magnetic variation: 12E
2.19.2 ILS Identification: AOD
2.19.5 Coordinates: 34-3-24.8274N / 117-34-45.0837W
2.19.6 Site Elevation: 929.1 ft

2.19.1 ILS Type: DME for runway 26R. Magnetic variation: 12E
2.19.2 ILS Identification: ONT
2.19.5 Coordinates: 34-3-22.0428N / 117-37-33.7049W
2.19.6 Site Elevation: 955 ft

2.19.1 ILS Type: Glide Slope for runway 26R. Magnetic variation: 12E
2.19.2 ILS Identification: ONT
2.19.5 Coordinates: 34-3-22.0256N / 117-35-11.0293W
2.19.6 Site Elevation: 925.2 ft

2.19.1 ILS Type: Localizer for runway 26R. Magnetic variation: 12E
2.19.2 ILS Identification: ONT
2.19.5 Coordinates: 34-3-24.7616N / 117-37-34.6764W
2.19.6 Site Elevation: 946.2 ft

2.19.1 ILS Type: DME for runway 26L. Magnetic variation: 12E
2.19.2 ILS Identification: TWO
2.19.5 Coordinates: 34-3-20.4777N / 117-37-8.8646W
2.19.6 Site Elevation: 947.7 ft

2.19.1 ILS Type: Glide Slope for runway 26L. Magnetic variation: 12E
2.19.2 ILS Identification: TWO
2.19.5 Coordinates: 34-3-21.9048N / 117-35-11.0216W
2.19.6 Site Elevation: 925.2 ft

2.19.1 ILS Type: Inner Marker for runway 26L. Magnetic variation: 12E
2.19.2 ILS Identification: TWO
2.19.5 Coordinates: 34-3-17.924N / 117-34-47.8618W
2.19.6 Site Elevation: 923.6 ft

2.19.1 ILS Type: Localizer for runway 26L. Magnetic variation: 12E
2.19.2 ILS Identification: TWO
2.19.5 Coordinates: 34-3-17.8524N / 117-37-10.2711W
2.19.6 Site Elevation: 931.1 ft

General Remarks:

ALL MILITARY AND GENERAL AVIATION (FIXED OR ROTOR WING) ACFT OPS ARE RESTRICTED TO FBO FACILITIES WITH ADVANCE COORDINATION; OVERNIGHT TIEDOWN AND PARKING FEE.

PILOTS SHOULD USE JUDGEMENTAL OVERSTEER ON TWY S-4.

ACFT PRKG AND CONTR GND SVCS ARE LTD FOR UNSKED OPS. FOR SKED INFO CALL AIRFIELD OPS (909) 214-7682/7683.

TWY S-4 RSTD TO ACFT WITH WINGSPAN 117 FT OR SMALLER.

EASTBOUND B747, B777, A330, A340 OR LARGER ACFT ON TWY S PROHIBITED FROM NORTHBOUND TURNS ONTO TWY K.

FBO ON FREQ 130.75.

NOISE ABATEMENT PROCEDURES IN EFFECT; FULL-LENGTH TURBOJET DEP ENCOURAGED, NIGHTLY PREFERENTIAL RWY USAGE, 2200-0700.

PTNS OF TWY S IN THE VCY OF TWY F ARE NOT VSB FM ATCT; PILOTS USE CTN ENTERING TWY F SOUTH OF TWY S.

B747, B777, A330, A340 OR LARGER ACFT ON TWY S PROHIBITED FROM NORTHBOUND TURNS ONTO TWY P.

TWY Y EAST OF TWY W IS A NON-MOVEMENT AREA; ALL ACFT CTC RAMP CTL 131.325 FOR ACCESS.

WILDLIFE HAZARD MGT PLAN IN EFFECT; POTENTIAL BIRD HAZARDS MAY EXIST ON AND INVOF ARPT; BE ALERT TO LARGE NUMBERS OF STARLINGS AND CROWS POSSIBLE ON APCH TO RY 26L AND RY 26R, HAWKS, EAGLES, FALCONS AND OWLS SPOTTED ON OCCASION.

ACFT ACCESS TO TWY R FROM RWY 26R PROHIBITED

TWY F SOUTH OF TWY S RSTRD TO ACFT WITH 117 FT WINGSPAN AND SMALLER. TWY F SOUTH OF RWY 26L RSTRD TO ACFT WITH 180 FT WINGSPAN.

Palmdale, California
Palmdale Regional/USAF Plant 42
ICAO Identifier KPMD

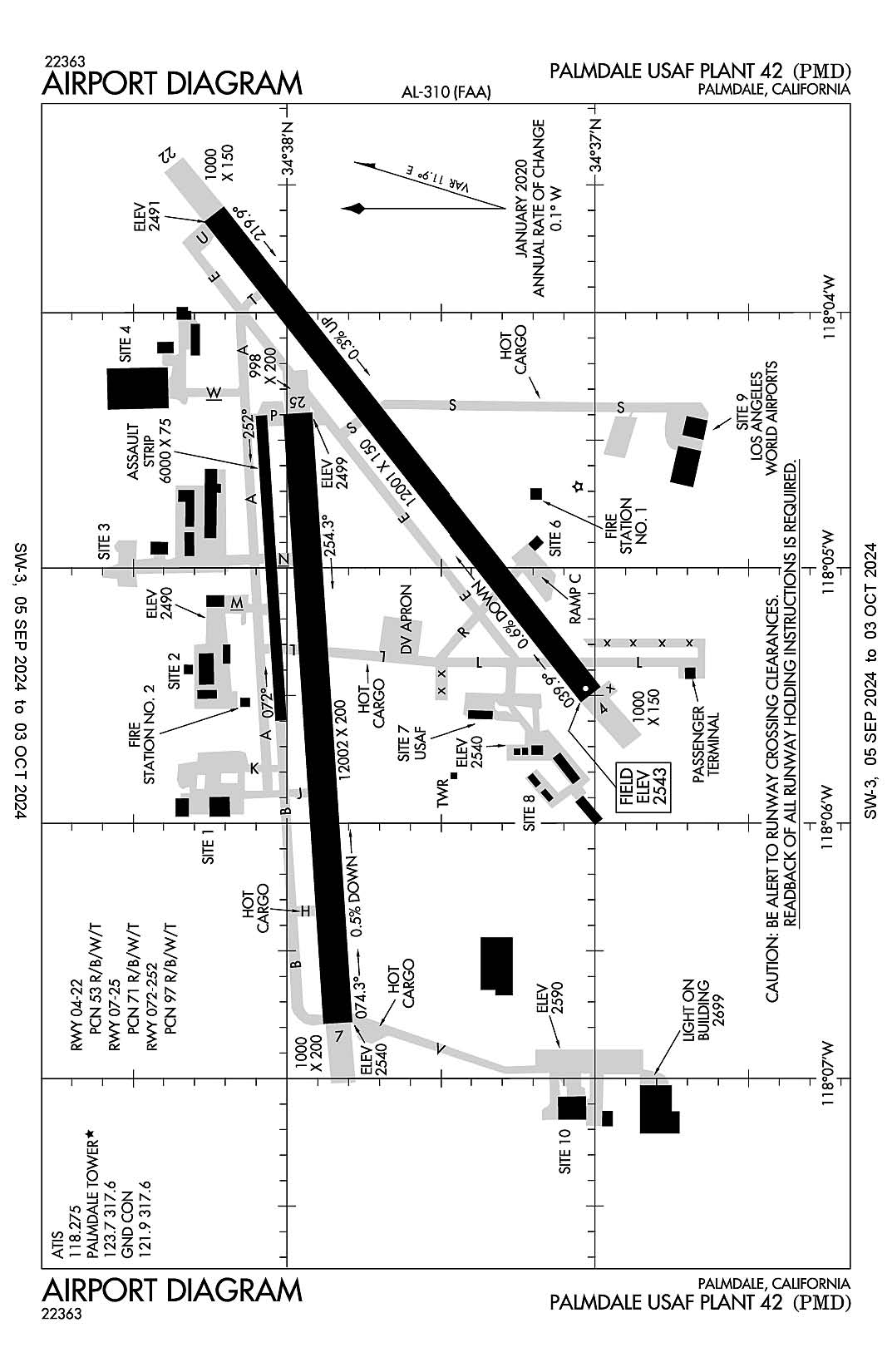

An airport diagram for Palmdale Regional/USAF Plant 42 (ICAO Identifier KPMD).

Palmdale, CA
Palmdale Rgnl/USAF Plant 42
ICAO Identifier KPMD

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 34-37-45.8N / 118-5-4.39W
2.2.2 From City: 3 miles NE of PALMDALE, CA
2.2.3 Elevation: 2542.5 ft
2.2.5 Magnetic Variation: 12E (2020)
2.2.6 Airport Contact: KEN NEITZEL
2503 E AVE P
PALMDALE, CA 93550 (661-272-6715)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, 1330-0600Z++ Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: NO
2.4.2 Fuel Types:
2.4.5 Hangar Space:
2.4.6 Repair Facilities: None

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: None

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 04
2.12.2 True Bearing: 52
2.12.3 Dimensions: 12001 ft x 150 ft
2.12.4 PCN: 53 R/B/W/T
2.12.5 Coordinates: 34-37-0.842N / 118-5-29.802W
2.12.6 Threshold Elevation: 2542.5 ft
2.12.6 Touchdown Zone Elevation: 2542.5 ft

2.12.1 Designation: 22
2.12.2 True Bearing: 232
2.12.3 Dimensions: 12001 ft x 150 ft
2.12.4 PCN: 53 R/B/W/T
2.12.5 Coordinates: 34-38-14.236N / 118-3-36.966W
2.12.6 Threshold Elevation: 2491.1 ft
2.12.6 Touchdown Zone Elevation: 2497.9 ft

2.12.1 Designation: 25
2.12.2 True Bearing: 266
2.12.3 Dimensions: 12002 ft x 200 ft
2.12.4 PCN: 71 R/B/W/T
2.12.5 Coordinates: 34-37-57.991N / 118-4-23.743W
2.12.6 Threshold Elevation: 2498.7 ft
2.12.6 Touchdown Zone Elevation: 2503.4 ft

2.12.1 Designation: 07
2.12.2 True Bearing: 86
2.12.3 Dimensions: 12002 ft x 200 ft
2.12.4 PCN: 71 R/B/W/T
2.12.5 Coordinates: 34-37-50.106N / 118-6-47.029W
2.12.6 Threshold Elevation: 2540.2 ft
2.12.6 Touchdown Zone Elevation: 2540.2 ft

2.12.1 Designation: 252
2.12.2 True Bearing:
2.12.3 Dimensions: 6000 ft x 75 ft
2.12.4 PCN: 97 R/B/W/T
2.12.5 Coordinates: -- / --
2.12.6 Threshold Elevation: ft
2.12.6 Touchdown Zone Elevation: ft

2.12.1 Designation: 072
2.12.2 True Bearing:
2.12.3 Dimensions: 6000 ft x 75 ft
2.12.4 PCN: 97 R/B/W/T
2.12.5 Coordinates: -- / --
2.12.6 Threshold Elevation: ft
2.12.6 Touchdown Zone Elevation: ft

AD 2.13 Declared Distances
2.13.1 Designation: 04
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 22
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 25
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 07
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 252
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 072
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 04
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 22
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 25
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 07
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 252
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 072
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ATIS
2.18.3 Channel: 118.275
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: OPR 1330-0600Z++.

2.18.1 Service Designation: GND/P
2.18.3 Channel: 317.6
2.18.5 Hours of Operation: OPR 1330-0600Z++.

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 123.7
2.18.5 Hours of Operation: OPR 1330-0600Z++.

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 317.6
2.18.5 Hours of Operation: OPR 1330-0600Z++.

2.18.1 Service Designation: LCL/S
2.18.3 Channel: 236.6
2.18.5 Hours of Operation: OPR 1330-0600Z++.

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 25. Magnetic variation: 12E
2.19.2 ILS Identification: PMD
2.19.5 Coordinates: 34-38-1.256N / 118-4-40.078W
2.19.6 Site Elevation: 2491.8 ft

2.19.1 ILS Type: Localizer for runway 25. Magnetic variation: 12E
2.19.2 ILS Identification: PMD
2.19.5 Coordinates: 34-37-48.786N / 118-7-10.911W
2.19.6 Site Elevation: 2552.2 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 15E
2.19.2 Navigation Aid Identification: PMD
2.19.5 Coordinates: 34-37-53.0341N / 118-3-49.7607W
2.19.6 Site Elevation: 2498 ft

General Remarks:

PRKG RAMP LCTD S OF RWY 22 & TWY V NOT VSB FM ATCT.

MISC: COMSEC STORAGE UNAVBL.

MISC: WINDS ARE EST DUE TO FMQ-13 WIND SENSORS BEING ACCURATE TO WITHIN ONLY +/- 2 KT. ATC/WX WILL NOT INCL/RELAY WIND CORR INTO FCST/PHRASEOLOGY. THEREFORE, AIRCREWS WILL INCORPORATE A +/- 2 KT ACCURACY INTO THEIR DECISION MAKING PROCESS FOR FLYING OPR.

CAUTION: RWY 25 NSTD MRK: SPOT LDG ZONE MRK LCTD AT 6000 FT REMAINING MRK. RWY 07-25 DECEPTIVE SFC MRK EXCEED STANDARD BY APPROX 50 FT.

MISC: BASE OPS OPR 1330-0600Z++, CLSD FEDERAL HOL.

ALL DEPT ACFT MUST FILE FPL WITH P42 AFLD MGMT OPS.

CAUTION: USE EXTREME CAUTION FOR UNMANNED AERIAL SYSTEMS (UAS) OPS IN VCNTY.

MILITARY USE: ASSAULT LDG ZONE LCTD 1ST 6,000 EAST END OF TWY B. RWY 252 MRK ONLY FOR C-130 ASSAULT OPR; ONE-WAY LDG ONLY.

RSTD: OFFL BUS ONLY. MIL ARPT. CIVIL USE RQR USAF APVL AND DD FORM 2400/01/02. PPR RQR FOR FULL STOP LDG ONLY. CALL DSN 525-9342, C661-275-9342.

TRAN ALERT (2 OF 2): UNABLE TO SVC ACFT WITH ORDNANCE. LTD GRD SUPPORT EQUIPMENT AVBL. NO POTABLE WATER SVC. NO TRAN MAINT AVBL. GND SVC UNAVBL WHEN LIGHTNING WITHIN 5 NM.

RSTD: OVERNIGHT PRK UNAUTHD ON C-RAMP.

CAUTION: CONTRACTOR LEASED SITES ARE INTENDED FOR ACFT BASED THEREIN; ENTRY GATES AND APRONS MAY NOT MEET AF OBST STDS.

FUEL: A++ AVBL. NO TRANS ACFT FUEL SVC AVBL. LTD FUELING AVBL; GOVT ACFT ONLY 1600-2300Z++ MON-FRI. 24 HR PN WITH AFLD MGR RQR; NO SAME DAY REQ; GAS AND GO UNAVBL. EXPECT 2+ HR DELAY FOR FUEL.

BIRD HAZ POTENTIAL EXISTS. MIGRATORY SEASON PHASE II 1 OCT - 31 MAR. DURG BWC MODERATE, TKOF AND LNDG PERMITTED. DURG BWC SEVERE, TKOF AND LNDG PROHIBITED.

RSTD: RWY RESERVED FOR ACFT BASED THEREIN ON SAT AND SUN. GRD CREWS MUST INSPECT ALL ANTICIPATED AFLD PAVEMENTS RQR FOR THEIR MSN PRIOR TO EACH ACFT ARR OR DEP

SERVICE-JASU: POWER CARS UNAVBL.

DRAINAGE DITCHES PARL RWY 22 FM TWY S TO TWY U.

MISC: FLT PLANS MUST BE FILED AND ACTIVATED WITH P42 AFLD MGMT. USE FLT SVC WHEN P42 AFLD MGMT CLSD.

CAUTION: VARIOUS ACFT TEST OPS MARKINGS PAINTED IN WHITE ON TAXIWAY UNIFORM.

CAUTION: CIV ACFT MAY NOT BE GRANTED ACCESS TO KPMD CLASS D FOR PRACTICE APCH OR TRSN OVER ARPT BDRYS.

TRAN ALERT (1 OF 2): NO FLEET SVC AVBL. NO FLW ME SVC AVBL. EXP PROGRESSIVE TAXI TO PRK. AIRCREW RESPONSIBLE FOR ACFT PINNING/SAFING.

UNLGT OBSTN SURROUND AFLD.

SERVICE-LGT: GATED THLD LGT RWY 07-25 AND RWY 04-22.

MISC: INDUS INSTLN - NO TRNSPN, LODGING OR NML SVC AVBL ON SITE.

RSTD: TWY L BTN RWY 04/22 AND PAX TRML UNLGTD AND USABLE FOR DAYLT VFR ONLY.

Sacramento, California
Sacramento International
ICAO Identifier KSMF

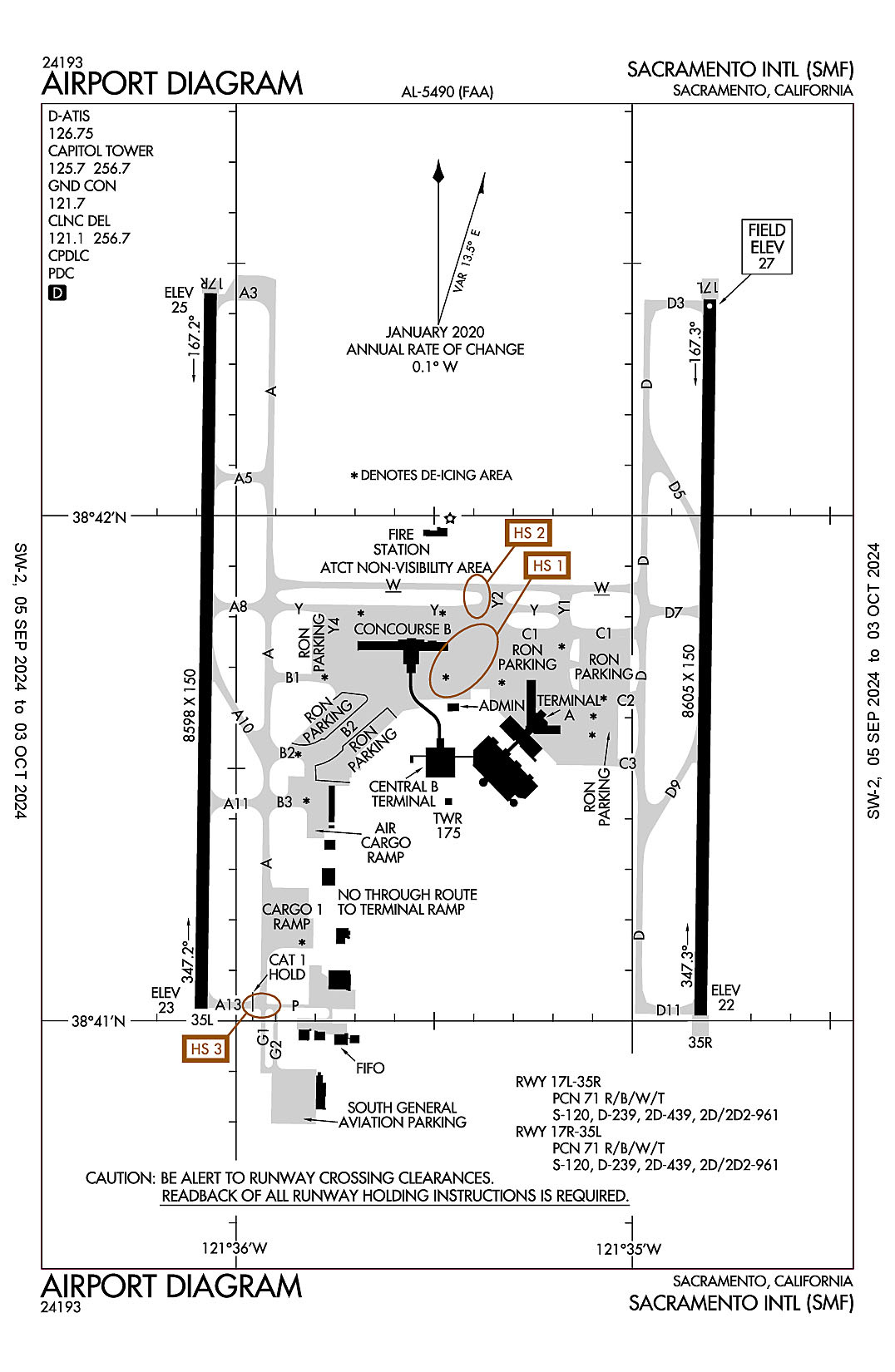

An airport diagram for Sacramento International (ICAO Identifier KSMF).

Sacramento, CA
Sacramento Intl
ICAO Identifier KSMF

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 38-41-43.6N / 121-35-26.8W
2.2.2 From City: 10 miles NW of SACRAMENTO, CA
2.2.3 Elevation: 26.9 ft
2.2.5 Magnetic Variation: 13E (2020)
2.2.6 Airport Contact: SHERI THOMPSON-DUARTE
6900 AIRPORT BLVD
SACRAMENTO, CA 95837 ((916) 874-0560)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MINOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I C certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 17L
2.12.2 True Bearing: 181
2.12.3 Dimensions: 8605 ft x 150 ft
2.12.4 PCN: 48 R/B/X/T
2.12.5 Coordinates: 38-42-25.6973N / 121-34-48.2125W
2.12.6 Threshold Elevation: 26.9 ft
2.12.6 Touchdown Zone Elevation: 26.9 ft

2.12.1 Designation: 35R
2.12.2 True Bearing: 1
2.12.3 Dimensions: 8605 ft x 150 ft
2.12.4 PCN: 48 R/B/X/T
2.12.5 Coordinates: 38-41-0.6506N / 121-34-49.642W
2.12.6 Threshold Elevation: 22.1 ft
2.12.6 Touchdown Zone Elevation: 23.8 ft

2.12.1 Designation: 17R
2.12.2 True Bearing: 181
2.12.3 Dimensions: 8598 ft x 150 ft
2.12.4 PCN: 70 R/B/W/U
2.12.5 Coordinates: 38-42-26.4236N / 121-36-3.8961W
2.12.6 Threshold Elevation: 24.8 ft
2.12.6 Touchdown Zone Elevation: 25.3 ft

2.12.1 Designation: 35L
2.12.2 True Bearing: 1
2.12.3 Dimensions: 8598 ft x 150 ft
2.12.4 PCN: 70 R/B/W/U
2.12.5 Coordinates: 38-41-1.439N / 121-36-5.3075W
2.12.6 Threshold Elevation: 22.5 ft
2.12.6 Touchdown Zone Elevation: 23.9 ft

AD 2.13 Declared Distances
2.13.1 Designation: 17L
2.13.2 Take-off Run Available: 8605
2.13.3 Take-off Distance Available: 8605
2.13.4 Accelerate-Stop Distance Available: 8605
2.13.5 Landing Distance Available: 8605

2.13.1 Designation: 35R
2.13.2 Take-off Run Available: 8605
2.13.3 Take-off Distance Available: 8605
2.13.4 Accelerate-Stop Distance Available: 8605
2.13.5 Landing Distance Available: 8605

2.13.1 Designation: 17R
2.13.2 Take-off Run Available: 8598
2.13.3 Take-off Distance Available: 8598
2.13.4 Accelerate-Stop Distance Available: 8598
2.13.5 Landing Distance Available: 8598

2.13.1 Designation: 35L
2.13.2 Take-off Run Available: 8598
2.13.3 Take-off Distance Available: 8598
2.13.4 Accelerate-Stop Distance Available: 8598
2.13.5 Landing Distance Available: 8598

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 17L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 35R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 17R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 35L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: CD/P
2.18.3 Channel: 121.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 256.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 126.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 256.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 125.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 256.7
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 17L. Magnetic variation: 13E
2.19.2 ILS Identification: MDK
2.19.5 Coordinates: 38-40-50.2189N / 121-34-46.3009W
2.19.6 Site Elevation: 30.9 ft

2.19.1 ILS Type: Glide Slope for runway 17L. Magnetic variation: 13E
2.19.2 ILS Identification: MDK
2.19.5 Coordinates: 38-42-15.18N / 121-34-43.22W
2.19.6 Site Elevation: 21.7 ft

2.19.1 ILS Type: Localizer for runway 17L. Magnetic variation: 13E
2.19.2 ILS Identification: MDK
2.19.5 Coordinates: 38-40-50.67N / 121-34-49.81W
2.19.6 Site Elevation: 17.4 ft

2.19.1 ILS Type: DME for runway 17R. Magnetic variation: 13E
2.19.2 ILS Identification: SMF
2.19.5 Coordinates: 38-40-34.7038N / 121-36-3.046W
2.19.6 Site Elevation: 34 ft

2.19.1 ILS Type: Glide Slope for runway 17R. Magnetic variation: 13E
2.19.2 ILS Identification: SMF
2.19.5 Coordinates: 38-42-15.8608N / 121-36-9.106W
2.19.6 Site Elevation: 22.9 ft

2.19.1 ILS Type: Inner Marker for runway 17R. Magnetic variation: 13E
2.19.2 ILS Identification: SMF
2.19.5 Coordinates: 38-42-34.0974N / 121-36-3.7746W
2.19.6 Site Elevation: 23 ft

2.19.1 ILS Type: Localizer for runway 17R. Magnetic variation: 13E
2.19.2 ILS Identification: SMF
2.19.5 Coordinates: 38-40-35.7492N / 121-36-5.7322W
2.19.6 Site Elevation: 19.6 ft

2.19.1 ILS Type: DME for runway 35L. Magnetic variation: 13E
2.19.2 ILS Identification: HUX
2.19.5 Coordinates: 38-40-34.7038N / 121-36-3.046W
2.19.6 Site Elevation: 34 ft

2.19.1 ILS Type: Glide Slope for runway 35L. Magnetic variation: 13E
2.19.2 ILS Identification: HUX
2.19.5 Coordinates: 38-41-12.5012N / 121-36-0.0807W
2.19.6 Site Elevation: 21.7 ft

2.19.1 ILS Type: Localizer for runway 35L. Magnetic variation: 13E
2.19.2 ILS Identification: HUX
2.19.5 Coordinates: 38-42-36.65N / 121-36-3.72W
2.19.6 Site Elevation: 22 ft

General Remarks:

WEST RAMP SPOTS 56-60 & F1 RSTRD TO TOW IN AND TOW OUT ONLY FROM TXL B2. WHEN PUSHING BACK FOR DEP FROM WEST RAMP SPOTS 56-60 & F1 EACH ACFT IS TO PUSH BACK ON TO TXL B2 AND PULL FWD TO THE "ENGINE START LINE" PRIOR TO STARTING ENGS.

CROP DUSTERS OPER INVOF ARPT AT OR BELOW 200 FT AGL.

MILITARY AIRCRAFT PARKING LIMITED. CONTACT ARPT OPNS IF PARKING IS REQUIRED (916) 806-5309.

UNPAVED SFC NORTH OF TWY P AND EAST OF TWY A AND SOUTH OF CARGO 1 RAMP CLSD TO HEL.

NOISE SENSITIVE AREAS W OF ARPT ON SAC RIVER. LCL TURN DISCOURAGED FOR JET ACFT. WHEN CONDUCTING IFR APCH IN VFR CONDITIONS EXECUTE MISSED APCH AT DEP END OF RYS. PLAN VFR PATTERNS TO E. USE MIN POWER SETTINGS.

TWY B1 CLSD TO CARGO ACFT.

PORTION OF TWY W 500 FT EAST OF TWY A TO 2100 FT EAST OF TWY A IS NOT VISIBLE FROM ATCT.

TWY Y4 RESTRICTED TO AIRCRAFT WITH A WINGSPAN OF LESS THAN 118 FT (GROUP III).

ALL ACFT CTC ATC GND CTL PRIOR TO MOVEMENT ON RAMP.

TWY RMK #2: THE MAXIMUM ALLOWABLE GROSS AIRCRAFT LOAD FOR TWYS G1, G2, AND THE GENERAL AVIATION PARKING APRON IS: 70,000 LBS FOR SINGLE GEAR AIRCRAFT; 170,000 LBS FOR DUAL GEAR AIRCRAFT; AND 250,000 LBS FOR DUAL TANDEM GEAR AIRCRAFT.

FAA GWT STRENGTH EVALUATION MD-11 = 590,000 LBS.

GND VEHICLE SURVEILLANCE SYS IN USE. OPR TRANSPONDERS WITH ALT RPRTG MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AP SFCS.

BIRDS ON AND IN VICINITY OF ARPT.

TWY RMK #2 CONT'D: AN AIRCRAFT CANNOT EXCEED THE AIRPLANE DESIGN GROUP III CRITERIA AND MUST HAVE A WHEEL BASE OF LESS THAN 60 FT.

San Diego, California
San Diego International
ICAO Identifier KSAN

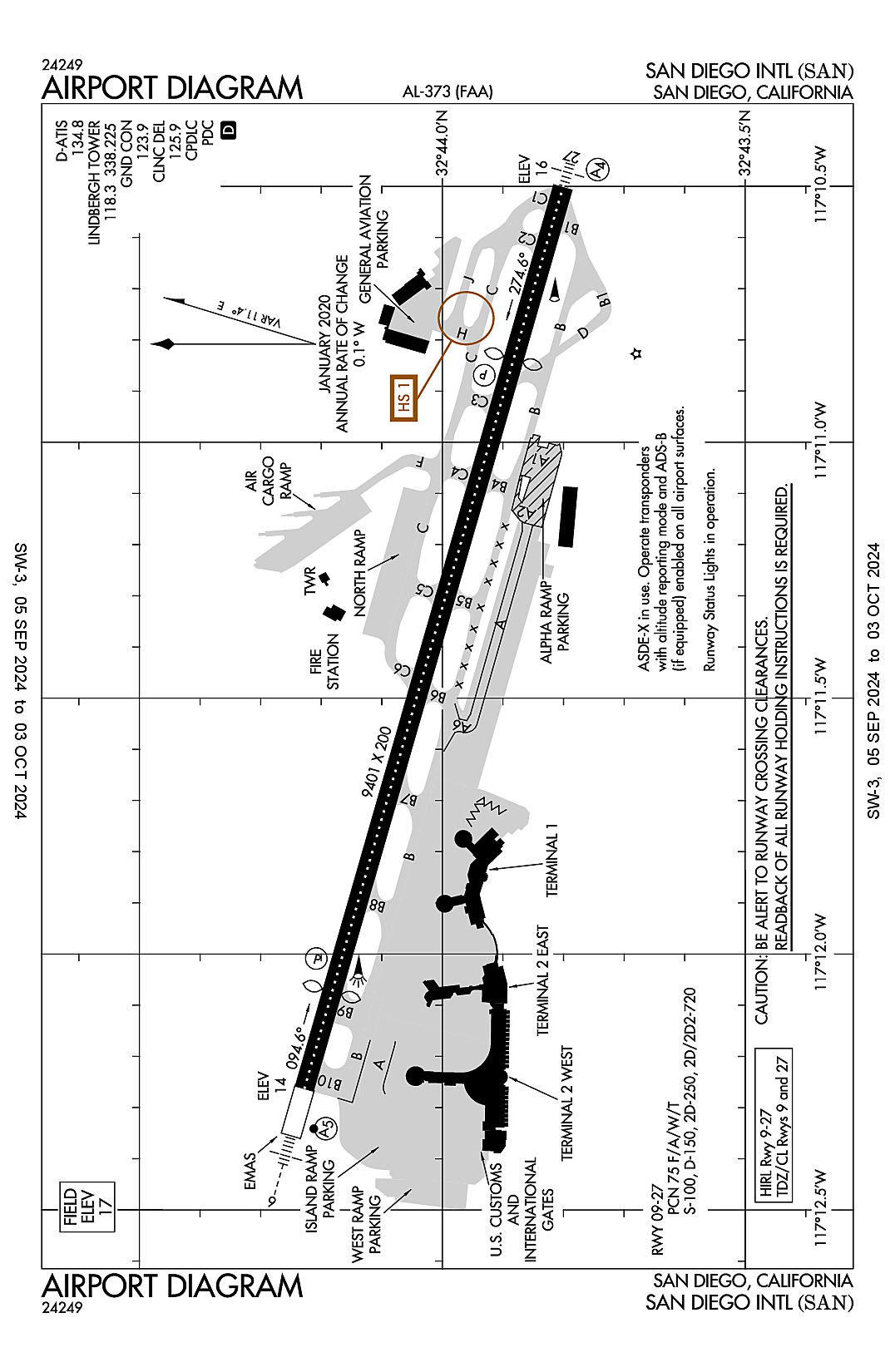

An airport diagram for San Diego International (ICAO Identifier KSAN).

San Diego, CA
San Diego Intl
ICAO Identifier KSAN

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 32-44-0.8N / 117-11-22.8W
2.2.2 From City: 2 miles W of SAN DIEGO, CA
2.2.3 Elevation: 16.8 ft
2.2.5 Magnetic Variation: 11E (2020)
2.2.6 Airport Contact: DEAN ROBBINS
3225 N HARBOR DRIVE
SAN DIEGO, CA 92101 (619-400-2718)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MINOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I D certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 27
2.12.2 True Bearing: 286
2.12.3 Dimensions: 9400 ft x 200 ft
2.12.4 PCN: 75 F/A/W/T
2.12.5 Coordinates: 32-43-48.0086N / 117-10-29.9018W
2.12.6 Threshold Elevation: 16.4 ft
2.12.6 Touchdown Zone Elevation: 16.7 ft

2.12.1 Designation: 09
2.12.2 True Bearing: 106
2.12.3 Dimensions: 9400 ft x 200 ft
2.12.4 PCN: 75 F/A/W/T
2.12.5 Coordinates: 32-44-13.6413N / 117-12-15.6841W
2.12.6 Threshold Elevation: 13.7 ft
2.12.6 Touchdown Zone Elevation: 16.6 ft

AD 2.13 Declared Distances
2.13.1 Designation: 27
2.13.2 Take-off Run Available: 9401
2.13.3 Take-off Distance Available: 9401
2.13.4 Accelerate-Stop Distance Available: 9401
2.13.5 Landing Distance Available: 7591

2.13.1 Designation: 09
2.13.2 Take-off Run Available: 8280
2.13.3 Take-off Distance Available: 9401
2.13.4 Accelerate-Stop Distance Available: 8280
2.13.5 Landing Distance Available: 7280

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 27
2.14.2 Approach Lighting System: MALS
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 09
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: CD/P
2.18.3 Channel: 125.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 134.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 123.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 338.225
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 09. Magnetic variation: 11E
2.19.2 ILS Identification: SAN
2.19.5 Coordinates: 32-43-47.0838N / 117-10-28.4698W
2.19.6 Site Elevation: 27.4 ft

2.19.1 ILS Type: Glide Slope for runway 09. Magnetic variation: 11E
2.19.2 ILS Identification: SAN
2.19.5 Coordinates: 32-44-10.76N / 117-11-52.14W
2.19.6 Site Elevation: 16 ft

2.19.1 ILS Type: Localizer for runway 09. Magnetic variation: 11E
2.19.2 ILS Identification: SAN
2.19.5 Coordinates: 32-43-47.6019N / 117-10-28.237W
2.19.6 Site Elevation: 25.9 ft

2.19.1 ILS Type: DME for runway 27. Magnetic variation: 11E
2.19.2 ILS Identification: UBR
2.19.5 Coordinates: 32-44-11.4624N / 117-12-20.064W
2.19.6 Site Elevation: 22.7 ft

2.19.1 ILS Type: Localizer for runway 27. Magnetic variation: 11E
2.19.2 ILS Identification: UBR
2.19.5 Coordinates: 32-44-14.7891N / 117-12-20.4337W
2.19.6 Site Elevation: 10.9 ft

General Remarks:

CROSS-BLEED ENGINE STARTS PERMITTED ONLY ON PARALLEL TWY WITH ACFT ALIGNED ON TWY CNTRLN.

RWY STATUS LGTS IN OPN.

747 AND LARGER ACFT ARE PROHIBITED FM MAKING INTERSECTION TKOFS.

INTERMITTENT PRESENCE OF BIRDS ON AND INVOF OF ARPT.

ACFT WITH WINGSPANS GTR THAN 171 FT (52M) RSTD FROM USING TWY D SOUTH OF TWY B, AND WHEN EXITING RWY 09 WB ON TWY B.

DUE TO PAEW ON RY 09-27, 30 MINUTE PPR 0830-1230Z FOR ALL LANDINGS AND DEPARTURES CALL 619-400-2710.

IN THE EVENT OF A DIVERSION OR IRREGULAR OPERATIONS EVENTS, ACFT OPERATORS CONTACT THE APT DUTY MGR (619) 400-2710 FOR PPR DUE TO LIMITATIONS ASSOCIATED WITH HANDLING DIVERTED FLTS. LIMITATIONS INCLUDE RESTRICTED GATE SPACE, CUSTOMS SERVICES AS WELL AS ACFT SERVICING & PARKING.

MILITARY ACFT ON OFFICIAL BUSINESS ONLY CONTACT ARPT OPS AT 619-400-2710 FOR PPR.

TERRAIN & BLDGS TO 500' MSL N & E WITHIN 1 1/2 MI.

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

PILOTS REQUIRED TO CTC ATCT GROUND CONTROLLER PRIOR TO PUSHBACK, TOW OUT AND TAXI FOR TRAFFIC ADVISORIES.

30 MIN PPR (619-400-2710) FOR ACFT WITH OVER 171 FT WINGSPAN.

ACFT CROSSING RY 09/27 ON TWY C6, HOLD SHORT OF TWY C6 FACING WEST ON TWY C, PARALLEL TO RY.

ULTRALIGHT ACFT PROHIBITED ON AP.

TAXIING ACFT ARE PROHIBITED FROM PASSING TO THE SOUTH OF ACFT LCTD ON TWY B INTO ALLEY LCTD BTWN GATES 7 AND 14.

TAXILANE A RSTRD TO ACFT WITH WINGSPANS OF 135 FT OR LESS.

TWY C EDGE LGTS OTS INDEFLY.

OUTBOARD ENGINES OF FOUR-ENGINE ACFT ARE TO BE KEPT AT IDLE POWER FOR ALL GND MANEUVERING.

TAXIING ACFT SHALL FOLLOW LEAD-IN LINES UNTIL THE NOSE WHEEL OF THE ACFT HAS ENTERED THE NON-MOVEMENT AREA OF THE ALLEY.

TO REDUCE JET BLAST IMPACT AT N END OF TWY F ACFT WILL NOT START ENG UNTIL 800 FT FM N END OF TWY F; ABEAM THE SECOND PARKING PAD.

PRACTICE APPROACHES AND TGL PROHIBITED.

FOR ACCESS TO/FR TERMINAL 2: GATES 23, 25, 27, 29, 31, 33-51 AND THE ISLAND AND WEST RON PRKG RAMPS, CTC RAMP CTL ON 129.775 SRY 131.975 FR 0600-2400. FR 0000-0600 CTC GROUND CTL ON 123.9.

San Francisco, California
San Francisco International
ICAO Identifier KSFO

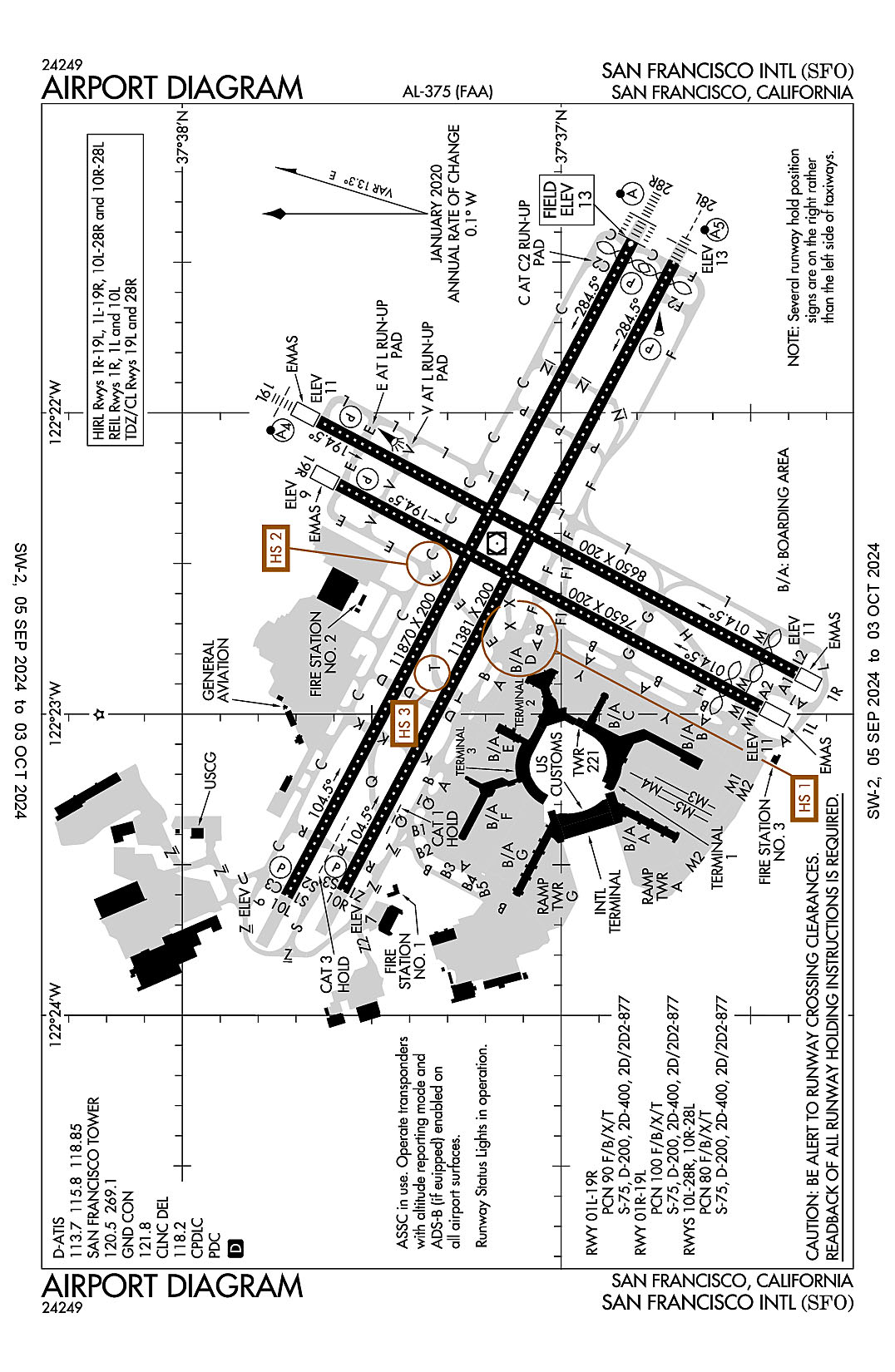

An airport diagram for San Francisco International (ICAO Identifier KSFO).

San Francisco, CA
San Francisco Intl
ICAO Identifier KSFO

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 37-37-7.7N / 122-22-31.5W
2.2.2 From City: 8 miles SE of SAN FRANCISCO, CA
2.2.3 Elevation: 13.1 ft
2.2.5 Magnetic Variation: 14E (2015)
2.2.6 Airport Contact: IVAR SATERO
PO BOX 8097
SAN FRANCISCO, CA 94128 ((650) 821-3355)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I E certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 01L
2.12.2 True Bearing: 28
2.12.3 Dimensions: 7650 ft x 200 ft
2.12.4 PCN: 90 F/B/X/T
2.12.5 Coordinates: 37-36-28.4323N / 122-22-58.5426W
2.12.6 Threshold Elevation: 10.7 ft
2.12.6 Touchdown Zone Elevation: 10.9 ft

2.12.1 Designation: 19R
2.12.2 True Bearing: 208
2.12.3 Dimensions: 7650 ft x 200 ft
2.12.4 PCN: 90 F/B/X/T
2.12.5 Coordinates: 37-37-35.3329N / 122-22-14.1939W
2.12.6 Threshold Elevation: 9.2 ft
2.12.6 Touchdown Zone Elevation: 11.2 ft

2.12.1 Designation: 01R
2.12.2 True Bearing: 28
2.12.3 Dimensions: 8650 ft x 200 ft
2.12.4 PCN: 100 F/B/X/T
2.12.5 Coordinates: 37-36-22.7876N / 122-22-51.7467W
2.12.6 Threshold Elevation: 11.4 ft
2.12.6 Touchdown Zone Elevation: 11.2 ft

2.12.1 Designation: 19L
2.12.2 True Bearing: 208
2.12.3 Dimensions: 8650 ft x 200 ft
2.12.4 PCN: 100 F/B/X/T
2.12.5 Coordinates: 37-37-38.4319N / 122-22-1.599W
2.12.6 Threshold Elevation: 10.5 ft
2.12.6 Touchdown Zone Elevation: 11 ft

2.12.1 Designation: 10L
2.12.2 True Bearing: 118
2.12.3 Dimensions: 11870 ft x 200 ft
2.12.4 PCN: 80 F/B/X/T
2.12.5 Coordinates: 37-37-43.4594N / 122-23-36.2107W
2.12.6 Threshold Elevation: 5.5 ft
2.12.6 Touchdown Zone Elevation: 7 ft

2.12.1 Designation: 28R
2.12.2 True Bearing: 298
2.12.3 Dimensions: 11870 ft x 200 ft
2.12.4 PCN: 80 F/B/X/T
2.12.5 Coordinates: 37-36-48.721N / 122-21-25.708W
2.12.6 Threshold Elevation: 13 ft
2.12.6 Touchdown Zone Elevation: 12.9 ft

2.12.1 Designation: 28L
2.12.2 True Bearing: 298
2.12.3 Dimensions: 11381 ft x 200 ft
2.12.4 PCN: 80 F/B/X/T
2.12.5 Coordinates: 37-36-42.163N / 122-21-30.057W
2.12.6 Threshold Elevation: 12.6 ft
2.12.6 Touchdown Zone Elevation: 12.6 ft

2.12.1 Designation: 10R
2.12.2 True Bearing: 118
2.12.3 Dimensions: 11381 ft x 200 ft
2.12.4 PCN: 80 F/B/X/T
2.12.5 Coordinates: 37-37-34.648N / 122-23-35.1796W
2.12.6 Threshold Elevation: 7.1 ft
2.12.6 Touchdown Zone Elevation: 8 ft

AD 2.13 Declared Distances
2.13.1 Designation: 01L
2.13.2 Take-off Run Available: 7650
2.13.3 Take-off Distance Available: 7650
2.13.4 Accelerate-Stop Distance Available: 7650
2.13.5 Landing Distance Available: 7010

2.13.1 Designation: 19R
2.13.2 Take-off Run Available: 7650
2.13.3 Take-off Distance Available: 7650
2.13.4 Accelerate-Stop Distance Available: 7650
2.13.5 Landing Distance Available: 7650

2.13.1 Designation: 01R
2.13.2 Take-off Run Available: 8650
2.13.3 Take-off Distance Available: 8650
2.13.4 Accelerate-Stop Distance Available: 8650
2.13.5 Landing Distance Available: 8090

2.13.1 Designation: 19L
2.13.2 Take-off Run Available: 8650
2.13.3 Take-off Distance Available: 8650
2.13.4 Accelerate-Stop Distance Available: 8650
2.13.5 Landing Distance Available: 8650

2.13.1 Designation: 10L
2.13.2 Take-off Run Available: 11870
2.13.3 Take-off Distance Available: 11870
2.13.4 Accelerate-Stop Distance Available: 11193
2.13.5 Landing Distance Available: 11193

2.13.1 Designation: 28R
2.13.2 Take-off Run Available: 11870
2.13.3 Take-off Distance Available: 11870
2.13.4 Accelerate-Stop Distance Available: 11870
2.13.5 Landing Distance Available: 11236

2.13.1 Designation: 28L
2.13.2 Take-off Run Available: 11381
2.13.3 Take-off Distance Available: 11381
2.13.4 Accelerate-Stop Distance Available: 10981
2.13.5 Landing Distance Available: 10275

2.13.1 Designation: 10R
2.13.2 Take-off Run Available: 11381
2.13.3 Take-off Distance Available: 11381
2.13.4 Accelerate-Stop Distance Available: 10704
2.13.5 Landing Distance Available: 10704

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 01L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 19R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 01R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 19L
2.14.2 Approach Lighting System: MALSF
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 10L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 28R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 28L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 10R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: CD PRE TAXI CLNC
2.18.3 Channel: 118.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 113.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 115.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 118.85
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 120.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 269.1
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 19L. Magnetic variation: 14E
2.19.2 ILS Identification: SIA
2.19.5 Coordinates: 37-36-18.7188N / 122-22-59.4082W
2.19.6 Site Elevation: 20.6 ft

2.19.1 ILS Type: Glide Slope for runway 19L. Magnetic variation: 14E
2.19.2 ILS Identification: SIA
2.19.5 Coordinates: 37-37-30.7381N / 122-22-11.0577W
2.19.6 Site Elevation: 6.3 ft

2.19.1 ILS Type: Localizer for runway 19L. Magnetic variation: 14E
2.19.2 ILS Identification: SIA
2.19.5 Coordinates: 37-36-16.2796N / 122-22-56.0614W
2.19.6 Site Elevation: 19 ft

2.19.1 ILS Type: DME for runway 28R. Magnetic variation: 14E
2.19.2 ILS Identification: GWQ
2.19.5 Coordinates: 37-37-48.1978N / 122-23-40.6085W
2.19.6 Site Elevation: 17.7 ft

2.19.1 ILS Type: Glide Slope for runway 28R. Magnetic variation: 14E
2.19.2 ILS Identification: GWQ
2.19.5 Coordinates: 37-36-51.3989N / 122-21-43.1171W
2.19.6 Site Elevation: 8.2 ft

2.19.1 ILS Type: Inner Marker for runway 28R. Magnetic variation: 14E
2.19.2 ILS Identification: GWQ
2.19.5 Coordinates: 37-36-46.1575N / 122-21-19.7418W
2.19.6 Site Elevation: 13 ft

2.19.1 ILS Type: Localizer for runway 28R. Magnetic variation: 14E
2.19.2 ILS Identification: GWQ
2.19.5 Coordinates: 37-37-46.3566N / 122-23-43.1194W
2.19.6 Site Elevation: 5.3 ft

2.19.1 ILS Type: DME for runway 28L. Magnetic variation: 14E
2.19.2 ILS Identification: SFO
2.19.5 Coordinates: 37-37-39.5363N / 122-23-41.4575W
2.19.6 Site Elevation: 20.3 ft

2.19.1 ILS Type: Glide Slope for runway 28L. Magnetic variation: 14E
2.19.2 ILS Identification: SFO
2.19.5 Coordinates: 37-36-51.2769N / 122-21-43.1999W
2.19.6 Site Elevation: 8.2 ft

2.19.1 ILS Type: Localizer for runway 28L. Magnetic variation: 14E
2.19.2 ILS Identification: SFO
2.19.5 Coordinates: 37-37-37.471N / 122-23-41.9198W
2.19.6 Site Elevation: 9.3 ft

2.19.1 Navigation Aid Type: VOR/DME. Magnetic variation: 17E
2.19.2 Navigation Aid Identification: SFO
2.19.5 Coordinates: 37-37-10.1465N / 122-22-26.0165W
2.19.6 Site Elevation: 6 ft

General Remarks:

SEVERAL RY HOLD POSITION SIGNS ARE ON THE RIGHT RATHER THAN THE LEFT SIDE OF THE TWYS.

NOISE SENSITIVE ARPT; FOR NOISE ABATEMENT PROCEDURES CTC ARPT NOISE OFFICE MON-FRI 0800-1700 BY CALLING 650-821-5100.

RWY STATUS LGTS IN OPN.

PAEW APCH END RYS 28L, 28R, 19L INDEFLY.

ALL OUBD TWY ZULU 2 HVY ACFT WITH A WINGSPAN OF 171 FT OR GTR UNDER PWR PROHIBITED FROM ENTERING WB TWY ZULU.

RWY 1L CLSD TO DEPARTING TRIJET ACFT WITH WINGSPAN GREATER THAN 155 FT.

AIRLINE PILOTS SHALL STRICTLY FOLLOW THE PAINTED NOSE GEAR LINES AND NO OVERSTEERING ADJUSTMENT IS PERMITTED.

ASSC IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

FLOCKS OF BIRDS FEEDING ALONG SHORELINE ADJ TO ARPT; ON OCCASIONS FLY ACROSS VARIOUS PARTS OF THE ARPT.

TWY S2 BTN TWY Z AND TWY S3 CLSD TO ACFT WITH WINGSPAN OVER THAN 215 FT.

HIGH SPEED TWY (T) GRVD FULL WIDTH BTN RWY 28R AND 28L.

RY 10 PREFERRED RY BTWN 0100-0600 WEATHER AND FLIGHT CONDITIONS PERMITTING.

SIMULTANEOUS OPERATIONS IN EFFECT ALL RYS.

San Jose, California
Norman Y. Mineta San Jose International
ICAO Identifier KSJC

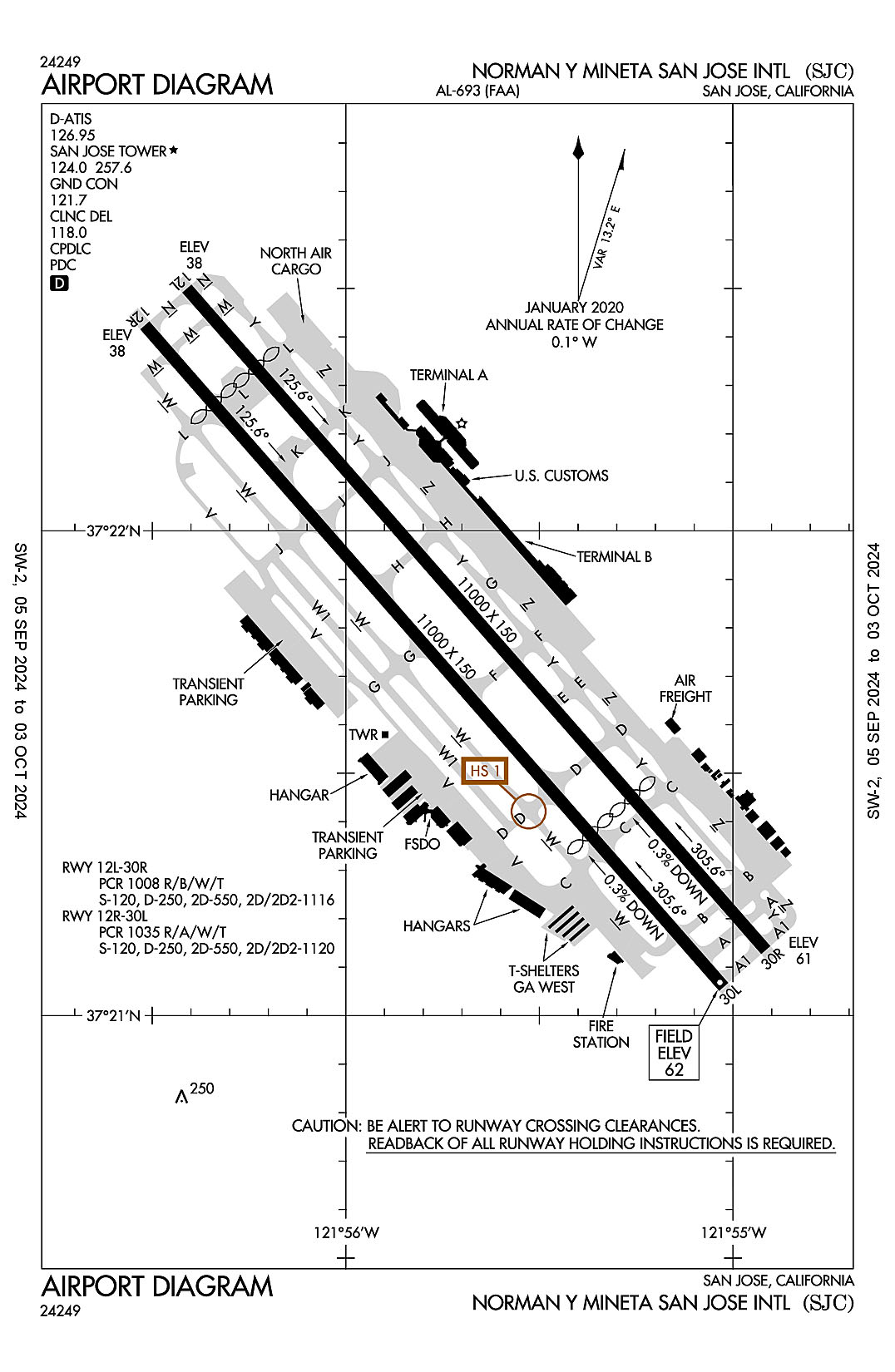

An airport diagram for Norman Y Mineta San Jose International (ICAO Identifier KSJC).

San Jose, CA
Norman Y. Mineta San Jose Intl
ICAO Identifier KSJC

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 37-21-46.781N / 121-55-43.034W
2.2.2 From City: 2 miles NW of SAN JOSE, CA
2.2.3 Elevation: 62.2 ft
2.2.5 Magnetic Variation: 13E (2020)
2.2.6 Airport Contact: JOHN AITKEN
1701 AIRPORT BLVD., SUITE B-1130
SAN JOSE, CA 95110 ((408) 277-5100)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I D certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 12L
2.12.2 True Bearing: 139
2.12.3 Dimensions: 11000 ft x 150 ft
2.12.4 PCN: 82 R/B/W/T
2.12.5 Coordinates: 37-22-29.9801N / 121-56-24.6377W
2.12.6 Threshold Elevation: 37.7 ft
2.12.6 Touchdown Zone Elevation: 43.8 ft

2.12.1 Designation: 30R
2.12.2 True Bearing: 319
2.12.3 Dimensions: 11000 ft x 150 ft
2.12.4 PCN: 82 R/B/W/T
2.12.5 Coordinates: 37-21-8.1324N / 121-54-54.9212W
2.12.6 Threshold Elevation: 61.1 ft
2.12.6 Touchdown Zone Elevation: 55.2 ft

2.12.1 Designation: 12R
2.12.2 True Bearing: 139
2.12.3 Dimensions: 11000 ft x 150 ft
2.12.4 PCN: 67 R/C/W/T
2.12.5 Coordinates: 37-22-25.4266N / 121-56-31.1597W
2.12.6 Threshold Elevation: 38.2 ft
2.12.6 Touchdown Zone Elevation: 45.6 ft

2.12.1 Designation: 30L
2.12.2 True Bearing: 319
2.12.3 Dimensions: 11000 ft x 150 ft
2.12.4 PCN: 67 R/C/W/T
2.12.5 Coordinates: 37-21-3.5766N / 121-55-1.4432W
2.12.6 Threshold Elevation: 62.1 ft
2.12.6 Touchdown Zone Elevation: 57 ft

AD 2.13 Declared Distances
2.13.1 Designation: 12L
2.13.2 Take-off Run Available: 10139
2.13.3 Take-off Distance Available: 11000
2.13.4 Accelerate-Stop Distance Available: 10139
2.13.5 Landing Distance Available: 8831

2.13.1 Designation: 30R
2.13.2 Take-off Run Available: 10134
2.13.3 Take-off Distance Available: 11000
2.13.4 Accelerate-Stop Distance Available: 10134
2.13.5 Landing Distance Available: 7597

2.13.1 Designation: 12R
2.13.2 Take-off Run Available: 9883
2.13.3 Take-off Distance Available: 11000
2.13.4 Accelerate-Stop Distance Available: 9883
2.13.5 Landing Distance Available: 8587

2.13.1 Designation: 30L
2.13.2 Take-off Run Available: 10152
2.13.3 Take-off Distance Available: 11000
2.13.4 Accelerate-Stop Distance Available: 10152
2.13.5 Landing Distance Available: 7614

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 12L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 30R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 12R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 30L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: CD PRE TAXI CLNC
2.18.3 Channel: 118
2.18.5 Hours of Operation: 0600-0000

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 126.95
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.7
2.18.5 Hours of Operation: 0600-0000

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 124
2.18.5 Hours of Operation: 0600-0000

2.18.1 Service Designation: LCL/P IC
2.18.3 Channel: 257.6
2.18.5 Hours of Operation: 0600-0000

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 12R. Magnetic variation: 13E
2.19.2 ILS Identification: SLV
2.19.5 Coordinates: 37-21-2.6639N / 121-55-1.3459W
2.19.6 Site Elevation: 81.4 ft

2.19.1 ILS Type: Glide Slope for runway 12R. Magnetic variation: 13E
2.19.2 ILS Identification: SLV
2.19.5 Coordinates: 37-22-6.0334N / 121-56-14.5901W
2.19.6 Site Elevation: 36.8 ft

2.19.1 ILS Type: Localizer for runway 12R. Magnetic variation: 13E
2.19.2 ILS Identification: SLV
2.19.5 Coordinates: 37-21-3.0434N / 121-55-0.8585W
2.19.6 Site Elevation: 75.1 ft

2.19.1 ILS Type: DME for runway 30L. Magnetic variation: 13E
2.19.2 ILS Identification: SJC
2.19.5 Coordinates: 37-22-27.575N / 121-56-32.6145W
2.19.6 Site Elevation: 56 ft

2.19.1 ILS Type: Glide Slope for runway 30L. Magnetic variation: 13E
2.19.2 ILS Identification: SJC
2.19.5 Coordinates: 37-21-33.0094N / 121-55-27.8798W
2.19.6 Site Elevation: 48.6 ft

2.19.1 ILS Type: Localizer for runway 30L. Magnetic variation: 13E
2.19.2 ILS Identification: SJC
2.19.5 Coordinates: 37-22-27.1917N / 121-56-33.1047W
2.19.6 Site Elevation: 49.6 ft

2.19.1 Navigation Aid Type: VOR/DME. Magnetic variation: 16E
2.19.2 Navigation Aid Identification: SJC
2.19.5 Coordinates: 37-22-28.9638N / 121-56-40.8069W
2.19.6 Site Elevation: 34.5 ft

General Remarks:

UNSCHEDULED OPNS BY GROUP 5 ACFT (B747) AND LARGER NOT AUTH EXCEPT WITH PRIOR ARPT APPROVAL CTC AMGR (408) 392-3500.

CURFEW HRS 2300-0700 FAR 36 STAGE II, 2330-0630 FAR 36 STAGE III ACFT LISTED ON THE SCHEDULE OF AUTHORIZED AIRCRAFT ISSUED BY THE DIRECTOR OF AVIATION. DELAYED SCHEDULED FLIGHTS, AND ALTERNATE/EMERGENCY OPERATIONS MAY BE EXEMPT FROM CURFEW HOUR RESTRICTIONS.

PRIOR AIRPORT NOTIFICATION IS REQUIRED FOR ALL LATE/EARLY ARRIVALS. CONTACT MANAGER ON DUTY AT (408) 392-3500.

FIRST 400 FT RY 30R & RY 30L CLSD FOR TKOF DC10, MD11, L1011.

TWY V LTD TO ACFT WITH WINGSPAN OF LESS THAN 118 FT (B-737-900 OR SMALLER).

RRP RQRD FM FBO FOR TSNT HEL OPS.

TWY W BETWEEN TWY J AND TWY L CAN SUPPORT GROUP IV ACFT.

FOR CD WHEN ATCT IS CLSD CTC NORCAL APCH AT 916-361-3748.

TWY Y WILL BE PERIODICALLY RSTRD TO ACFT WITH A WINGSPAN OF LESS THAN 171 FT (MD-11 OR SMALLER) DRG B-787 AND B-747 OPNS ON RWY 12L/30R.

TWY D BETWEEN TWY W AND TWY V LIMITED TO ACFT WITH A WINGSPAN OF LESS THAN 118 FT (B-737-900 OR SMALLER).

TWY Z WILL BE PERIODICALLY RSTRD TO ACFT WITH A WINGSPAN OF LESS THAN 118 FT (B-737-900 OR SMALLER) DRG B-787 AND B-747 OPNS. TWY Z BTN 200 FT NW OF TWY H AND 200 FT NW OF TWY K LTD TO ACFT WITH WINGSPAN OF LESS THAN 135 FT (B-757-300 OR SMALLER).

HIGH INTENSITY LIGHT ACTIVITY: HIGH INTENSITY LIGHTS (LASERS AND LARGE MEDIA SCREENS) MAY BE VISIBLE TO ARR AND DEP ACFT TO SAN JOSE INTERNATIONAL AIRPORT DURING EVENTS AT THE LEVI STADIUM COMPLEX (37-24-15N/121-58-14W, SJC VORTAC R-303/2.1 DME). FLIGHT CREWS SHOULD USE CAUTION WHEN OPERATING IN THIS AREA DURING STADIUM EVENTS. COCKPIT ILLUMINATION AND GLARE EFFECT REDUCING VIS MAY BE INTENSIFIED DURING ARR AND DEP OPS ESPECIALLY AT NIGHT.

BIRDS FREQUENTLY ON OR IN VICINITY OF AIRPORT.

ALL TURBINE ENGINE RUN-UPS REQUIRE PRIOR AIRPORT APPROVAL, CONTACT MGR ON DUTY (408) 392-3500.

NOISE ABATEMENT PROCEDURE: RY 30L/12R IS PREFERRED ARRIVAL RY FOR JET ACFT AND RY 12L/30R IS THE PREFERRED DEP RY FOR JET ACFT. ALL JET ACFT TKOFS ARE TO BE INITIATED FM EOR UNLESS DIRECTED OTHERWISE BY ATCT.

HOT SPOT 3: RY 11-29 IS NOW TWY W1. SURFACE IS USABLE ONLY AS TAXIWAY AND IS MARKED AND SIGNED AS A TWY.

Stockton, California
Stockton Metropolitan
ICAO Identifier KSCK

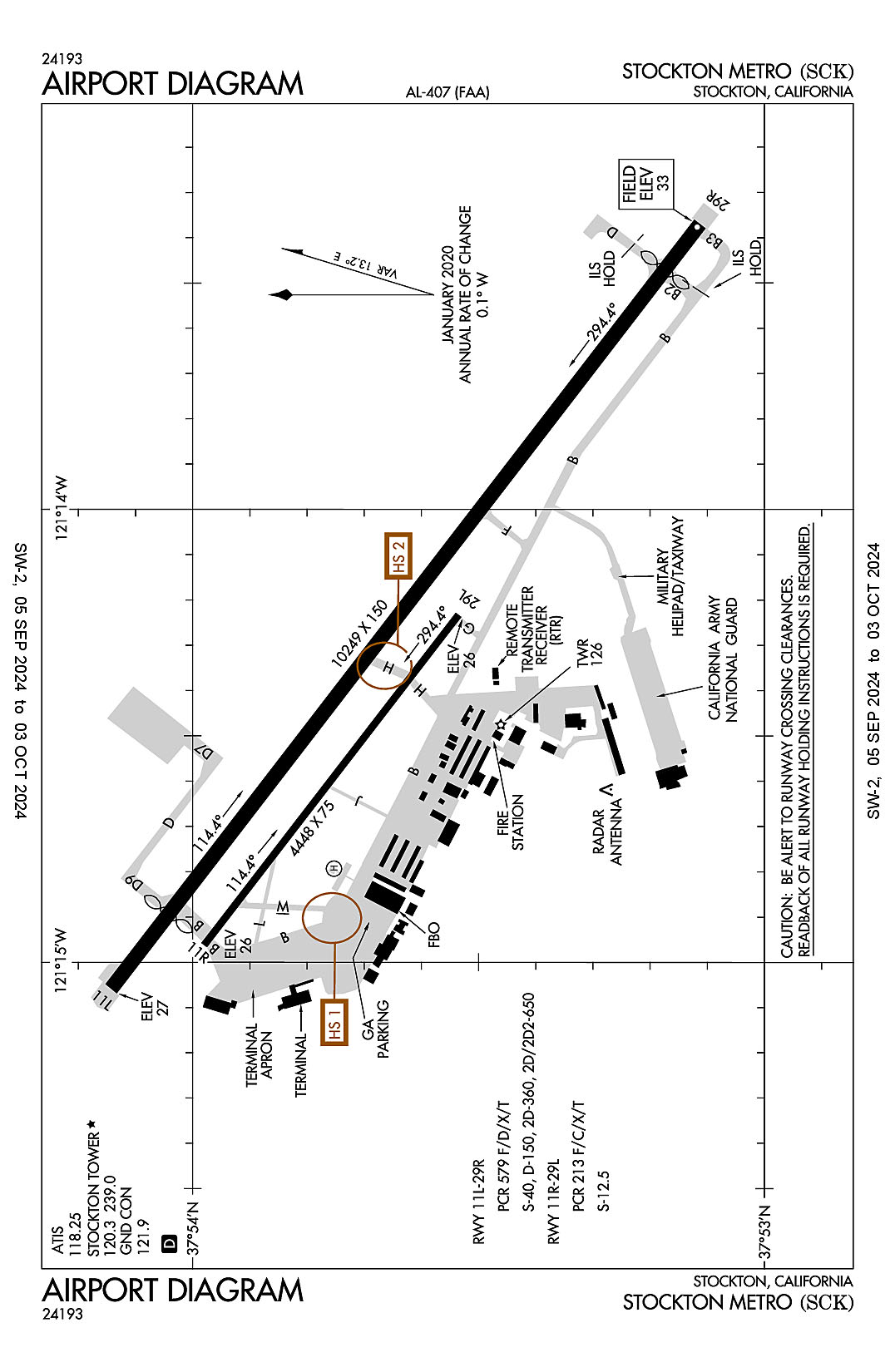

An airport diagram for Stockton International (ICAO Identifier KSCK).

Stockton, CA
Stockton Metropolitan
ICAO Identifier KSCK

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 37-53-39.877N / 121-14-19.464W
2.2.2 From City: 3 miles SE of STOCKTON, CA
2.2.3 Elevation: 33.2 ft
2.2.5 Magnetic Variation: 14E (2010)
2.2.6 Airport Contact: RUSSELL STARK
5000 S. AIRPORT WAY ROOM 202
STOCKTON, CA 95206 (209-468-4700)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: NO
2.4.2 Fuel Types: A,100,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I B certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 29R
2.12.2 True Bearing: 308
2.12.3 Dimensions: 10249 ft x 150 ft
2.12.4 PCN: 46 F/C/X/T
2.12.5 Coordinates: 37-53-6.64N / 121-13-21.88W
2.12.6 Threshold Elevation: 33.2 ft
2.12.6 Touchdown Zone Elevation: 32.3 ft

2.12.1 Designation: 11L
2.12.2 True Bearing: 128
2.12.3 Dimensions: 10249 ft x 150 ft
2.12.4 PCN: 46 F/C/X/T
2.12.5 Coordinates: 37-54-8.4321N / 121-15-3.2005W
2.12.6 Threshold Elevation: 26.5 ft
2.12.6 Touchdown Zone Elevation: 29.1 ft

2.12.1 Designation: 29L
2.12.2 True Bearing: 308
2.12.3 Dimensions: 4448 ft x 75 ft
2.12.4 PCN: 10 F/C/X/T
2.12.5 Coordinates: 37-53-31.8561N / 121-14-13.4466W
2.12.6 Threshold Elevation: 25.9 ft
2.12.6 Touchdown Zone Elevation: 26.6 ft

2.12.1 Designation: 11R
2.12.2 True Bearing: 128
2.12.3 Dimensions: 4448 ft x 75 ft
2.12.4 PCN: 10 F/C/X/T
2.12.5 Coordinates: 37-53-58.6715N / 121-14-57.4211W
2.12.6 Threshold Elevation: 26.2 ft
2.12.6 Touchdown Zone Elevation: 26.4 ft

2.12.1 Designation: H1
2.12.2 True Bearing:
2.12.3 Dimensions: 70 ft x 70 ft
2.12.4 PCN:
2.12.5 Coordinates: 37-53-45.27N / 121-14-47.57W
2.12.6 Threshold Elevation: 26 ft
2.12.6 Touchdown Zone Elevation: ft

AD 2.13 Declared Distances
2.13.1 Designation: 29R
2.13.2 Take-off Run Available: 8856
2.13.3 Take-off Distance Available: 9856
2.13.4 Accelerate-Stop Distance Available: 9210
2.13.5 Landing Distance Available: 8650

2.13.1 Designation: 11L
2.13.2 Take-off Run Available: 8474
2.13.3 Take-off Distance Available: 9474
2.13.4 Accelerate-Stop Distance Available: 8604
2.13.5 Landing Distance Available: 8650

2.13.1 Designation: 29L
2.13.2 Take-off Run Available: 4448
2.13.3 Take-off Distance Available: 4448
2.13.4 Accelerate-Stop Distance Available: 4448
2.13.5 Landing Distance Available: 3386

2.13.1 Designation: 11R
2.13.2 Take-off Run Available: 4448
2.13.3 Take-off Distance Available: 4448
2.13.4 Accelerate-Stop Distance Available: 4448
2.13.5 Landing Distance Available: 4448

2.13.1 Designation: H1
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 29R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 11L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 29L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 11R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: H1
2.14.2 Approach Lighting System: ODALS
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ANG OPS
2.18.3 Channel: 49
2.18.5 Hours of Operation:

2.18.1 Service Designation: ATIS
2.18.3 Channel: 118.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 0700-2100

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 120.3
2.18.5 Hours of Operation: 0700-2100

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 239
2.18.5 Hours of Operation: 0700-2100

2.18.1 Service Designation: NG OPS
2.18.3 Channel: 139.4
2.18.5 Hours of Operation:

2.18.1 Service Designation: NG OPS
2.18.3 Channel: 356.9
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 29R. Magnetic variation: 14E
2.19.2 ILS Identification: SCK
2.19.5 Coordinates: 37-54-12.58N / 121-15-15.2W
2.19.6 Site Elevation: 22 ft

2.19.1 ILS Type: Glide Slope for runway 29R. Magnetic variation: 14E
2.19.2 ILS Identification: SCK
2.19.5 Coordinates: 37-53-19.8816N / 121-13-35.2049W
2.19.6 Site Elevation: 29.3 ft

2.19.1 ILS Type: Localizer for runway 29R. Magnetic variation: 14E
2.19.2 ILS Identification: SCK
2.19.5 Coordinates: 37-54-14.48N / 121-15-13.13W
2.19.6 Site Elevation: 23.5 ft

General Remarks:

PRACTICE CIRCLING APPROACHES TO RWYS 11L/11R NA FOR ANY TURBINE POWERED ACFT/PROP DRIVEN ACFT EXCEEDING 12500 LBS EXCP BY PPR FM AMGR.

TSNT PILOTS USE CTN; DO NOT ENTER THE TSA RSTRD AREA ADJ TO THE TSNT PRKG AREA.

BE ALERT TO ELEVD MALSR APCH END RWY 29R LCTD ON BLAST PAD.

PAVEMENT PRIOR TO THLD OF RWY 11L NOT AVBL FOR TAXI BACK OPS.

ARPT CLSD TO TGL & PLANNED LOW APCHS FOR TURBOJET ACFT 2200-0700 EXCEPT BY PPR FM AMGR PART 36 STAGE 3 ACFT.

TRANSIENT PARKING AVBL AT FBO.

THE FLWG AREAS NOT VISIBLE FM ATCT: TWY B FM TRML APN TO INT AT TWY M; TWY B FM 300 FT W OF TWY J TO 375 FT E OF TWY J; NON MOVEMENT AREA S OF TWY B FROM TRML APN TO 200 FT W OF TWY H; SE HALF OF TRML APN; TSNT PRKG APN.

AVOID OVERFLYING SAN JOAQUIN GENERAL HOSPITAL & THE CITY OF MANTECA.

FOR CD WHEN ATCT CLSD CTC NORCAL APCH AT 916-361-0516.

MILITARY USE: ARNG OPR 1500-2330Z++ MON-FRI. DSN 466-5319, C209-983-5319, FAX 5391. PPR REQUIRED. LDTD TRAN SVC AND MAINT AVBL FOR CH47.

SEAGULLS ON AND IN VCNTY OF ARPT MOSTLY DURING RAINY WEATHER.

TRML APN, CARGO APN, TWYS B, B2, B3, F, D, D7, D9, AND H FOR ACFT OVER 12500 LBS. ALL OTR TWYS RSTRD TO ACFT LESS THAN 12500 LBS.
