Hawaii

Hilo, Hawaii
Hilo International
ICAO Identifier PHTO

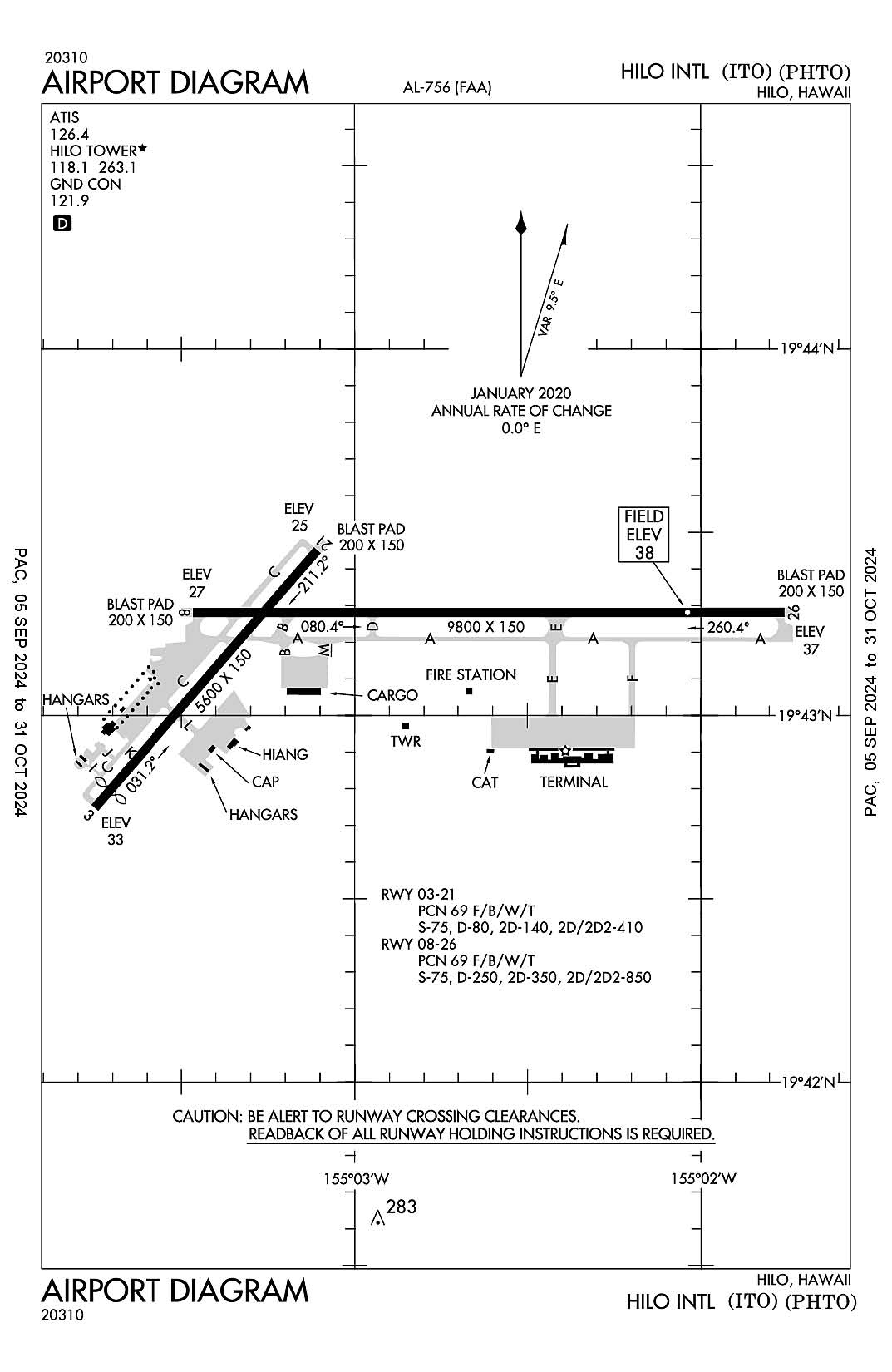

The airport diagram for Hilo International (ICAO Identifier PHTO).

Hilo, HI
Hilo Intl
ICAO Identifier PHTO

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 19-43-12.9468N / 155-2-54.4925W
2.2.2 From City: 2 miles E of HILO, HI
2.2.3 Elevation: 37.6 ft
2.2.5 Magnetic Variation: 11E (1985)
2.2.6 Airport Contact: CHAUNCEY WONG YUEN
HAWAII AIRPORTS DISTRICT MANAGER
HILO, HI 96720 (808-961-9300)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, 0700-2030 Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: 100LL, A
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MINOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category: Class-I certified on 5/1/1973
2.6.2 Rescue and Firefighting Services: ARFF Index-C

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 03
2.12.2 True Bearing: 41
2.12.3 Dimensions: 5600 ft x 150 ft
2.12.4 PCN: 69 F/B/W/T
2.12.5 Coordinates: 19-42-44.9639N / 155-3-44.7803W
2.12.6 Threshold Elevation: 33.3 ft
2.12.6 Touchdown Zone Elevation: 33.7 ft

2.12.1 Designation: 21
2.12.2 True Bearing: 221
2.12.3 Dimensions: 5600 ft x 150 ft
2.12.4 PCN: 69 F/B/W/T
2.12.5 Coordinates: 19-43-26.9946N / 155-3-6.4865W
2.12.6 Threshold Elevation: 25.4 ft
2.12.6 Touchdown Zone Elevation: 31.4 ft

2.12.1 Designation: 08
2.12.2 True Bearing: 90
2.12.3 Dimensions: 9800 ft x 150 ft
2.12.4 PCN: 69 F/B/W/T
2.12.5 Coordinates: 19-43-16.9328N / 155-3-27.9882W
2.12.6 Threshold Elevation: 27.3 ft
2.12.6 Touchdown Zone Elevation: 30.1 ft

2.12.1 Designation: 26
2.12.2 True Bearing: 270
2.12.3 Dimensions: 9800 ft x 150 ft
2.12.4 PCN: 69 F/B/W/T
2.12.5 Coordinates: 19-43-16.9196N / 155-1-45.4051W
2.12.6 Threshold Elevation: 37 ft
2.12.6 Touchdown Zone Elevation: 37.6 ft

AD 2.13 Declared Distances
2.13.1 Designation: 03
2.13.2 Take-off Run Available: 5600
2.13.3 Take-off Distance Available: 5600
2.13.4 Accelerate-Stop Distance Available: 5600
2.13.5 Landing Distance Available: 5251

2.13.1 Designation: 21
2.13.2 Take-off Run Available: 5251
2.13.3 Take-off Distance Available: 5251
2.13.4 Accelerate-Stop Distance Available: 5510
2.13.5 Landing Distance Available: 5510

2.13.1 Designation: 08
2.13.2 Take-off Run Available: 9800
2.13.3 Take-off Distance Available: 9800
2.13.4 Accelerate-Stop Distance Available: 9800
2.13.5 Landing Distance Available: 9800

2.13.1 Designation: 26
2.13.2 Take-off Run Available: 9800
2.13.3 Take-off Distance Available: 9800
2.13.4 Accelerate-Stop Distance Available: 9800
2.13.5 Landing Distance Available: 9800

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 03
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: V4L

2.14.1 Designation: 21
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 08
2.14.2 Approach Lighting System: ODALS
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 26
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P DEP/P
2.18.3 Channel: 119.7
2.18.5 Hours of Operation: 0600-2200

2.18.1 Service Designation: APCH/P DEP/P
2.18.3 Channel: 269.2
2.18.5 Hours of Operation: 0600-2200

2.18.1 Service Designation: APCH/S DEP/S
2.18.3 Channel: 120.25
2.18.5 Hours of Operation: 0600-2200

2.18.1 Service Designation: APCH/S DEP/S
2.18.3 Channel: 323
2.18.5 Hours of Operation: 0600-2200

2.18.1 Service Designation: ATIS
2.18.3 Channel: 126.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 0600-2200

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.1
2.18.5 Hours of Operation: 0600-2200

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 263.1
2.18.5 Hours of Operation: 0600-2200

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 26. Magnetic variation: 11E
2.19.2 ILS Identification: ITO
2.19.5 Coordinates: 19-43-13.742N / 155-3-39.505W
2.19.6 Site Elevation: 39 ft

2.19.1 ILS Type: Glide Slope for runway 26. Magnetic variation: 11E
2.19.2 ILS Identification: ITO
2.19.5 Coordinates: 19-43-20.887N / 155-1-58.099W
2.19.6 Site Elevation: 32.5 ft

2.19.1 ILS Type: Localizer for runway 26. Magnetic variation: 11E
2.19.2 ILS Identification: ITO
2.19.5 Coordinates: 19-43-16.933N / 155-3-38.784W
2.19.6 Site Elevation: 25.8 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 11E
2.19.2 Navigation Aid Identification: ITO
2.19.5 Coordinates: 19-43-16.862N / 155-0-39.435W
2.19.6 Site Elevation: 23 ft

General Remarks:

ATCT CTLS ENTRY/EXIT TFC ON TWYS F&E TO EAST TRML RAMP.

BE ALERT OCNL BIRD FLOCKS ON ARPT AND IN FLT ACROSS RWY 08/26 AND 03/21.

PPR FROM ARPT MGR FOR TRANSIENT PARKING.

FOR CD WHEN ATCT IS CLSD CTC HONOLULU CONTROL FACILITY AT 808-840-6262.

181' LGTD SMOKE STACK 1/2 SM SOUTH OF FLD.

RY 08/26 SINGLE-BELLY TWIN TANDEM (SBTT) GWT 450,000 LBS.

RY 03/21 SINGLE-BELLY TWIN TANDEM (SBTT) GWT 230,000 LBS.

NOISE ABATEMENT: AVOID OVERFLIGHT OF NOISE SENSITIVE RESIDENTIAL AREAS N, W AND SW OF AIRPORT.

RY 3/21 CLSD TO TURBINE ACFT 1800-0600.

TWY E BTN TWY A AND RWY 08/26 PONDING DRG HVY RAINS.

RWY 08 PVD 1325' MKD BY CHEVRONS, UNUSBL FOR LNDG/TKOF/OVRN/STY; CANNOT BE USED IN COMPUTING TKOF DATA.

DIVISION 1.1, 1.2, 1.3 EXPLOSIVES PROHIBITED.

RWYS 8, 21 AND 26 WIND CONES ARE LCTD IN THE ROFA.

(A70A) JET FUEL AVBL MON-SAT 0800-1700 CALL (808) 935-6881/6122 OR 961-6601.

(E93) NO MKD PAD, HEL OPER FM FBO HANGER AREA.

PPR FROM AIRPORT MANAGER FOR TRANSPORTATION OF DIVISION 1.4 EXPLOSIVES AND HAZARDOUS MATERIAL IN OR OUT OF AIRPORT.

Honolulu, Hawaii
Honolulu International
ICAO Identifier PHNL

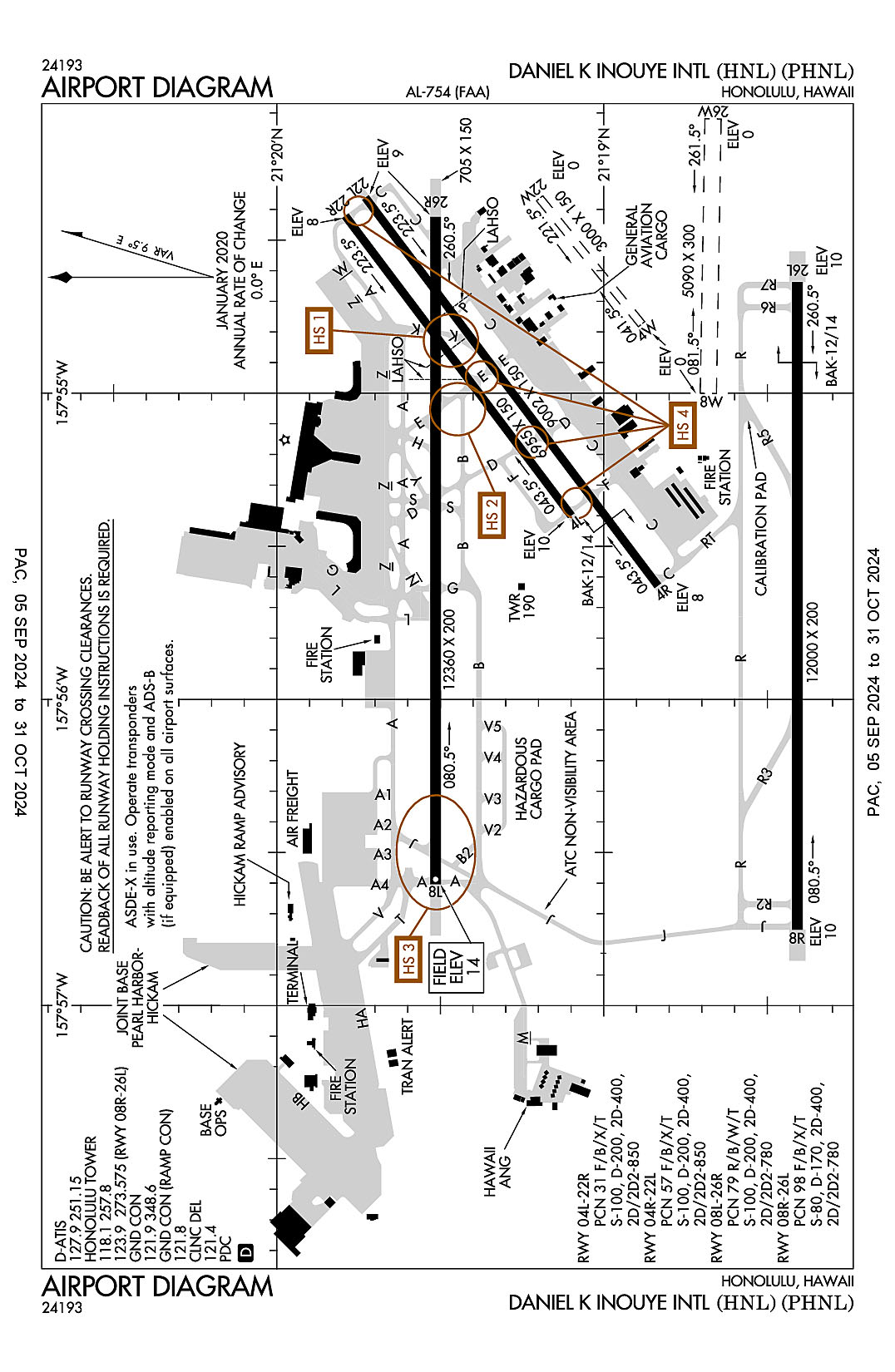

The airport diagram for Honolulu International (ICAO Identifier PHNL).

Honolulu, HI
Honolulu Intl
ICAO Identifier PHNL

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 21-19-4.142N / 157-55-12.819W
2.2.2 From City: 3 miles NW of HONOLULU, HI
2.2.3 Elevation: 12.6 ft
2.2.5 Magnetic Variation: 11E (1990)
2.2.6 Airport Contact: MALCOM SMITH
300 RODGERS BLVD. #12
HONOLULU, HI 96819 (808-836-6434)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: 100, A, A1+
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category: Class-I certified on 5/1/1973
2.6.2 Rescue and Firefighting Services: ARFF Index-E

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 04L
2.12.2 True Bearing: 53
2.12.3 Dimensions: 6955 ft x 150 ft
2.12.4 PCN: 31 F/B/X/T
2.12.5 Coordinates: 21-19-5.9954N / 157-55-23.9541W
2.12.6 Threshold Elevation: 9.8 ft
2.12.6 Touchdown Zone Elevation: 10.2 ft

2.12.1 Designation: 22R
2.12.2 True Bearing: 233
2.12.3 Dimensions: 6955 ft x 150 ft
2.12.4 PCN: 31 F/B/X/T
2.12.5 Coordinates: 21-19-47.4694N / 157-54-25.1972W
2.12.6 Threshold Elevation: 7.5 ft
2.12.6 Touchdown Zone Elevation: 9.6 ft

2.12.1 Designation: 04R
2.12.2 True Bearing: 53
2.12.3 Dimensions: 9002 ft x 150 ft
2.12.4 PCN: 57 F/B/X/T
2.12.5 Coordinates: 21-18-50.1044N / 157-55-37.685W
2.12.6 Threshold Elevation: 8.1 ft
2.12.6 Touchdown Zone Elevation: 8.4 ft

2.12.1 Designation: 22L
2.12.2 True Bearing: 233
2.12.3 Dimensions: 9002 ft x 150 ft
2.12.4 PCN: 57 F/B/X/T
2.12.5 Coordinates: 21-19-43.7762N / 157-54-21.6299W
2.12.6 Threshold Elevation: 8.5 ft
2.12.6 Touchdown Zone Elevation: 8.6 ft

2.12.1 Designation: 04W
2.12.2 True Bearing: 51
2.12.3 Dimensions: 3000 ft x 150 ft
2.12.4 PCN:
2.12.5 Coordinates: 21-18-53.09N / 157-54-46.44W
2.12.6 Threshold Elevation: 0 ft
2.12.6 Touchdown Zone Elevation: ft

2.12.1 Designation: 22W
2.12.2 True Bearing: 231
2.12.3 Dimensions: 3000 ft x 150 ft
2.12.4 PCN:
2.12.5 Coordinates: 21-19-11.7999N / 157-54-21.78W
2.12.6 Threshold Elevation: 0 ft
2.12.6 Touchdown Zone Elevation: ft

2.12.1 Designation: 08L
2.12.2 True Bearing: 89
2.12.3 Dimensions: 12312 ft x 150 ft
2.12.4 PCN: 79 R/B/W/T
2.12.5 Coordinates: 21-19-30.8826N / 157-56-35.6573W
2.12.6 Threshold Elevation: 11.8 ft
2.12.6 Touchdown Zone Elevation: 12.6 ft

2.12.1 Designation: 26R
2.12.2 True Bearing: 270
2.12.3 Dimensions: 12312 ft x 150 ft
2.12.4 PCN: 79 R/B/W/T
2.12.5 Coordinates: 21-19-30.884N / 157-54-25.4326W
2.12.6 Threshold Elevation: 8.4 ft
2.12.6 Touchdown Zone Elevation: 8.8 ft

2.12.1 Designation: 08R
2.12.2 True Bearing: 90
2.12.3 Dimensions: 12000 ft x 200 ft
2.12.4 PCN: 98 F/B/X/T
2.12.5 Coordinates: 21-18-24.4938N / 157-56-45.061W
2.12.6 Threshold Elevation: 9.9 ft
2.12.6 Touchdown Zone Elevation: 10 ft

2.12.1 Designation: 26L
2.12.2 True Bearing: 270
2.12.3 Dimensions: 12000 ft x 200 ft
2.12.4 PCN: 98 F/B/X/T
2.12.5 Coordinates: 21-18-24.4867N / 157-54-38.152W
2.12.6 Threshold Elevation: 9.8 ft
2.12.6 Touchdown Zone Elevation: 9.8 ft

2.12.1 Designation: 08W
2.12.2 True Bearing: 91
2.12.3 Dimensions: 5090 ft x 300 ft
2.12.4 PCN:
2.12.5 Coordinates: 21-18-40.85N / 157-55-0W
2.12.6 Threshold Elevation: 0 ft
2.12.6 Touchdown Zone Elevation: ft

2.12.1 Designation: 26W
2.12.2 True Bearing: 271
2.12.3 Dimensions: 5090 ft x 300 ft
2.12.4 PCN:
2.12.5 Coordinates: 21-18-39.9794N / 157-54-6.1782W
2.12.6 Threshold Elevation: 0 ft
2.12.6 Touchdown Zone Elevation: ft

AD 2.13 Declared Distances
2.13.1 Designation: 04L
2.13.2 Take-off Run Available: 6952
2.13.3 Take-off Distance Available: 6952
2.13.4 Accelerate-Stop Distance Available: 6952
2.13.5 Landing Distance Available: 6952

2.13.1 Designation: 22R
2.13.2 Take-off Run Available: 6952
2.13.3 Take-off Distance Available: 6952
2.13.4 Accelerate-Stop Distance Available: 6952
2.13.5 Landing Distance Available: 6952

2.13.1 Designation: 04R
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 8950
2.13.5 Landing Distance Available: 8950

2.13.1 Designation: 22L
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 8937
2.13.5 Landing Distance Available: 8937

2.13.1 Designation: 04W
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 22W
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 08L
2.13.2 Take-off Run Available: 12312
2.13.3 Take-off Distance Available: 12312
2.13.4 Accelerate-Stop Distance Available: 12312
2.13.5 Landing Distance Available: 12312

2.13.1 Designation: 26R
2.13.2 Take-off Run Available: 12300
2.13.3 Take-off Distance Available: 12300
2.13.4 Accelerate-Stop Distance Available: 12300
2.13.5 Landing Distance Available: 12300

2.13.1 Designation: 08R
2.13.2 Take-off Run Available: 12000
2.13.3 Take-off Distance Available: 12000
2.13.4 Accelerate-Stop Distance Available: 12000
2.13.5 Landing Distance Available: 12000

2.13.1 Designation: 26L
2.13.2 Take-off Run Available: 12000
2.13.3 Take-off Distance Available: 12000
2.13.4 Accelerate-Stop Distance Available: 12000
2.13.5 Landing Distance Available: 12000

2.13.1 Designation: 08W
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 26W
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 04L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 22R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 04R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 22L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 04W
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 22W
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 08L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 26R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 08R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 26L
2.14.2 Approach Lighting System: MALSF
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 08W
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 26W
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ADZY (HONOLULU RAMP ADZY)
2.18.3 Channel: 121.8
2.18.5 Hours of Operation:

2.18.1 Service Designation: ADZY (HICKAM RAMP ADZY)
2.18.3 Channel: 133.6
2.18.5 Hours of Operation:

2.18.1 Service Designation: ADZY (HICKAM RAMP ADZY)
2.18.3 Channel: 254.4
2.18.5 Hours of Operation:

2.18.1 Service Designation: ANG OPS
2.18.3 Channel: 293.7
2.18.5 Hours of Operation:

2.18.1 Service Designation: APCH/P
2.18.3 Channel: 317.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (WEST)
2.18.3 Channel: 118.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (WEST)
2.18.3 Channel: 269
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: BANZI RNAV DP
2.18.3 Channel: 118.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: BANZI RNAV DP
2.18.3 Channel: 269
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 121.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 281.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (ARR E/NW DEP NW)
2.18.3 Channel: 119.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (EAST)
2.18.3 Channel: 124.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (ARR E/NW DEP NW)
2.18.3 Channel: 239.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: COMD POST
2.18.3 Channel: 141.8
2.18.5 Hours of Operation:

2.18.1 Service Designation: COMD POST (15 AW COMD POST)
2.18.3 Channel: 168
2.18.5 Hours of Operation:

2.18.1 Service Designation: COMD POST
2.18.3 Channel: 292.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: COMD POST (15 AW COMD POST)
2.18.3 Channel: 295.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 127.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 251.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (EAST)
2.18.3 Channel: 124.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P CLASS B (EAST)
2.18.3 Channel: 317.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: KEAHI DP (JORDA, LANAI, UPOLU TRNS.)
2.18.3 Channel: 124.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: KEAHI DP (JORDA, LANAI, UPOLU TRNS.)
2.18.3 Channel: 317.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: KEOLA DP (KATHS, LIHUE, LILIA, NONNI, PUPPI, SOUTH KAUAI TRNS.)
2.18.3 Channel: 118.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: KEOLA DP (KATHS, LIHUE, LILIA, PUPPI, SOUTH KAUAI TRNS.)
2.18.3 Channel: 269
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 08R/26L)
2.18.3 Channel: 123.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 08R/26L)
2.18.3 Channel: 273.575
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: MOLOKAI DP (APACK, CLUTS, EBBER, FITES, PULPS, ZIGIE TRNS.)
2.18.3 Channel: 124.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: MOLOKAI DP (APACK, CLUTS, EBBER, FITIES, PULPS, ZIGIE TRNS.)
2.18.3 Channel: 317.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: OPS (SHAKA OPS)
2.18.3 Channel: 125.3
2.18.5 Hours of Operation:

2.18.1 Service Designation: OPS (SAC OPS)
2.18.3 Channel: 311
2.18.5 Hours of Operation:

2.18.1 Service Designation: OPS (SHAKA OPS)
2.18.3 Channel: 349.4
2.18.5 Hours of Operation:

2.18.1 Service Designation: PALAY DP (LANAI, MOLOKAI TRNS.)
2.18.3 Channel: 124.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PALAY DP (LANAI, MOLOKAI TRNS.)
2.18.3 Channel: 317.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PIPLN RNAV DP
2.18.3 Channel: 124.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PIPLN RNAV DP
2.18.3 Channel: 317.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PTD (HICKAM)
2.18.3 Channel: 133.6
2.18.5 Hours of Operation:

2.18.1 Service Designation: PTD
2.18.3 Channel: 372.2
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 04R. Magnetic variation: 11E
2.19.2 ILS Identification: IUM
2.19.5 Coordinates: 21-19-47.9018N / 157-54-10.9794W
2.19.6 Site Elevation: 19.5 ft

2.19.1 ILS Type: Glide Slope for runway 04R. Magnetic variation: 11E
2.19.2 ILS Identification: IUM
2.19.5 Coordinates: 21-18-53.9933N / 157-55-26.9028W
2.19.6 Site Elevation: 5.6 ft

2.19.1 ILS Type: Localizer for runway 04R. Magnetic variation: 11E
2.19.2 ILS Identification: IUM
2.19.5 Coordinates: 21-19-49.8152N / 157-54-13.0662W
2.19.6 Site Elevation: 5.1 ft

2.19.1 ILS Type: DME for runway 08L. Magnetic variation: 11E
2.19.2 ILS Identification: HNL
2.19.5 Coordinates: 21-19-27.8674N / 157-54-17.1566W
2.19.6 Site Elevation: 21.2 ft

2.19.1 ILS Type: Glide Slope for runway 08L. Magnetic variation: 11E
2.19.2 ILS Identification: HNL
2.19.5 Coordinates: 21-19-26.6745N / 157-56-24.533W
2.19.6 Site Elevation: 6.7 ft

2.19.1 ILS Type: Localizer for runway 08L. Magnetic variation: 11E
2.19.2 ILS Identification: HNL
2.19.5 Coordinates: 21-19-30.8788N / 157-54-14.7214W
2.19.6 Site Elevation: 5.4 ft

2.19.1 ILS Type: Outer Marker for runway 08L. Magnetic variation: 11E
2.19.2 ILS Identification: HNL
2.19.5 Coordinates: 21-19-28.9934N / 158-2-56.1122W
2.19.6 Site Elevation: 43.5 ft

2.19.1 ILS Type: DME for runway 26L. Magnetic variation: 11E
2.19.2 ILS Identification: EPC
2.19.5 Coordinates: 21-19-37.0011N / 157-54-25.9888W
2.19.6 Site Elevation: 24 ft

2.19.1 ILS Type: Localizer for runway 26L. Magnetic variation: 11E
2.19.2 ILS Identification: EPC
2.19.5 Coordinates: 21-19-35.0845N / 157-54-28.3182W
2.19.6 Site Elevation: 6.5 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 11E
2.19.2 Navigation Aid Identification: HNL
2.19.5 Coordinates: 21-18-29.9581N / 157-55-49.4801W
2.19.6 Site Elevation: 5.1 ft

General Remarks:

MILITARY RSTD: JBPH-H IS PPR TO ALL NON-TFWC MSN, AMC TRNG MSN AND KC-135 8 UN & 8 EN MSN CALL 735TH MOC AT DSN (315) 499-6970 FOR PPR. ALL AMC PPR WILL BE COORD MON-FRI 1700-0400Z ONLY. ALL NON-AMC ACFT SUCH AS FOREIGN, SISTER SVC, TSNT ACFT, AND OTR MSN MUST CTC 15 OSS/OSA (AMOPS) AT DSN (315) 449-0046/0048 FOR PPR COORD. ALL PPR WILL BE APVD NO EARLIER THAN 72 HR BUT NO LATER THAN 24 HR PRIOR.

CAUTION: DURING PERIODS OF REPEATED PRECIPITATION ANTICIPATE WET RY CONDTIONS, IF CURRENT CONDITIONS RQR CONFIRMATION CTC HONOLULU TWR ON INITIAL CONTACT.

CAUTION: RECREATIONAL BOATING ACTIVITIES ON AND INVOF WATERWAYS.

MILITARY: ALL MIL ACFT RQR CSTMS/AG/IMG INSPECTION MUST CTC 15WG COMMAND POST OR IF AMC CTC HICKAM AMCC, NLT 3 HRS PRIOR TO ARR WITH DEPARTURE LOCATION, EST BLOCK TIME, NR OF AIRCREW, CIV/MIL PAX, FOREIGN NATIONALS, AND DV CODES.*

ALL JET ACFT CTC RAMP CONTROL PRIOR TO ENGINE START AT GATE OR HARD STAND.

MILITARY MISC: ALL FPL MUST BE FILED WITH PHNL AS DESTN. IF MIL SIDE OF ARPT IS FINAL DESTN, PLACE "DESTINATION HIK" IN RMKS OF FPL. FOR NOTAM USE PHNL IDENT.

MILITARY CAUTION: NO FIGHTER TRANSIENT SUPPORT AVAILABLE IN ACCORDANCE WITH ACC LSET FLASH SAFETY 06-02. TRANSIENT FIGHTER UNITS SHOULD PROVIDE THEIR OWN MAINTENANCE SUPPORT.

BIRD STRIKE HAZARD ALL RUNWAYS.

MILITARY/COMMUNICATIONS: BEDTIME (ALL CORONET W TANKERS USE 311.0 FOR TANKER-FTR INTER-PLANE ON LAUNCH DAY. AFT DUTY HR DSN 448-8888 613AOC/AMD, FLT MGMT).

MILITARY MISC: WX OPR H24, DSN 449-2251, C808-658-9961.

PPR FM AMGR FOR TRANSPORATION OF CLASS A OR B EXPLOS IN AND/OR OUT OF HNL.

TFC PAT OVHD ALT 2000 FT, RESTRICTED TO HIANG AND SENTRY ALOHA ACFT.

APRON TAXILANE 2 EAST END 360 FT CLSD.

MILITARY MISC: ANG - HI ANG AFLD OPS OPR 1500-0300Z MON-FRI AND UTA WKENDS; CLSD SAT, SUN AND HOL.

MILITARY CAUTION: FOD HAZARD EXISTS ON ALL MOVEMENT AREAS E OF TWY S. FIGHTER AIRCRAFT EXERCISE EXTREME CTN WHEN TAXIING.

MILITARY MISC 2 OF 2: WAIVERS WILL BE GRANTED ON EXTREME NEC. IF SHORT NOTICE MSN ESSENTIAL WAIVERS ARE NEC, CTC 15OG/CC BY FONE THRU 15 WG COMD POST(15 WG/CP) OR 154 OG/CC FOR HIANG AIRCRAFT. 15 WG COMMAND POST WILL PASS APVL TO HICKAM FLT SVC AND HICKAM RAMP ADZY.

MILITARY RSTD: MIL ACFT OPR DUR BIRD WATCH COND MODERATE (INITIAL TKOF OR FULL STOP LDG ONLY, NO MULTIPLE IFR/VFR APCH) AND SEVERE (TKOF AND LDG PROH WO 15 OG/CC APVL OR 154 OG/CC APVL FOR HIANG ACFT) CTC HIK RAMP, PTD, 15 WG COMD POST, 735 AMC COMD POST, 154 WG COMD POST FOR CURRENT COND.

MILITARY A-GEAR: HOOK MB100(B) LCTD 200 FT FM THLD RY 26R.

MILITARY TRAN ALERT: 15 WG CAN PROVIDE EQPT BUT CREWS MUST PROVIDE OWN PERS WHEN NEEDED.

TWYS G ADG V AND BELOW POWER IN W/PPR.

MILITARY CAUTION: A FOD HAZARD EXISTS ON ALL TAXIWAYS AND RUNWAYS BUT ESPECIALLY ON RUNWAY 4L/22R AND TAXIWAYS NORTH OF RUNWAY 8L/26R.

MILITARY RSTD: UPON ARR, CREWS WILL PRVD CREW ORDER/EAL TO 647 SFS PATROL AND PROCD DRCTLY TO COMMAND POST (BLDG 2050) AND CMPLT AN OUBD SETUP SHEET TO FACILITATE DEP RQMNTS.

DUE TO NON-VISIBILITY TWR UNA TO DTRM IF THE FLWG AREAS ARE CLEAR OF OBSTNS AND/OR TFC: PTNS OF TWY J BTN TWY B & RWY 08R; PTNS OF INTER-ISLAND ACFT PRKG RAMP.

MILITARY MISC: AFLD OPS DSN 449-0046/0048 FAX DSN 449-7624.

RYS 04W/22W AND 08W/26W RECREATIONAL BOATING ACTIVITIESON AND INVOF WATERWAYS.

MILITARY MISC 1 OF 2: DUE TO SENSITIVITIES OF CITIZENS, FTR ACFT DEP ONLY AUTHORIZED FR 1700-0700Z MON-SAT, AND 1800-0700Z SUN AND HOL. ALL REQ FOR WAIVERS WILL BE SENT TO THE 15/OG/CC OR 154 OG/CC FOR HIANG AIRCRAFT AT LEAST 5 WORKING DAYS IN ADVANCE.

MILITARY MISC: NO COMSEC MATERIAL AVBL THRU HICKAM AIRFIELD OPS.

RMN AT LEAST 1 MILE OFF SHORE OF WAIKIKI DIAMOND HEAD KOKO HEAD & EWA BEACH. ARR RWY 08L; FLY ILS APCH PROC OR A CLOSE-IN BASE LEG RMNG OVER CNTR OF PEARL HARBOR CHNL. ARR 26L/R; RNM AT TFC PAT ALTS AS LONG AS PSBL BFR BGNG DSCNT FOR LNDG.

MILITARY RSTD: ALL TRAN ACFT NOT ON AN AMC/TWCF MSN AND HOME STN ACFT TERMINATING AT JBPH-H, WILL PROVIDE A 3 HR OUT CALL (COMM 808-448-6900) AS WELL AS A 20-30 MIN OUT CALL ON 292.5 TO THE 15 WG/CP (KOA CONTROL).

DUE TO LOCATION OF ATCT, CONTROLLERS UNABLE TO DETERMINE WHETHER ACFT ARE ON CORRECT FINAL APCH TO RYS 04L-04R AND 22L-22R.

MILITARY RSTD: IF ACFT IS CARRYING HAZ CARGO, CARGO MANIFEST IS ALSO RQRD. AVBL TIMES TO ACCEPT HAZ CARGO ARE 0400-1600Z; ALL HAZ CARGO MUST COORDINATE WITH AMOPS 449-0046/48 48 HRS PRIOR TO MSN.

MILITARY SERVICE-A-GEAR: RWY 4R/22L AND 8R/26L SFC GROOVED WITHIN 10 FT OF A-G SYSTEM. POTENTIAL FOR FTR ACFT TAIL HOOK SKIP EXISTS.

MILITARY SERVICE-FUEL: A++ (MIL; AVBL H24).

WIDE BODY AND 4 ENGINE TBJTS LDG ON RY 04R ROLL TO END OF RY, NO LEFT TURN AT TWY K WO APVL.

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

MILITARY: ALL MIL ACFT WITH VIP CODE 7 OR ABV CTC 15WG COMMAND POST OR RELAY THRU HF/SSB AWY 1 HR OUT TO CFM BLOCKTIME.

MILITARY REMARKS: SEE FLIP AP/3 SUPPLEMENTARY APRT INFO, RTE AND AREA RSTD, AND OAKLAND FIR FLT HAZ.

MILITARY MISC (2 OF 2 CONT'D): LTD WX BRIEF SUPPORT.REMOTE FLT WX BRIEFINGS CTC 17TH WX SQ H24, DSN 315-449-7950/8333, FAX DSN 315-449-8336; 2 HR PN RQR FOR TIMELY BRIEF.OFFICIAL OBSN TAKEN BY FAA. COOPERATIVE WX WATCH PROCEDURES DO NOT EXIST BTW WX AND ATC.

MILITARY RSTD: TWR APVL RQRD TO USE TWY KILO FROM RWY 4R. HOLD LINE IN EFCT FOR TWY R7 BTN PTN OF TWY XNG APCH ZONE FOR RWY 04L/R. TWY P CLSD TO ACFT OVER 12500 LBS.

APRON TAXILANE 6 BTWN TWY C AND SOUTH RAMP CLSD EXCEPT GA/FIXED WING LOADING/UNLOADING ONLY.

Kahului, Hawaii
Kahului
ICAO Identifier PHOG

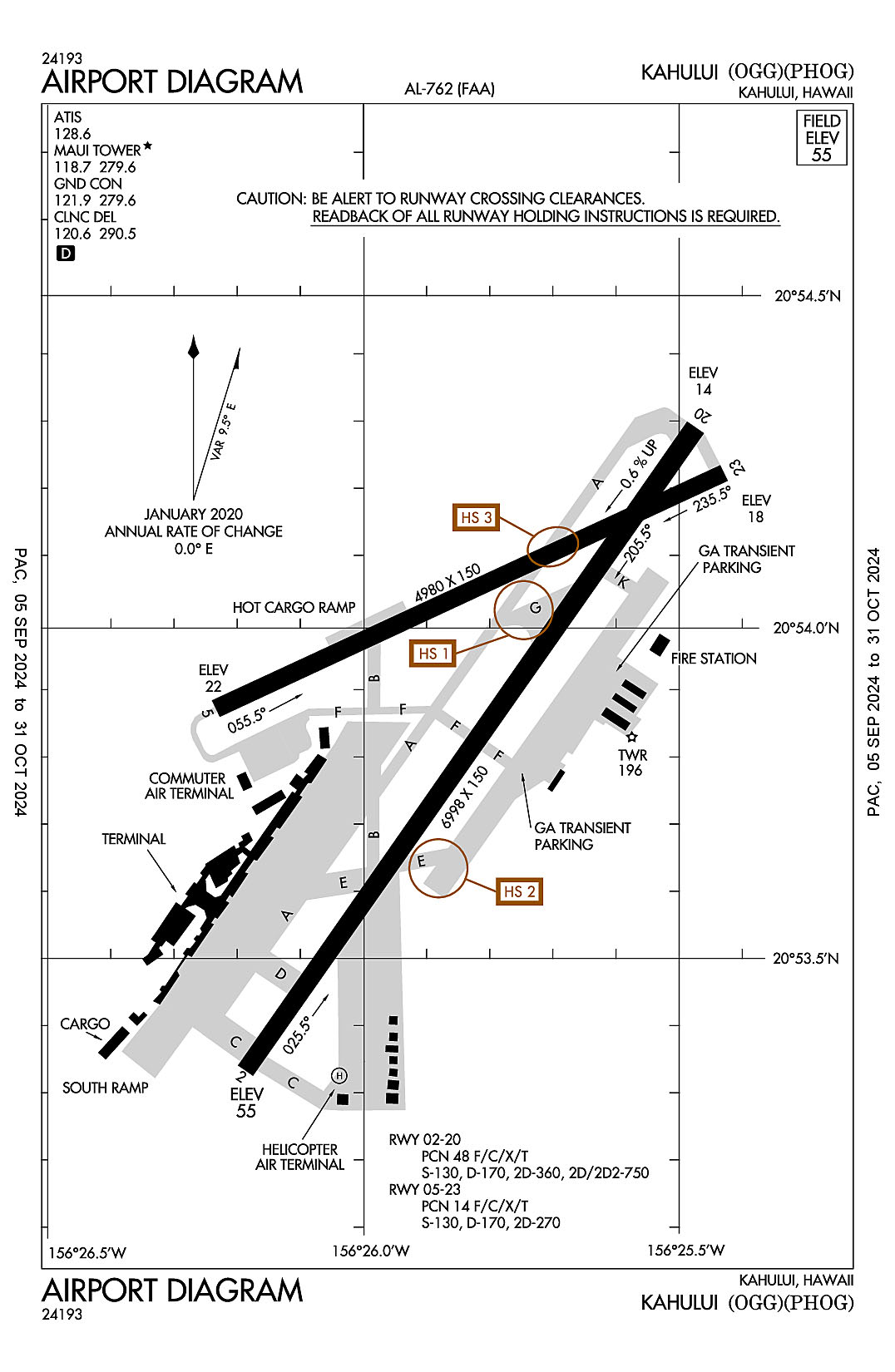

The airport diagram for Kahului (ICAO Identifier PHOG).

Kahului, HI
Kahului
ICAO Identifier PHOG

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 20-53-55.135N / 156-25-49.651W
2.2.2 From City: 3 miles E of KAHULUI, HI
2.2.3 Elevation: 55.4 ft
2.2.5 Magnetic Variation: 11E (1990)
2.2.6 Airport Contact: MARVIN MONIZ
1 KAHULUI AIRPORT ROAD, UNIT 5
KAHULUI, HI 96732 (808-872-3808)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: 100, A
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MINOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category: Class-I certified on 5/1/1973
2.6.2 Rescue and Firefighting Services: ARFF Index-D

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 02
2.12.2 True Bearing: 35
2.12.3 Dimensions: 6998 ft x 150 ft
2.12.4 PCN: 48 F/C/X/T
2.12.5 Coordinates: 20-53-20.9058N / 156-26-10.7497W
2.12.6 Threshold Elevation: 55.3 ft
2.12.6 Touchdown Zone Elevation: 55.4 ft

2.12.1 Designation: 20
2.12.2 True Bearing: 215
2.12.3 Dimensions: 6998 ft x 150 ft
2.12.4 PCN: 48 F/C/X/T
2.12.5 Coordinates: 20-54-17.7389N / 156-25-28.4443W
2.12.6 Threshold Elevation: 14.3 ft
2.12.6 Touchdown Zone Elevation: 27 ft

2.12.1 Designation: 05
2.12.2 True Bearing: 65
2.12.3 Dimensions: 4980 ft x 150 ft
2.12.4 PCN: 14 F/C/X/T
2.12.5 Coordinates: 20-53-52.8965N / 156-26-13.521W
2.12.6 Threshold Elevation: 22.1 ft
2.12.6 Touchdown Zone Elevation: 22.2 ft

2.12.1 Designation: 23
2.12.2 True Bearing: 245
2.12.3 Dimensions: 4980 ft x 150 ft
2.12.4 PCN: 14 F/C/X/T
2.12.5 Coordinates: 20-54-13.7155N / 156-25-25.928W
2.12.6 Threshold Elevation: 17.6 ft
2.12.6 Touchdown Zone Elevation: 18.9 ft

2.12.1 Designation: H1
2.12.2 True Bearing:
2.12.3 Dimensions: 125 ft x 125 ft
2.12.4 PCN:
2.12.5 Coordinates: -- / --
2.12.6 Threshold Elevation: ft
2.12.6 Touchdown Zone Elevation: ft

AD 2.13 Declared Distances
2.13.1 Designation: 02
2.13.2 Take-off Run Available: 6995
2.13.3 Take-off Distance Available: 6995
2.13.4 Accelerate-Stop Distance Available: 6995
2.13.5 Landing Distance Available: 6995

2.13.1 Designation: 20
2.13.2 Take-off Run Available: 6995
2.13.3 Take-off Distance Available: 6995
2.13.4 Accelerate-Stop Distance Available: 6995
2.13.5 Landing Distance Available: 6995

2.13.1 Designation: 05
2.13.2 Take-off Run Available: 4990
2.13.3 Take-off Distance Available: 4990
2.13.4 Accelerate-Stop Distance Available: 4990
2.13.5 Landing Distance Available: 4990

2.13.1 Designation: 23
2.13.2 Take-off Run Available: 4990
2.13.3 Take-off Distance Available: 4990
2.13.4 Accelerate-Stop Distance Available: 4990
2.13.5 Landing Distance Available: 4990

2.13.1 Designation: H1
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 02
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 20
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 05
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 23
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: H1
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P DEP/P IC (SOUTH)
2.18.3 Channel: 119.5
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

2.18.1 Service Designation: APCH/P DEP/P IC (NORTH)
2.18.3 Channel: 120.2
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

2.18.1 Service Designation: APCH/P DEP/P IC (SOUTH)
2.18.3 Channel: 225.4
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

2.18.1 Service Designation: APCH/P DEP/P IC (NORTH)
2.18.3 Channel: 322.4
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

2.18.1 Service Designation: ATIS
2.18.3 Channel: 128.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 120.6
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

2.18.1 Service Designation: CD/P
2.18.3 Channel: 290.5
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

2.18.1 Service Designation: CLASS C (SOUTH)
2.18.3 Channel: 119.5
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

2.18.1 Service Designation: CLASS C (NORTH)
2.18.3 Channel: 120.2
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

2.18.1 Service Designation: CLASS C (SOUTH)
2.18.3 Channel: 225.4
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

2.18.1 Service Designation: CLASS C (NORTH)
2.18.3 Channel: 322.4
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

2.18.1 Service Designation: GND/P
2.18.3 Channel: 279.6
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.7
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 279.6
2.18.5 Hours of Operation: 0600-2300 (MAR-NOV)
0600-2400 (NOV-MAR)

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 02. Magnetic variation: 11E
2.19.2 ILS Identification: OGG
2.19.5 Coordinates: 20-54-27.3859N / 156-25-23.7568W
2.19.6 Site Elevation: 22 ft

2.19.1 ILS Type: Glide Slope for runway 02. Magnetic variation: 11E
2.19.2 ILS Identification: OGG
2.19.5 Coordinates: 20-53-29.5489N / 156-25-59.2238W
2.19.6 Site Elevation: 49.5 ft

2.19.1 ILS Type: Localizer for runway 02. Magnetic variation: 11E
2.19.2 ILS Identification: OGG
2.19.5 Coordinates: 20-54-25.9395N / 156-25-22.344W
2.19.6 Site Elevation: 11.1 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 11E
2.19.2 Navigation Aid Identification: OGG
2.19.5 Coordinates: 20-54-23.2995N / 156-25-15.4249W
2.19.6 Site Elevation: 24.3 ft

General Remarks:

ACCESS TO HELIPAD FM TWY C ONLY.

ACFT OVR 30,000 LB LDG ON RY 02/20 UNA TO TURN OFF ONTO RY 05/23 DUE TO PAVEMENT COND.

MIGRATORY BIRD ACTIVITY BLO 1500 FT WI 5 NM RADIUS OF ARPT DURG AUG-MAY.

570' LGTD TWR APRX 3 MI. W.

COMMUTER AIR TRML RSTRD TO PART 121 AND PART 135 OPRS ONLY. ACFT AT THE TRML SHALL CALL THE TWR ON 121.9 PRIOR TO PUSHBACK.

FOR CD WHEN ATCT IS CLSD CTC HONOLULU CONTROL FACILITY AT 808-840-6262.

RY 02/20 SINGLE-BELLY TWIN TANDEM (SBTT) GWT 460,000 LBS.

TSNT PARKING LCTD ON NE SECTION OF E RAMP.

PPR FOR FIXED WING ACFT OPNS ON HELIPAD DURG NON-OPERATIONAL HRS CALL (808) 872-3880 5:15A-10:00P.

COMMUTER TERMINAL RAMP RESTRICTED TO ACFT 140000 LBS OR LESS.

DUE TO NONVISIBILITY ATCT UNABLE TO DETERMINE IF FLWG AREA IS CLEAR OF OBSTNS AND/OR TFC: PORTION OF TWY F BTN THE COMMUTER AIR TERMINAL & APCH END RY 05.

DUE TO NONVISIBILITY ATCT UNABLE TO PROVIDE ATC SVC BTN ACFT & GROUND VEHICLES ON THE COMMUTER AIR TERMINAL S OF TWY F AND THE HELICOPTER AIR TERMINAL E OF APCH END RY 02.

AREA E OF APCH END RY 02 DESIGNATED AS HELICOPTER OPER AREA. NO FIXED WING ACFT MAY OPER ON HELIPAD DURG OPNL HRS SR-SS.

RAMP AREA E SIDE RY 02 UNDER STATE AUTHORITY. FAA NOT RESPONSIBLE FOR DIRECTION & CTL GND TFC IN AREA.

MIL HEL OPS WITH PPR RSTRD TO THE SW CORNER OF HOT CARGO APRON (HAZMAT) N OF RWY 05/23.

24 HRS PPR FOR DIVISION 1.1,1.2,1.3 EXPLOSIVES AND 4 HRS PPR FOR OTHER HAZARDOUS CARGO IN/OUT OF ARPT; CTC (808) 872-3830 0745-1630 OTHER TIMES (808) 872-3888.
