Indiana

Indianapolis, Indiana
Indianapolis International
ICAO Identifier KIND

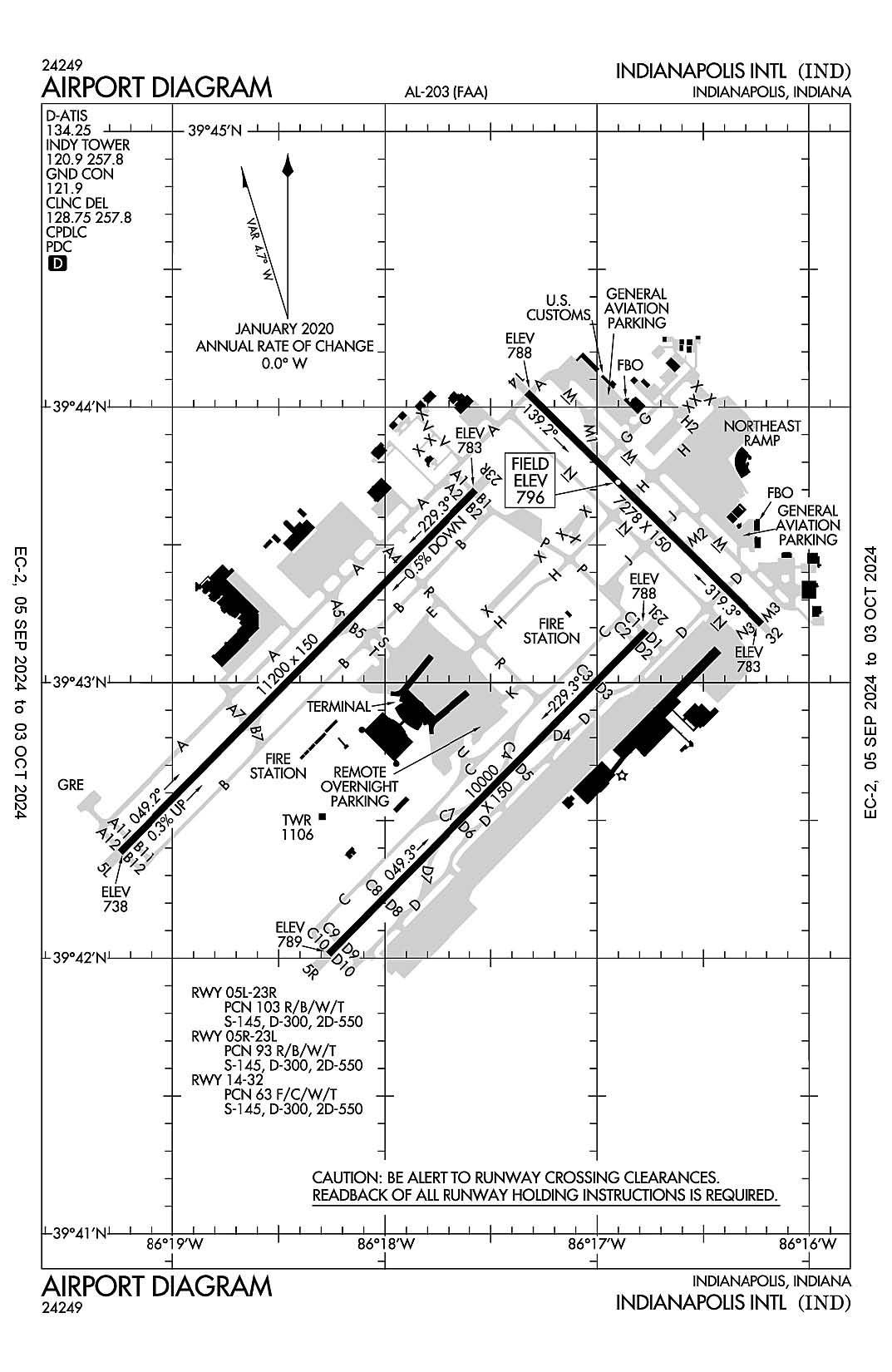

The airport diagram for Indianapolis International (ICAO Identifier KIND).

Indianapolis, IN
Indianapolis Intl
ICAO Identifier KIND

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 39-43-2.3N / 86-17-40.7W
2.2.2 From City: 7 miles SW of INDIANAPOLIS, IN
2.2.3 Elevation: 796.2 ft
2.2.5 Magnetic Variation: 5W (2015)
2.2.6 Airport Contact: MARIO RODRIGUEZ
7800 COL. H. WEIR COOK MEMORIAL DR.
INDIANAPOLIS, IN 46241 (317-487-9594)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: 100LL, A, A1+
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I D certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 05L
2.12.2 True Bearing: 45
2.12.3 Dimensions: 11200 ft x 150 ft
2.12.4 PCN: 103 R/B/W/T
2.12.5 Coordinates: 39-42-23.0337N / 86-19-14.9025W
2.12.6 Threshold Elevation: 738 ft
2.12.6 Touchdown Zone Elevation: 747.3 ft

2.12.1 Designation: 23R
2.12.2 True Bearing: 225
2.12.3 Dimensions: 11200 ft x 150 ft
2.12.4 PCN: 103 R/B/W/T
2.12.5 Coordinates: 39-43-41.9101N / 86-17-34.3591W
2.12.6 Threshold Elevation: 782.9 ft
2.12.6 Touchdown Zone Elevation: 782.9 ft

2.12.1 Designation: 05R
2.12.2 True Bearing: 45
2.12.3 Dimensions: 10000 ft x 150 ft
2.12.4 PCN: 93 R/B/W/T
2.12.5 Coordinates: 39-42-0.873N / 86-18-15.906W
2.12.6 Threshold Elevation: 788.8 ft
2.12.6 Touchdown Zone Elevation: 790.7 ft

2.12.1 Designation: 23L
2.12.2 True Bearing: 225
2.12.3 Dimensions: 10000 ft x 150 ft
2.12.4 PCN: 93 R/B/W/T
2.12.5 Coordinates: 39-43-11.2875N / 86-16-46.1248W
2.12.6 Threshold Elevation: 787.6 ft
2.12.6 Touchdown Zone Elevation: 790.1 ft

2.12.1 Designation: 14
2.12.2 True Bearing: 135
2.12.3 Dimensions: 7278 ft x 150 ft
2.12.4 PCN: 63 F/C/W/T
2.12.5 Coordinates: 39-44-3.2059N / 86-17-19.7638W
2.12.6 Threshold Elevation: 787.5 ft
2.12.6 Touchdown Zone Elevation: 796.2 ft

2.12.1 Designation: 32
2.12.2 True Bearing: 315
2.12.3 Dimensions: 7278 ft x 150 ft
2.12.4 PCN: 63 F/C/W/T
2.12.5 Coordinates: 39-43-12.7458N / 86-16-13.3895W
2.12.6 Threshold Elevation: 782.6 ft
2.12.6 Touchdown Zone Elevation: 792.9 ft

AD 2.13 Declared Distances
2.13.1 Designation: 05L
2.13.2 Take-off Run Available: 11200 ft
2.13.3 Take-off Distance Available: 11200 ft
2.13.4 Accelerate-Stop Distance Available: 11200 ft
2.13.5 Landing Distance Available: 11200 ft

2.13.1 Designation: 23R
2.13.2 Take-off Run Available: 11200 ft
2.13.3 Take-off Distance Available: 11200 ft
2.13.4 Accelerate-Stop Distance Available: 11200 ft
2.13.5 Landing Distance Available: 11200 ft

2.13.1 Designation: 05R
2.13.2 Take-off Run Available: 10000 ft
2.13.3 Take-off Distance Available: 10000 ft
2.13.4 Accelerate-Stop Distance Available: 10000 ft
2.13.5 Landing Distance Available: 10000 ft

2.13.1 Designation: 23L
2.13.2 Take-off Run Available: 10000 ft
2.13.3 Take-off Distance Available: 10000 ft
2.13.4 Accelerate-Stop Distance Available: 10000 ft
2.13.5 Landing Distance Available: 10000 ft

2.13.1 Designation: 14
2.13.2 Take-off Run Available: 7278 ft
2.13.3 Take-off Distance Available: 7278 ft
2.13.4 Accelerate-Stop Distance Available: 7278 ft
2.13.5 Landing Distance Available: 7278 ft

2.13.1 Designation: 32
2.13.2 Take-off Run Available: 7278 ft
2.13.3 Take-off Distance Available: 7278 ft
2.13.4 Accelerate-Stop Distance Available: 7278 ft
2.13.5 Landing Distance Available: 7278 ft

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 05L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 23R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 05R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 23L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 14
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 32
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

AD 2.18 Air Traffic Services Communication Facilities
2.14.1 Service Designation: APCH/P (WEST OF ACTIVE RWY)
2.14.3 Channel: 124.65
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: APCH/P (EAST OF ACTIVE RWY)
2.14.3 Channel: 127.15
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: APCH/P DEP/P
2.14.3 Channel: 317.8
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: APCH/P IC
2.14.3 Channel: 128.175
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: CD PRE TAXI CLNC
2.14.3 Channel: 128.75
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: CD/P
2.14.3 Channel: 257.8
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: CLASS C (WEST OF ACTIVE RWY)
2.14.3 Channel: 124.65
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: CLASS C (EAST)
2.14.3 Channel: 124.95
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: CLASS C (EAST OF ACTIVE RWY)
2.14.3 Channel: 127.15
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: CLASS C
2.14.3 Channel: 317.8
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: D-ATIS
2.14.3 Channel: 134.25
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: DEP/P (WEST)
2.14.3 Channel: 119.05
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: DEP/P (EAST)
2.14.3 Channel: 124.95
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: EMERG
2.14.3 Channel: 121.5
2.14.5 Hours of Operation:

2.14.1 Service Designation: EMERG
2.14.3 Channel: 243
2.14.5 Hours of Operation:

2.14.1 Service Designation: GND/P
2.14.3 Channel: 121.9
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: GND/S
2.14.3 Channel: 121.8
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: LCL/P
2.14.3 Channel: 120.9
2.14.5 Hours of Operation: 24

2.14.1 Service Designation: LCL/P
2.14.3 Channel: 257.8
2.14.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 05L. Magnetic variation: 5W
2.19.2 ILS Identification: IND
2.19.5 Coordinates: 39-43-51.3513N / 86-17-27.5671W
2.19.6 Site Elevation: 797.6 ft

2.19.1 ILS Type: Glide Slope for runway 05L. Magnetic variation: 5W
2.19.2 ILS Identification: IND
2.19.5 Coordinates: 39-42-32.7741N / 86-19-9.6768W
2.19.6 Site Elevation: 735.4 ft

2.19.1 ILS Type: Inner Marker for runway 05L. Magnetic variation: 5W
2.19.2 ILS Identification: IND
2.19.5 Coordinates: 39-42-15.7098N / 86-19-24.4367W
2.19.6 Site Elevation: 735.9 ft

2.19.1 ILS Type: Localizer for runway 05L. Magnetic variation: 5W
2.19.2 ILS Identification: IND
2.19.5 Coordinates: 39-43-49.0283N / 86-17-25.2797W
2.19.6 Site Elevation: 787.8 ft

2.19.1 ILS Type: DME for runway 23R. Magnetic variation: 5W
2.19.2 ILS Identification: UZK
2.19.5 Coordinates: 39-43-51.3513N / 86-17-27.5671W
2.19.6 Site Elevation: 797.6 ft

2.19.1 ILS Type: Glide Slope for runway 23R. Magnetic variation: 5W
2.19.2 ILS Identification: UZK
2.19.5 Coordinates: 39-43-36.5113N / 86-17-48.4342W
2.19.6 Site Elevation: 772.4 ft

2.19.1 ILS Type: Localizer for runway 23R. Magnetic variation: 5W
2.19.2 ILS Identification: UZK
2.19.5 Coordinates: 39-42-15.9186N / 86-19-23.9666W
2.19.6 Site Elevation: 736.6 ft

2.19.1 ILS Type: DME for runway 05R. Magnetic variation: 5W
2.19.2 ILS Identification: OQV
2.19.5 Coordinates: 39-43-20.1868N / 86-16-39.5353W
2.19.6 Site Elevation: 802 ft

2.19.1 ILS Type: Glide Slope for runway 05R. Magnetic variation: 5W
2.19.2 ILS Identification: OQV
2.19.5 Coordinates: 39-42-5.3627N / 86-18-2.9983W
2.19.6 Site Elevation: 788.5 ft

2.19.1 ILS Type: Inner Marker for runway 05R. Magnetic variation: 5W
2.19.2 ILS Identification: OQV
2.19.5 Coordinates: 39-41-52.0586N / 86-18-27.1359W
2.19.6 Site Elevation: 776.4 ft

2.19.1 ILS Type: Localizer for runway 05R. Magnetic variation: 5W
2.19.2 ILS Identification: OQV
2.19.5 Coordinates: 39-43-18.3778N / 86-16-37.0825W
2.19.6 Site Elevation: 785.5 ft

2.19.1 ILS Type: DME for runway 23L. Magnetic variation: 5W
2.19.2 ILS Identification: FVJ
2.19.5 Coordinates: 39-43-20.1868N / 86-16-39.5353W
2.19.6 Site Elevation: 802 ft

2.19.1 ILS Type: Glide Slope for runway 23L. Magnetic variation: 5W
2.19.2 ILS Identification: FVJ
2.19.5 Coordinates: 39-43-2.4585N / 86-16-54.2858W
2.19.6 Site Elevation: 785 ft

2.19.1 ILS Type: Localizer for runway 23L. Magnetic variation: 5W
2.19.2 ILS Identification: FVJ
2.19.5 Coordinates: 39-41-53.5322N / 86-18-25.2565W
2.19.6 Site Elevation: 777.3 ft

2.19.1 ILS Type: Glide Slope for runway 14. Magnetic variation: 5W
2.19.2 ILS Identification: BJP
2.19.5 Coordinates: 39-43-59.3065N / 86-17-7.3342W
2.19.6 Site Elevation: 790 ft

2.19.1 ILS Type: Localizer for runway 14. Magnetic variation: 5W
2.19.2 ILS Identification: BJP
2.19.5 Coordinates: 39-43-5.64N / 86-16-4.06W
2.19.6 Site Elevation: 768.5 ft

2.19.1 ILS Type: Glide Slope for runway 32. Magnetic variation: 5W
2.19.2 ILS Identification: COA
2.19.5 Coordinates: 39-43-16.2751N / 86-16-25.5096W
2.19.6 Site Elevation: 781.7 ft

2.19.1 ILS Type: Localizer for runway 32. Magnetic variation: 5W
2.19.2 ILS Identification: COA
2.19.5 Coordinates: 39-44-10.3487N / 86-17-29.1696W
2.19.6 Site Elevation: 782.3 ft

General Remarks:

TWY V IS NOT AVBL FOR ACR OPS.

TWY H RUNS CONTIGUOUS AT NORTHEAST RAMP.

LARGE FLOCKS OF BIRDS ON & INVOF ARPT.

NOISE ABATEMENT PROCEDURES IN EFFECT CTC ARPT MGR.

PRIM STUDENT TGL NOT PMTD.

BE ALERT TO CLOSE PROXIMITY OF RWY 14/32 TO NORTHEAST RAMP.
