Georgia

Atlanta, Georgia
Hartsfield-Jackson Atlanta International
ICAO Identifier KATL

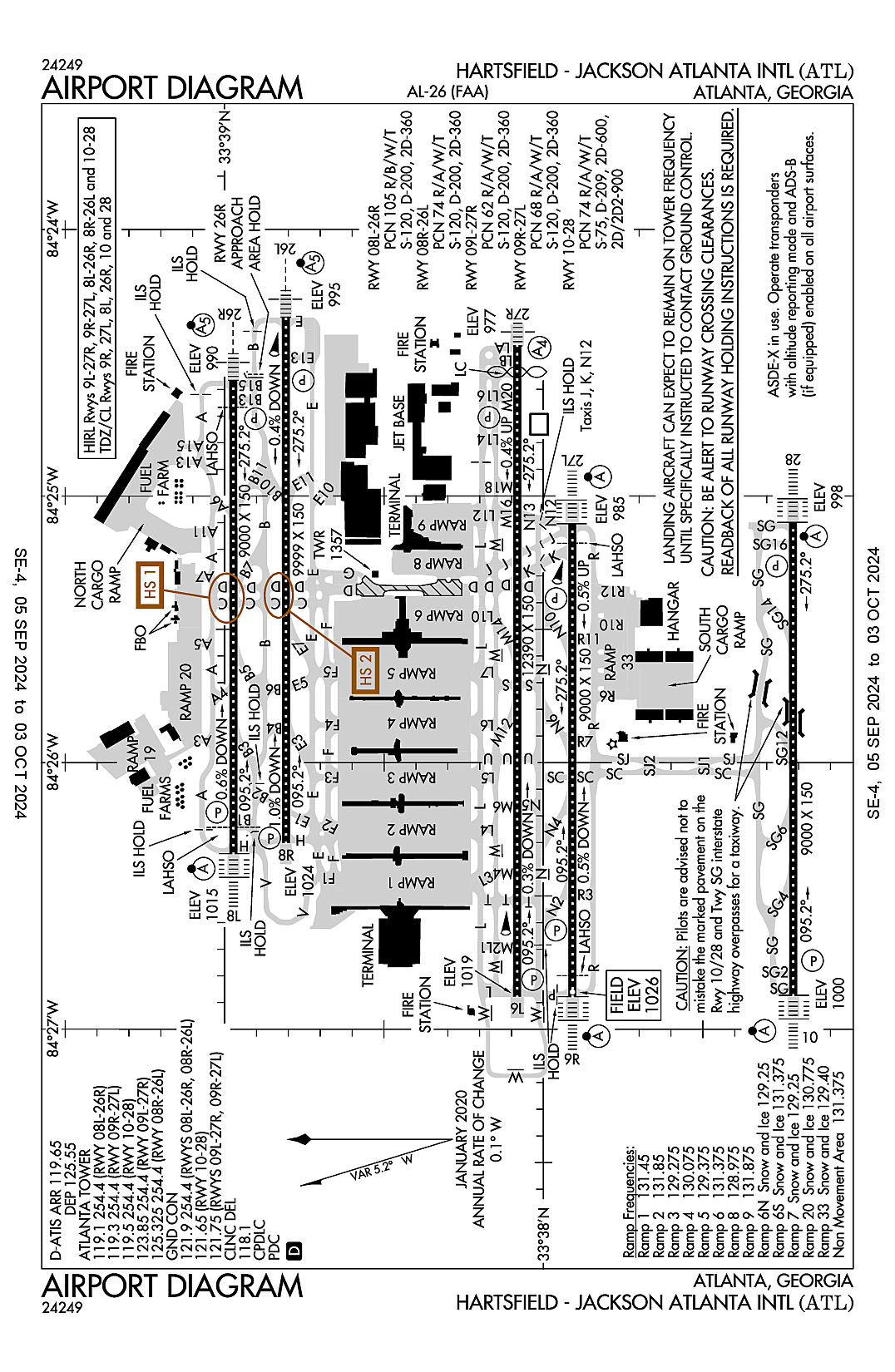

The airport diagram for Hartsfield-Jackson Atlanta International (ICAO Identifier KATL).

Atlanta, GA
Hartsfield - Jackson Atlanta Intl
ICAO Identifier KATL

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 33-38-12.1186N / 84-25-40.3104W
2.2.2 From City: 7 miles S of ATLANTA, GA
2.2.3 Elevation: 1026.2 ft
2.2.5 Magnetic Variation: 5W (2015)
2.2.6 Airport Contact: JOHN SELDEN
PO BOX 20509
ATLANTA, GA 30320 (404-530-6600)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I E certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 26R
2.12.2 True Bearing: 270
2.12.3 Dimensions: 9000 ft x 150 ft
2.12.4 PCN: 105 R/B/W/T
2.12.5 Coordinates: 33-38-58.3515N / 84-24-34.0341W
2.12.6 Threshold Elevation: 990 ft
2.12.6 Touchdown Zone Elevation: 990 ft

2.12.1 Designation: 08L
2.12.2 True Bearing: 90
2.12.3 Dimensions: 9000 ft x 150 ft
2.12.4 PCN: 105 R/B/W/T
2.12.5 Coordinates: 33-38-58.3238N / 84-26-20.4923W
2.12.6 Threshold Elevation: 1014.6 ft
2.12.6 Touchdown Zone Elevation: 1014.6 ft

2.12.1 Designation: 08R
2.12.2 True Bearing: 90
2.12.3 Dimensions: 9999 ft x 150 ft
2.12.4 PCN: 74 R/A/W/T
2.12.5 Coordinates: 33-38-48.432N / 84-26-18.1035W
2.12.6 Threshold Elevation: 1023.7 ft
2.12.6 Touchdown Zone Elevation: 1023.8 ft

2.12.1 Designation: 26L
2.12.2 True Bearing: 270
2.12.3 Dimensions: 9999 ft x 150 ft
2.12.4 PCN: 74 R/A/W/T
2.12.5 Coordinates: 33-38-48.4612N / 84-24-19.8313W
2.12.6 Threshold Elevation: 995.4 ft
2.12.6 Touchdown Zone Elevation: 995.5 ft

2.12.1 Designation: 27R
2.12.2 True Bearing: 270
2.12.3 Dimensions: 12390 ft x 150 ft
2.12.4 PCN: 62 R/A/W/T
2.12.5 Coordinates: 33-38-4.929N / 84-24-26.158W
2.12.6 Threshold Elevation: 977.2 ft
2.12.6 Touchdown Zone Elevation: 984.6 ft

2.12.1 Designation: 09L
2.12.2 True Bearing: 90
2.12.3 Dimensions: 12390 ft x 150 ft
2.12.4 PCN: 62 R/A/W/T
2.12.5 Coordinates: 33-38-4.936N / 84-26-52.6807W
2.12.6 Threshold Elevation: 1018.7 ft
2.12.6 Touchdown Zone Elevation: 1018.7 ft

2.12.1 Designation: 27L
2.12.2 True Bearing: 270
2.12.3 Dimensions: 9000 ft x 150 ft
2.12.4 PCN: 68 R/A/W/T
2.12.5 Coordinates: 33-37-54.5649N / 84-25-6.243W
2.12.6 Threshold Elevation: 984.7 ft
2.12.6 Touchdown Zone Elevation: 998.9 ft

2.12.1 Designation: 09R
2.12.2 True Bearing: 90
2.12.3 Dimensions: 9000 ft x 150 ft
2.12.4 PCN: 68 R/A/W/T
2.12.5 Coordinates: 33-37-54.5282N / 84-26-52.6768W
2.12.6 Threshold Elevation: 1026.1 ft
2.12.6 Touchdown Zone Elevation: 1026.2 ft

2.12.1 Designation: 28
2.12.2 True Bearing: 270
2.12.3 Dimensions: 9000 ft x 150 ft
2.12.4 PCN: 74 R/A/W/T
2.12.5 Coordinates: 33-37-13.0275N / 84-25-5.9358W
2.12.6 Threshold Elevation: 997.5 ft
2.12.6 Touchdown Zone Elevation: 997.5 ft

2.12.1 Designation: 10
2.12.2 True Bearing: 90
2.12.3 Dimensions: 9000 ft x 150 ft
2.12.4 PCN: 74 R/A/W/T
2.12.5 Coordinates: 33-37-12.9808N / 84-26-52.3574W
2.12.6 Threshold Elevation: 1000.3 ft
2.12.6 Touchdown Zone Elevation: 1000.3 ft

AD 2.13 Declared Distances
2.13.1 Designation: 26R
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 8500
2.13.5 Landing Distance Available: 8500

2.13.1 Designation: 08L
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 8800
2.13.5 Landing Distance Available: 8800

2.13.1 Designation: 08R
2.13.2 Take-off Run Available: 9999
2.13.3 Take-off Distance Available: 10999
2.13.4 Accelerate-Stop Distance Available: 9999
2.13.5 Landing Distance Available: 9999

2.13.1 Designation: 26L
2.13.2 Take-off Run Available: 9999
2.13.3 Take-off Distance Available: 9999
2.13.4 Accelerate-Stop Distance Available: 9999
2.13.5 Landing Distance Available: 9999

2.13.1 Designation: 27R
2.13.2 Take-off Run Available: 12390
2.13.3 Take-off Distance Available: 12390
2.13.4 Accelerate-Stop Distance Available: 12190
2.13.5 Landing Distance Available: 11690

2.13.1 Designation: 09L
2.13.2 Take-off Run Available: 12390
2.13.3 Take-off Distance Available: 12390
2.13.4 Accelerate-Stop Distance Available: 11730
2.13.5 Landing Distance Available: 11730

2.13.1 Designation: 27L
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 8865
2.13.5 Landing Distance Available: 8865

2.13.1 Designation: 09R
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 9000
2.13.5 Landing Distance Available: 9000

2.13.1 Designation: 28
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 9000
2.13.5 Landing Distance Available: 9000

2.13.1 Designation: 10
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 9000
2.13.5 Landing Distance Available: 9000

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 26R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 08L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 08R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 26L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 27R
2.14.2 Approach Lighting System: MALS
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 09L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 27L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 09R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 28
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 10
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: CD/P
2.18.3 Channel: 118.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (ARR)
2.18.3 Channel: 119.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (DEP)
2.18.3 Channel: 125.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P (RWY 10/28)
2.18.3 Channel: 121.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (RWY 09L/27R, 09R/27L)
2.18.3 Channel: 121.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (RWY 08L/26R, 08R/26L)
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 254.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 08L/26R)
2.18.3 Channel: 119.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 09R/27L)
2.18.3 Channel: 119.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 10/28)
2.18.3 Channel: 119.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 09L/27R)
2.18.3 Channel: 123.85
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 08R/26L)
2.18.3 Channel: 125.325
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 254.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PRM (RWY 08L/26R, 08R/26L)
2.18.3 Channel: 126.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PRM (RWY 09L/27R, 09R/27L)
2.18.3 Channel: 132.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PRM (RWY 10/28)
2.18.3 Channel: 133.425
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 08L. Magnetic variation: 5W
2.19.2 ILS Identification: HFW
2.19.5 Coordinates: 33-39-1.782N / 84-24-24.7032W
2.19.6 Site Elevation: 977.2 ft

2.19.1 ILS Type: Glide Slope for runway 08L. Magnetic variation: 5W
2.19.2 ILS Identification: HFW
2.19.5 Coordinates: 33-39-2.288N / 84-26-6.3042W
2.19.6 Site Elevation: 1001.7 ft

2.19.1 ILS Type: Inner Marker for runway 08L. Magnetic variation: 5W
2.19.2 ILS Identification: HFW
2.19.5 Coordinates: 33-38-58.3145N / 84-26-30.5173W
2.19.6 Site Elevation: 1017.7 ft

2.19.1 ILS Type: Localizer for runway 08L. Magnetic variation: 5W
2.19.2 ILS Identification: HFW
2.19.5 Coordinates: 33-38-58.3506N / 84-24-23.3901W
2.19.6 Site Elevation: 985.2 ft

2.19.1 ILS Type: DME for runway 26R. Magnetic variation: 5W
2.19.2 ILS Identification: GXZ
2.19.5 Coordinates: 33-38-53.87N / 84-26-32.61W
2.19.6 Site Elevation: 1008 ft

2.19.1 ILS Type: Glide Slope for runway 26R. Magnetic variation: 5W
2.19.2 ILS Identification: GXZ
2.19.5 Coordinates: 33-39-2.3139N / 84-24-47.6304W
2.19.6 Site Elevation: 983.8 ft

2.19.1 ILS Type: Localizer for runway 26R. Magnetic variation: 5W
2.19.2 ILS Identification: GXZ
2.19.5 Coordinates: 33-38-58.32N / 84-26-30.19W
2.19.6 Site Elevation: 1016 ft

2.19.1 ILS Type: DME for runway 08R. Magnetic variation: 5W
2.19.2 ILS Identification: ATL
2.19.5 Coordinates: 33-38-45.7727N / 84-24-7.5608W
2.19.6 Site Elevation: 992.1 ft

2.19.1 ILS Type: Glide Slope for runway 08R. Magnetic variation: 5W
2.19.2 ILS Identification: ATL
2.19.5 Coordinates: 33-38-52.4042N / 84-26-3.334W
2.19.6 Site Elevation: 1005 ft

2.19.1 ILS Type: Localizer for runway 08R. Magnetic variation: 5W
2.19.2 ILS Identification: ATL
2.19.5 Coordinates: 33-38-48.4575N / 84-24-7.5394W
2.19.6 Site Elevation: 986.8 ft

2.19.1 ILS Type: DME for runway 26L. Magnetic variation: 5W
2.19.2 ILS Identification: BRU
2.19.5 Coordinates: 33-38-49.0988N / 84-26-30.1749W
2.19.6 Site Elevation: 1030.3 ft

2.19.1 ILS Type: Glide Slope for runway 26L. Magnetic variation: 5W
2.19.2 ILS Identification: BRU
2.19.5 Coordinates: 33-38-52.4111N / 84-24-32.8404W
2.19.6 Site Elevation: 993.7 ft

2.19.1 ILS Type: Localizer for runway 26L. Magnetic variation: 5W
2.19.2 ILS Identification: BRU
2.19.5 Coordinates: 33-38-48.4526N / 84-26-30.1664W
2.19.6 Site Elevation: 1021 ft

2.19.1 ILS Type: DME for runway 09L. Magnetic variation: 5W
2.19.2 ILS Identification: HZK
2.19.5 Coordinates: 33-38-7.48N / 84-24-44.38W
2.19.6 Site Elevation: 978 ft

2.19.1 ILS Type: Glide Slope for runway 09L. Magnetic variation: 5W
2.19.2 ILS Identification: HZK
2.19.5 Coordinates: 33-38-2.42N / 84-26-39.67W
2.19.6 Site Elevation: 1014.6 ft

2.19.1 ILS Type: Localizer for runway 09L. Magnetic variation: 5W
2.19.2 ILS Identification: HZK
2.19.5 Coordinates: 33-38-4.94N / 84-24-19.08W
2.19.6 Site Elevation: 949.5 ft

2.19.1 ILS Type: Outer Marker for runway 09L. Magnetic variation: 5W
2.19.2 ILS Identification: HZK
2.19.5 Coordinates: 33-37-57.073N / 84-32-3.073W
2.19.6 Site Elevation:

2.19.1 ILS Type: Glide Slope for runway 27R. Magnetic variation: 5W
2.19.2 ILS Identification: AFA
2.19.5 Coordinates: 33-38-7.45N / 84-24-44.13W
2.19.6 Site Elevation: 977.7 ft

2.19.1 ILS Type: Localizer for runway 27R. Magnetic variation: 5W
2.19.2 ILS Identification: AFA
2.19.5 Coordinates: 33-38-4.931N / 84-27-2.2719W
2.19.6 Site Elevation: 1019.5 ft

2.19.1 ILS Type: DME for runway 09R. Magnetic variation: 5W
2.19.2 ILS Identification: FUN
2.19.5 Coordinates: 33-37-56.6292N / 84-24-54.2376W
2.19.6 Site Elevation: 995.5 ft

2.19.1 ILS Type: Glide Slope for runway 09R. Magnetic variation: 5W
2.19.2 ILS Identification: FUN
2.19.5 Coordinates: 33-37-58.482N / 84-26-39.0507W
2.19.6 Site Elevation: 1019.1 ft

2.19.1 ILS Type: Inner Marker for runway 09R. Magnetic variation: 5W
2.19.2 ILS Identification: FUN
2.19.5 Coordinates: 33-37-54.5222N / 84-27-2.5364W
2.19.6 Site Elevation: 1029.2 ft

2.19.1 ILS Type: Localizer for runway 09R. Magnetic variation: 5W
2.19.2 ILS Identification: FUN
2.19.5 Coordinates: 33-37-54.5664N / 84-24-52.6064W
2.19.6 Site Elevation: 976.2 ft

2.19.1 ILS Type: DME for runway 27L. Magnetic variation: 5W
2.19.2 ILS Identification: FSQ
2.19.5 Coordinates: 33-37-53.7N / 84-27-3.53W
2.19.6 Site Elevation: 1003.8 ft

2.19.1 ILS Type: Glide Slope for runway 27L. Magnetic variation: 5W
2.19.2 ILS Identification: FSQ
2.19.5 Coordinates: 33-37-58.5048N / 84-25-18.9643W
2.19.6 Site Elevation: 986.7 ft

2.19.1 ILS Type: Inner Marker for runway 27L. Magnetic variation: 5W
2.19.2 ILS Identification: FSQ
2.19.5 Coordinates: 33-37-54.59N / 84-24-52.99W
2.19.6 Site Elevation: 983 ft

2.19.1 ILS Type: Localizer for runway 27L. Magnetic variation: 5W
2.19.2 ILS Identification: FSQ
2.19.5 Coordinates: 33-37-54.53N / 84-27-3.03W
2.19.6 Site Elevation: 1015.7 ft

2.19.1 ILS Type: DME for runway 10. Magnetic variation: 5W
2.19.2 ILS Identification: OMO
2.19.5 Coordinates: 33-37-12.4476N / 84-24-53.9549W
2.19.6 Site Elevation: 999.7 ft

2.19.1 ILS Type: Glide Slope for runway 10. Magnetic variation: 5W
2.19.2 ILS Identification: OMO
2.19.5 Coordinates: 33-37-8.9408N / 84-26-38.7669W
2.19.6 Site Elevation: 985.4 ft

2.19.1 ILS Type: Inner Marker for runway 10. Magnetic variation: 5W
2.19.2 ILS Identification: OMO
2.19.5 Coordinates: 33-37-12.9816N / 84-27-2.5224W
2.19.6 Site Elevation: 1001 ft

2.19.1 ILS Type: Localizer for runway 10. Magnetic variation: 5W
2.19.2 ILS Identification: OMO
2.19.5 Coordinates: 33-37-13.0192N / 84-24-53.9594W
2.19.6 Site Elevation: 991.1 ft

2.19.1 ILS Type: DME for runway 28. Magnetic variation: 5W
2.19.2 ILS Identification: PKU
2.19.5 Coordinates: 33-37-12.4016N / 84-27-5.3143W
2.19.6 Site Elevation: 1003.5 ft

2.19.1 ILS Type: Glide Slope for runway 28. Magnetic variation: 5W
2.19.2 ILS Identification: PKU
2.19.5 Coordinates: 33-37-17.0569N / 84-25-18.9449W
2.19.6 Site Elevation: 989.2 ft

2.19.1 ILS Type: Inner Marker for runway 28. Magnetic variation: 5W
2.19.2 ILS Identification: PKU
2.19.5 Coordinates: 33-37-13.0151N / 84-24-55.769W
2.19.6 Site Elevation: 982.2 ft

2.19.1 ILS Type: Localizer for runway 28. Magnetic variation: 5W
2.19.2 ILS Identification: PKU
2.19.5 Coordinates: 33-37-12.9761N / 84-27-5.3149W
2.19.6 Site Elevation: 994.5 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 5W
2.19.2 Navigation Aid Identification: ATL
2.19.5 Coordinates: 33-37-44.6758N / 84-26-6.2343W
2.19.6 Site Elevation: 1040.3 ft

General Remarks:

ALL RWYS, TOUCH AND GO OPERATIONS, LOW APPROACHES, AND PRACTICE INSTRUMENT APPROACHES NOT PERMITTED.

ACFT WITH WINGSPAN GREATER THAN 214 FT SHOULD EXPECT TO USE RWYS 09L/27R AND 9R/27L.

NO ACFT WITH WINGSPAN GEATER THAN OR EQUAL TO 225 FT MAY TAXI ON TWY M BETWEEN L14 AND L16, TWY N BETWEEN P AND SC, AND TWY N BETWEEN U AND K.

ALL ACFT WITH WINGSPANS GREATER THAN 214 FT ARE REQUIRED TO USE TAXI SPEEDS NOT GREATER THAN 15 MPH ON TWYS A, L, M, AND SJ.

WHEN ACFT WITH WINGSPANS GREATER THAN 214 FT ARE PRESENT ON THE FIELD, ALL OTHER ACFT MUST ADHERE TO THE TWY CENTERLINE ON TWYS L AND M, TWYS E AND F, AND TWYS SC AND SJ BETWEEN SG AND R DUE TO SEPARATION BETWEEN THE PARALLEL TWYS.

RUNUPS ARE PERMITTED AT VARIOUS SITES; COORD USE OF CITY FACS, MOVEMENT AREAS, ALLOWABLE NON-MOVEMENT AREAS WITH DEPT OF AVN OPNS, 404-787-6095; AND COORD THE USE OF THE AIRLINES FACS WITH THEM.

NOISE & OPNS MONITORING SYSTEM (NOMS) PROGRAM IN EFFECT; CALL THE ATLANTA DEPT OF AVIATION 770-43-NOISE OR 770-436-6473 FOR MORE INFO.

BE ALERT TO RWY CROSSING CLEARANCES. READBACK OF ALL RWY HOLDING INSTRUCTIONS IS REQUIRED.

GROUP VI ACFT (LOCKHEED GALAXY C-5; ANTONOV AN-124 & AN-125) WITH A WINGSPAN OF GREATER THAN 214 FT ARE RESTRICTED FM USING TWY F EAST OF RAMP 5 NORTH AND WEST OF TWY D.

RWY 9L DEPARTURES CAN EXPECT INTERSECTION DEPARTURE FM M2 WITH RWY REMAINING 11,440 FT (TORA/TODA) AND 10,780 (ASDA).

TWO ACFT WITH WINGSPANS GREATER THAN OR EQUAL TO 225 FT MAY NOT TAXISIMULTANEOUSLY ON ADJACENT PARALLEL TWYS L/M EXCEPT WEST OF L7 AT SPEEDS LESS THAN 15 MPH.

PREFERENTIAL RWY USE IN EFFECT, EXPECT TO USE RWYS 08R/26L, 09L/27R FOR DEPS; RWYS 08L/26R, 09R/27L ARE USED PRIMARILY FOR ARRIVALS.

NO ACFT WITH WINGSPAN GREATER THAN 213 FT MAY PASS ANOTHER ACFT WITH WINGSPAN GREATER THAN OR EQUAL TO 225 FT ON TWY L/M EAST OF L7.

ACFT WITH WINGSPAN GREATER THAN 171 FT ARE RSTRD FROM USING TWY V. ACFT WITH WINGSPAN GREATER THAN 171 FT ARE REQUIRED TO USE TAXI SPEEDS LESS THAN 15 MPH WHEN PASSING ACFT WITH WINGSPAN GREATER THAN 214FT ON TXWY L/M (EAST OF L7).

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.
