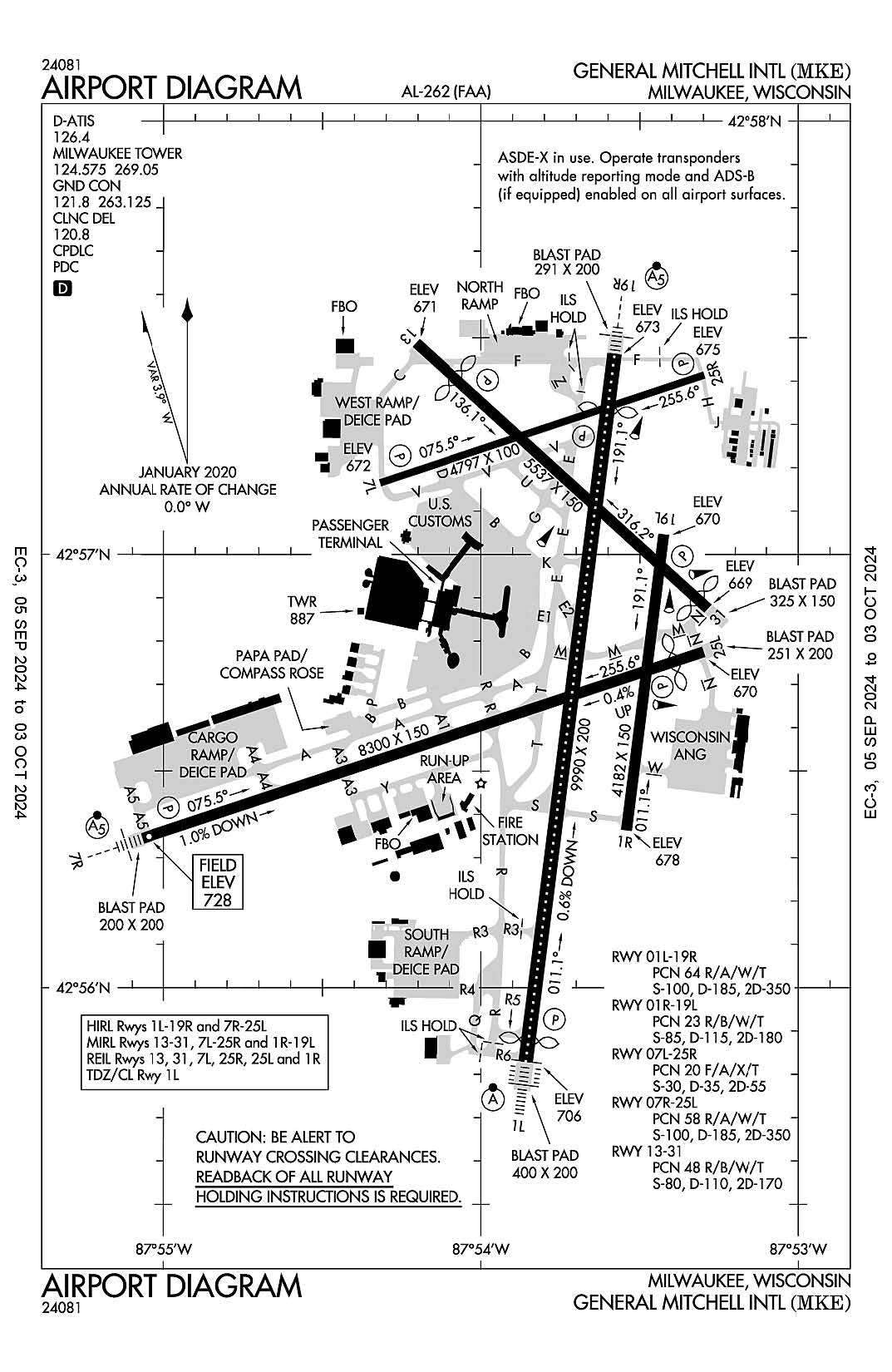

The airport diagram for General Mitchell International (ICAO Identifier KMKE).

Milwaukee, WI
General Mitchell Intl
ICAO Identifier KMKE

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 42-56-48.955N / 87-53-49.432W
2.2.2 From City: 5 miles S of MILWAUKEE, WI
2.2.3 Elevation: 728.4 ft
2.2.5 Magnetic Variation: 4W (2020)
2.2.6 Airport Contact: BRIAN DRANZIK
5300 S HOWELL AVE
MILWAUKEE, WI 53207 (414-747-5300)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: 100LL, A
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category: Class-I certified on 5/1/1973
2.6.2 Rescue and Firefighting Services: ARFF Index-C

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 19R
2.12.2 True Bearing: 187
2.12.3 Dimensions: 9990 ft x 200 ft
2.12.4 PCN: 64 R/A/W/T
2.12.5 Coordinates: 42-57-27.699N / 87-53-34.7753W
2.12.6 Threshold Elevation: 672.7 ft
2.12.6 Touchdown Zone Elevation: 671.9 ft

2.12.1 Designation: 01L
2.12.2 True Bearing: 7
2.12.3 Dimensions: 9990 ft x 200 ft
2.12.4 PCN: 64 R/A/W/T
2.12.5 Coordinates: 42-55-49.7963N / 87-53-51.516W
2.12.6 Threshold Elevation: 705.8 ft
2.12.6 Touchdown Zone Elevation: 703.5 ft

2.12.1 Designation: 01R
2.12.2 True Bearing: 7
2.12.3 Dimensions: 4182 ft x 150 ft
2.12.4 PCN: 23 R/B/W/T
2.12.5 Coordinates: 42-56-21.766N / 87-53-32.5016W
2.12.6 Threshold Elevation: 677.7 ft
2.12.6 Touchdown Zone Elevation: 677.7 ft

2.12.1 Designation: 19L
2.12.2 True Bearing: 187
2.12.3 Dimensions: 4182 ft x 150 ft
2.12.4 PCN: 23 R/B/W/T
2.12.5 Coordinates: 42-57-2.7448N / 87-53-25.4878W
2.12.6 Threshold Elevation: 669.6 ft
2.12.6 Touchdown Zone Elevation: 674.2 ft

2.12.1 Designation: 07L
2.12.2 True Bearing: 72
2.12.3 Dimensions: 4797 ft x 100 ft
2.12.4 PCN: 20 F/A/X/T
2.12.5 Coordinates: 42-57-9.8896N / 87-54-19.1101W
2.12.6 Threshold Elevation: 671.5 ft
2.12.6 Touchdown Zone Elevation: 672 ft

2.12.1 Designation: 25R
2.12.2 True Bearing: 252
2.12.3 Dimensions: 4797 ft x 100 ft
2.12.4 PCN: 20 F/A/X/T
2.12.5 Coordinates: 42-57-24.8031N / 87-53-17.893W
2.12.6 Threshold Elevation: 674.6 ft
2.12.6 Touchdown Zone Elevation: 674.6 ft

2.12.1 Designation: 25L
2.12.2 True Bearing: 252
2.12.3 Dimensions: 8300 ft x 150 ft
2.12.4 PCN: 58 R/A/W/T
2.12.5 Coordinates: 42-56-46.473N / 87-53-18.0003W
2.12.6 Threshold Elevation: 669.9 ft
2.12.6 Touchdown Zone Elevation: 683.1 ft

2.12.1 Designation: 07R
2.12.2 True Bearing: 72
2.12.3 Dimensions: 8300 ft x 150 ft
2.12.4 PCN: 58 R/A/W/T
2.12.5 Coordinates: 42-56-20.6652N / 87-55-3.9117W
2.12.6 Threshold Elevation: 728.4 ft
2.12.6 Touchdown Zone Elevation: 728.4 ft

2.12.1 Designation: 13
2.12.2 True Bearing: 132
2.12.3 Dimensions: 5537 ft x 150 ft
2.12.4 PCN: 48 R/B/W/T
2.12.5 Coordinates: 42-57-29.2767N / 87-54-12.2946W
2.12.6 Threshold Elevation: 671.4 ft
2.12.6 Touchdown Zone Elevation: 670.5 ft

2.12.1 Designation: 31
2.12.2 True Bearing: 312
2.12.3 Dimensions: 5537 ft x 150 ft
2.12.4 PCN: 48 R/B/W/T
2.12.5 Coordinates: 42-56-52.5074N / 87-53-17.1839W
2.12.6 Threshold Elevation: 668.6 ft
2.12.6 Touchdown Zone Elevation: 670.1 ft

AD 2.13 Declared Distances
2.13.1 Designation: 19R
2.13.2 Take-off Run Available: 9990
2.13.3 Take-off Distance Available: 9990
2.13.4 Accelerate-Stop Distance Available: 9990
2.13.5 Landing Distance Available: 9205

2.13.1 Designation: 01L
2.13.2 Take-off Run Available: 9990
2.13.3 Take-off Distance Available: 9990
2.13.4 Accelerate-Stop Distance Available: 9380
2.13.5 Landing Distance Available: 9080

2.13.1 Designation: 01R
2.13.2 Take-off Run Available: 4182
2.13.3 Take-off Distance Available: 4182
2.13.4 Accelerate-Stop Distance Available: 4182
2.13.5 Landing Distance Available: 4182

2.13.1 Designation: 19L
2.13.2 Take-off Run Available: 4182
2.13.3 Take-off Distance Available: 4182
2.13.4 Accelerate-Stop Distance Available: 4182
2.13.5 Landing Distance Available: 4182

2.13.1 Designation: 07L
2.13.2 Take-off Run Available: 4797
2.13.3 Take-off Distance Available: 4797
2.13.4 Accelerate-Stop Distance Available: 4797
2.13.5 Landing Distance Available: 4797

2.13.1 Designation: 25R
2.13.2 Take-off Run Available: 4797
2.13.3 Take-off Distance Available: 4797
2.13.4 Accelerate-Stop Distance Available: 4797
2.13.5 Landing Distance Available: 4797

2.13.1 Designation: 25L
2.13.2 Take-off Run Available: 8300
2.13.3 Take-off Distance Available: 8300
2.13.4 Accelerate-Stop Distance Available: 8300
2.13.5 Landing Distance Available: 7867

2.13.1 Designation: 07R
2.13.2 Take-off Run Available: 8300
2.13.3 Take-off Distance Available: 8300
2.13.4 Accelerate-Stop Distance Available: 8012
2.13.5 Landing Distance Available: 8012

2.13.1 Designation: 13
2.13.2 Take-off Run Available: 5537
2.13.3 Take-off Distance Available: 5537
2.13.4 Accelerate-Stop Distance Available: 5537
2.13.5 Landing Distance Available: 4797

2.13.1 Designation: 31
2.13.2 Take-off Run Available: 5537
2.13.3 Take-off Distance Available: 5537
2.13.4 Accelerate-Stop Distance Available: 5537
2.13.5 Landing Distance Available: 5152

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 19R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 01L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 01R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 19L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 07L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 25R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 25L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 07R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 13
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 31
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4R

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P (B SE)
2.18.3 Channel: 118
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (B SE)
2.18.3 Channel: 317.725
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (A NW)
2.18.3 Channel: 307
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P IC (A NW)
2.18.3 Channel: 126.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 120.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (B SE)
2.18.3 Channel: 118
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (A NW)
2.18.3 Channel: 126.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (A NW)
2.18.3 Channel: 307
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (B SE)
2.18.3 Channel: 317.725
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: COMD POST (128 ARW ANG UPSET CTL)
2.18.3 Channel: 321
2.18.5 Hours of Operation:

2.18.1 Service Designation: COMD POST (28 ARW ANG UPSET CON)
2.18.3 Channel: 6761
2.18.5 Hours of Operation:

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 126.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (A NW)
2.18.3 Channel: 125.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (B SE)
2.18.3 Channel: 135.875
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 263.125
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GOPAC STAR
2.18.3 Channel: 126.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GOPAC STAR
2.18.3 Channel: 307
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 124.575
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 269.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: OPS
2.18.3 Channel: 139.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: OPS
2.18.3 Channel: 311
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 01L. Magnetic variation: 4W
2.19.2 ILS Identification: MKE
2.19.5 Coordinates: 42-57-50.9407N / 87-53-27.4465W
2.19.6 Site Elevation: 725 ft

2.19.1 ILS Type: Glide Slope for runway 01L. Magnetic variation: 4W
2.19.2 ILS Identification: MKE
2.19.5 Coordinates: 42-56-4.4522N / 87-53-43.0463W
2.19.6 Site Elevation: 691.4 ft

2.19.1 ILS Type: Inner Marker for runway 01L. Magnetic variation: 4W
2.19.2 ILS Identification: MKE
2.19.5 Coordinates: 42-55-44.6539N / 87-53-52.3948W
2.19.6 Site Elevation: 706 ft

2.19.1 ILS Type: Localizer for runway 01L. Magnetic variation: 4W
2.19.2 ILS Identification: MKE
2.19.5 Coordinates: 42-57-49.9549N / 87-53-30.968W
2.19.6 Site Elevation: 713 ft

2.19.1 ILS Type: DME for runway 19R. Magnetic variation: 4W
2.19.2 ILS Identification: BLY
2.19.5 Coordinates: 42-57-50.9407N / 87-53-27.4465W
2.19.6 Site Elevation: 725 ft

2.19.1 ILS Type: Glide Slope for runway 19R. Magnetic variation: 4W
2.19.2 ILS Identification: BLY
2.19.5 Coordinates: 42-57-9.1784N / 87-53-32.5226W
2.19.6 Site Elevation: 666.4 ft

2.19.1 ILS Type: Localizer for runway 19R. Magnetic variation: 4W
2.19.2 ILS Identification: BLY
2.19.5 Coordinates: 42-55-38.3041N / 87-53-53.4819W
2.19.6 Site Elevation: 709.2 ft

2.19.1 ILS Type: DME for runway 07R. Magnetic variation: 4W
2.19.2 ILS Identification: GMF
2.19.5 Coordinates: 42-56-18.5074N / 87-55-23.6562W
2.19.6 Site Elevation: 743.1 ft

2.19.1 ILS Type: Glide Slope for runway 07R. Magnetic variation: 4W
2.19.2 ILS Identification: GMF
2.19.5 Coordinates: 42-56-20.4936N / 87-54-47.1205W
2.19.6 Site Elevation: 707.3 ft

2.19.1 ILS Type: Localizer for runway 07R. Magnetic variation: 4W
2.19.2 ILS Identification: GMF
2.19.5 Coordinates: 42-56-49.0824N / 87-53-7.2728W
2.19.6 Site Elevation: 669.1 ft

2.19.1 ILS Type: DME for runway 25L. Magnetic variation: 4W
2.19.2 ILS Identification: PXY
2.19.5 Coordinates: 42-56-18.5074N / 87-55-23.6562W
2.19.6 Site Elevation: 743.1 ft

2.19.1 ILS Type: Localizer for runway 25L. Magnetic variation: 4W
2.19.2 ILS Identification: PXY
2.19.5 Coordinates: 42-56-16.0665N / 87-55-22.7833W
2.19.6 Site Elevation: 728 ft

General Remarks:

TWY B BTN TWY V AND TWY P CLSD TO AFCT WITH WINGSPAN GREATER THAN 170 FT.

RY 19R TODA 8,750 FT FROM INT TWY V.

RY 07L/25R NO ACFT 65,000 LBS OR GREATER ALLOWED TO TAXI BTN TWY D & RY 13/31 AND EAST OF RY 19R.

TWY A CLSD FM TWY R TO TWY E AND TWY E CLSD FM TWY T TO TWY E1 AND TWY T CLSD N OF RWY 07R/25L, AND TWY M CLSD FM TWY E TO RWY 01R/19L TO ACFT WITH TAIL HGT GTR THAN 54.5 FT DURG CAT II AND CAT III OPS.

TWY A CLSD BTN TWY A4 AND TWY A5 TO ACFT WITH WINGSPAN GREATER THAN OR EQUAL TO 214' UNLESS PERMISSION FROM ARPT MGR 414-747-5325

ALL AIRCRAFT PUSHBACKS FROM GATES C20, C21, C22, C23, D39 D41 D43, D45, D48, D51, D53, D54, D55, E65, E66, & E67 REQUIRE CLEARANCE FROM GROUND CONTROL. PUSHBACKS FROM ALL OTHER GATES ARE AT RAMP/ PILOT DISCRETION; CONTACT GROUND CONTROL WHEN READY TO TAXI.

ACFT ARE NOT PERMITTED TO MAKE LEFT TURN ONTO TWY E WHEN EXITING TWY E2.

TWY S & TWY T BTN TWY R & RY 07R/25L AND RY 07R/25L BTN RY 1R/19L & TWY R CLSD DURG CAT II & III OPNS.

HOLDING BAY AT RY 01L CLSD EXCP ACFT WITH WINGSPAN LESS THAN 118 FT.

TWY A BTN TWY R AND TWY A1 CLSD TO ACFT WINGSPAN MORE THAN 171 FT EXC PPR 414-747-5325.

TWY F (E OF RWY 19R), TWY H, TWY J, AND TWY P CLSD TO ACFT WITH WINGSPAN GTR THAN 78 FT UNLESS PMSN FM AMGR AT 414-747-5325.

PREFERRED USAGE BY ACFT BTN 2200-0600 IS TKOF RY 19R & LNDG RY 01L.

RY 07L/25R CLSD TO ALL JET ACFT.

DEICE PAD FOR RWY 07R NOT AUTH FOR THRU TAXI.

TWY C CLSD BTWN APCH END OF RWY 7L AND WEST RAMP NORTH TXL TO ACFT WITH WINGSPAN GTR THAN OR EQUAL TO 118 FT UNLESS PMSN FM ARPT MGR 414-747-5325.

TRNG FLGTS INVOLVING SUCCESSIVE USE OF ANY RY PROHIBITED 2200-0600.

ACFT WITH WINGSPAN GREATER THAN 175 FT CANNOT PASS SIMULTANEOUSLY ON TWY 'E' & TWY 'Z'.

HOLDING BAY AT RY 19R WHEN IN USE, TWY Z ADJACENT TO BAY IS LIMITED TO ACFT WITH WINGSPAN UP TO 170 FT.

RY 13/31 CLSD JET ACFT, UNLESS PMSN FROM TWR OR AMGR 414-747-5325.

RY 01R-19L AVAILABLE TO AIR CARRIERS FOR TAXI ONLY.

ANG: PPR ALL ACFT 48HR PN, CTC AFLD MGMT DSN 580-8241, C414-944-8241. AFLD MGMT HR 1200Z-2230Z++ TUE-FRI, CLSD HOL, SAT-SUN EXC UNIT TMG. MAINT OPS (MOCC) FREQ - 379.85. ANY MDS (OTHER THAN KC-135) IS LTD TO STD TRAN MARSHALLING AND PRK. NO TECH DATA AVBL FOR TRAN MAINT. FUEL AND AGE SUPPORT EQUIP AVBL FOR SELF-SVC. NO ADNL CONFIGN ITEMS SUPPORTED SUCH AS LANTIRN PODS, EDM PODS, ETC. ANG: EOR, ACFT SHELTERS/REVETMENTS, AND ALERT FAC UNAVBL. APRON HAS LTD STATIC GND POINTS AND TIE DOWN POINTS. FLEET SVC/HOT CARGO PRKG UNAVBL. CTC UPSET CTL ON 321.0 30 MIN PRIOR TO LDG AND DEP. NSTD MRK ON APRON FOR WINGTIP CLNC USED BY BASE ASGND ACFT.

TWY F (WEST OF TWY Z) CLSD TO ACFT WITH WINGSPAN GREATER THAN OR EQUAL TO 118 FT UNLESS PERMISSION FROM ARPT DIR AT 414-747-5325.

ALL APCHS ARE OVER NOISE SENSITIVE AREAS; ALL TURBOJET ACFT SHOULD REFRAIN FM CONDUCTING MULTI VFR TFC PATTERN APCHS & DEPS WO PRIOR APVL FM AMGR CALL C414-747-5325.

BIRDS ON & INVOF ARPT.

RYS 13/31 & 01R/19L & 07L/25R CLSD EXCP LGT WT SINGLE ENG ACFT 0400-1200Z DLY.

TWY V BTN TWY D AND RY 7L/25R CLSD TO ACFT WITH WINGSPAN GREATER THAN 170 FT WHEN RY 7L/25R IN USE.

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

TWY B BTN TWY R AND TWY A1 CLSD TO ACFT WINGSPAN MORE THAN 118 FT EXC PPR 414-747-5325.
