Massachusetts

Boston, Massachusetts
General Edward Lawrence Logan International
ICAO Identifier KBOS

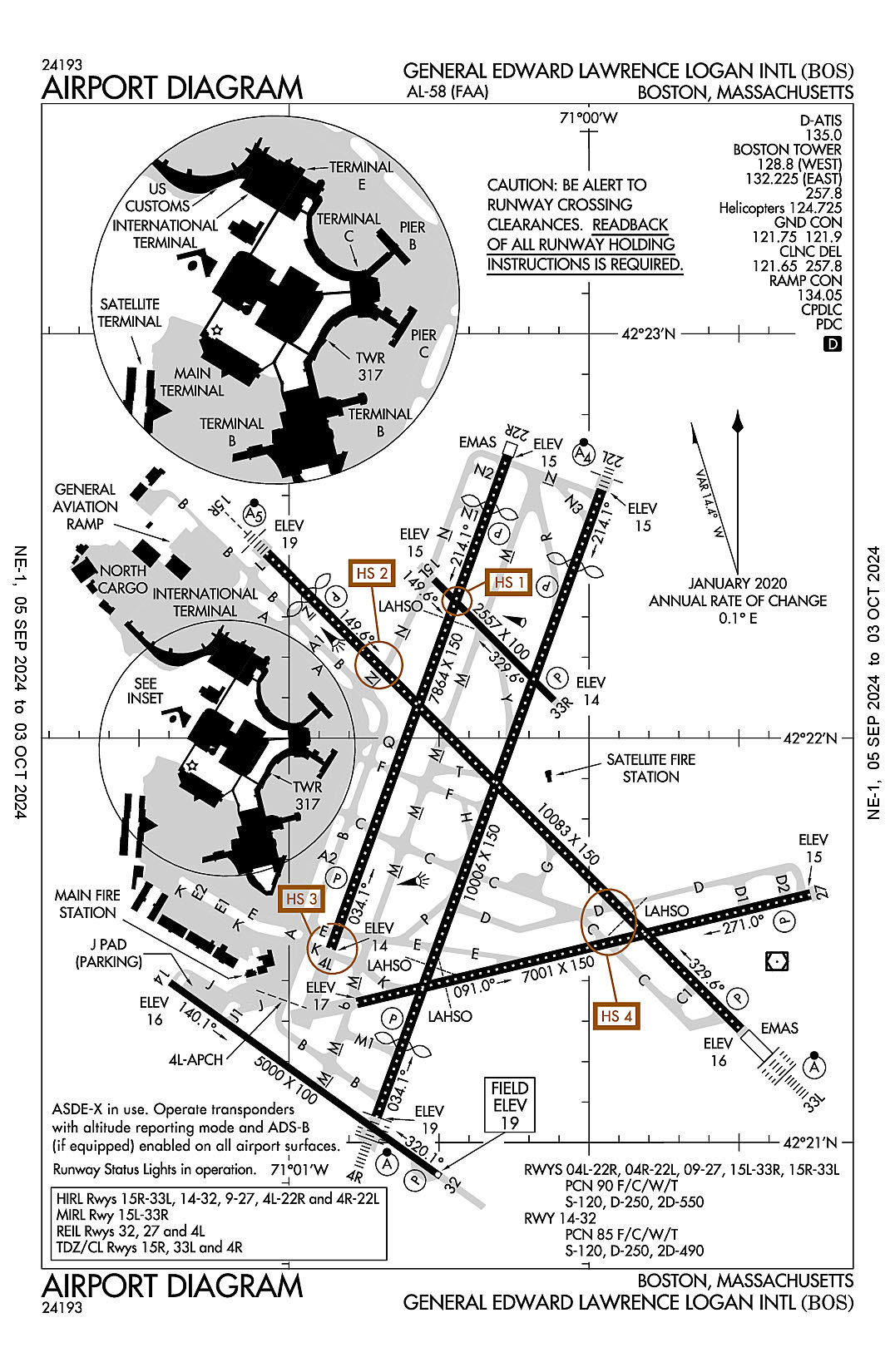

The airport diagram for General Edward Lawrence Logan International (ICAO Identifier KBOS).

Boston, MA
General Edward Lawrence Logan Intl
ICAO Identifier KBOS

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 42-21-46.6N / 71-0-23W
2.2.2 From City: 1 miles E of BOSTON, MA
2.2.3 Elevation: 19.1 ft
2.2.5 Magnetic Variation: 15W (2020)
2.2.6 Airport Contact: EDWARD FRENI
LOGAN INTERNATIONAL AIRPORT
EAST BOSTON, MA 2128 (617-567-5400)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I E certified on 9/1/1972

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 04L
2.12.2 True Bearing: 20
2.12.3 Dimensions: 7864 ft x 150 ft
2.12.4 PCN: 90 F/C/W/T
2.12.5 Coordinates: 42-21-28.7577N / 71-0-51.6187W
2.12.6 Threshold Elevation: 13.9 ft
2.12.6 Touchdown Zone Elevation: 13.9 ft

2.12.1 Designation: 22R
2.12.2 True Bearing: 200
2.12.3 Dimensions: 7864 ft x 150 ft
2.12.4 PCN: 90 F/C/W/T
2.12.5 Coordinates: 42-22-41.8759N / 71-0-16.2499W
2.12.6 Threshold Elevation: 14.9 ft
2.12.6 Touchdown Zone Elevation: 15.2 ft

2.12.1 Designation: 04R
2.12.2 True Bearing: 20
2.12.3 Dimensions: 10006 ft x 150 ft
2.12.4 PCN: 90 F/C/W/T
2.12.5 Coordinates: 42-21-3.8094N / 71-0-42.458W
2.12.6 Threshold Elevation: 18.8 ft
2.12.6 Touchdown Zone Elevation: 17.6 ft

2.12.1 Designation: 22L
2.12.2 True Bearing: 200
2.12.3 Dimensions: 10006 ft x 150 ft
2.12.4 PCN: 90 F/C/W/T
2.12.5 Coordinates: 42-22-36.8399N / 70-59-57.4473W
2.12.6 Threshold Elevation: 14.5 ft
2.12.6 Touchdown Zone Elevation: 15.6 ft

2.12.1 Designation: 09
2.12.2 True Bearing: 77
2.12.3 Dimensions: 7001 ft x 150 ft
2.12.4 PCN: 90 F/C/W/T
2.12.5 Coordinates: 42-21-20.715N / 71-0-46.4187W
2.12.6 Threshold Elevation: 16.7 ft
2.12.6 Touchdown Zone Elevation: 16.8 ft

2.12.1 Designation: 27
2.12.2 True Bearing: 257
2.12.3 Dimensions: 7001 ft x 150 ft
2.12.4 PCN: 90 F/C/W/T
2.12.5 Coordinates: 42-21-36.7767N / 70-59-15.7276W
2.12.6 Threshold Elevation: 14.8 ft
2.12.6 Touchdown Zone Elevation: 17.2 ft

2.12.1 Designation: 14
2.12.2 True Bearing: 125
2.12.3 Dimensions: 5000 ft x 100 ft
2.12.4 PCN: 85 F/C/W/T
2.12.5 Coordinates: 42-21-23.7521N / 71-1-23.7886W
2.12.6 Threshold Elevation: 16 ft
2.12.6 Touchdown Zone Elevation: 19.1 ft

2.12.1 Designation: 32
2.12.2 True Bearing: 305
2.12.3 Dimensions: 5000 ft x 100 ft
2.12.4 PCN: 85 F/C/W/T
2.12.5 Coordinates: 42-20-54.9565N / 71-0-29.6841W
2.12.6 Threshold Elevation: 19.1 ft
2.12.6 Touchdown Zone Elevation: 19.1 ft

2.12.1 Designation: 15L
2.12.2 True Bearing: 135
2.12.3 Dimensions: 2557 ft x 100 ft
2.12.4 PCN: 90 F/C/W/T
2.12.5 Coordinates: 42-22-23.5008N / 71-0-31.0047W
2.12.6 Threshold Elevation: 14.8 ft
2.12.6 Touchdown Zone Elevation: 15.8 ft

2.12.1 Designation: 33R
2.12.2 True Bearing: 315
2.12.3 Dimensions: 2557 ft x 100 ft
2.12.4 PCN: 90 F/C/W/T
2.12.5 Coordinates: 42-22-5.5791N / 71-0-7.0008W
2.12.6 Threshold Elevation: 14 ft
2.12.6 Touchdown Zone Elevation: 15.8 ft

2.12.1 Designation: 15R
2.12.2 True Bearing: 135
2.12.3 Dimensions: 10083 ft x 150 ft
2.12.4 PCN: 90 F/C/W/T
2.12.5 Coordinates: 42-22-27.3749N / 71-1-4.4117W
2.12.6 Threshold Elevation: 18.9 ft
2.12.6 Touchdown Zone Elevation: 17 ft

2.12.1 Designation: 33L
2.12.2 True Bearing: 315
2.12.3 Dimensions: 10083 ft x 150 ft
2.12.4 PCN: 90 F/C/W/T
2.12.5 Coordinates: 42-21-16.7428N / 70-59-29.7098W
2.12.6 Threshold Elevation: 15.7 ft
2.12.6 Touchdown Zone Elevation: 16.2 ft

AD 2.13 Declared Distances
2.13.1 Designation: 04L
2.13.2 Take-off Run Available: 7864
2.13.3 Take-off Distance Available: 7864
2.13.4 Accelerate-Stop Distance Available: 7864
2.13.5 Landing Distance Available: 7864

2.13.1 Designation: 22R
2.13.2 Take-off Run Available: 7864
2.13.3 Take-off Distance Available: 7864
2.13.4 Accelerate-Stop Distance Available: 7864
2.13.5 Landing Distance Available: 7046

2.13.1 Designation: 04R
2.13.2 Take-off Run Available: 10006
2.13.3 Take-off Distance Available: 10006
2.13.4 Accelerate-Stop Distance Available: 10006
2.13.5 Landing Distance Available: 8851

2.13.1 Designation: 22L
2.13.2 Take-off Run Available: 10006
2.13.3 Take-off Distance Available: 10006
2.13.4 Accelerate-Stop Distance Available: 10006
2.13.5 Landing Distance Available: 8806

2.13.1 Designation: 09
2.13.2 Take-off Run Available: 7001
2.13.3 Take-off Distance Available: 7001
2.13.4 Accelerate-Stop Distance Available: 7001
2.13.5 Landing Distance Available: 7001

2.13.1 Designation: 27
2.13.2 Take-off Run Available: 7001
2.13.3 Take-off Distance Available: 7001
2.13.4 Accelerate-Stop Distance Available: 7001
2.13.5 Landing Distance Available: 7001

2.13.1 Designation: 14
2.13.2 Take-off Run Available: 5000
2.13.3 Take-off Distance Available: 5000
2.13.4 Accelerate-Stop Distance Available: 5000
2.13.5 Landing Distance Available: 5000

2.13.1 Designation: 32
2.13.2 Take-off Run Available: 5000
2.13.3 Take-off Distance Available: 5000
2.13.4 Accelerate-Stop Distance Available: 5000
2.13.5 Landing Distance Available: 5000

2.13.1 Designation: 15L
2.13.2 Take-off Run Available: 2557
2.13.3 Take-off Distance Available: 2557
2.13.4 Accelerate-Stop Distance Available: 2557
2.13.5 Landing Distance Available: 2557

2.13.1 Designation: 33R
2.13.2 Take-off Run Available: 2557
2.13.3 Take-off Distance Available: 2557
2.13.4 Accelerate-Stop Distance Available: 2557
2.13.5 Landing Distance Available: 2557

2.13.1 Designation: 15R
2.13.2 Take-off Run Available: 10083
2.13.3 Take-off Distance Available: 10083
2.13.4 Accelerate-Stop Distance Available: 10083
2.13.5 Landing Distance Available: 9202

2.13.1 Designation: 33L
2.13.2 Take-off Run Available: 10083
2.13.3 Take-off Distance Available: 10083
2.13.4 Accelerate-Stop Distance Available: 10083
2.13.5 Landing Distance Available: 10083

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 04L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 22R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 04R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 22L
2.14.2 Approach Lighting System: MALSF
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 09
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 27
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 14
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 32
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 15L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 33R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 15R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 33L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: CD PRE TAXI CLNC
2.18.3 Channel: 121.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (DEP)
2.18.3 Channel: 135
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (ARR)
2.18.3 Channel: 135
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (HELICOPTERS)
2.18.3 Channel: 124.725
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (WEST)
2.18.3 Channel: 128.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (EAST)
2.18.3 Channel: 132.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RAMP CTL
2.18.3 Channel: 134.05
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 04R. Magnetic variation: 15W
2.19.2 ILS Identification: BOS
2.19.5 Coordinates: 42-22-57.4695N / 70-59-50.8873W
2.19.6 Site Elevation: 34.5 ft

2.19.1 ILS Type: Glide Slope for runway 04R. Magnetic variation: 15W
2.19.2 ILS Identification: BOS
2.19.5 Coordinates: 42-21-21.8231N / 71-0-24.5483W
2.19.6 Site Elevation: 10.1 ft

2.19.1 ILS Type: Localizer for runway 04R. Magnetic variation: 15W
2.19.2 ILS Identification: BOS
2.19.5 Coordinates: 42-22-55.9736N / 70-59-48.1884W
2.19.6 Site Elevation: 17.6 ft

2.19.1 ILS Type: DME for runway 22L. Magnetic variation: 15W
2.19.2 ILS Identification: LQN
2.19.5 Coordinates: 42-22-57.4695N / 70-59-50.8873W
2.19.6 Site Elevation: 34.5 ft

2.19.1 ILS Type: Glide Slope for runway 22L. Magnetic variation: 15W
2.19.2 ILS Identification: LQN
2.19.5 Coordinates: 42-22-17.0026N / 71-0-11.9878W
2.19.6 Site Elevation: 11.1 ft

2.19.1 ILS Type: Localizer for runway 22L. Magnetic variation: 15W
2.19.2 ILS Identification: LQN
2.19.5 Coordinates: 42-21-0.0409N / 71-0-44.2844W
2.19.6 Site Elevation: 14.6 ft

2.19.1 ILS Type: DME for runway 27. Magnetic variation: 15W
2.19.2 ILS Identification: DGU
2.19.5 Coordinates: 42-21-15.6955N / 71-0-55.7791W
2.19.6 Site Elevation: 30.5 ft

2.19.1 ILS Type: Glide Slope for runway 27. Magnetic variation: 15W
2.19.2 ILS Identification: DGU
2.19.5 Coordinates: 42-21-31.2953N / 70-59-28.3545W
2.19.6 Site Elevation: 12.3 ft

2.19.1 ILS Type: Localizer for runway 27. Magnetic variation: 15W
2.19.2 ILS Identification: DGU
2.19.5 Coordinates: 42-21-18.4751N / 71-0-59.0489W
2.19.6 Site Elevation: 16.5 ft

2.19.1 ILS Type: DME for runway 15R. Magnetic variation: 15W
2.19.2 ILS Identification: MDC
2.19.5 Coordinates: 42-21-26.5111N / 70-59-35.0574W
2.19.6 Site Elevation: 26.4 ft

2.19.1 ILS Type: Glide Slope for runway 15R. Magnetic variation: 15W
2.19.2 ILS Identification: MDC
2.19.5 Coordinates: 42-22-14.6947N / 71-0-42.4209W
2.19.6 Site Elevation: 11.2 ft

2.19.1 ILS Type: Localizer for runway 15R. Magnetic variation: 15W
2.19.2 ILS Identification: MDC
2.19.5 Coordinates: 42-21-26.3592N / 70-59-37.052W
2.19.6 Site Elevation: 11.1 ft

2.19.1 ILS Type: DME for runway 33L. Magnetic variation: 15W
2.19.2 ILS Identification: LIP
2.19.5 Coordinates: 42-21-26.5111N / 70-59-35.0574W
2.19.6 Site Elevation: 26.4 ft

2.19.1 ILS Type: Glide Slope for runway 33L. Magnetic variation: 15W
2.19.2 ILS Identification: LIP
2.19.5 Coordinates: 42-21-26.6446N / 70-59-34.7132W
2.19.6 Site Elevation: 11.3 ft

2.19.1 ILS Type: Localizer for runway 33L. Magnetic variation: 15W
2.19.2 ILS Identification: LIP
2.19.5 Coordinates: 42-22-37.5624N / 71-1-18.0895W
2.19.6 Site Elevation: 15.9 ft

2.19.1 Navigation Aid Type: VOR/DME. Magnetic variation: 16W
2.19.2 Navigation Aid Identification: BOS
2.19.5 Coordinates: 42-21-26.8197N / 70-59-22.3742W
2.19.6 Site Elevation: 18.4 ft

General Remarks:

RWY STATUS LGTS IN OPN.

NOISE SENSITIVE AREA - HELS OPNG WITHIN THE CTZL ARE REQD TO MAINT THE HIGHEST POSSIBLE ALT.

NO RON PARKING FOR NON-TENANT CHARTER AIRCRAFT WITHOUT PRIOR MASSPORT PERMISSION.

PILOTS SHOULD COMPLETE ALL CALCULATIONS PRIOR TO PUSHBACK FROM GATE.

BTN 0000-0600 LCL - RY 15R IS PREFERENTIAL NGT RY FOR TKOF & RY 33L IS PREFERENTIAL NGT RY FOR LNDG.

RWY 14/32 UNIDIRECTIONAL; NO LDGS RWY 14; NO TKOFS RWY 32.

NMRS CRANES ON AND INVOF ARPT.

TERMINAL E; NORTH & SOUTH CARGO ARRIVALS CTC MASSPORT GATE CONTROL ON FREQ 131.1 BEFORE ENTERING/DEPARTING RAMP AREA.

FOR NOISE ABATEMENT PROCEDURES CALL 617-561-1636 0900-1700 MON-FRI.

BIRDS ON & INVOF ARPT.

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.
