Kentucky

Covington, Kentucky
Cincinnati/Northern Kentucky International
ICAO Identifier KCVG

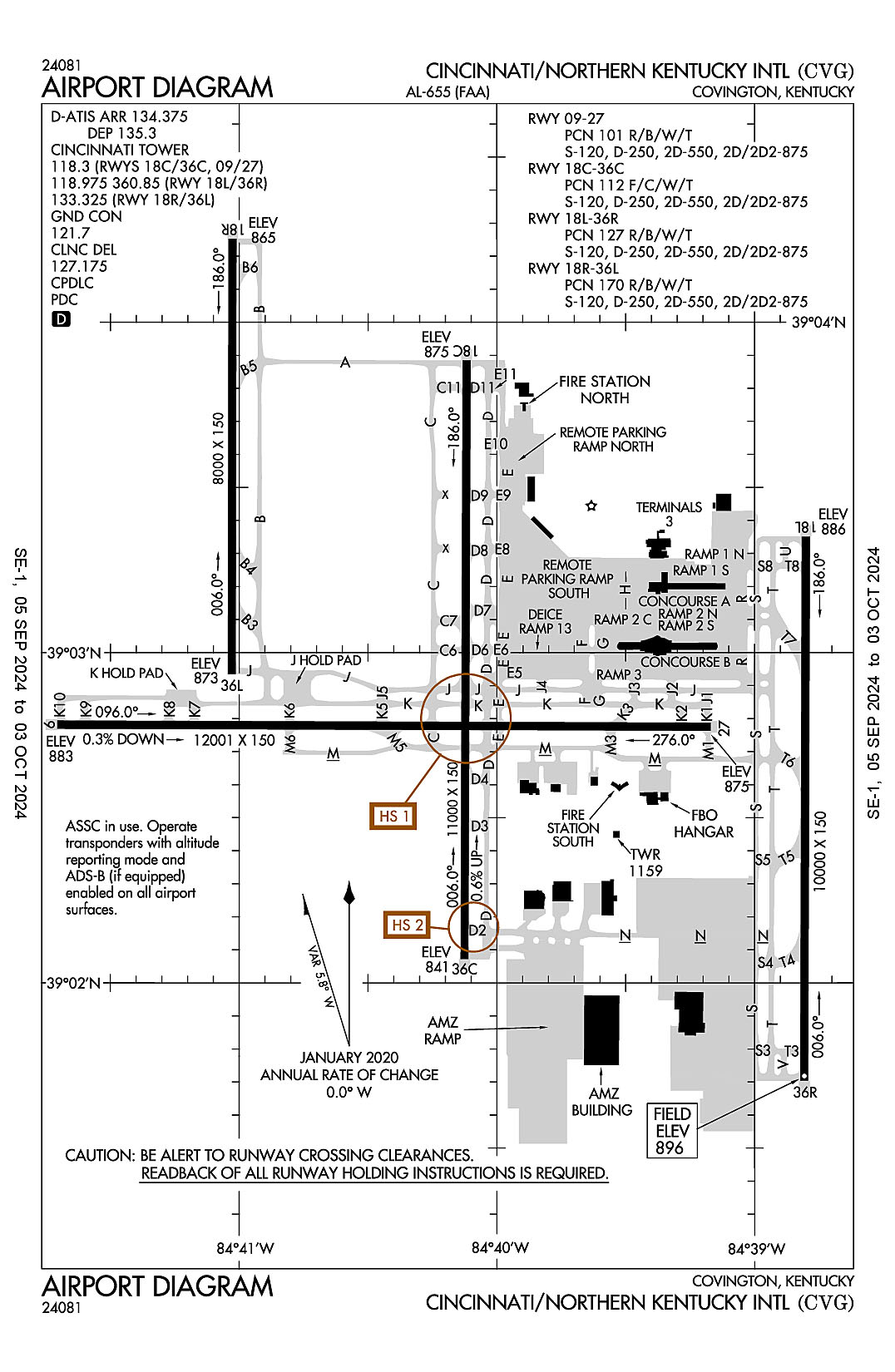

The airport diagram for Cincinnati/Northern Kentucky International (ICAO Identifier KCVG)

Covington, KY
Cincinnati/Northern Kentucky Intl
ICAO Identifier KCVG

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 39-2-55.812N / 84-40-4.16W
2.2.2 From City: 8 miles SW of COVINGTON, KY
2.2.3 Elevation: 896.2 ft
2.2.5 Magnetic Variation: 6W (2020)
2.2.6 Airport Contact: CANDACE MCGRAW
PO BOX 752000
CINCINNATI, OH 45275 (859-767-3151)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I C certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 09
2.12.2 True Bearing: 90
2.12.3 Dimensions: 12000 ft x 150 ft
2.12.4 PCN: 101 R/B/W/T
2.12.5 Coordinates: 39-2-46.9081N / 84-41-42.355W
2.12.6 Threshold Elevation: 883.3 ft
2.12.6 Touchdown Zone Elevation: 883.3 ft

2.12.1 Designation: 27
2.12.2 True Bearing: 270
2.12.3 Dimensions: 12000 ft x 150 ft
2.12.4 PCN: 101 R/B/W/T
2.12.5 Coordinates: 39-2-46.5432N / 84-39-10.2575W
2.12.6 Threshold Elevation: 874.9 ft
2.12.6 Touchdown Zone Elevation: 874.9 ft

2.12.1 Designation: 36C
2.12.2 True Bearing: 0
2.12.3 Dimensions: 11000 ft x 150 ft
2.12.4 PCN: 112 F/C/W/T
2.12.5 Coordinates: 39-2-4.355N / 84-40-7.4726W
2.12.6 Threshold Elevation: 840.9 ft
2.12.6 Touchdown Zone Elevation: 850.6 ft

2.12.1 Designation: 18C
2.12.2 True Bearing: 180
2.12.3 Dimensions: 11000 ft x 150 ft
2.12.4 PCN: 112 F/C/W/T
2.12.5 Coordinates: 39-3-53.0727N / 84-40-7.0232W
2.12.6 Threshold Elevation: 874.6 ft
2.12.6 Touchdown Zone Elevation: 874.6 ft

2.12.1 Designation: 18L
2.12.2 True Bearing: 180
2.12.3 Dimensions: 10000 ft x 150 ft
2.12.4 PCN: 127 R/B/W/T
2.12.5 Coordinates: 39-3-21.078N / 84-38-48.002W
2.12.6 Threshold Elevation: 886.2 ft
2.12.6 Touchdown Zone Elevation: 889.2 ft

2.12.1 Designation: 36R
2.12.2 True Bearing: 0
2.12.3 Dimensions: 10000 ft x 150 ft
2.12.4 PCN: 127 R/B/W/T
2.12.5 Coordinates: 39-1-42.243N / 84-38-48.4558W
2.12.6 Threshold Elevation: 896.2 ft
2.12.6 Touchdown Zone Elevation: 896.2 ft

2.12.1 Designation: 36L
2.12.2 True Bearing: 0
2.12.3 Dimensions: 8000 ft x 150 ft
2.12.4 PCN: 170 R/B/W/T
2.12.5 Coordinates: 39-2-56.1061N / 84-41-1.7599W
2.12.6 Threshold Elevation: 873.4 ft
2.12.6 Touchdown Zone Elevation: 873.4 ft

2.12.1 Designation: 18R
2.12.2 True Bearing: 180
2.12.3 Dimensions: 8000 ft x 150 ft
2.12.4 PCN: 170 R/B/W/T
2.12.5 Coordinates: 39-4-15.1761N / 84-41-1.4563W
2.12.6 Threshold Elevation: 865.4 ft
2.12.6 Touchdown Zone Elevation: 868.4 ft

AD 2.13 Declared Distances
2.13.1 Designation: 09
2.13.2 Take-off Run Available: 12000
2.13.3 Take-off Distance Available: 12000
2.13.4 Accelerate-Stop Distance Available: 11640
2.13.5 Landing Distance Available: 11640

2.13.1 Designation: 27
2.13.2 Take-off Run Available: 12000
2.13.3 Take-off Distance Available: 12000
2.13.4 Accelerate-Stop Distance Available: 12000
2.13.5 Landing Distance Available: 12000

2.13.1 Designation: 36C
2.13.2 Take-off Run Available: 11000
2.13.3 Take-off Distance Available: 11000
2.13.4 Accelerate-Stop Distance Available: 11000
2.13.5 Landing Distance Available: 11000

2.13.1 Designation: 18C
2.13.2 Take-off Run Available: 11000
2.13.3 Take-off Distance Available: 11000
2.13.4 Accelerate-Stop Distance Available: 11000
2.13.5 Landing Distance Available: 11000

2.13.1 Designation: 18L
2.13.2 Take-off Run Available: 10000
2.13.3 Take-off Distance Available: 10000
2.13.4 Accelerate-Stop Distance Available: 10000
2.13.5 Landing Distance Available: 10000

2.13.1 Designation: 36R
2.13.2 Take-off Run Available: 10000
2.13.3 Take-off Distance Available: 10000
2.13.4 Accelerate-Stop Distance Available: 10000
2.13.5 Landing Distance Available: 10000

2.13.1 Designation: 36L
2.13.2 Take-off Run Available: 8000
2.13.3 Take-off Distance Available: 8000
2.13.4 Accelerate-Stop Distance Available: 8000
2.13.5 Landing Distance Available: 8000

2.13.1 Designation: 18R
2.13.2 Take-off Run Available: 8000
2.13.3 Take-off Distance Available: 8000
2.13.4 Accelerate-Stop Distance Available: 8000
2.13.5 Landing Distance Available: 8000

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 09
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 27
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 36C
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 18C
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 18L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 36R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 36L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 18R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P (090-269)
2.18.3 Channel: 119.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (270-089)
2.18.3 Channel: 123.875
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P
2.18.3 Channel: 363.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 127.175
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (001-180)
2.18.3 Channel: 121
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (181-360)
2.18.3 Channel: 128.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B
2.18.3 Channel: 254.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (ARR)
2.18.3 Channel: 134.375
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (DEP)
2.18.3 Channel: 135.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (001-180)
2.18.3 Channel: 126.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (181-360)
2.18.3 Channel: 128.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P
2.18.3 Channel: 254.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: JAKIE STAR
2.18.3 Channel: 119.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: JAKIE STAR
2.18.3 Channel: 254.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 09/27, 18C/36C)
2.18.3 Channel: 118.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 18L/36R)
2.18.3 Channel: 118.975
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 18R/36L)
2.18.3 Channel: 133.325
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 18L/36R)
2.18.3 Channel: 360.85
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 09. Magnetic variation: 4W
2.19.2 ILS Identification: URN
2.19.5 Coordinates: 39-2-43.95N / 84-39-1.77W
2.19.6 Site Elevation: 872 ft

2.19.1 ILS Type: Glide Slope for runway 09. Magnetic variation: 4W
2.19.2 ILS Identification: URN
2.19.5 Coordinates: 39-2-42.9214N / 84-41-28.2651W
2.19.6 Site Elevation: 873.6 ft

2.19.1 ILS Type: Localizer for runway 09. Magnetic variation: 4W
2.19.2 ILS Identification: URN
2.19.5 Coordinates: 39-2-46.51N / 84-39-2.15W
2.19.6 Site Elevation: 873.7 ft

2.19.1 ILS Type: Glide Slope for runway 27. Magnetic variation: 6W
2.19.2 ILS Identification: JDP
2.19.5 Coordinates: 39-2-42.6285N / 84-39-25.1641W
2.19.6 Site Elevation: 866.8 ft

2.19.1 ILS Type: Localizer for runway 27. Magnetic variation: 6W
2.19.2 ILS Identification: JDP
2.19.5 Coordinates: 39-2-46.94N / 84-41-55.34W
2.19.6 Site Elevation: 884 ft

2.19.1 ILS Type: DME for runway 18C. Magnetic variation: 6W
2.19.2 ILS Identification: SIC
2.19.5 Coordinates: 39-1-54.15N / 84-40-8.21W
2.19.6 Site Elevation: 819 ft

2.19.1 ILS Type: Glide Slope for runway 18C. Magnetic variation: 6W
2.19.2 ILS Identification: SIC
2.19.5 Coordinates: 39-3-42.6502N / 84-40-12.1375W
2.19.6 Site Elevation: 868 ft

2.19.1 ILS Type: Localizer for runway 18C. Magnetic variation: 6W
2.19.2 ILS Identification: SIC
2.19.5 Coordinates: 39-1-54.18N / 84-40-7.51W
2.19.6 Site Elevation: 819 ft

2.19.1 ILS Type: DME for runway 36C. Magnetic variation: 6W
2.19.2 ILS Identification: CVG
2.19.5 Coordinates: 39-4-3.9116N / 84-40-10.1714W
2.19.6 Site Elevation: 886 ft

2.19.1 ILS Type: Glide Slope for runway 36C. Magnetic variation: 6W
2.19.2 ILS Identification: CVG
2.19.5 Coordinates: 39-2-15.4818N / 84-40-12.4941W
2.19.6 Site Elevation: 834.3 ft

2.19.1 ILS Type: Inner Marker for runway 36C. Magnetic variation: 6W
2.19.2 ILS Identification: CVG
2.19.5 Coordinates: 39-1-54.0493N / 84-40-7.51W
2.19.6 Site Elevation: 818 ft

2.19.1 ILS Type: Localizer for runway 36C. Magnetic variation: 6W
2.19.2 ILS Identification: CVG
2.19.5 Coordinates: 39-4-3.6988N / 84-40-6.98W
2.19.6 Site Elevation: 882.2 ft

2.19.1 ILS Type: DME for runway 18L. Magnetic variation: 4W
2.19.2 ILS Identification: CIZ
2.19.5 Coordinates: 39-1-31.5754N / 84-38-45.4055W
2.19.6 Site Elevation: 915 ft

2.19.1 ILS Type: Glide Slope for runway 18L. Magnetic variation: 4W
2.19.2 ILS Identification: CIZ
2.19.5 Coordinates: 39-3-10.8816N / 84-38-42.9759W
2.19.6 Site Elevation: 881.3 ft

2.19.1 ILS Type: Localizer for runway 18L. Magnetic variation: 4W
2.19.2 ILS Identification: CIZ
2.19.5 Coordinates: 39-1-31.7864N / 84-38-48.5034W
2.19.6 Site Elevation: 899.1 ft

2.19.1 ILS Type: DME for runway 36R. Magnetic variation: 6W
2.19.2 ILS Identification: EEI
2.19.5 Coordinates: 39-3-30.8783N / 84-38-51.1801W
2.19.6 Site Elevation: 905 ft

2.19.1 ILS Type: Glide Slope for runway 36R. Magnetic variation: 6W
2.19.2 ILS Identification: EEI
2.19.5 Coordinates: 39-1-52.8046N / 84-38-43.3389W
2.19.6 Site Elevation: 889.9 ft

2.19.1 ILS Type: Inner Marker for runway 36R. Magnetic variation: 6W
2.19.2 ILS Identification: EEI
2.19.5 Coordinates: 39-1-33.5638N / 84-38-48.4956W
2.19.6 Site Elevation: 899 ft

2.19.1 ILS Type: Localizer for runway 36R. Magnetic variation: 6W
2.19.2 ILS Identification: EEI
2.19.5 Coordinates: 39-3-31.4852N / 84-38-47.9546W
2.19.6 Site Elevation: 892.1 ft

2.19.1 ILS Type: Middle Marker for runway 36R. Magnetic variation: 6W
2.19.2 ILS Identification: EEI
2.19.5 Coordinates: 39-1-16.5412N / 84-38-48.5766W
2.19.6 Site Elevation: 915 ft

2.19.1 ILS Type: DME for runway 18R. Magnetic variation: 6W
2.19.2 ILS Identification: CJN
2.19.5 Coordinates: 39-2-41.52N / 84-41-5.2W
2.19.6 Site Elevation: 869 ft

2.19.1 ILS Type: Glide Slope for runway 18R. Magnetic variation: 6W
2.19.2 ILS Identification: CJN
2.19.5 Coordinates: 39-4-3.91N / 84-41-6.57W
2.19.6 Site Elevation: 860.5 ft

2.19.1 ILS Type: Inner Marker for runway 18R. Magnetic variation: 6W
2.19.2 ILS Identification: CJN
2.19.5 Coordinates: 39-4-23.57N / 84-41-1.42W
2.19.6 Site Elevation: 856 ft

2.19.1 ILS Type: Localizer for runway 18R. Magnetic variation: 6W
2.19.2 ILS Identification: CJN
2.19.5 Coordinates: 39-2-41.27N / 84-41-1.83W
2.19.6 Site Elevation: 871 ft

2.19.1 ILS Type: DME for runway 36L. Magnetic variation: 6W
2.19.2 ILS Identification: VAC
2.19.5 Coordinates: 39-4-25.03N / 84-41-4.79W
2.19.6 Site Elevation: 848 ft

2.19.1 ILS Type: Glide Slope for runway 36L. Magnetic variation: 6W
2.19.2 ILS Identification: VAC
2.19.5 Coordinates: 39-3-6.56N / 84-41-6.79W
2.19.6 Site Elevation: 866.5 ft

2.19.1 ILS Type: Inner Marker for runway 36L. Magnetic variation: 6W
2.19.2 ILS Identification: VAC
2.19.5 Coordinates: 39-2-44.31N / 84-41-1.8W
2.19.6 Site Elevation:

2.19.1 ILS Type: Localizer for runway 36L. Magnetic variation: 6W
2.19.2 ILS Identification: VAC
2.19.5 Coordinates: 39-4-25.49N / 84-41-1.4W
2.19.6 Site Elevation: 854.7 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 4W
2.19.2 Navigation Aid Identification: CVG
2.19.5 Coordinates: 39-0-57.5308N / 84-42-12.0468W
2.19.6 Site Elevation: 878 ft

General Remarks:

NOISE SENS AREA N & S OF ARPT; RWY ASGN 2200-0700 BASED ON NOISE ABATEMENT.

ALL TWYS RSTRD TO 15 MPH OR LESS WITH WINGSPAN 214 FT OR GREATER.

SUCCESSIVE OR SIMUL DEP FM RWY 18L, 18C, 36L, 36C & 36R APVD WITH COURSE DVRG BGN NO FURTHER THAN 2 MI FM EOR DUE TO NOISE ABATEMENT RSTR.

ASSC IN USE: OPR TRANSPONDERS WITH ALT REPORTING MODE & ADS-B IF EQUIPPED ENABLED ON ARPT SFCS.

BIRDS ON & INVOF THE ARPT.

RAMP CTL: RAMP 1N / 1S TXL & RAMP 2N / 2S TXL - 130.90; RAMP 3 TXL & N TXL - 130.375; DHL RAMP - 129.475.
