Puerto Rico

Mayaguez, Puerto Rico
Eugenio Maria De Hostos
ICAO Identifier TJMZ

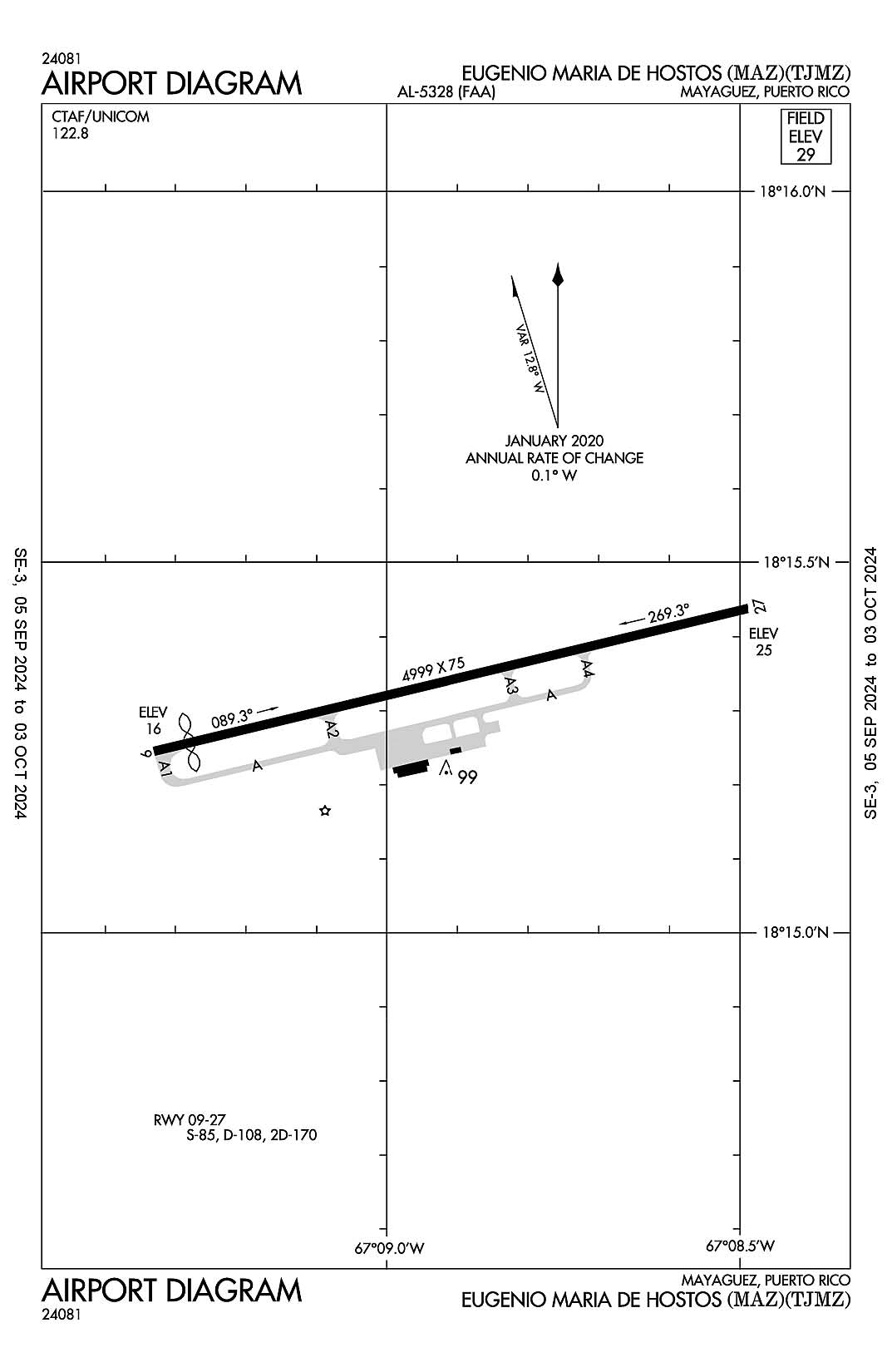

The airport diagram for Eugenio Maria De Hostos (ICAO Identifier TJMZ).

Mayaguez, PR
Eugenio Maria De
Hostos
ICAO Identifier TJMZ

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 18-15-20.5N / 67-8-54.5W
2.2.2 From City: 3 miles N of MAYAGUEZ, PR
2.2.3 Elevation: 27.7 ft
2.2.5 Magnetic Variation: 10W (1985)
2.2.6 Airport Contact: EDGAR SIERRA
BOX 710
MAYAGUEZ, PR 709 (787-832-3390)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, MON-FRI Days, 0730-1600 Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: NO
2.4.2 Fuel Types:
2.4.5 Hangar Space: NO
2.4.6 Repair Facilities: NONE

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: None

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 27
2.12.2 True Bearing: 256
2.12.3 Dimensions: 4998 ft x 100 ft
2.12.4 PCN:
2.12.5 Coordinates: 18-15-26.2517N / 67-8-29.2981W
2.12.6 Threshold Elevation: 23.2 ft
2.12.6 Touchdown Zone Elevation: 27.7 ft

2.12.1 Designation: 09
2.12.2 True Bearing: 76
2.12.3 Dimensions: 4998 ft x 100 ft
2.12.4 PCN:
2.12.5 Coordinates: 18-15-14.6817N / 67-9-19.728W
2.12.6 Threshold Elevation: 15.3 ft
2.12.6 Touchdown Zone Elevation: 27.6 ft

AD 2.13 Declared Distances
2.13.1 Designation: 27
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 09
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 27
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 09
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities

AD 2.19 Radio Navigation and Landing Aids
2.19.1 Navigation Aid Type: NDB. Magnetic variation: 10W
2.19.2 Navigation Aid Identification: MAZ
2.19.5 Coordinates: 18-15-13.529N / 67-9-8.947W
2.19.6 Site Elevation:

2.19.1 Navigation Aid Type: VOR/DME. Magnetic variation: 10W
2.19.2 Navigation Aid Identification: MAZ
2.19.5 Coordinates: 18-15-23.2293N / 67-9-3.7215W
2.19.6 Site Elevation: 18 ft

General Remarks:

1200' TWR /1207' MSL/ 9 NM NNW.

FOR CD IF FREQ ARE OTS CTC SAN JUAN CERAP AT 787-253-8664/8667

BIRDS ON AND INVOF ARPT.

San Juan, Puerto Rico
Luis Munoz Marin International
ICAO Identifier TJSJ

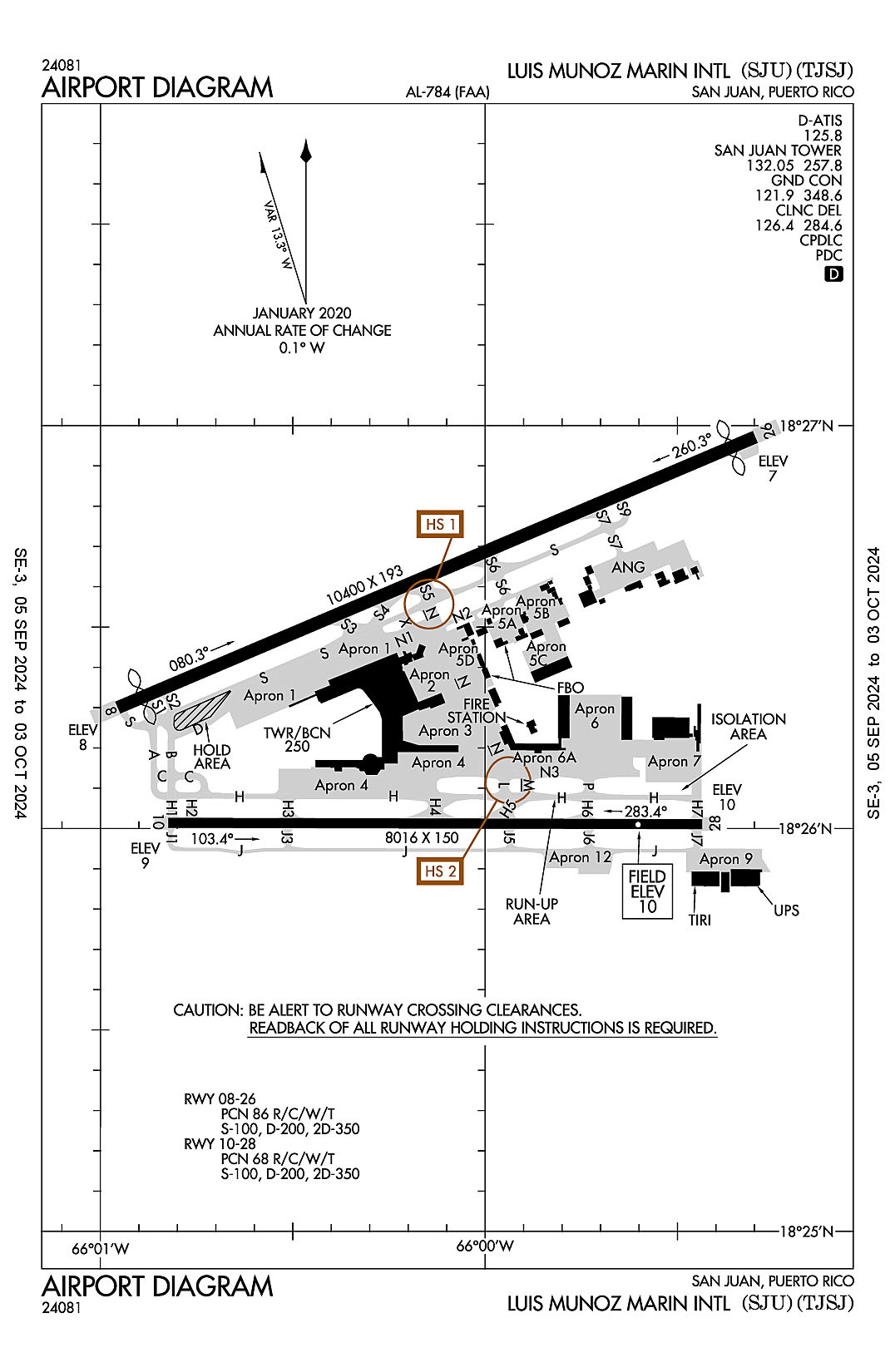

The airport diagram for Luis Munoz Marin International (ICAO Identifier TJSJ).

San Juan, PR
Luis Munoz Marin Intl

ICAO Identifier TJSJ

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 18-26-21.837N / 66-0-7.68W
2.2.2 From City: 3 miles SE of SAN JUAN, PR
2.2.3 Elevation: 9.6 ft
2.2.5 Magnetic Variation: 11W (1985)
2.2.6 Airport Contact: MR. JORGE HERNANDEZ
P. O. BOX 38085
SAN JUAN, PR 937 ((787) 289-7240)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: 100,115,A+,A++
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I D certified on 5/1/2005

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 08
2.12.2 True Bearing: 67
2.12.3 Dimensions: 10400 ft x 193 ft
2.12.4 PCN: 86 R/C/W/T
2.12.5 Coordinates: 18-26-17.9673N / 66-0-57.3115W
2.12.6 Threshold Elevation: 8.2 ft
2.12.6 Touchdown Zone Elevation: 9.3 ft

2.12.1 Designation: 26
2.12.2 True Bearing: 247
2.12.3 Dimensions: 10400 ft x 193 ft
2.12.4 PCN: 86 R/C/W/T
2.12.5 Coordinates: 18-26-58.2684N / 65-59-17.8783W
2.12.6 Threshold Elevation: 6.9 ft
2.12.6 Touchdown Zone Elevation: 7.4 ft

2.12.1 Designation: 10
2.12.2 True Bearing: 90
2.12.3 Dimensions: 8016 ft x 150 ft
2.12.4 PCN: 68 R/C/W/T
2.12.5 Coordinates: 18-26-0.8092N / 66-0-49.4179W
2.12.6 Threshold Elevation: 9.3 ft
2.12.6 Touchdown Zone Elevation: 9.3 ft

2.12.1 Designation: 28
2.12.2 True Bearing: 270
2.12.3 Dimensions: 8016 ft x 150 ft
2.12.4 PCN: 68 R/C/W/T
2.12.5 Coordinates: 18-26-0.6107N / 65-59-26.159W
2.12.6 Threshold Elevation: 9.5 ft
2.12.6 Touchdown Zone Elevation: 9.6 ft

AD 2.13 Declared Distances
2.13.1 Designation: 08
2.13.2 Take-off Run Available: 9784
2.13.3 Take-off Distance Available: 10400
2.13.4 Accelerate-Stop Distance Available: 9784
2.13.5 Landing Distance Available: 9384

2.13.1 Designation: 26
2.13.2 Take-off Run Available: 8128
2.13.3 Take-off Distance Available: 10400
2.13.4 Accelerate-Stop Distance Available: 9600
2.13.5 Landing Distance Available: 9600

2.13.1 Designation: 10
2.13.2 Take-off Run Available: 8016
2.13.3 Take-off Distance Available: 8016
2.13.4 Accelerate-Stop Distance Available: 8016
2.13.5 Landing Distance Available: 8016

2.13.1 Designation: 28
2.13.2 Take-off Run Available: 8016
2.13.3 Take-off Distance Available: 8016
2.13.4 Accelerate-Stop Distance Available: 8016
2.13.5 Landing Distance Available: 8016

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 08
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 26
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 10
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 28
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P DEP/P (WEST & SW)
2.18.3 Channel: 119.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (NORTH & EAST)
2.18.3 Channel: 120.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (WEST & SW)
2.18.3 Channel: 269.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (NORTH & EAST)
2.18.3 Channel: 290.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD PRE TAXI CLNC
2.18.3 Channel: 126.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 284.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (WEST & SW)
2.18.3 Channel: 119.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (NORTH & EAST)
2.18.3 Channel: 120.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (WEST & SW)
2.18.3 Channel: 269.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (NORTH & EAST)
2.18.3 Channel: 290.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 125.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 132.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 08. Magnetic variation: 11W
2.19.2 ILS Identification: SJU
2.19.5 Coordinates: 18-26-27.0397N / 66-0-45.5699W
2.19.6 Site Elevation: 4.2 ft

2.19.1 ILS Type: Localizer for runway 08. Magnetic variation: 11W
2.19.2 ILS Identification: SJU
2.19.5 Coordinates: 18-26-59.7947N / 65-59-14.1228W
2.19.6 Site Elevation: 5.6 ft

2.19.1 ILS Type: Outer Marker for runway 08. Magnetic variation: 11W
2.19.2 ILS Identification: SJU
2.19.5 Coordinates: 18-24-31.8227N / 66-5-21.8301W
2.19.6 Site Elevation: 66.5 ft

2.19.1 ILS Type: DME for runway 10. Magnetic variation: 11W
2.19.2 ILS Identification: CLA
2.19.5 Coordinates: 18-26-2.5352N / 65-59-15.6282W
2.19.6 Site Elevation: 18.2 ft

2.19.1 ILS Type: Glide Slope for runway 10. Magnetic variation: 11W
2.19.2 ILS Identification: CLA
2.19.5 Coordinates: 18-25-57.5628N / 66-0-39.041W
2.19.6 Site Elevation: 4.5 ft

2.19.1 ILS Type: Localizer for runway 10. Magnetic variation: 11W
2.19.2 ILS Identification: CLA
2.19.5 Coordinates: 18-26-0.5899N / 65-59-15.5192W
2.19.6 Site Elevation: 9 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 11W
2.19.2 Navigation Aid Identification: SJU
2.19.5 Coordinates: 18-26-46.6101N / 65-59-22.2272W
2.19.6 Site Elevation: 5.7 ft

General Remarks:

MILITARY: ANG: CAUTION - MUNIZ ANG APN HGR OBST LGTS PARTIALLY OTS.

TWY J BTN J1 AND J5 (NOT INCLUDING J5) CLSD TO ACFT WITH GREATER THAN 118 FT WINGSPAN.

ACFT 180 TURNS ON TWYS REQUIRES OPS COORDINATIONS.

FBO/GROUND HANDLER MUST SUBMIT 72 HRS PPR FOR ALL MIL ACFT TO: CCO@AEROSTARAIRPORTS.COM OR BY PHONE TO: 787-253-0979

MILITARY: ANG: RSTD - RDCD WINGTIP CLNC FOR WIDE BODY ACFT SW SIDE OF MUNIZ ANGB APN DUE TO TEMPO MOBILE OBST.

MILITARY: ANG: INBD ACFT ORIGINATING FR OCONUS WITH A PPR FOR MUNIZ ANGB APN MUST CLEAR CUSTOMS AND BORDER PROTECTION AT CIV SIDE. PRIOR COORD MUST BE MADE WITH ANG AMOPS, FONE 740-9629 AT LEAST ONE BUS DAY PRIOR TO ARRIVAL.

ALL PVT AND CORPORATE AIRCRAFT MUST CONTACT ARPT OPS, BEFORE ARRIVAL, FOR FBOS & GROUND HANDLING INFO AT 787-253-0979.

MILITARY: ANG: CAUTION - UNLGTD ROLLING GATE AT ENTRANCE OF MUNIZ ANGB APN; GATE MUST BE FULLY EXTDD PRIOR TO ACFT TRSN INTO ANG APN.

ENGINE RUNUPS PROHIBITED ON GATES AREA.

APRON 12 AVBL FOR GA ACFT ONLY.

BASE OPS 1130-2000Z MON-FRI, CLSD WKEND AND HOL.

TWY N IS UNDER CONSTRUCTION. PLEASE, CONTACT ARPT OPS AT 787-253-0979 FOR FURTHER DETAILS AND RESTRICTIONS.

TWY S BTN TWY S2 AND TWY S5 CLSD LGTD AND BARRICADED.
