Arizona

Phoenix, Arizona
Phoenix Sky Harbor International
ICAO Identifier KPHX

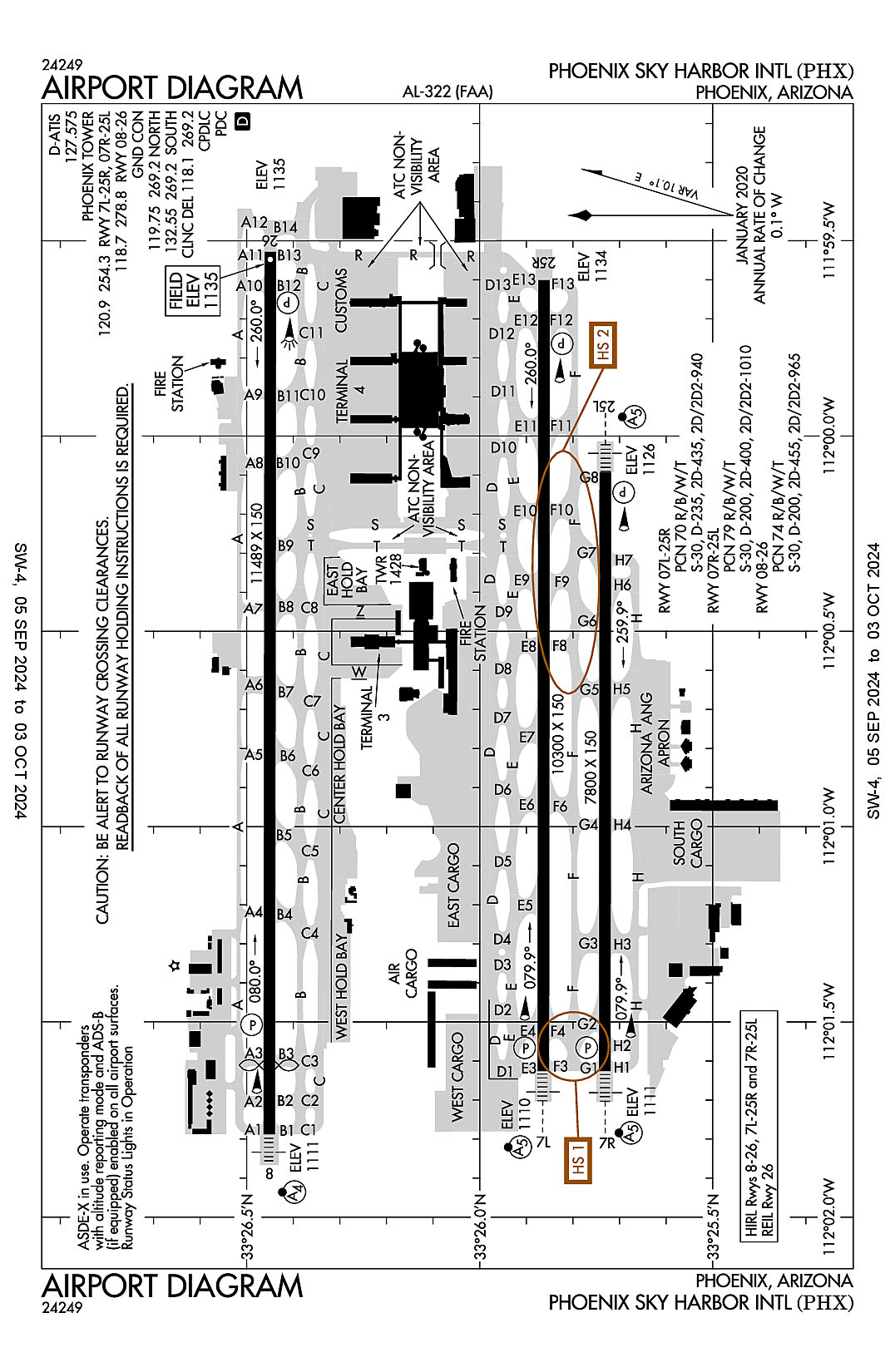

An airport diagram for Phoenix Sky Harbor International (ICAO Identifier KPHX).

Phoenix, AZ
Phoenix Sky Harbor Intl
ICAO Identifier KPHX

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 33-26-3.4N / 112-0-41.7W
2.2.2 From City: 3 miles E of PHOENIX, AZ
2.2.3 Elevation: 1134.8 ft
2.2.5 Magnetic Variation: 12E (2000)
2.2.6 Airport Contact: CHAD R. MAKOVSKY
2485 E BUCKEYE RD
PHOENIX, AZ 85034 (602-273-3302)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: 100LL, A
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category: Class-I certified on 5/1/1973
2.6.2 Rescue and Firefighting Services: ARFF Index-D

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 07L
2.12.2 True Bearing: 90
2.12.3 Dimensions: 10300 ft x 150 ft
2.12.4 PCN: 70 R/B/W/T
2.12.5 Coordinates: 33-25-51.8081N / 112-1-37.5659W
2.12.6 Threshold Elevation: 1110.2 ft
2.12.6 Touchdown Zone Elevation: 1116.5 ft

2.12.1 Designation: 25R
2.12.2 True Bearing: 270
2.12.3 Dimensions: 10300 ft x 150 ft
2.12.4 PCN: 70 R/B/W/T
2.12.5 Coordinates: 33-25-51.7284N / 111-59-36.0429W
2.12.6 Threshold Elevation: 1134 ft
2.12.6 Touchdown Zone Elevation: 1134.1 ft

2.12.1 Designation: 25L
2.12.2 True Bearing: 270
2.12.3 Dimensions: 7800 ft x 150 ft
2.12.4 PCN: 79 R/B/W/T
2.12.5 Coordinates: 33-25-43.8354N / 112-0-5.5412W
2.12.6 Threshold Elevation: 1126.3 ft
2.12.6 Touchdown Zone Elevation: 1126.4 ft

2.12.1 Designation: 07R
2.12.2 True Bearing: 90
2.12.3 Dimensions: 7800 ft x 150 ft
2.12.4 PCN: 79 R/B/W/T
2.12.5 Coordinates: 33-25-43.8923N / 112-1-37.5686W
2.12.6 Threshold Elevation: 1111 ft
2.12.6 Touchdown Zone Elevation: 1115.9 ft

2.12.1 Designation: 26
2.12.2 True Bearing: 270
2.12.3 Dimensions: 11489 ft x 150 ft
2.12.4 PCN: 74 R/B/W/T
2.12.5 Coordinates: 33-26-26.9643N / 111-59-31.6884W
2.12.6 Threshold Elevation: 1134.7 ft
2.12.6 Touchdown Zone Elevation: 1134.8 ft

2.12.1 Designation: 08
2.12.2 True Bearing: 90
2.12.3 Dimensions: 11489 ft x 150 ft
2.12.4 PCN: 74 R/B/W/T
2.12.5 Coordinates: 33-26-27.0993N / 112-1-47.257W
2.12.6 Threshold Elevation: 1111.1 ft
2.12.6 Touchdown Zone Elevation: 1118 ft

AD 2.13 Declared Distances
2.13.1 Designation: 07L
2.13.2 Take-off Run Available: 10300
2.13.3 Take-off Distance Available: 10300
2.13.4 Accelerate-Stop Distance Available: 10300
2.13.5 Landing Distance Available: 10300

2.13.1 Designation: 25R
2.13.2 Take-off Run Available: 10300
2.13.3 Take-off Distance Available: 10300
2.13.4 Accelerate-Stop Distance Available: 10300
2.13.5 Landing Distance Available: 10300

2.13.1 Designation: 25L
2.13.2 Take-off Run Available: 7800
2.13.3 Take-off Distance Available: 7800
2.13.4 Accelerate-Stop Distance Available: 7800
2.13.5 Landing Distance Available: 7800

2.13.1 Designation: 07R
2.13.2 Take-off Run Available: 7800
2.13.3 Take-off Distance Available: 7800
2.13.4 Accelerate-Stop Distance Available: 7800
2.13.5 Landing Distance Available: 7800

2.13.1 Designation: 26
2.13.2 Take-off Run Available: 11489
2.13.3 Take-off Distance Available: 11489
2.13.4 Accelerate-Stop Distance Available: 11489
2.13.5 Landing Distance Available: 11489

2.13.1 Designation: 08
2.13.2 Take-off Run Available: 11489
2.13.3 Take-off Distance Available: 11489
2.13.4 Accelerate-Stop Distance Available: 11489
2.13.5 Landing Distance Available: 10591

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 07L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 25R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 25L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 07R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 26
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 08
2.14.2 Approach Lighting System: MALSF
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: CD/P
2.18.3 Channel: 118.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 269.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 127.575
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P (NORTH)
2.18.3 Channel: 119.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (SOUTH)
2.18.3 Channel: 132.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 269.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 08/26)
2.18.3 Channel: 118.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 07L/25R, 07R/25L)
2.18.3 Channel: 120.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 07L/25R, 07R/25L)
2.18.3 Channel: 254.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 08/26)
2.18.3 Channel: 278.8
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 07L. Magnetic variation: 12E
2.19.2 ILS Identification: PHX
2.19.5 Coordinates: 33-25-54.0771N / 111-59-19.1054W
2.19.6 Site Elevation: 1143 ft

2.19.1 ILS Type: Glide Slope for runway 07L. Magnetic variation: 12E
2.19.2 ILS Identification: PHX
2.19.5 Coordinates: 33-25-49.0529N / 112-1-25.2134W
2.19.6 Site Elevation: 1106.5 ft

2.19.1 ILS Type: Localizer for runway 07L. Magnetic variation: 12E
2.19.2 ILS Identification: PHX
2.19.5 Coordinates: 33-25-51.7152N / 111-59-20.367W
2.19.6 Site Elevation: 1133.5 ft

2.19.1 ILS Type: DME for runway 07R. Magnetic variation: 12E
2.19.2 ILS Identification: AHA
2.19.5 Coordinates: 33-25-41.1847N / 111-59-52.1833W
2.19.6 Site Elevation: 1135.8 ft

2.19.1 ILS Type: Glide Slope for runway 07R. Magnetic variation: 12E
2.19.2 ILS Identification: AHA
2.19.5 Coordinates: 33-25-46.628N / 112-1-25.0931W
2.19.6 Site Elevation: 1107.4 ft

2.19.1 ILS Type: Localizer for runway 07R. Magnetic variation: 12E
2.19.2 ILS Identification: AHA
2.19.5 Coordinates: 33-25-43.8252N / 111-59-52.2902W
2.19.6 Site Elevation: 1124.2 ft

2.19.1 ILS Type: DME for runway 25L. Magnetic variation: 12E
2.19.2 ILS Identification: RJG
2.19.5 Coordinates: 33-25-41.1847N / 111-59-52.1833W
2.19.6 Site Elevation: 1117.1 ft

2.19.1 ILS Type: Glide Slope for runway 25L. Magnetic variation: 12E
2.19.2 ILS Identification: RJG
2.19.5 Coordinates: 33-25-40.9318N / 112-0-16.8722W
2.19.6 Site Elevation: 1120.3 ft

2.19.1 ILS Type: Localizer for runway 25L. Magnetic variation: 12E
2.19.2 ILS Identification: RJG
2.19.5 Coordinates: 33-25-43.8995N / 112-1-49.6368W
2.19.6 Site Elevation: 1103.2 ft

2.19.1 ILS Type: DME for runway 08. Magnetic variation: 12E
2.19.2 ILS Identification: SYQ
2.19.5 Coordinates: 33-26-24.3207N / 111-59-19.7057W
2.19.6 Site Elevation: 1149.2 ft

2.19.1 ILS Type: Glide Slope for runway 08. Magnetic variation: 12E
2.19.2 ILS Identification: SYQ
2.19.5 Coordinates: 33-26-29.6544N / 112-1-24.6276W
2.19.6 Site Elevation: 1111.7 ft

2.19.1 ILS Type: Localizer for runway 08. Magnetic variation: 12E
2.19.2 ILS Identification: SYQ
2.19.5 Coordinates: 33-26-26.9483N / 111-59-19.7443W
2.19.6 Site Elevation: 1134.1 ft

2.19.1 ILS Type: DME for runway 26. Magnetic variation: 12E
2.19.2 ILS Identification: CWJ
2.19.5 Coordinates: 33-26-24.3207N / 111-59-19.7057W
2.19.6 Site Elevation: 1149.2 ft

2.19.1 ILS Type: Glide Slope for runway 26. Magnetic variation: 12E
2.19.2 ILS Identification: CWJ
2.19.5 Coordinates: 33-26-29.603N / 111-59-44.4331W
2.19.6 Site Elevation: 1129.1 ft

2.19.1 ILS Type: Localizer for runway 26. Magnetic variation: 12E
2.19.2 ILS Identification: CWJ
2.19.5 Coordinates: 33-26-27.1078N / 112-1-59.2267W
2.19.6 Site Elevation: 1105.1 ft

General Remarks:

NO EXPERIMENTAL FLT OR GND DMSTRN ON ARPT WO PRIOR WRITTEN CONSENT FM THE AIRSIDE OPS.

NO ENG RUNS ON ARPT WO PRIOR COORDN WITH AIRSIDE OPS. NO ENG RUNS ON ARPT BETWEEN 2300L - 0500L.

RWY STATUS LGTS ARE IN OPN.

FOR GENERAL QUESTIONS CALL AIRPORT COMMUNICATIONS CENTER (602) 273-3302

REVIEW HOT SPOT INFO ON AIRPORT DIAGRAM

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

TWY R OVERHEAD TRAIN BRIDGE AT MIDPOINT PROVIDES 82FT-4 IN. CLEARANCE.

TWY F BTW TWY INT G2 AND G3 CLSD TO ACFT WITH WINGSPAN GREATER THAN 135 FT DUE TO FAA NAV EQUIPMENT.

PPR ACFT WITH WINGSPAN 215 FT OR GREATER (GROUP VI) CALL ARPT OPNS 602-272-2008 FOR FOLLOW-ME SERVICES WHILE TAXIING TO AND FROM RAMP AND RWYS.

FEE FOR ALL CHARTERS; TRAVEL CLUBS AND CERTAIN REVENUE PRODUCING ACFT.

PRACTICE INSTRUMENT APPROACHES, STOP & TAXI BACK LANDINGS, STOP & GO LANDINGS, TOUCH & GO LANDINGS ARE PROHIBITED. ALL OTHER FLIGHT TRAINING OPERATIONS PROHIBITED WO PRIOR WRITTEN APPROVAL (AIRSIDE OPS 602-272-2008).

TWYS A BTN A3 AND A10, A4, A5, A6, A7, A8, A9, A12, F BTN G2 AND G3, D13 CLSD TO ACFT WINGSPAN OF MORE THAN 135FT.

TWY R AND PORTIONS OF TWYS S AND T DIRECTLY BELOW THE ATCT ARE NON VISIBLE AREAS FROM THE ATCT.

NATL GUARD HAS LMTD TSNT MAINTENANCE AND PARKING RON BY PPR (602)302-9119.

INTERNATIONAL GATE USE RQS COORDN WITH ARPT OPS 48 HOURS PRIOR TO ARRIVAL.

NOISE ABATEMENT PROCEDURES ARE IN AFFECT AT ALL TIMES.

TWYS C BTN S AND R, D BTN D2 AND D6, D3, D4, D5, D BTN D8 AND T, D9, H BTN TWY H4 AND TWY H7, H5, H6, H7 CLSD TO ACFT WINGSPAN MORE THAN 171 FT.

TWY D BTN S AND D13, D10, D11, D12 CLSD TO ACFT WINGSPAN MORE THAN 118 FT.

INTERNATIONAL LANDING RIGHTS RQRS US CUSTOMS AND BORDER PROTECTION NOTIFICATION 48 HOURS PRIOR TO LANDING.

Tucson, Arizona
Tucson International
ICAO Identifier KTUS

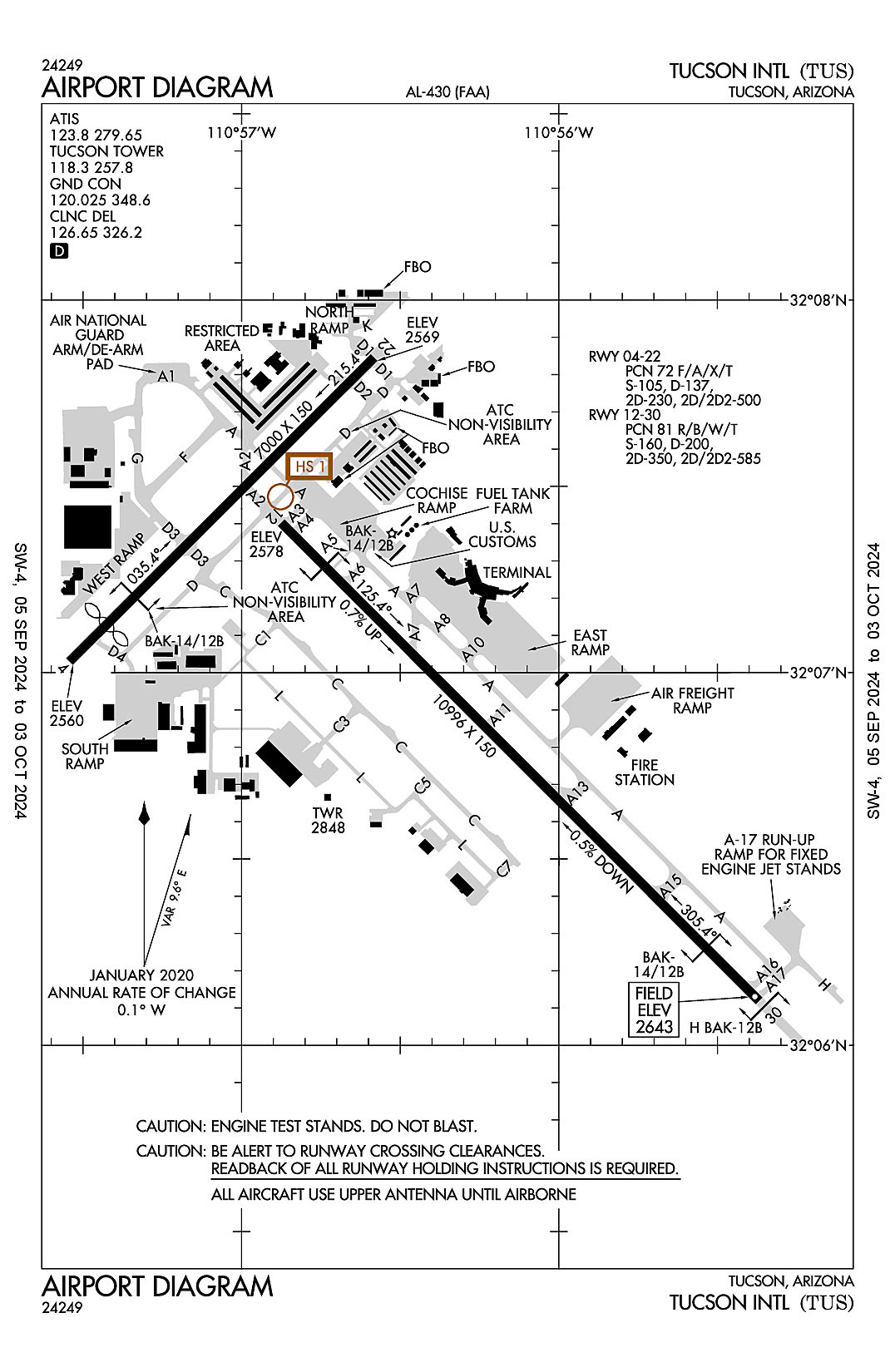

An airport diagram for Tuscon International (ICAO Identifier KTUS).

Tucson, AZ
Tucson Intl
ICAO Identifier KTUS

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 32-7-1.4455N / 110-56-29.2661W
2.2.2 From City: 6 miles S of TUCSON, AZ
2.2.3 Elevation: 2643 ft
2.2.5 Magnetic Variation: 9E (2025)
2.2.6 Airport Contact: DANETTE BEWLEY
TUCSON APT AUTH 7250 S TUCSON BLVD
TUCSON, AZ 85756 (520-573-8190)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: 100LL, A, A++
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category: Class-I certified on 5/1/1973
2.6.2 Rescue and Firefighting Services: ARFF Index-C

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 04
2.12.2 True Bearing: 45
2.12.3 Dimensions: 7000 ft x 150 ft
2.12.4 PCN: 72 F/A/X/T
2.12.5 Coordinates: 32-7-1.7975N / 110-57-32.5438W
2.12.6 Threshold Elevation: 2560.2 ft
2.12.6 Touchdown Zone Elevation: 2572.1 ft

2.12.1 Designation: 22
2.12.2 True Bearing: 225
2.12.3 Dimensions: 7000 ft x 150 ft
2.12.4 PCN: 72 F/A/X/T
2.12.5 Coordinates: 32-7-50.7361N / 110-56-34.9535W
2.12.6 Threshold Elevation: 2568.8 ft
2.12.6 Touchdown Zone Elevation: 2572.4 ft

2.12.1 Designation: 12
2.12.2 True Bearing: 135
2.12.3 Dimensions: 10996 ft x 150 ft
2.12.4 PCN: 81 R/B/W/T
2.12.5 Coordinates: 32-7-24.1289N / 110-56-52.4852W
2.12.6 Threshold Elevation: 2577.7 ft
2.12.6 Touchdown Zone Elevation: 2598.5 ft

2.12.1 Designation: 30
2.12.2 True Bearing: 315
2.12.3 Dimensions: 10996 ft x 150 ft
2.12.4 PCN: 81 R/B/W/T
2.12.5 Coordinates: 32-6-7.1598N / 110-55-22.1441W
2.12.6 Threshold Elevation: 2643 ft
2.12.6 Touchdown Zone Elevation: 2643 ft

AD 2.13 Declared Distances
2.13.1 Designation: 04
2.13.2 Take-off Run Available: 7000
2.13.3 Take-off Distance Available: 7000
2.13.4 Accelerate-Stop Distance Available: 7000
2.13.5 Landing Distance Available: 6150

2.13.1 Designation: 22
2.13.2 Take-off Run Available: 6000
2.13.3 Take-off Distance Available: 7000
2.13.4 Accelerate-Stop Distance Available: 6000
2.13.5 Landing Distance Available: 6000

2.13.1 Designation: 12
2.13.2 Take-off Run Available: 10996
2.13.3 Take-off Distance Available: 10996
2.13.4 Accelerate-Stop Distance Available: 10996
2.13.5 Landing Distance Available: 10996

2.13.1 Designation: 30
2.13.2 Take-off Run Available: 10996
2.13.3 Take-off Distance Available: 10996
2.13.4 Accelerate-Stop Distance Available: 10996
2.13.5 Landing Distance Available: 10996

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 04
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 22
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 12
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 30
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ANG COMD POST
2.18.3 Channel: 138.525
2.18.5 Hours of Operation:

2.18.1 Service Designation: ATIS
2.18.3 Channel: 123.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: ATIS
2.18.3 Channel: 279.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 126.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 326.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 120.025
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/S
2.18.3 Channel: 119
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 12. Magnetic variation: 9E
2.19.2 ILS Identification: TUS
2.19.5 Coordinates: 32-5-54.9712N / 110-55-3.2284W
2.19.6 Site Elevation: 2676.1 ft

2.19.1 ILS Type: Glide Slope for runway 12. Magnetic variation: 9E
2.19.2 ILS Identification: TUS
2.19.5 Coordinates: 32-7-14.7604N / 110-56-48.0571W
2.19.6 Site Elevation: 2580.1 ft

2.19.1 ILS Type: Localizer for runway 12. Magnetic variation: 9E
2.19.2 ILS Identification: TUS
2.19.5 Coordinates: 32-5-53.16N / 110-55-5.69W
2.19.6 Site Elevation: 2660.2 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 12E
2.19.2 Navigation Aid Identification: TUS
2.19.5 Coordinates: 32-5-42.7296N / 110-54-53.4781W
2.19.6 Site Elevation: 2670.5 ft

General Remarks:

GEN INFO - 520-573-8182.

CTN: REVIEW ARPT DIAGRAM HOT SPOT INFO.

MIL: ANG OFFL BUS ONLY; 72 HR PPR - D844-6731/C520-295-6731; FAX EXTN 6732. BASE OPS 1300Z-2300Z MON-FRI & DRILL WKEND 1300Z-2130Z; CLSD OTR WKENDS, HOL & SKED OFF DAYS. TRAN ALERT MAINT NA. TSNT SI FSL ONLY. CONTR FUEL NA.

TWY A5 LTD 70000 LB OR LESS.

ALL ACFT USE UPPER ANT UNTIL AIRBORNE.

CHARTER, SPORT TEAM, CARGO & MIL PPR - FBO. LNDG & PRKG FEE 12500 LBS & UP.

FLT TRNG 2200-0600 NA EXC PPR - 520-573-8190.

ACR USE RWY 04/22 & 12/30.

MIL/COMM/BASE OPS ARR CTC TITAN OR PUMA - ANG BASE OPS/COMD POST FREQ.

PTNS TWY D NOT VIS FM ATCT.

TXL K CLSD TO WINGSPAN GTR THAN 104 FT.

GROUP V TAX WITH INBOARD ENG ONLY. TRML RAMP CLSD TO ADG IV & ABV WO PPR.

A-GEAR BAK-14/BAK-12B APCH END RWY 12 & BAK-14/BAK-12B APCH END RWY 30 AVBL DURG ANG DUTY HR; 5 MIN PN.

CTN: NW ARR & DEP DO NOT MISTAKE TWY A FOR LNDG SFC; TWY A IS N & PARL TO RWY 30.

PRACTICE INSTRUMENT APPROACHES, STOP AND TAXI BACK LANDINGS, STOP AND GO LANDINGS, TOUCH AND GO LANDINGS MAY BE RESTRICTED DURING CERTAIN TIMES DUE TO CONGESTION.

OPR PARROT ALL SFCS, PUSHBACK & GATE ARR.

MIL: BIRD ACT PHASE II IN EFCT 1 JUL-31 AUG.

USCBP INSP RAMP RFLG NA EXC MED EMERG.

N RAMP CLSD TO WINGSPAN GTR THAN 79 FT.
