Ohio

Cleveland, Ohio
Cleveland-Hopkins International
ICAO Identifier KCLE

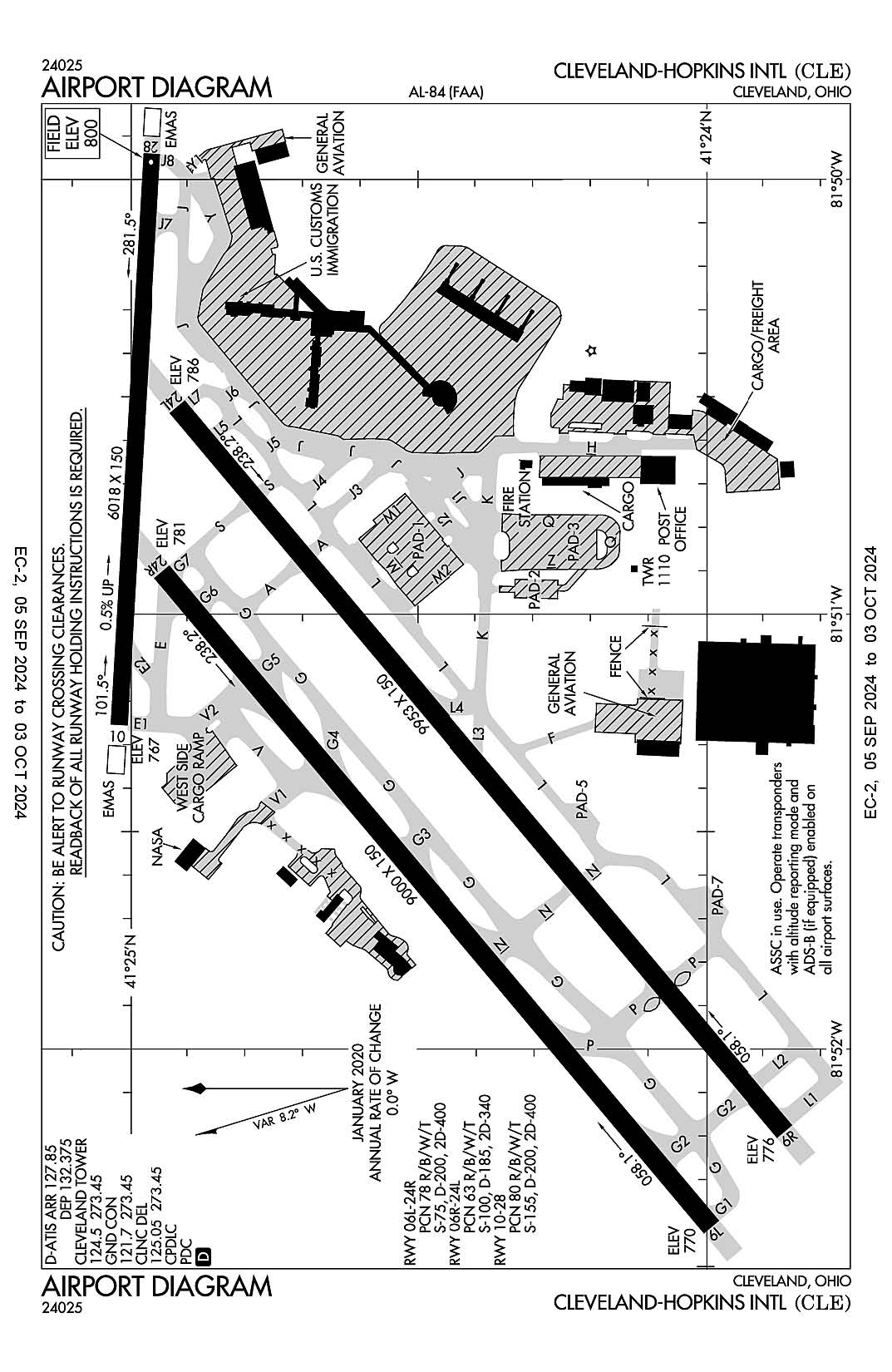

The airport diagram for Cleveland-Hopkins International (ICAO Identifier KCLE).

Cleveland, OH
Cleveland-Hopkins Intl
ICAO Identifier KCLE

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 41-24-33.865N / 81-51-16.888W
2.2.2 From City: 9 miles SW of CLEVELAND, OH
2.2.3 Elevation: 799.5 ft
2.2.5 Magnetic Variation: 8W (2020)
2.2.6 Airport Contact: KHALID BAHHUR
PO BOX 81009
CLEVELAND, OH 44181 (216-664-5030)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: NO
2.4.2 Fuel Types: A1+,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I C certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 06L
2.12.2 True Bearing: 50
2.12.3 Dimensions: 9000 ft x 150 ft
2.12.4 PCN: 78 R/B/W/T
2.12.5 Coordinates: 41-23-59.5393N / 81-52-24.5622W
2.12.6 Threshold Elevation: 770.1 ft
2.12.6 Touchdown Zone Elevation: 772.6 ft

2.12.1 Designation: 24R
2.12.2 True Bearing: 230
2.12.3 Dimensions: 9000 ft x 150 ft
2.12.4 PCN: 78 R/B/W/T
2.12.5 Coordinates: 41-24-56.7503N / 81-50-54.1515W
2.12.6 Threshold Elevation: 781.1 ft
2.12.6 Touchdown Zone Elevation: 781.1 ft

2.12.1 Designation: 24L
2.12.2 True Bearing: 230
2.12.3 Dimensions: 9953 ft x 150 ft
2.12.4 PCN: 63 R/B/W/T
2.12.5 Coordinates: 41-24-55.141N / 81-50-31.3701W
2.12.6 Threshold Elevation: 785.7 ft
2.12.6 Touchdown Zone Elevation: 785.8 ft

2.12.1 Designation: 06R
2.12.2 True Bearing: 50
2.12.3 Dimensions: 9953 ft x 150 ft
2.12.4 PCN: 63 R/B/W/T
2.12.5 Coordinates: 41-23-51.8742N / 81-52-11.3519W
2.12.6 Threshold Elevation: 775.5 ft
2.12.6 Touchdown Zone Elevation: 776.5 ft

2.12.1 Designation: 28
2.12.2 True Bearing: 273
2.12.3 Dimensions: 6018 ft x 150 ft
2.12.4 PCN: 80 R/B/W/T
2.12.5 Coordinates: 41-24-57.8208N / 81-49-56.4392W
2.12.6 Threshold Elevation: 799.5 ft
2.12.6 Touchdown Zone Elevation: 799.5 ft

2.12.1 Designation: 10
2.12.2 True Bearing: 93
2.12.3 Dimensions: 6018 ft x 150 ft
2.12.4 PCN: 80 R/B/W/T
2.12.5 Coordinates: 41-25-1.2562N / 81-51-15.2842W
2.12.6 Threshold Elevation: 767.1 ft
2.12.6 Touchdown Zone Elevation: 782.8 ft

AD 2.13 Declared Distances
2.13.1 Designation: 06L
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 9000
2.13.5 Landing Distance Available: 9000

2.13.1 Designation: 24R
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 9000
2.13.5 Landing Distance Available: 9000

2.13.1 Designation: 24L
2.13.2 Take-off Run Available: 9956
2.13.3 Take-off Distance Available: 9956
2.13.4 Accelerate-Stop Distance Available: 9956
2.13.5 Landing Distance Available: 9956

2.13.1 Designation: 06R
2.13.2 Take-off Run Available: 9956
2.13.3 Take-off Distance Available: 9956
2.13.4 Accelerate-Stop Distance Available: 9956
2.13.5 Landing Distance Available: 8029

2.13.1 Designation: 28
2.13.2 Take-off Run Available: 6018
2.13.3 Take-off Distance Available: 6018
2.13.4 Accelerate-Stop Distance Available: 6018
2.13.5 Landing Distance Available: 6018

2.13.1 Designation: 10
2.13.2 Take-off Run Available: 6018
2.13.3 Take-off Distance Available: 6018
2.13.4 Accelerate-Stop Distance Available: 6018
2.13.5 Landing Distance Available: 6018

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 06L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 24R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 24L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 06R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 28
2.14.2 Approach Lighting System: MALSF
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 10
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P
2.18.3 Channel: 124
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P
2.18.3 Channel: 346.325
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CAVVS DP
2.18.3 Channel: 135.875
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 125.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 273.45
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (340-200)
2.18.3 Channel: 125.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (201-339)
2.18.3 Channel: 126.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (ARR)
2.18.3 Channel: 127.85
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (DEP)
2.18.3 Channel: 132.375
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P
2.18.3 Channel: 128.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P
2.18.3 Channel: 135.875
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 273.45
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GTLKE DP
2.18.3 Channel: 128.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: KKIDS DP
2.18.3 Channel: 135.875
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 124.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 273.45
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PFLYD DP
2.18.3 Channel: 128.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: ZAAPA DP
2.18.3 Channel: 128.25
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 06L. Magnetic variation: 8W
2.19.2 ILS Identification: LIZ
2.19.5 Coordinates: 41-25-11.9443N / 81-50-35.682W
2.19.6 Site Elevation: 783.4 ft

2.19.1 ILS Type: Glide Slope for runway 06L. Magnetic variation: 8W
2.19.2 ILS Identification: LIZ
2.19.5 Coordinates: 41-24-9.1461N / 81-52-17.5279W
2.19.6 Site Elevation: 764.3 ft

2.19.1 ILS Type: Inner Marker for runway 06L. Magnetic variation: 8W
2.19.2 ILS Identification: LIZ
2.19.5 Coordinates: 41-23-53.9363N / 81-52-33.3994W
2.19.6 Site Elevation: 761.5 ft

2.19.1 ILS Type: Localizer for runway 06L. Magnetic variation: 8W
2.19.2 ILS Identification: LIZ
2.19.5 Coordinates: 41-25-10.1943N / 81-50-32.8939W
2.19.6 Site Elevation: 778.7 ft

2.19.1 ILS Type: DME for runway 24R. Magnetic variation: 8W
2.19.2 ILS Identification: PVY
2.19.5 Coordinates: 41-25-11.9443N / 81-50-35.682W
2.19.6 Site Elevation: 783.4 ft

2.19.1 ILS Type: Glide Slope for runway 24R. Magnetic variation: 8W
2.19.2 ILS Identification: PVY
2.19.5 Coordinates: 41-24-53.0116N / 81-51-8.214W
2.19.6 Site Elevation: 768.4 ft

2.19.1 ILS Type: Inner Marker for runway 24R. Magnetic variation: 8W
2.19.2 ILS Identification: PVY
2.19.5 Coordinates: 41-25-3.7844N / 81-50-47.3046W
2.19.6 Site Elevation: 777.9 ft

2.19.1 ILS Type: Localizer for runway 24R. Magnetic variation: 8W
2.19.2 ILS Identification: PVY
2.19.5 Coordinates: 41-23-53.0789N / 81-52-34.7494W
2.19.6 Site Elevation: 760.6 ft

2.19.1 ILS Type: DME for runway 06R. Magnetic variation: 8W
2.19.2 ILS Identification: CLE
2.19.5 Coordinates: 41-25-4.0601N / 81-50-11.0982W
2.19.6 Site Elevation: 794.1 ft

2.19.1 ILS Type: Glide Slope for runway 06R. Magnetic variation: 8W
2.19.2 ILS Identification: CLE
2.19.5 Coordinates: 41-24-13.6551N / 81-51-45.2101W
2.19.6 Site Elevation: 766 ft

2.19.1 ILS Type: Localizer for runway 06R. Magnetic variation: 8W
2.19.2 ILS Identification: CLE
2.19.5 Coordinates: 41-25-5.1773N / 81-50-15.5025W
2.19.6 Site Elevation: 785.5 ft

2.19.1 ILS Type: DME for runway 24L. Magnetic variation: 8W
2.19.2 ILS Identification: HPI
2.19.5 Coordinates: 41-23-44.3404N / 81-52-18.0729W
2.19.6 Site Elevation: 778.9 ft

2.19.1 ILS Type: Glide Slope for runway 24L. Magnetic variation: 8W
2.19.2 ILS Identification: HPI
2.19.5 Coordinates: 41-24-51.9504N / 81-50-45.3186W
2.19.6 Site Elevation: 782.2 ft

2.19.1 ILS Type: Localizer for runway 24L. Magnetic variation: 8W
2.19.2 ILS Identification: HPI
2.19.5 Coordinates: 41-23-45.4329N / 81-52-21.5252W
2.19.6 Site Elevation: 771.7 ft

2.19.1 ILS Type: DME for runway 28. Magnetic variation: 8W
2.19.2 ILS Identification: PXP
2.19.5 Coordinates: 41-24-58.7198N / 81-51-23.8351W
2.19.6 Site Elevation: 766.3 ft

2.19.1 ILS Type: Glide Slope for runway 28. Magnetic variation: 8W
2.19.2 ILS Identification: PXP
2.19.5 Coordinates: 41-25-3.4337N / 81-50-9.415W
2.19.6 Site Elevation: 786.3 ft

2.19.1 ILS Type: Localizer for runway 28. Magnetic variation: 8W
2.19.2 ILS Identification: PXP
2.19.5 Coordinates: 41-25-1.5177N / 81-51-21.2475W
2.19.6 Site Elevation: 756.3 ft

General Remarks:

NASA GLENN RESEARCH CENTER; NASA RAMP PPR CALL 216-433-2031; 0800-1730 MON-FRI. CONTACT NASA OPNS ON FREQ 122.925 WITHIN 50 NM.

RAMP AREA CONCOURSE D BTN GATES D1, D28 CLSD EXC ACFT WINGSPAN LESS THAN 86 FT.

DEER & BIRDS INCLUDING WATERFOWL ON & INVOF ARPT.

PAD 2 AND TAXILANE Y1 RSTRD TO GROUP II ACFT LESS THAN 79 FT WINGSPAN.

PAD 3 BAYS 1-5 CLOSED TO ACFT WITH WINGSPAN OVER 134 FT.

ASSC IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

PAD 3 BAY 6 CLOSED TO ACFT WITH WINGSPAN OVER 94 FT.

ALL APCHS ARE OVR NOISE SENSITIVE AREAS. ARPT LATE NGT NOISE ABATEMENT PROCEDURES ARE IN EFFECT 2300-0600. ADDITIONAL NOISE ABATEMENT PROCEDURES ARE IN EFFECT CALL AMGR NORMAL BUSINESS HRS AT 216-265-6090.

ADCUS AVBL MON-SUN 0800-1800; ALL REQ FOR SVC MUST BE MADE WITH THE U.S. CUST SVC OFC LCTD AT GATE A-14 CALL (216) 267-3600 DURG LISTED HRS.

TWY M; TWY M1 BTN TWY L & TWY J1; TWY M2 BTN TWY L & TWY J1; TWY J2 BTN TWY J3 & TWY K: CLSD FM 15 OCT THRU 15 APR FOR DEICING OPNS.

Columbus, Ohio
Port Columbus International
ICAO Identifier KCMH

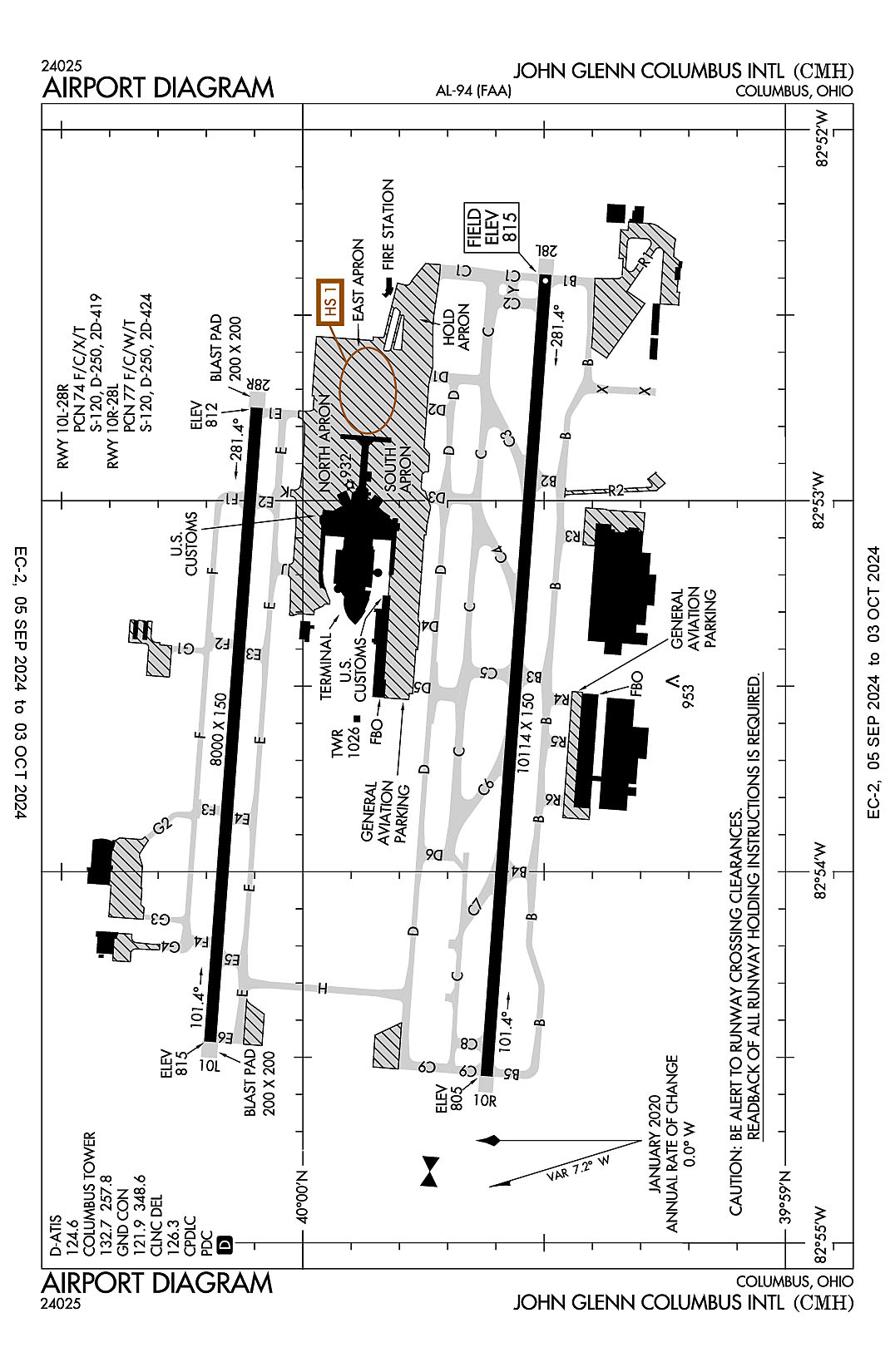

The airport diagram for Port Columbus International (ICAO Identifier KCMH).

Columbus, OH
Port Columbus Intl
ICAO Identifier KCMH

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 39-59-49.008N / 82-53-31.773W
2.2.2 From City: 6 miles E of COLUMBUS, OH
2.2.3 Elevation: 815 ft
2.2.5 Magnetic Variation: 7W (2015)
2.2.6 Airport Contact: JOE NARDONE
COLUMBUS REGIONAL AIRPORT AUTHORITY
COLUMBUS, OH 43219 (614-239-4000)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A1+,100
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I C certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 10L
2.12.2 True Bearing: 94
2.12.3 Dimensions: 8000 ft x 150 ft
2.12.4 PCN: 74 F/C/X/T
2.12.5 Coordinates: 40-0-11.5307N / 82-54-27.4941W
2.12.6 Threshold Elevation: 814.7 ft
2.12.6 Touchdown Zone Elevation: 814.8 ft

2.12.1 Designation: 28R
2.12.2 True Bearing: 274
2.12.3 Dimensions: 8000 ft x 150 ft
2.12.4 PCN: 74 F/C/X/T
2.12.5 Coordinates: 40-0-5.7308N / 82-52-44.9692W
2.12.6 Threshold Elevation: 812.3 ft
2.12.6 Touchdown Zone Elevation: 813.1 ft

2.12.1 Designation: 10R
2.12.2 True Bearing: 94
2.12.3 Dimensions: 10114 ft x 150 ft
2.12.4 PCN: 77 F/C/W/T
2.12.5 Coordinates: 39-59-37.1453N / 82-54-33.0422W
2.12.6 Threshold Elevation: 804.9 ft
2.12.6 Touchdown Zone Elevation: 809.2 ft

2.12.1 Designation: 28L
2.12.2 True Bearing: 274
2.12.3 Dimensions: 10114 ft x 150 ft
2.12.4 PCN: 77 F/C/W/T
2.12.5 Coordinates: 39-59-29.8102N / 82-52-23.4543W
2.12.6 Threshold Elevation: 815 ft
2.12.6 Touchdown Zone Elevation: 815 ft

AD 2.13 Declared Distances
2.13.1 Designation: 10L
2.13.2 Take-off Run Available: 8000
2.13.3 Take-off Distance Available: 8000
2.13.4 Accelerate-Stop Distance Available: 8000
2.13.5 Landing Distance Available: 8000

2.13.1 Designation: 28R
2.13.2 Take-off Run Available: 8000
2.13.3 Take-off Distance Available: 8000
2.13.4 Accelerate-Stop Distance Available: 8000
2.13.5 Landing Distance Available: 8000

2.13.1 Designation: 10R
2.13.2 Take-off Run Available: 10113
2.13.3 Take-off Distance Available: 10113
2.13.4 Accelerate-Stop Distance Available: 10113
2.13.5 Landing Distance Available: 10113

2.13.1 Designation: 28L
2.13.2 Take-off Run Available: 10113
2.13.3 Take-off Distance Available: 10113
2.13.4 Accelerate-Stop Distance Available: 10113
2.13.5 Landing Distance Available: 10113

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 10L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 28R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 10R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 28L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P DEP/P
2.18.3 Channel: 129.95
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (100-279)
2.18.3 Channel: 134
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (100-279)
2.18.3 Channel: 279.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (280-099)
2.18.3 Channel: 317.775
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (100-279)
2.18.3 Channel: 338.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (280-099)
2.18.3 Channel: 125.95
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (280-099)
2.18.3 Channel: 371.975
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S
2.18.3 Channel: 118.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S
2.18.3 Channel: 119.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S
2.18.3 Channel: 353.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S DEP/S
2.18.3 Channel: 118
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S DEP/S (100-279)
2.18.3 Channel: 132.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S DEP/S
2.18.3 Channel: 324.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S DEP/S
2.18.3 Channel: 353.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 126.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (280-099)
2.18.3 Channel: 125.95
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (100-279)
2.18.3 Channel: 134
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (100-279)
2.18.3 Channel: 279.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (280-099)
2.18.3 Channel: 317.775
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 124.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: FINAL
2.18.3 Channel: 327.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 132.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: OPS (DEICE PAD CONTROL)
2.18.3 Channel: 122.775
2.18.5 Hours of Operation:

2.18.1 Service Designation: RADAR
2.18.3 Channel: 294.7
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 10L. Magnetic variation: 7W
2.19.2 ILS Identification: CBP
2.19.5 Coordinates: 40-0-9.698N / 82-54-41.0247W
2.19.6 Site Elevation: 822.2 ft

2.19.1 ILS Type: Glide Slope for runway 10L. Magnetic variation: 7W
2.19.2 ILS Identification: CBP
2.19.5 Coordinates: 40-0-14.2837N / 82-54-14.862W
2.19.6 Site Elevation: 809.9 ft

2.19.1 ILS Type: Localizer for runway 10L. Magnetic variation: 7W
2.19.2 ILS Identification: CBP
2.19.5 Coordinates: 40-0-4.9978N / 82-52-32.0266W
2.19.6 Site Elevation: 799.2 ft

2.19.1 ILS Type: DME for runway 28R. Magnetic variation: 7W
2.19.2 ILS Identification: ONB
2.19.5 Coordinates: 40-0-9.698N / 82-54-41.0247W
2.19.6 Site Elevation: 822.2 ft

2.19.1 ILS Type: Glide Slope for runway 28R. Magnetic variation: 7W
2.19.2 ILS Identification: ONB
2.19.5 Coordinates: 40-0-9.1363N / 82-52-56.9903W
2.19.6 Site Elevation: 808.4 ft

2.19.1 ILS Type: Localizer for runway 28R. Magnetic variation: 7W
2.19.2 ILS Identification: ONB
2.19.5 Coordinates: 40-0-12.2661N / 82-54-40.558W
2.19.6 Site Elevation: 811.7 ft

2.19.1 ILS Type: DME for runway 10R. Magnetic variation: 7W
2.19.2 ILS Identification: AQI
2.19.5 Coordinates: 39-59-33.7337N / 82-54-45.9278W
2.19.6 Site Elevation: 814.8 ft

2.19.1 ILS Type: Glide Slope for runway 10R. Magnetic variation: 7W
2.19.2 ILS Identification: AQI
2.19.5 Coordinates: 39-59-32.3813N / 82-54-20.6176W
2.19.6 Site Elevation: 802.7 ft

2.19.1 ILS Type: Localizer for runway 10R. Magnetic variation: 7W
2.19.2 ILS Identification: AQI
2.19.5 Coordinates: 39-59-29.072N / 82-52-10.4143W
2.19.6 Site Elevation: 814.1 ft

2.19.1 ILS Type: DME for runway 28L. Magnetic variation: 7W
2.19.2 ILS Identification: CMH
2.19.5 Coordinates: 39-59-33.7337N / 82-54-45.9278W
2.19.6 Site Elevation: 814.8 ft

2.19.1 ILS Type: Glide Slope for runway 28L. Magnetic variation: 7W
2.19.2 ILS Identification: CMH
2.19.5 Coordinates: 39-59-26.4974N / 82-52-36.6536W
2.19.6 Site Elevation: 810.7 ft

2.19.1 ILS Type: Localizer for runway 28L. Magnetic variation: 7W
2.19.2 ILS Identification: CMH
2.19.5 Coordinates: 39-59-37.8812N / 82-54-46.0853W
2.19.6 Site Elevation: 806 ft

General Remarks:

TWY D-5 PAVEMENT (NORTH OF TWY D) IS RSTRD TO ACFT WITH WINGSPAN LESS THAN 79 FT.

TAXILANE CONCOURSE A BTN TWY D3 AND TWY D4 CLSD TO ACFT WINGSPAN MORE THAN 130 FT.

ALL SURFACES AROUND TERMINAL; NORTH OF TWY 'D' & SOUTH OF TWY 'E' ARE NON-MOVEMENT AREAS.

TO REQ LDG RIGHTS CTC US CUSTOMS BETWEEN 1230-0300Z, MON-FRI AT 614-497-1865.

BIRDS INVOF ARPT.

TWYS R2, R3, R4, R5 AND R6 RSTRD TO WINGSPAN LESS THAN 118 FT.

TWY F1 RSTRD TO AIRCRAFT WITH WINGSPAN LESS THAN 120 FT.

HOLD PAD FOR RWY 28L RSTRD TO ACFT WITH WINGSPAN LESS THAN 118 FT.

NOISE BARRIER LOCATED AT SE SIDE OF AIRFIELD RESTRICTED TO ACFT WITH WINGSPAN LESS THAN 79 FT.

BE ALERT: RY 10L/28R RESTRICTIONS ON STAGE I & II TURBOJET ACFT 2200-0800 & ON STAGE III TURBOJET ACFT 2200-0700. PRACTICE APCHS FOR HIGH NOISE LEVEL TYPE ACFT INCLUDING NON-STAGE III MIL JET ACFT SHALL NOT BE APPROVED UNLESS RY 10R/28L IS IN USE & THE APCH TERMINATES IN A FULL STOP TAXI-BACK OPN.

MODEL ACFT TFC WITHIN A 1 NM RDS OF A POINT 8 NM ON A 010 DEG BRG FM THE ARPT; SFC - 5000 FT AGL; SR-SS DLY.

TAXILANE CONCOURSE C BTN TWY J AND TWY K CLSD TO ACFT WINGSPAN MORE THAN 135 FT.

FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL.

TWY R1 RSTRD TO ACFT WITH WINGSPAN LESS THAN 79 FT.
