Louisiana

New Orleans, Louisiana
Louis Armstrong New Orleans International
ICAO Identifier KMSY

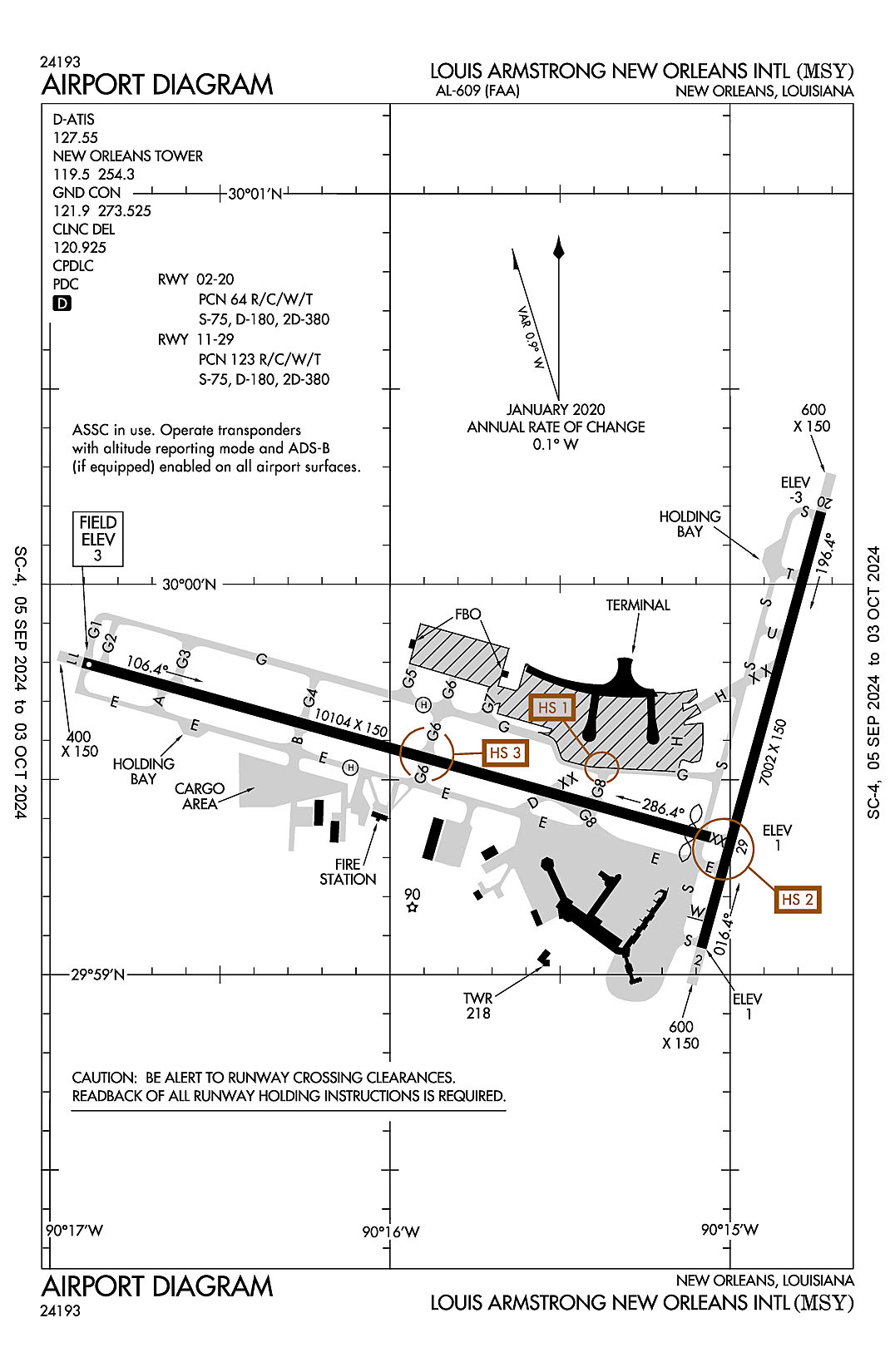

The airport diagram for Louis Armstrong New Orleans International (ICAO Identifier KMSY).

New Orleans, LA
Louis Armstrong New Orleans Intl
ICAO Identifier KMSY

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 29-59-35.8N / 90-15-32.5W
2.2.2 From City: 10 miles W of NEW ORLEANS, LA
2.2.3 Elevation: 3.7 ft
2.2.5 Magnetic Variation: 1W (2020)
2.2.6 Airport Contact: KEVIN DOLLIOLE
PO BOX 20007
NEW ORLEANS, LA 70141 ((504) 303-7652)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space:
2.4.6 Repair Facilities: NONE

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I D certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 02
2.12.2 True Bearing: 15
2.12.3 Dimensions: 7001 ft x 150 ft
2.12.4 PCN: 64 R/C/W/T
2.12.5 Coordinates: 29-59-4.2055N / 90-15-5.094W
2.12.6 Threshold Elevation: 1.8 ft
2.12.6 Touchdown Zone Elevation: 2.1 ft

2.12.1 Designation: 20
2.12.2 True Bearing: 195
2.12.3 Dimensions: 7001 ft x 150 ft
2.12.4 PCN: 64 R/C/W/T
2.12.5 Coordinates: 30-0-10.9924N / 90-14-43.8363W
2.12.6 Threshold Elevation: -2.4 ft
2.12.6 Touchdown Zone Elevation: -0.6 ft

2.12.1 Designation: 11
2.12.2 True Bearing: 105
2.12.3 Dimensions: 10104 ft x 150 ft
2.12.4 PCN: 123 R/C/W/T
2.12.5 Coordinates: 29-59-47.8556N / 90-16-54.2241W
2.12.6 Threshold Elevation: 3.7 ft
2.12.6 Touchdown Zone Elevation: 3.7 ft

2.12.1 Designation: 29
2.12.2 True Bearing: 285
2.12.3 Dimensions: 10104 ft x 150 ft
2.12.4 PCN: 123 R/C/W/T
2.12.5 Coordinates: 29-59-21.1654N / 90-15-3.4894W
2.12.6 Threshold Elevation: 1.3 ft
2.12.6 Touchdown Zone Elevation: 2 ft

AD 2.13 Declared Distances
2.13.1 Designation: 02
2.13.2 Take-off Run Available: 7001
2.13.3 Take-off Distance Available: 7001
2.13.4 Accelerate-Stop Distance Available: 7001
2.13.5 Landing Distance Available: 7001

2.13.1 Designation: 20
2.13.2 Take-off Run Available: 7001
2.13.3 Take-off Distance Available: 7001
2.13.4 Accelerate-Stop Distance Available: 7001
2.13.5 Landing Distance Available: 7001

2.13.1 Designation: 11
2.13.2 Take-off Run Available: 10104
2.13.3 Take-off Distance Available: 10104
2.13.4 Accelerate-Stop Distance Available: 9800
2.13.5 Landing Distance Available: 9800

2.13.1 Designation: 29
2.13.2 Take-off Run Available: 10104
2.13.3 Take-off Distance Available: 10104
2.13.4 Accelerate-Stop Distance Available: 10104
2.13.5 Landing Distance Available: 9800

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 02
2.14.2 Approach Lighting System: RLLS
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 20
2.14.2 Approach Lighting System: MALS
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 11
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 29
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P DEP/P (WEST)
2.18.3 Channel: 125.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (EAST)
2.18.3 Channel: 133.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (EAST)
2.18.3 Channel: 290.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (WEST)
2.18.3 Channel: 350.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S
2.18.3 Channel: 269.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD PRE TAXI CLNC
2.18.3 Channel: 120.925
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 120.925
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SE & SOUTH)
2.18.3 Channel: 123.85
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (WEST)
2.18.3 Channel: 125.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (NORTH & EAST)
2.18.3 Channel: 133.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SE & SOUTH)
2.18.3 Channel: 256.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (NORTH & EAST)
2.18.3 Channel: 290.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (WEST)
2.18.3 Channel: 350.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 127.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 273.525
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 119.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 254.3
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 02. Magnetic variation: 1W
2.19.2 ILS Identification: JFI
2.19.5 Coordinates: 30-0-21.6577N / 90-14-43.2465W
2.19.6 Site Elevation: 1.3 ft

2.19.1 ILS Type: Glide Slope for runway 02. Magnetic variation: 1W
2.19.2 ILS Identification: JFI
2.19.5 Coordinates: 29-59-13.6093N / 90-14-58.5588W
2.19.6 Site Elevation: -0.9 ft

2.19.1 ILS Type: Localizer for runway 02. Magnetic variation: 1W
2.19.2 ILS Identification: JFI
2.19.5 Coordinates: 30-0-20.5102N / 90-14-40.8078W
2.19.6 Site Elevation: -4.2 ft

2.19.1 ILS Type: DME for runway 20. Magnetic variation: 1W
2.19.2 ILS Identification: ONW
2.19.5 Coordinates: 30-0-21.6577N / 90-14-43.2465W
2.19.6 Site Elevation: 1.3 ft

2.19.1 ILS Type: Localizer for runway 20. Magnetic variation: 1W
2.19.2 ILS Identification: ONW
2.19.5 Coordinates: 29-58-55.148N / 90-15-7.973W
2.19.6 Site Elevation: 2.3 ft

2.19.1 ILS Type: DME for runway 11. Magnetic variation: 1W
2.19.2 ILS Identification: MSY
2.19.5 Coordinates: 29-59-17.2127N / 90-14-55.7209W
2.19.6 Site Elevation: 12.4 ft

2.19.1 ILS Type: Glide Slope for runway 11. Magnetic variation: 1W
2.19.2 ILS Identification: MSY
2.19.5 Coordinates: 29-59-48.6197N / 90-16-39.2497W
2.19.6 Site Elevation: -3.1 ft

2.19.1 ILS Type: Inner Marker for runway 11. Magnetic variation: 1W
2.19.2 ILS Identification: MSY
2.19.5 Coordinates: 29-59-50.256N / 90-17-4.1742W
2.19.6 Site Elevation: 4.4 ft

2.19.1 ILS Type: Localizer for runway 11. Magnetic variation: 1W
2.19.2 ILS Identification: MSY
2.19.5 Coordinates: 29-59-19.3211N / 90-14-55.8537W
2.19.6 Site Elevation: -0.5 ft

2.19.1 ILS Type: DME for runway 29. Magnetic variation: 1W
2.19.2 ILS Identification: HOX
2.19.5 Coordinates: 29-59-17.2127N / 90-14-55.7209W
2.19.6 Site Elevation: 12.4 ft

2.19.1 ILS Type: Glide Slope for runway 29. Magnetic variation: 1W
2.19.2 ILS Identification: HOX
2.19.5 Coordinates: 29-59-27.9656N / 90-15-16.7865W
2.19.6 Site Elevation: 0.1 ft

2.19.1 ILS Type: Localizer for runway 29. Magnetic variation: 1W
2.19.2 ILS Identification: HOX
2.19.5 Coordinates: 29-59-50.5168N / 90-17-5.2703W
2.19.6 Site Elevation: 4.4 ft

General Remarks:

180 DEG & LOCKED WHEEL TURNS PROHIBITED ON ASPH SFC ACFT 12500 LBS & OVER.

FLOCKS OF BIRDS ON & IN VICINITY OF ARPT.

ASSC IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

TWY G BTN RWY 11/29 AND TWY S SFC MOV GUIDANCE AND CTL SYSTEM U/S PERM

RY 11 NOISE SENSITIVE FOR DEP; AVBL FOR OPNL NECESSITY. ALL RYS NOISE SENSITIVE FOR ARR. ARRIVING TURBOJETS MUST MAKE 5 MILE FINAL APCH TO MINIMIZE NOISE.
