Tennessee

Memphis, Tennessee
Memphis International
ICAO Identifier KMEM

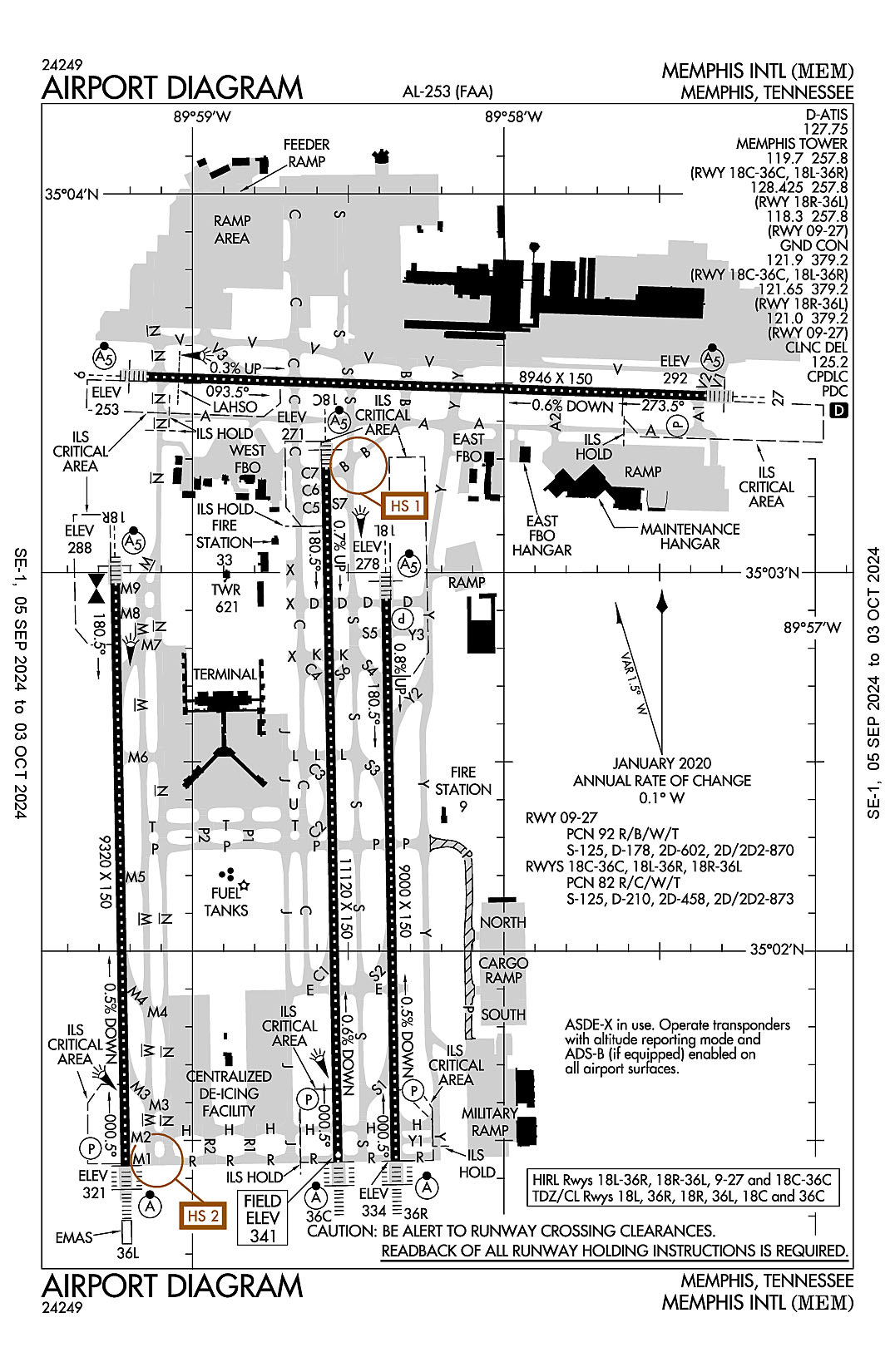

The airport diagram for Memphis International (ICAO Identifier KMEM).

Memphis, TN
Memphis Intl
ICAO Identifier KMEM

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 35-2-32.681N / 89-58-36.045W
2.2.2 From City: 3 miles S of MEMPHIS, TN
2.2.3 Elevation: 340.9 ft
2.2.5 Magnetic Variation: 1W (2020)
2.2.6 Airport Contact: SCOTT A BROCKMAN
2491 WINCHESTER RD.
MEMPHIS, TN 38116 (901-922-8000)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A++, A,100LL, A+
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I C certified on 5/21/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 09
2.12.2 True Bearing: 92
2.12.3 Dimensions: 8946 ft x 150 ft
2.12.4 PCN: 92 R/B/W/T
2.12.5 Coordinates: 35-3-31.046N / 89-59-8.6536W
2.12.6 Threshold Elevation: 253.2 ft
2.12.6 Touchdown Zone Elevation: 258.7 ft

2.12.1 Designation: 27
2.12.2 True Bearing: 272
2.12.3 Dimensions: 8946 ft x 150 ft
2.12.4 PCN: 92 R/B/W/T
2.12.5 Coordinates: 35-3-28.0128N / 89-57-21.0816W
2.12.6 Threshold Elevation: 292 ft
2.12.6 Touchdown Zone Elevation: 292 ft

2.12.1 Designation: 36C
2.12.2 True Bearing: 359
2.12.3 Dimensions: 11120 ft x 150 ft
2.12.4 PCN: 82 R/C/W/T
2.12.5 Coordinates: 35-1-26.5803N / 89-58-31.8977W
2.12.6 Threshold Elevation: 340.9 ft
2.12.6 Touchdown Zone Elevation: 340.9 ft

2.12.1 Designation: 18C
2.12.2 True Bearing: 179
2.12.3 Dimensions: 11120 ft x 150 ft
2.12.4 PCN: 82 R/C/W/T
2.12.5 Coordinates: 35-3-16.5411N / 89-58-34.2156W
2.12.6 Threshold Elevation: 270.6 ft
2.12.6 Touchdown Zone Elevation: 290.1 ft

2.12.1 Designation: 18L
2.12.2 True Bearing: 179
2.12.3 Dimensions: 9000 ft x 150 ft
2.12.4 PCN: 82 R/C/W/T
2.12.5 Coordinates: 35-2-55.7402N / 89-58-22.6229W
2.12.6 Threshold Elevation: 277.6 ft
2.12.6 Touchdown Zone Elevation: 300.9 ft

2.12.1 Designation: 36R
2.12.2 True Bearing: 359
2.12.3 Dimensions: 9000 ft x 150 ft
2.12.4 PCN: 82 R/C/W/T
2.12.5 Coordinates: 35-1-26.7376N / 89-58-20.7544W
2.12.6 Threshold Elevation: 334.3 ft
2.12.6 Touchdown Zone Elevation: 334.7 ft

2.12.1 Designation: 36L
2.12.2 True Bearing: 359
2.12.3 Dimensions: 9320 ft x 150 ft
2.12.4 PCN: 82 R/C/W/T
2.12.5 Coordinates: 35-1-25.9852N / 89-59-12.8121W
2.12.6 Threshold Elevation: 320.8 ft
2.12.6 Touchdown Zone Elevation: 320.8 ft

2.12.1 Designation: 18R
2.12.2 True Bearing: 179
2.12.3 Dimensions: 9320 ft x 150 ft
2.12.4 PCN: 82 R/C/W/T
2.12.5 Coordinates: 35-2-58.1489N / 89-59-14.7913W
2.12.6 Threshold Elevation: 288.4 ft
2.12.6 Touchdown Zone Elevation: 294.7 ft

AD 2.13 Declared Distances
2.13.1 Designation: 09
2.13.2 Take-off Run Available: 8946
2.13.3 Take-off Distance Available: 8946
2.13.4 Accelerate-Stop Distance Available: 8946
2.13.5 Landing Distance Available: 8946

2.13.1 Designation: 27
2.13.2 Take-off Run Available: 8946
2.13.3 Take-off Distance Available: 8946
2.13.4 Accelerate-Stop Distance Available: 8946
2.13.5 Landing Distance Available: 8946

2.13.1 Designation: 36C
2.13.2 Take-off Run Available: 11120
2.13.3 Take-off Distance Available: 11120
2.13.4 Accelerate-Stop Distance Available: 10715
2.13.5 Landing Distance Available: 10715

2.13.1 Designation: 18C
2.13.2 Take-off Run Available: 11120
2.13.3 Take-off Distance Available: 11120
2.13.4 Accelerate-Stop Distance Available: 11120
2.13.5 Landing Distance Available: 11120

2.13.1 Designation: 18L
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 9000
2.13.5 Landing Distance Available: 9000

2.13.1 Designation: 36R
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 9000
2.13.5 Landing Distance Available: 9000

2.13.1 Designation: 36L
2.13.2 Take-off Run Available: 9320
2.13.3 Take-off Distance Available: 9320
2.13.4 Accelerate-Stop Distance Available: 9320
2.13.5 Landing Distance Available: 9320

2.13.1 Designation: 18R
2.13.2 Take-off Run Available: 9320
2.13.3 Take-off Distance Available: 9320
2.13.4 Accelerate-Stop Distance Available: 9320
2.13.5 Landing Distance Available: 9320

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 09
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 27
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 36C
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 18C
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 18L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 36R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 36L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 18R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ANG COMD POST
2.18.3 Channel: 138.1
2.18.5 Hours of Operation:

2.18.1 Service Designation: ANG COMD POST
2.18.3 Channel: 353.45
2.18.5 Hours of Operation:

2.18.1 Service Designation: CD PRE TAXI CLNC
2.18.3 Channel: 125.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 127.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P (RWY 09/27)
2.18.3 Channel: 121
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (RWY 18R/36L)
2.18.3 Channel: 121.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (RWY 18L/36R, 18C/36C)
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 379.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 09/27)
2.18.3 Channel: 118.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 18L/36R, 18C/36C)
2.18.3 Channel: 119.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 18R/36L)
2.18.3 Channel: 128.425
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 09. Magnetic variation: 1W
2.19.2 ILS Identification: MEM
2.19.5 Coordinates: 35-3-27.2174N / 89-58-56.2128W
2.19.6 Site Elevation: 252.5 ft

2.19.1 ILS Type: Localizer for runway 09. Magnetic variation: 1W
2.19.2 ILS Identification: MEM
2.19.5 Coordinates: 35-3-27.6511N / 89-57-7.9461W
2.19.6 Site Elevation: 296.5 ft

2.19.1 ILS Type: Glide Slope for runway 27. Magnetic variation: 1W
2.19.2 ILS Identification: JIM
2.19.5 Coordinates: 35-3-24.4908N / 89-57-36.2529W
2.19.6 Site Elevation: 277.2 ft

2.19.1 ILS Type: Localizer for runway 27. Magnetic variation: 1W
2.19.2 ILS Identification: JIM
2.19.5 Coordinates: 35-3-31.3982N / 89-59-20.811W
2.19.6 Site Elevation: 252.2 ft

2.19.1 ILS Type: Glide Slope for runway 18C. Magnetic variation: 1W
2.19.2 ILS Identification: SDU
2.19.5 Coordinates: 35-3-7.6024N / 89-58-37.5142W
2.19.6 Site Elevation: 273.1 ft

2.19.1 ILS Type: Localizer for runway 18C. Magnetic variation: 1W
2.19.2 ILS Identification: SDU
2.19.5 Coordinates: 35-1-10.2462N / 89-58-31.5613W
2.19.6 Site Elevation: 345.5 ft

2.19.1 ILS Type: DME for runway 36C. Magnetic variation: 1W
2.19.2 ILS Identification: TSE
2.19.5 Coordinates: 35-3-22.0479N / 89-58-37.3452W
2.19.6 Site Elevation: 268.9 ft

2.19.1 ILS Type: Glide Slope for runway 36C. Magnetic variation: 1W
2.19.2 ILS Identification: TSE
2.19.5 Coordinates: 35-1-38.095N / 89-58-36.9423W
2.19.6 Site Elevation: 329.5 ft

2.19.1 ILS Type: Localizer for runway 36C. Magnetic variation: 1W
2.19.2 ILS Identification: TSE
2.19.5 Coordinates: 35-3-22.514N / 89-58-34.3391W
2.19.6 Site Elevation: 261.2 ft

2.19.1 ILS Type: DME for runway 18L. Magnetic variation: 1W
2.19.2 ILS Identification: EXS
2.19.5 Coordinates: 35-1-16.8761N / 89-58-19.3033W
2.19.6 Site Elevation: 328.2 ft

2.19.1 ILS Type: Glide Slope for runway 18L. Magnetic variation: 1W
2.19.2 ILS Identification: EXS
2.19.5 Coordinates: 35-2-46.7849N / 89-58-17.6254W
2.19.6 Site Elevation: 278.6 ft

2.19.1 ILS Type: Localizer for runway 18L. Magnetic variation: 1W
2.19.2 ILS Identification: EXS
2.19.5 Coordinates: 35-1-16.6952N / 89-58-20.5424W
2.19.6 Site Elevation: 344.5 ft

2.19.1 ILS Type: DME for runway 36R. Magnetic variation: 1W
2.19.2 ILS Identification: MYO
2.19.5 Coordinates: 35-3-5.9229N / 89-58-19.6804W
2.19.6 Site Elevation: 282.5 ft

2.19.1 ILS Type: Glide Slope for runway 36R. Magnetic variation: 1W
2.19.2 ILS Identification: MYO
2.19.5 Coordinates: 35-1-38.0016N / 89-58-16.1795W
2.19.6 Site Elevation: 324.2 ft

2.19.1 ILS Type: Localizer for runway 36R. Magnetic variation: 1W
2.19.2 ILS Identification: MYO
2.19.5 Coordinates: 35-3-6.1649N / 89-58-22.8431W
2.19.6 Site Elevation: 278.7 ft

2.19.1 ILS Type: Glide Slope for runway 18R. Magnetic variation: 1W
2.19.2 ILS Identification: OOI
2.19.5 Coordinates: 35-2-48.6497N / 89-59-18.4713W
2.19.6 Site Elevation: 287.1 ft

2.19.1 ILS Type: Localizer for runway 18R. Magnetic variation: 1W
2.19.2 ILS Identification: OOI
2.19.5 Coordinates: 35-1-17.2969N / 89-59-12.6028W
2.19.6 Site Elevation: 321.4 ft

2.19.1 ILS Type: DME for runway 36L. Magnetic variation: 1W
2.19.2 ILS Identification: OHN
2.19.5 Coordinates: 35-3-6.901N / 89-59-10.0928W
2.19.6 Site Elevation: 285.7 ft

2.19.1 ILS Type: Glide Slope for runway 36L. Magnetic variation: 1W
2.19.2 ILS Identification: OHN
2.19.5 Coordinates: 35-1-38.7288N / 89-59-17.8741W
2.19.6 Site Elevation: 308.9 ft

2.19.1 ILS Type: Localizer for runway 36L. Magnetic variation: 1W
2.19.2 ILS Identification: OHN
2.19.5 Coordinates: 35-3-8.5885N / 89-59-14.9936W
2.19.6 Site Elevation: 277.6 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 1E
2.19.2 Navigation Aid Identification: MEM
2.19.5 Coordinates: 35-0-54.3808N / 89-58-59.5258W
2.19.6 Site Elevation: 363.4 ft

General Remarks:

TWY P1, TWY P2, TWY N NORTH OF TWY V, TWY C NORTH OF TWY V & TWY S NORTH OF TWY V DESIGNATED NON-MOVEMENT AREA.

ANG: PPR 24 HR PN RQR; OFFL BUS ONLY.

COMMUNICATIONS-ANG COMD POST: RADIO CALL GRACELAND OPS.

HELI OPS TO/FROM TRML BLDG NA.

ANG-PPR DSN 726-7131/7505, C901-291-7131/7505. MIL RAMP OPS 1230-0430Z++ MON-FRI; CLSD ALTN MON & HOL. MIL RAMP CLSD OUTSIDE OF PUB HR WITHOUT OG/CC APVL DSN 726-7557, C901-291-7557. TSNT ACFT MAINT NOT AVBL. REFUEL SVC FOR OTR THAN C17 ACFT RQR QUALIFIED CREW CHIEF OR CREWMEMBERS. NON-C17 ACFT SUPPORT PRVDD BY CONTRACT FBO ON FLD. SECURITY AVBL 24 HRS, DSN 726-7101, C901-291-7101. COMD POST DSN 726-7148/7311/7312, C901-291-7148/7311/7312. OPR 1230-0430Z++ MON-FRI, CLSD ALTN MON AND HOL DUE TO ALTN WORK SCHED. AFLD MGR DOES NOT ISSUE OR STORE COMSEC FOR TRAN CRES. TMPRY STOR OF CLASSIFIED MATERIALS UP TO TOP SECRET AT COMD POST.

CONDUCT GND OPS WITH TRANSPONDERS ON.

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

BASH PHASE II APR-MAY & AUG-OCT; CURRENT BIRD WATCH COND NOT ON ATIS.

MILITARY: MIL RAMP OPS AT REDUCED ARFF, DOWNGRADED TO YELLOW.

BIRDS INVOF ARPT.

APRON J & N RUNUP PAD CLSD.

TWY V BTN TWY S & Y RSTR TO ACFT WITH TAIL HEIGHT 65 FT 10 IN OR LESS.

TWY P1 BTN TWY T & TRML RAMP & TWY P2 BTN TWY T & TRML RAMP CLSD.

ACFT WITH WINGSPAN MORE THAN 118 FT RSTR FM TAXI ON TWY J NORTH OF C3.

HOLD SHORT INSTRUCTION READ BACK RQR.

NOISE ABATEMENT PROCEDURES IN EFFECT. SUCCESSIVE AND/OR SIMULTANEOUS DEP APVD ON RWY 36L-18R & RWY 36C-18C OR RWY 36L-18R & WRY 36R-18L WITH COURSE DIVERGENCE NO LATER THAN 2.27 NM FROM RWY END.

LARGE & HEAVY EASTBOUND ACFT ON TWY V FOR RWY 27 HOLD SHORT AT MINIMUM THRUST AREA SIGN.

ANG RAMP OFFICIAL BUSINESS ONLY; PPR - V966-8131. TRANSIENT ACFT RQR FOLLOW ME ASSIST ENTERING ANG RAMP.

TWY J BTN TWY P & R RSTR TO 15 MPH FOR ACFT WITH WINGSPAN MORE THAN 171 FT.

TWY V BTN SPOT 7W & RWY 27 RSTR TO ACFT WITH WINGSPAN OF 171 FT 6 IN OR LESS.

ACFT WITH WINGSPAN MORE THAN 171 FT 6 IN RSTR FM TAXI ON TWY N BTN TWY M7 & T.

ANG-ATIS INFO REPORTS BIRD ACT H24 IN AREA

PPR RQR FOR TAXI CLNC ON TWY N NORTH OF TWY V, TWY S NORTH TWY V & AND TWY C NORTH OF TWY V - FEDEX RAMP ATCT 131.5.

CTC RAMP CONTROL 121.8 FOR ENTRY ON ANG RAMP. ANG FREQS 138.95 353.45. AFT HR CTC COMMAND POST - DSN 726-7148; C901-291-7311/7312 OR SECURITY FORCES - DSN 726-7101; C901-291-7101/7133.

PPR FOR TAXI CLNC FM N & S CARGO RAMP PRKG - 121.9.

Nashville, Tennessee
Nashville International
ICAO Identifier KBNA

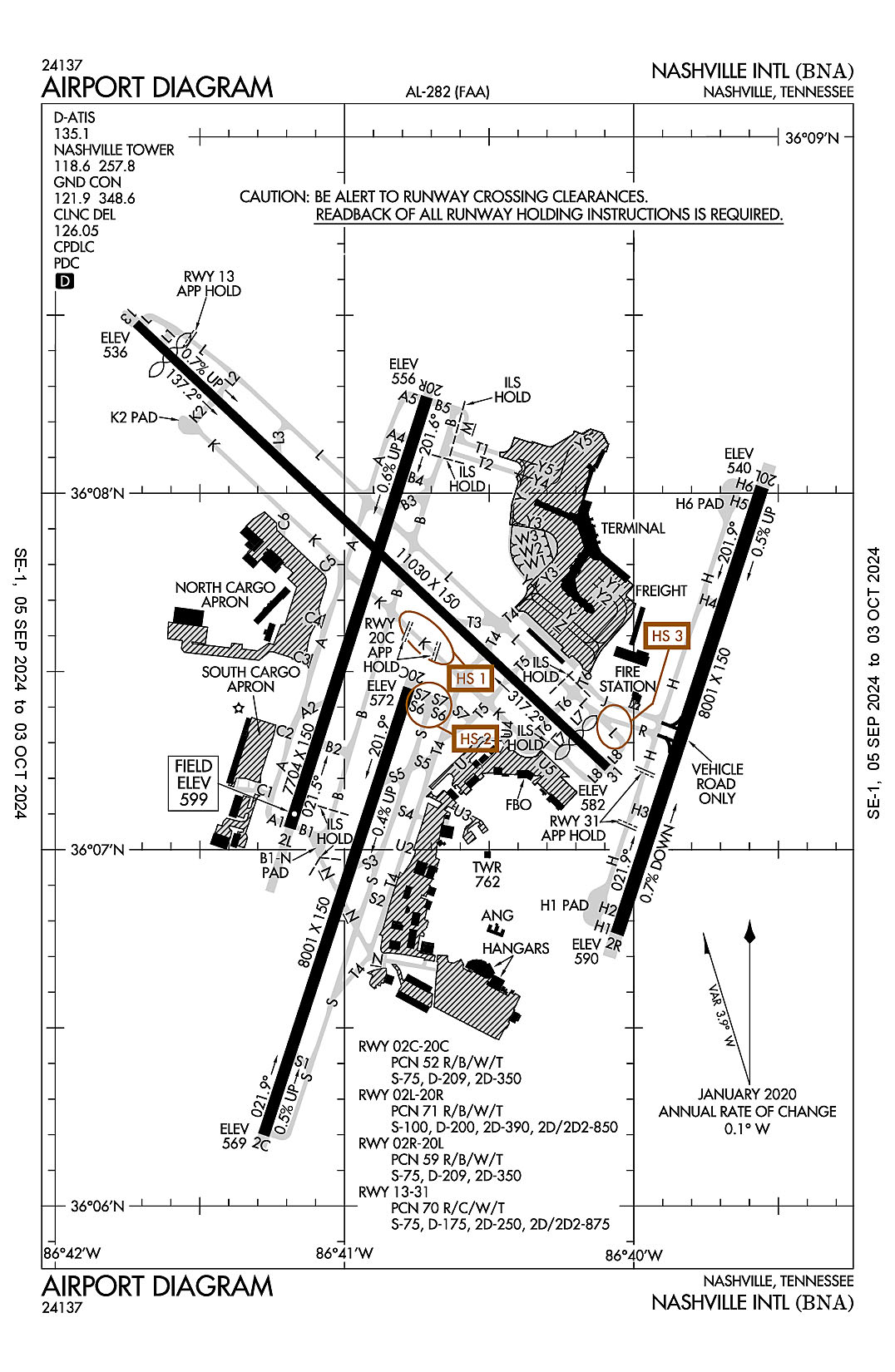

The airport diagram for Nashville International (ICAO Identifier KBNA).

Nashville, TN
Nashville Intl
ICAO Identifier KBNA

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 36-7-28.11N / 86-40-41.45W
2.2.2 From City: 5 miles SE of NASHVILLE, TN
2.2.3 Elevation: 599 ft
2.2.5 Magnetic Variation: 3W (2010)
2.2.6 Airport Contact: DOUG KREULEN
ONE TERMINAL DR. SUITE 501
NASHVILLE, TN 37214 (615-275-1668)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I C certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 02C
2.12.2 True Bearing: 18
2.12.3 Dimensions: 8001 ft x 150 ft
2.12.4 PCN: 56 R/B/W/T
2.12.5 Coordinates: 36-6-11.9899N / 86-41-16.6591W
2.12.6 Threshold Elevation: 569.1 ft
2.12.6 Touchdown Zone Elevation: 586.7 ft

2.12.1 Designation: 20C
2.12.2 True Bearing: 198
2.12.3 Dimensions: 8001 ft x 150 ft
2.12.4 PCN: 56 R/B/W/T
2.12.5 Coordinates: 36-7-27.2406N / 86-40-46.55W
2.12.6 Threshold Elevation: 571.8 ft
2.12.6 Touchdown Zone Elevation: 587.7 ft

2.12.1 Designation: 02L
2.12.2 True Bearing: 18
2.12.3 Dimensions: 7704 ft x 150 ft
2.12.4 PCN: 70 R/B/W/T
2.12.5 Coordinates: 36-7-3.6342N / 86-41-11.3105W
2.12.6 Threshold Elevation: 598.7 ft
2.12.6 Touchdown Zone Elevation: 599 ft

2.12.1 Designation: 20R
2.12.2 True Bearing: 198
2.12.3 Dimensions: 7704 ft x 150 ft
2.12.4 PCN: 70 R/B/W/T
2.12.5 Coordinates: 36-8-16.2324N / 86-40-42.8335W
2.12.6 Threshold Elevation: 555.6 ft
2.12.6 Touchdown Zone Elevation: 578 ft

2.12.1 Designation: 02R
2.12.2 True Bearing: 18
2.12.3 Dimensions: 8001 ft x 150 ft
2.12.4 PCN: 59 R/B/W/T
2.12.5 Coordinates: 36-6-45.767N / 86-40-3.5138W
2.12.6 Threshold Elevation: 589.8 ft
2.12.6 Touchdown Zone Elevation: 589.8 ft

2.12.1 Designation: 20L
2.12.2 True Bearing: 198
2.12.3 Dimensions: 8001 ft x 150 ft
2.12.4 PCN: 59 R/B/W/T
2.12.5 Coordinates: 36-8-1.0116N / 86-39-33.3955W
2.12.6 Threshold Elevation: 540 ft
2.12.6 Touchdown Zone Elevation: 550.6 ft

2.12.1 Designation: 13
2.12.2 True Bearing: 133
2.12.3 Dimensions: 11030 ft x 150 ft
2.12.4 PCN: 70 R/C/W/T
2.12.5 Coordinates: 36-8-28.5991N / 86-41-43.2788W
2.12.6 Threshold Elevation: 535.9 ft
2.12.6 Touchdown Zone Elevation: 567.5 ft

2.12.1 Designation: 31
2.12.2 True Bearing: 313
2.12.3 Dimensions: 11030 ft x 150 ft
2.12.4 PCN: 70 R/C/W/T
2.12.5 Coordinates: 36-7-13.7852N / 86-40-5.4384W
2.12.6 Threshold Elevation: 582.3 ft
2.12.6 Touchdown Zone Elevation: 577.5 ft

AD 2.13 Declared Distances
2.13.1 Designation: 02C
2.13.2 Take-off Run Available: 8001
2.13.3 Take-off Distance Available: 8001
2.13.4 Accelerate-Stop Distance Available: 7601
2.13.5 Landing Distance Available: 7601

2.13.1 Designation: 20C
2.13.2 Take-off Run Available: 8001
2.13.3 Take-off Distance Available: 8001
2.13.4 Accelerate-Stop Distance Available: 8001
2.13.5 Landing Distance Available: 8001

2.13.1 Designation: 02L
2.13.2 Take-off Run Available: 7702
2.13.3 Take-off Distance Available: 7702
2.13.4 Accelerate-Stop Distance Available: 7702
2.13.5 Landing Distance Available: 7702

2.13.1 Designation: 20R
2.13.2 Take-off Run Available: 7702
2.13.3 Take-off Distance Available: 7702
2.13.4 Accelerate-Stop Distance Available: 7702
2.13.5 Landing Distance Available: 7702

2.13.1 Designation: 02R
2.13.2 Take-off Run Available: 8000
2.13.3 Take-off Distance Available: 8000
2.13.4 Accelerate-Stop Distance Available: 8000
2.13.5 Landing Distance Available: 8000

2.13.1 Designation: 20L
2.13.2 Take-off Run Available: 8000
2.13.3 Take-off Distance Available: 8000
2.13.4 Accelerate-Stop Distance Available: 8000
2.13.5 Landing Distance Available: 8000

2.13.1 Designation: 13
2.13.2 Take-off Run Available: 10288
2.13.3 Take-off Distance Available: 11029
2.13.4 Accelerate-Stop Distance Available: 10288
2.13.5 Landing Distance Available: 9487

2.13.1 Designation: 31
2.13.2 Take-off Run Available: 10228
2.13.3 Take-off Distance Available: 11029
2.13.4 Accelerate-Stop Distance Available: 10228
2.13.5 Landing Distance Available: 9487

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 02C
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 20C
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 02L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 20R
2.14.2 Approach Lighting System: MALSF
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 02R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 20L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 13
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 31
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ALCP
2.18.3 Channel: 314.4
2.18.5 Hours of Operation:

2.18.1 Service Designation: APCH/P (WEST)
2.18.3 Channel: 372
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P IC (EAST)
2.18.3 Channel: 118.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P IC (EAST)
2.18.3 Channel: 360.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD PRE TAXI CLNC
2.18.3 Channel: 126.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (EAST)
2.18.3 Channel: 118.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (WEST)
2.18.3 Channel: 119.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (EAST)
2.18.3 Channel: 360.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (WEST)
2.18.3 Channel: 372
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 135.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (EAST)
2.18.3 Channel: 118.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (WEST)
2.18.3 Channel: 119.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (EAST)
2.18.3 Channel: 360.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (WEST)
2.18.3 Channel: 372
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 02C. Magnetic variation: 3W
2.19.2 ILS Identification: EZN
2.19.5 Coordinates: 36-6-22.6382N / 86-41-16.8861W
2.19.6 Site Elevation: 570.5 ft

2.19.1 ILS Type: Localizer for runway 02C. Magnetic variation: 3W
2.19.2 ILS Identification: EZN
2.19.5 Coordinates: 36-7-32.9571N / 86-40-44.2611W
2.19.6 Site Elevation: 574.3 ft

2.19.1 ILS Type: DME for runway 02L. Magnetic variation: 3W
2.19.2 ILS Identification: BNA
2.19.5 Coordinates: 36-8-26.4864N / 86-40-42.3692W
2.19.6 Site Elevation: 554 ft

2.19.1 ILS Type: Glide Slope for runway 02L. Magnetic variation: 3W
2.19.2 ILS Identification: BNA
2.19.5 Coordinates: 36-7-12.9535N / 86-41-2.539W
2.19.6 Site Elevation: 589.7 ft

2.19.1 ILS Type: Inner Marker for runway 02L. Magnetic variation: 3W
2.19.2 ILS Identification: BNA
2.19.5 Coordinates: 36-6-54.829N / 86-41-14.7612W
2.19.6 Site Elevation: 594.5 ft

2.19.1 ILS Type: Localizer for runway 02L. Magnetic variation: 3W
2.19.2 ILS Identification: BNA
2.19.5 Coordinates: 36-8-25.7779N / 86-40-39.0927W
2.19.6 Site Elevation: 545.4 ft

2.19.1 ILS Type: Glide Slope for runway 20R. Magnetic variation: 3W
2.19.2 ILS Identification: VIY
2.19.5 Coordinates: 36-8-5.8196N / 86-40-42.7621W
2.19.6 Site Elevation: 554.9 ft

2.19.1 ILS Type: Localizer for runway 20R. Magnetic variation: 3W
2.19.2 ILS Identification: VIY
2.19.5 Coordinates: 36-6-49.6756N / 86-41-16.7814W
2.19.6 Site Elevation: 598.1 ft

2.19.1 ILS Type: DME for runway 02R. Magnetic variation: 3W
2.19.2 ILS Identification: UQU
2.19.5 Coordinates: 36-8-9.8916N / 86-39-35.7867W
2.19.6 Site Elevation: 537.1 ft

2.19.1 ILS Type: Glide Slope for runway 02R. Magnetic variation: 3W
2.19.2 ILS Identification: UQU
2.19.5 Coordinates: 36-6-56.0152N / 86-39-54.7364W
2.19.6 Site Elevation: 576.7 ft

2.19.1 ILS Type: Inner Marker for runway 02R. Magnetic variation: 3W
2.19.2 ILS Identification: UQU
2.19.5 Coordinates: 36-6-37.6961N / 86-40-6.7484W
2.19.6 Site Elevation: 569 ft

2.19.1 ILS Type: Localizer for runway 02R. Magnetic variation: 3W
2.19.2 ILS Identification: UQU
2.19.5 Coordinates: 36-8-10.5404N / 86-39-29.5803W
2.19.6 Site Elevation: 531 ft

2.19.1 ILS Type: DME for runway 20L. Magnetic variation: 3W
2.19.2 ILS Identification: SSX
2.19.5 Coordinates: 36-6-30.9674N / 86-40-12.8854W
2.19.6 Site Elevation: 622.2 ft

2.19.1 ILS Type: Glide Slope for runway 20L. Magnetic variation: 3W
2.19.2 ILS Identification: SSX
2.19.5 Coordinates: 36-7-50.0286N / 86-39-33.1134W
2.19.6 Site Elevation: 534.5 ft

2.19.1 ILS Type: Localizer for runway 20L. Magnetic variation: 3W
2.19.2 ILS Identification: SSX
2.19.5 Coordinates: 36-6-30.0253N / 86-40-9.8136W
2.19.6 Site Elevation: 613.4 ft

2.19.1 ILS Type: Glide Slope for runway 31. Magnetic variation: 3W
2.19.2 ILS Identification: PNO
2.19.5 Coordinates: 36-7-28.2722N / 86-40-18.5978W
2.19.6 Site Elevation: 566.4 ft

2.19.1 ILS Type: Localizer for runway 31. Magnetic variation: 3W
2.19.2 ILS Identification: PNO
2.19.5 Coordinates: 36-8-30.6518N / 86-41-45.9626W
2.19.6 Site Elevation: 539.6 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 2W
2.19.2 Navigation Aid Identification: BNA
2.19.5 Coordinates: 36-8-13.0573N / 86-41-5.1762W
2.19.6 Site Elevation: 566.4 ft

General Remarks:

BIRD ACTIVITY ON & INVOF ARPT.

READ BACK OF ALL RWY HLDG INSTRUCTIONS RQR.

NO FLIGHT OVER MAIN TERMINAL BLDG PERMITTED.

ARNG: PPR CTC 615-367-5579.

NO UNAUTHORIZED 180 DEG TURNS FOR ACFT OVR 12500 LBS ON ASPH SFCS.

DO NOT CONFUSE TWY S FOR RWY 20C.

ALL TURBOJET RWYS HAVE NOISE ABATEMENT PROC. MIL FIGHTER/ATTACK/TRAINER TURBOJETS USE RWY 13/31 FOR ARR & DEP.

ANG: CALL SIGN MUSIC CITY OPS.

C CONCOURSE TAXILANES ARE INNER TAXILANE FOR OUBD TFC & OUTER TAXILANE FOR INBD TFC.

PILOTS COMPLY WITH ALL HOLD SHORT INSTRUCTIONS PARTICULARLY AT TWY K & RWY 20 C APCH; TWY L AT RWY 13 APCH; AND TWY H AT RWY 31 APCH.

LGTD JET BLAST FENCE 568 FT MSL 1167 FT NW RWY 13 THR; 598 MSL 1100 FT SE OF RWY 31 THR.

FLT NOTIFICATION SVC (ADCUS) AVBL.

TERMINAL RAMP UNCONTROLLED. MONITOR 122.95 FOR RAMP ADVISORIES.
