Guam

Agana, Guam
Guam International
ICAO Identifier PGUM

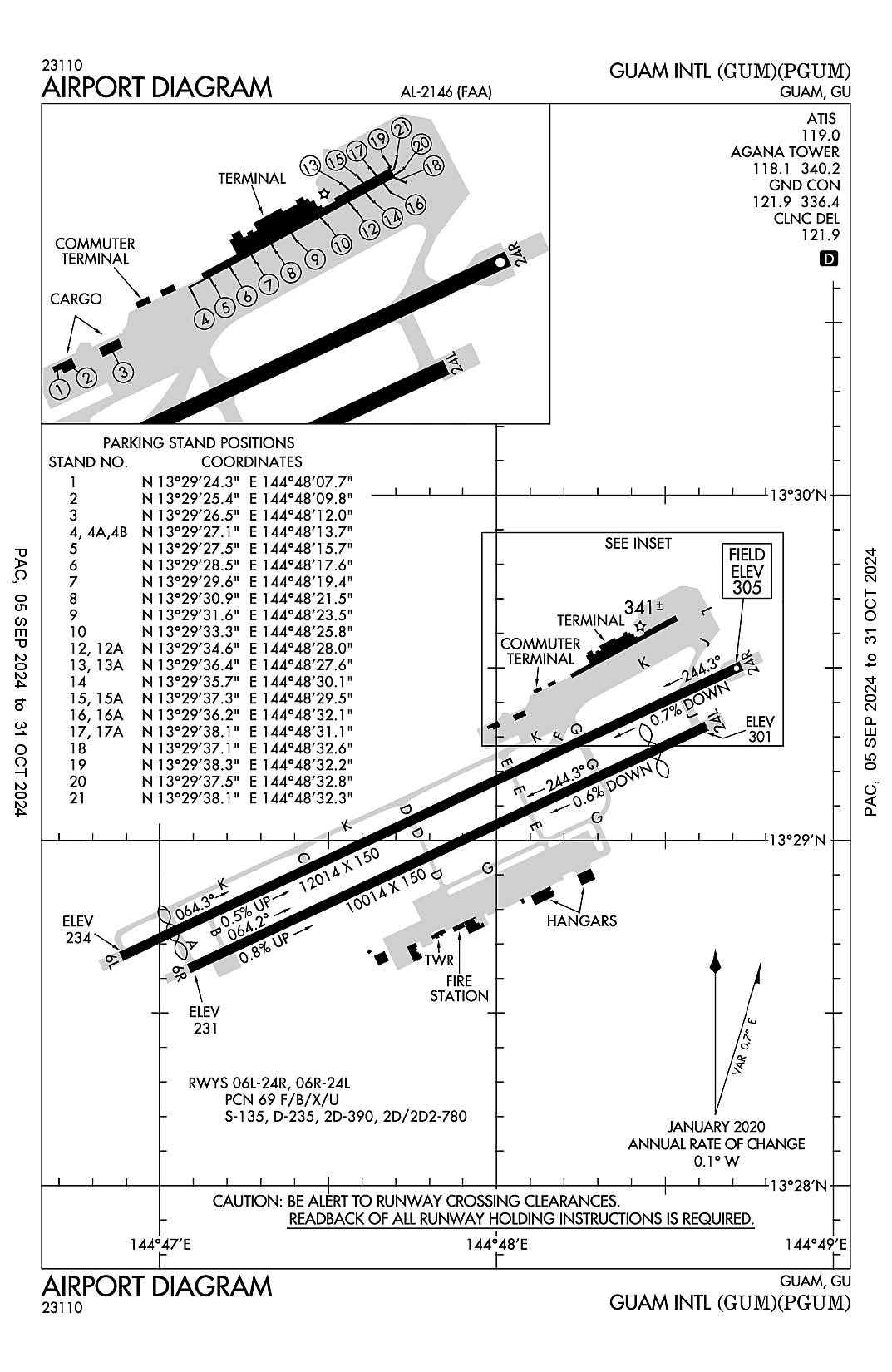

The airport diagram for Guam International (ICAO Identifier PGUM).

Agana, GU
Guam Intl
ICAO Identifier PGUM

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 13-29-2.2224N / 144-47-49.6576E
2.2.2 From City: 3 miles NE of GUAM, GU
2.2.3 Elevation: 304.5 ft
2.2.5 Magnetic Variation: 2E (2000)
2.2.6 Airport Contact: TOM ADA
P.O. BOX 8770
TAMUNING, GU 96931 (671-646-0300)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A1,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MINOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I E certified on 4/1/1995

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 06L
2.12.2 True Bearing: 65
2.12.3 Dimensions: 12017 ft x 150 ft
2.12.4 PCN: 69 F/B/X/U
2.12.5 Coordinates: 13-28-39.8522N / 144-46-53.1231E
2.12.6 Threshold Elevation: 233.6 ft
2.12.6 Touchdown Zone Elevation: 256.3 ft

2.12.1 Designation: 24R
2.12.2 True Bearing: 245
2.12.3 Dimensions: 12017 ft x 150 ft
2.12.4 PCN: 69 F/B/X/U
2.12.5 Coordinates: 13-29-30.3057N / 144-48-43.4525E
2.12.6 Threshold Elevation: 304.5 ft
2.12.6 Touchdown Zone Elevation: 304.5 ft

2.12.1 Designation: 06R
2.12.2 True Bearing: 65
2.12.3 Dimensions: 10014 ft x 150 ft
2.12.4 PCN: 69 F/B/X/U
2.12.5 Coordinates: 13-28-37.7713N / 144-47-5.3307E
2.12.6 Threshold Elevation: 231.1 ft
2.12.6 Touchdown Zone Elevation: 258 ft

2.12.1 Designation: 24L
2.12.2 True Bearing: 245
2.12.3 Dimensions: 10014 ft x 150 ft
2.12.4 PCN: 69 F/B/X/U
2.12.5 Coordinates: 13-29-19.8177N / 144-48-37.2722E
2.12.6 Threshold Elevation: 300.7 ft
2.12.6 Touchdown Zone Elevation: 293.1 ft

AD 2.13 Declared Distances
2.13.1 Designation: 06L
2.13.2 Take-off Run Available: 12015
2.13.3 Take-off Distance Available: 12015
2.13.4 Accelerate-Stop Distance Available: 12015
2.13.5 Landing Distance Available: 11015

2.13.1 Designation: 24R
2.13.2 Take-off Run Available: 12015
2.13.3 Take-off Distance Available: 12015
2.13.4 Accelerate-Stop Distance Available: 12015
2.13.5 Landing Distance Available: 12015

2.13.1 Designation: 06R
2.13.2 Take-off Run Available: 10014
2.13.3 Take-off Distance Available: 10014
2.13.4 Accelerate-Stop Distance Available: 10014
2.13.5 Landing Distance Available: 10014

2.13.1 Designation: 24L
2.13.2 Take-off Run Available: 10014
2.13.3 Take-off Distance Available: 10014
2.13.4 Accelerate-Stop Distance Available: 10014
2.13.5 Landing Distance Available: 9014

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 06L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 24R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 06R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 24L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ATIS
2.18.3 Channel: 119
2.18.5 Hours of Operation:

2.18.1 Service Designation: CD/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 336.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 340.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RAMP CTL
2.18.3 Channel: 121.6
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 06L. Magnetic variation: 2E
2.19.2 ILS Identification: GUM
2.19.5 Coordinates: 13-29-38.0674N / 144-48-51.4932E
2.19.6 Site Elevation: 346.1 ft

2.19.1 ILS Type: Glide Slope for runway 06L. Magnetic variation: 2E
2.19.2 ILS Identification: GUM
2.19.5 Coordinates: 13-28-53.073N / 144-47-8.508E
2.19.6 Site Elevation: 246.1 ft

2.19.1 ILS Type: Localizer for runway 06L. Magnetic variation: 2E
2.19.2 ILS Identification: GUM
2.19.5 Coordinates: 13-29-34.7116N / 144-48-53.0934E
2.19.6 Site Elevation: 312.6 ft

2.19.1 ILS Type: DME for runway 06R. Magnetic variation: 2E
2.19.2 ILS Identification: AWD
2.19.5 Coordinates: 13-29-21.74N / 144-48-48.12E
2.19.6 Site Elevation: 315.9 ft

2.19.1 ILS Type: Glide Slope for runway 06R. Magnetic variation: 2E
2.19.2 ILS Identification: AWD
2.19.5 Coordinates: 13-28-38N / 144-47-15.4E
2.19.6 Site Elevation: 236.5 ft

2.19.1 ILS Type: Localizer for runway 06R. Magnetic variation: 2E
2.19.2 ILS Identification: AWD
2.19.5 Coordinates: 13-29-24.23N / 144-48-46.93E
2.19.6 Site Elevation: 310.6 ft

General Remarks:

<1000' OVRN S END & 450' OVRN N END RWY 6L-24R.

CLASS III ACFT ARE PROHIBITED FROM MAKING ANY TURNS ONTO OR OFF TWY GOLF (SOUTH) WHILE UTILIZING TWY ECHO.

THE FIRST 500 FT OF THE LEFT SHOULDER OF RWY 24L IS NOT VISIBLE FROM THE TWR. PILOTS ARE ADVISED TO CAUTION FOR ANY PRESENCE OF WILDLIFE IN THAT AREA.

TRANSIENT ACFT PROVIDE 24 HRS ADVANCE INFORMATION TO EXEC MGR GUAM INTL ARPT AUTHORITY; 1-671-642-4455 MON-FRI 0800-1700 OR FAX 1-671-646-8823.

FOR PARKING INFORMATION ALL ACFT CTC RAMP CTL. ALL ACFT DEP TERMINAL PARKING CTC RAMP CTL FOR ENGINE START AND PUSHBACK.

ADG-VI AIRPLANES MAY DEPART ON RWY 6L AND RWY 24R WITH ACFT ON PARL TWY K AS LONG AS NO ADG-VI ACFT OCCUPIES THE PARL TWY BYD 1500 FT OF THE POINT OF TKOF ROLL.

FOR TAXG B747-8 ACFT ON TWY K FRONTING THE ACFT PRKG APN FROM GATES 5 - 16 AT THE MAIN TRML, MAX TAXG SPEED SHALL BE NO MORE THAN 15 MPH.

DRG TAXG OF THE B747-8 BTN GATES 5 - 16, ALL VEHICLES SHALL YIELD AND RMN CLEAR OF THE VEHICLE TFC PAT AND ARE RSTRD TO A MAX HGT OF 14 FT.

EFFECTIVE RY GRADIENT RY 06L 0.46% UP NE; RY 24R 0.70% DOWN SW; RY 06R 0.80 % UP NE; RY 24L 0.52% DOWN SW.

RISING TERRAIN 75 FT FM RY 24L THLD 140 FT EAST OF CNTRLN EXTENDED +8 FT.

DEP VFR ACFT MAINT RY HDG TIL PAST DEP END OF RY AND REACHING 1000 FT AGL; RGT PAT 24L/R DO NOT EXCEED 1500 FT AGL IN TFC PAT.

FOR ALL ARRS, THE B747-8 AIRLINE WILL TOW THE ACFT INTO GATES 4 OR 18 FROM TWY K AND AIRLINE TO PRVD WING-WALKERS AS THE ACFT IS BEING TOWED INTO GATES 4 OR 18.

LGTD TWR 780 FT 1.3 NM ENE OF RY 24L THLD .

FOR THE B747-8, DRG RWY 24L & 24R OPS AND DUE TO JET BLAST EFCTS AT GATES 14, 16 & 18, THE B747-8 WILL BE TOWED FROM GATE 4 ON TWY K TO TWY J WITH THE ACFT PSND ON TWY J FACING TWD RWY 24R.

Andersen, Mariana Island, GU
Andersen AFB
ICAO Identifier PGUA

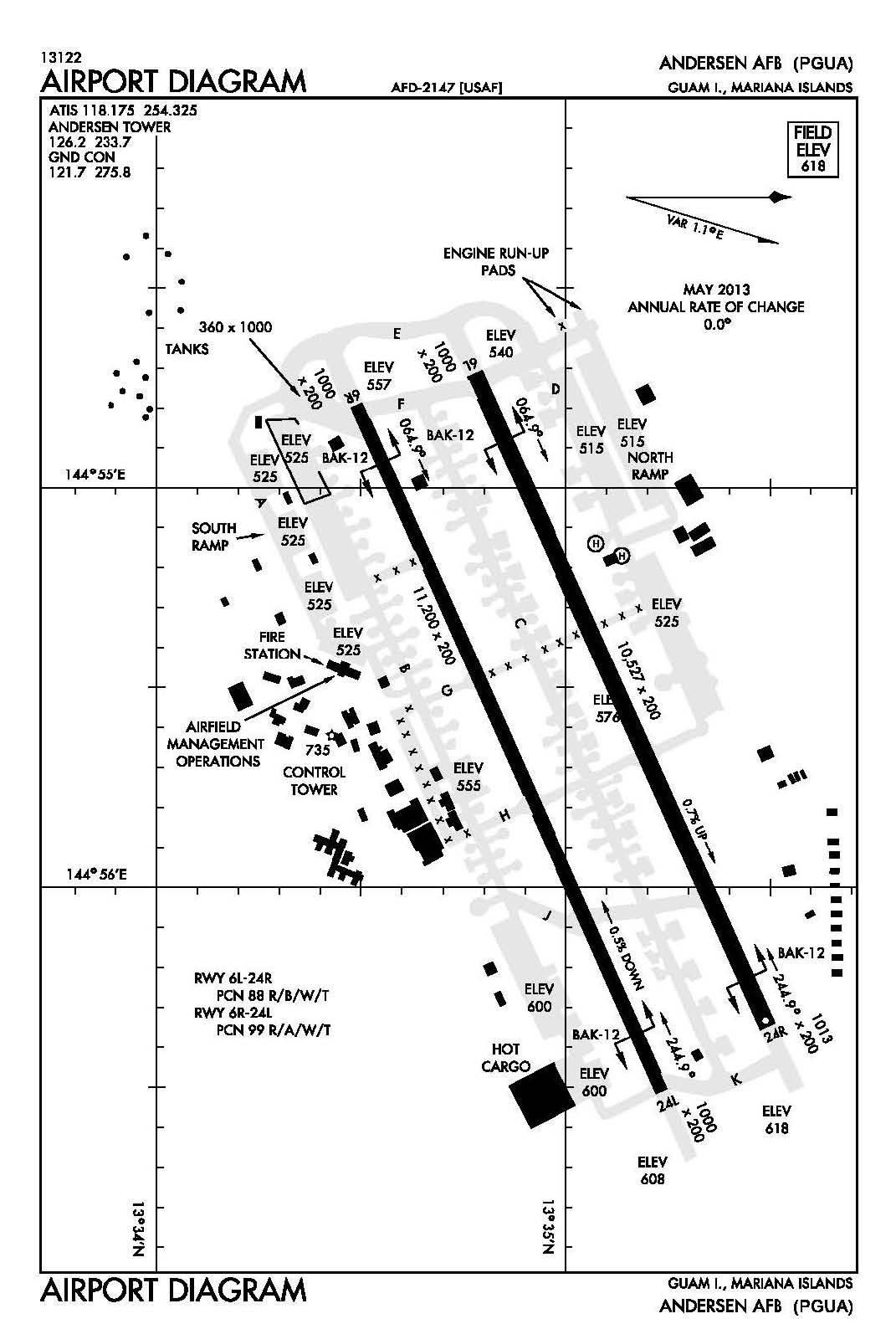

The airport diagram for Anderson AFB (ICAO Identifier PGUA).

Andersen, Mariana Island, GU
Andersen AFB
ICAO Identifier PGUA

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 13-35-1.99N / 144-55-48.2E
2.2.2 From City: 0 miles N of YIGO, GU
2.2.3 Elevation: 617.4 ft
2.2.5 Magnetic Variation: 2E (1980)
2.2.6 Airport Contact: MAJOR BILLY G TOWLES
3 AD
ANDERSEN AFB, GUAM, 69912 ()
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types:
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: NONE

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: None

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 06L
2.12.2 True Bearing:
2.12.3 Dimensions: 10528 ft x 200 ft
2.12.4 PCN: 98 R/A/W/T
2.12.5 Coordinates: 13-34-49.281N / 144-54-56.32E
2.12.6 Threshold Elevation: 539.1 ft
2.12.6 Touchdown Zone Elevation: 539.3 ft

2.12.1 Designation: 24R
2.12.2 True Bearing:
2.12.3 Dimensions: 10528 ft x 200 ft
2.12.4 PCN: 98 R/A/W/T
2.12.5 Coordinates: 13-35-31.93N / 144-56-33.74E
2.12.6 Threshold Elevation: 617.4 ft
2.12.6 Touchdown Zone Elevation: 617.4 ft

2.12.1 Designation: 06R
2.12.2 True Bearing:
2.12.3 Dimensions: 11200 ft x 200 ft
2.12.4 PCN: 98 R/A/W/T
2.12.5 Coordinates: 13-34-31.18N / 144-54-59.38E
2.12.6 Threshold Elevation: 556.8 ft
2.12.6 Touchdown Zone Elevation: 556.8 ft

2.12.1 Designation: 24L
2.12.2 True Bearing:
2.12.3 Dimensions: 11200 ft x 200 ft
2.12.4 PCN: 98 R/A/W/T
2.12.5 Coordinates: 13-35-16.59N / 144-56-43E
2.12.6 Threshold Elevation: 607.2 ft
2.12.6 Touchdown Zone Elevation: 607.2 ft

AD 2.13 Declared Distances
2.13.1 Designation: 06L
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 24R
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 06R
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 24L
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 06L
2.14.2 Approach Lighting System: SALS
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 24R
2.14.2 Approach Lighting System: ALSF1
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 06R
2.14.2 Approach Lighting System: ALSF1
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 24L
2.14.2 Approach Lighting System: SALS
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ATIS
2.18.3 Channel: 118.175
2.18.5 Hours of Operation:

2.18.1 Service Designation: ATIS
2.18.3 Channel: 254.325
2.18.5 Hours of Operation:

2.18.1 Service Designation: COMD POST (36 WG BOONIE OPS)
2.18.3 Channel: 321
2.18.5 Hours of Operation:

2.18.1 Service Designation: COMD POST (36 WG BOONIE OPS)
2.18.3 Channel: 349.4
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 275.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 126.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 233.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PMSV METRO
2.18.3 Channel: 344.6
2.18.5 Hours of Operation:

2.18.1 Service Designation: PTD
2.18.3 Channel: 372.2
2.18.5 Hours of Operation:

2.18.1 Service Designation: SFA
2.18.3 Channel: 281.4
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 24R. Magnetic variation: 2E
2.19.2 ILS Identification: YIG
2.19.5 Coordinates: 13-35-30.26N / 144-56-17.53E
2.19.6 Site Elevation: 593.6 ft

2.19.1 ILS Type: Localizer for runway 24R. Magnetic variation: 2E
2.19.2 ILS Identification: YIG
2.19.5 Coordinates: 13-34-43.23N / 144-54-42.5E
2.19.6 Site Elevation: 533.6 ft

2.19.1 ILS Type: Glide Slope for runway 06R. Magnetic variation: 2E
2.19.2 ILS Identification: UAM
2.19.5 Coordinates: 13-34-40.04N / 144-55-7.21E
2.19.6 Site Elevation: 544.6 ft

2.19.1 ILS Type: Localizer for runway 06R. Magnetic variation: 2E
2.19.2 ILS Identification: UAM
2.19.5 Coordinates: 13-35-21.67N / 144-56-54.64E
2.19.6 Site Elevation: 606.6 ft

2.19.1 ILS Type: Glide Slope for runway 24L. Magnetic variation: 2E
2.19.2 ILS Identification: PMY
2.19.5 Coordinates: 13-35-15.55N / 144-56-29.18E
2.19.6 Site Elevation: 596.1 ft

2.19.1 ILS Type: Localizer for runway 24L. Magnetic variation: 2E
2.19.2 ILS Identification: PMY
2.19.5 Coordinates: 13-34-25.7N / 144-54-46.9E
2.19.6 Site Elevation: 568.8 ft

2.19.1 Navigation Aid Type: TACAN. Magnetic variation: 2E
2.19.2 Navigation Aid Identification: UAM
2.19.5 Coordinates: 13-35-28.39N / 144-56-47.69E
2.19.6 Site Elevation: 615.9 ft

General Remarks:

FREQUENT RAIN SHOWERS OF SHORT DURATION, EXPECT WET RWY BRAKEING ACTION.

CAUTION: NSTD DSPLCD THLD MARKINGS FOR RYS 06R, 06L, AND 24R.

RSTD: ALL ACFT CTC 36 WG COMD POST 90 MIN OUT AND AT 30 MIN OUT PRIOR TO ARR.

MISC: AIRCRAFT EXCEEDING AFLD WEIGHTS MUST REQUEST WEIGHT BEARING CAPACITY WAIVER WITH 24 HR NOTICE TO AIRFIELD OPS TO PROCESS ANY APPROVALS NEEDED. IF REQUESTS ARE NOT MADE WITHIN 24 HRS EXPECT DELAYS.

RSTD: ACFT MUST ADHERE TO PPR ARR +/- 30 MIN. ACFT WITH WINGSPANS GREATER THAN 261' NOT AUTHORIZED.

HAZUS AIR TURB FINAL APCH RWYS 24L/24R. NO VSBY REF AVBL ON NGT TKOF BYD END RWY 6.

SERVICE-LGT: RAMP LGT UNAVBL FOR NGT TIME OPS, AND UNSAFE ACFT MVMT COND EXIST ON NORTH RAMP 3; ACFT TAXI AT THEIR OWN RISK. ALL AFLD ILS STOP LGT UNSVC. VEGETATION OBST RWY 24R/L APCH LGT SYS.

ILS/RADAR-ILS: ILS CRITICAL AREAS NOT PROTECTED.

MISC: ANDERSEN AFB DOES NOT HAVE CAPABILITY TO STORE REFRIGERATED CARGO.

RSTD: RESTRICTIONS TO FLT OPNS DUR EA BWC. MOD: NO TOUCH AND GO LDG. RSTD LOW APPCH NO LOWER THAN 200' OR AS DETERMINED BY SOF. SEVERE: RSTD LOW APPCH NO LOWER THAN 200' OR AS DETERMINED BY SOF. EMERG LDG AND 36 OG/CC APV DEP ONLY. PHASE I: PHASE I:1 APR - 31 JUL. PHASE II: 1 AUG - 31 MAR.

MISC: "NO VHF CAPABILITIES WITH AFLD MGMT."

SERVICE-LGT: ARPT BCN 763 FT MSL LCTD 1.4 NM SSW OF AFLD.

A-GEAR BAK-12 RWYS 06L & 06R 30 MIN NTC RQR.

TWY B AND C BTN TWY J AND K CLSD DUE TO CONSTRUCTION.

CAUTION: TACAN CK PT SIGN ON TWY J SOUTH INCORRECT; CORRECT VERBIAGE: BRG 224 DIST 0.7 NM. ACFT WASH RACK ON NR 3 CLSD DUE TO CONST.

RSTD: PPR NR NOT RQRD FOR GDSS LOADED MSN. C130 MSNS LOADED IN GDSS RQR A PPR NR FROM AFLD MGMT. ALL AEROMEDICAL EVAC MSN ARE RQRD TO CTC COMD POST (DSN 366-2961, C671-366-2961) BY ANY MEANS AVAIL 3 HRS PRIOR TO ARR. ALL ACFT RQRD TO MAKE CALL 30 MIN PRIOR TO ARR.

RSTD: ALL OPR MUST OBTAIN APVL FR GND AND AMOPS PRIOR TO ENG START/RUN.

MISC: RWY 06L AND 06R UNDERRUNS 1000' AVBL FOR TWY/TKOF. RWY 24R UNDERRUN AVBL 500' FOR TAXI/TKOF.

BASE OPS V366-4188; FAX V366-6217.

CAUTION: USE EXTREME CAUTION FOR EXTV UAS OPS IN VCNTY OF ANDERSEN AFB.

CAUTION: POTENTIAL FOR REDUCED BRAKING CAPABILITY AND/OR DIREC CTL EXISTS, PARTICULARLY DURING WET RSC FOR RWY 06L.

SERVICE-FLUID: C-5 NITROGEN SVC CAPABILITY UNAVBL.

MAINT AVBL 0100-0400 WEEKDAY ONLY; CLOSED WEEKEND & HOL.

NO ARRESTING GEAR MARKERS LOCATED ON THE LEFT SIDE OF ALL APPROACH END BARRIERS.

MISC: ALL AIRCREWS TO RON MUST CK INTO AFLD MGT OPS AND PROVIDE POC INFO UPON ARR.

MISC: PAVEMENT PRIOR TO RY 06R AND RY 06L THLDS AVBL FOR TKOF RUN WHEN NECESSARY FOR MSN ACCOMPLISHMENT.

MISC: ATTN: ALL DRY ICE REQ MUST BE MADE THRU 734TH MS/ATOC DSN 315-366-3125/3137/3162 OR C671-366-3125/3137/3162. REQ MUST BE MADE AT LEAST 24 HR IN ADVANCE FOR ACFT LDG TUE-FRI AND 72 HR IN ADVANCE FOR ACFT LDG SAT-MON. DUR HOL, ADD 2 HR TO COORD TIME.

RSTD: PPR DSN 366-4188/1010.

MISC: AFLD MGT HAS NO COMSEC STORAGE AVBL FOR TRAN AIRCREWS. TRANS AIRCREWS CAN STORE COMSEC UP TO TOP-SECRET AT 36 WG CP.

SERVICE-A-GEAR: CONTACT CONTROL TOWER 30 MIN PRIOR FOR DEPARTURE END BAK12 CABLE CONFIGURATION. 30 MIN PRIOR NOTICE REQ FOR CHANGE CONFIGURATION. BAK12 HOUSING LCTD 317' FROM RY CENTERLINE, 217' FROM RY EDGE, MAX HEIGHT 8'. NO ARRESTING-GEAR MARKER LCTD ON LEFT SIDE OF ALL APPROACH END BARRIERS.

NS ABTMT: QUIET HR 1200-2000Z (2200-0600L) DLY. NO AFTERBURNER, OR OVR FLT OF BASE AND LCL POPULATED AREAS. OTHER RESTRICTIONS BY NOTAM.

CAUTION: 47' TACAN ANTENNAE LCTD 1,300 FT NE OF RY 24L & 1,300 FT SE OF RY 24R THLDS.

RSTD 1 OF 2: THERE WILL BE NO OVFT OF MARIANA CROW TERRITORIES BLW 1,000 FT AGL FROM SEP-MAY. OVFT BLW 1,000 FT AGL IS ALLOWED BTN JUNE AND AUG, THE CROW NON-BREEDING SEASON.

MISC: WX OPR H24, DSN 315-366-5230. AUTOMATED SENSOR PRVDS OBSN; AUGMENTED DUR HAZ WX & SENSOR OUTAGES. HUMAN WX OBSN VIEW OBSTD BY BLDG N-SSE. WX STN PRVDS LTD WX BRIEF SUPPORT. REMOTE WX BRIEF AVBL H24 FR 17 OWS AT DSN 315-449-8333/7950, C808-448-3809; 2 HR NTC RQRD FOR TIMELY BRIEF.

RSTD: PPR REQ MUST BE MADE 24 HR PRIOR EXC FOR WX-EVAC OPS.

ANY CREW RQRG ASSISTANCE FR AGENCIES OUTSIDE OF AFLD SUPPORT, CTC WING RECEPTIONS DSN 315-366-3464, C671-366-3464.

AREA BTN 1000' ROLL BAR AND THU LGT RWY 06R AND 06L UNLGTD. LAST 642' PRIOR TO THU LGT 24R UNLGTD.

CAUTION: FAA SIZE 3 SIGNS LCTD GREATER THAN 60 FT FROM TWY EDGES TO ACCOM B-52 ACFT.

RSTD: BA ON BOTH RWYS MAY BE LESS THAN EXP DUE TO RUBBER BUILD-UP; PROBABILITY OF HYDROPLANING EXISTS.

RSTD: PPR NOT ISSUED MORE THAN 14 DAYS PRIOR TO ARR/DEP.

AFLD SIGNS ARE NOT FRANGIBLE.
