Illinois

Chicago, Illinois
Chicago-O'Hare International
ICAO Identifier KORD

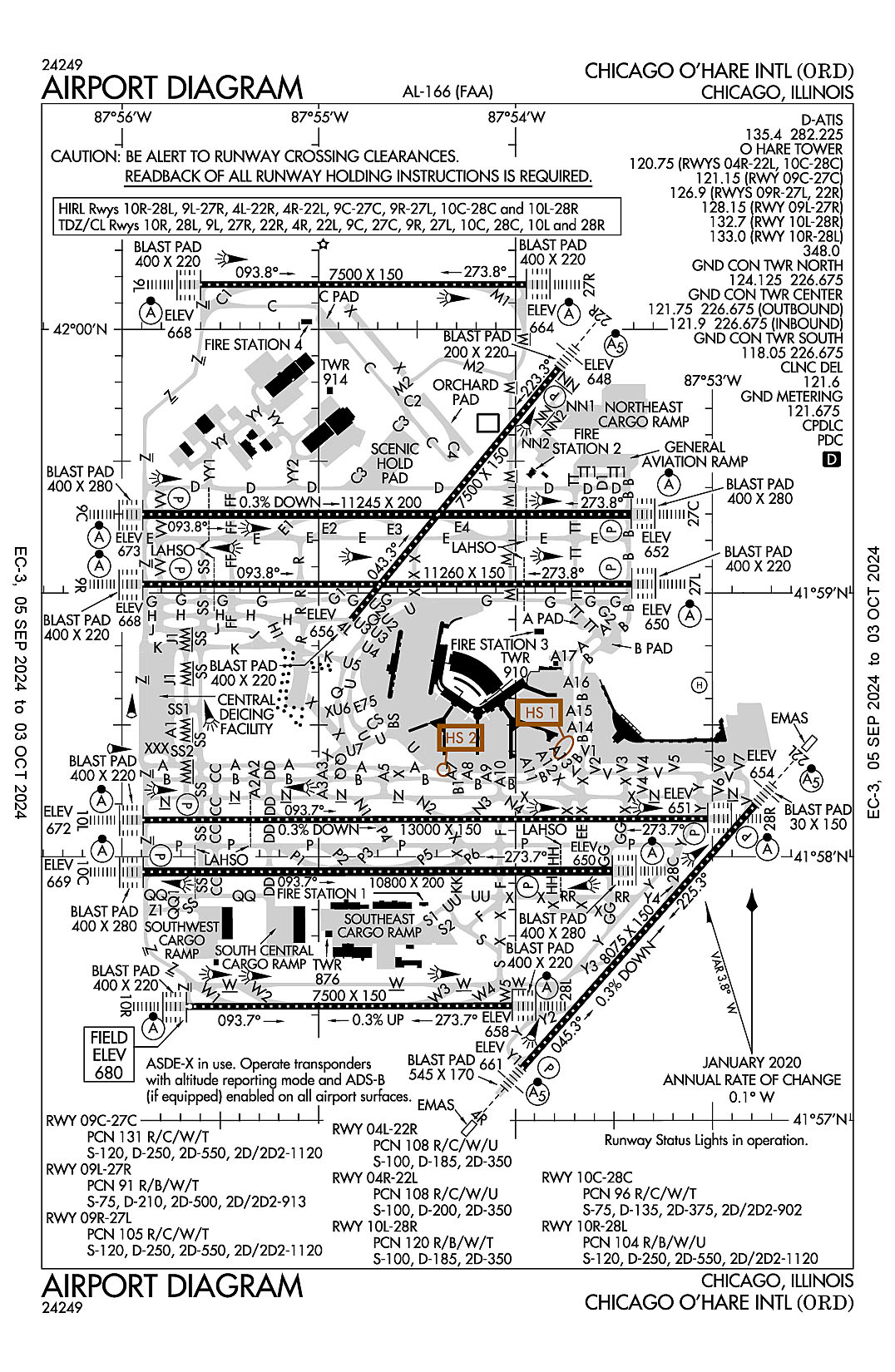

The airport diagram for Chicago-O'Hare International (ICAO Identifier KORD).

Chicago, IL
Chicago O'Hare Intl
ICAO Identifier KORD

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 41-58-35.864N / 87-54-26.111W
2.2.2 From City: 14 miles NW of CHICAGO, IL
2.2.3 Elevation: 680 ft
2.2.5 Magnetic Variation: 3W (2010)
2.2.6 Airport Contact: JAMIE RHEE
10510 WEST ZEMKE RO
CHICAGO, IL 60666 (773-686-8060)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: NO
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I E certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 22R
2.12.2 True Bearing: 219
2.12.3 Dimensions: 7500 ft x 150 ft
2.12.4 PCN: 108 R/C/W/U
2.12.5 Coordinates: 41-59-51.1336N / 87-53-46.9364W
2.12.6 Threshold Elevation: 647.7 ft
2.12.6 Touchdown Zone Elevation: 651.5 ft

2.12.1 Designation: 04L
2.12.2 True Bearing: 39
2.12.3 Dimensions: 7500 ft x 150 ft
2.12.4 PCN: 108 R/C/W/U
2.12.5 Coordinates: 41-58-53.9601N / 87-54-50.1039W
2.12.6 Threshold Elevation: 655.7 ft
2.12.6 Touchdown Zone Elevation: 658.2 ft

2.12.1 Designation: 04R
2.12.2 True Bearing: 42
2.12.3 Dimensions: 8075 ft x 150 ft
2.12.4 PCN: 108 R/C/W/U
2.12.5 Coordinates: 41-57-11.9778N / 87-53-57.9066W
2.12.6 Threshold Elevation: 661.4 ft
2.12.6 Touchdown Zone Elevation: 661.4 ft

2.12.1 Designation: 22L
2.12.2 True Bearing: 222
2.12.3 Dimensions: 8075 ft x 150 ft
2.12.4 PCN: 108 R/C/W/U
2.12.5 Coordinates: 41-58-11.718N / 87-52-47.0759W
2.12.6 Threshold Elevation: 654.4 ft
2.12.6 Touchdown Zone Elevation: 654.4 ft

2.12.1 Designation: 09C
2.12.2 True Bearing: 90
2.12.3 Dimensions: 11245 ft x 200 ft
2.12.4 PCN: 131 R/C/W/T
2.12.5 Coordinates: 41-59-17.8928N / 87-55-53.6579W
2.12.6 Threshold Elevation: 673.2 ft
2.12.6 Touchdown Zone Elevation: 673.2 ft

2.12.1 Designation: 27C
2.12.2 True Bearing: 270
2.12.3 Dimensions: 11245 ft x 200 ft
2.12.4 PCN: 131 R/C/W/T
2.12.5 Coordinates: 41-59-17.9172N / 87-53-24.754W
2.12.6 Threshold Elevation: 652.4 ft
2.12.6 Touchdown Zone Elevation: 652.9 ft

2.12.1 Designation: 27R
2.12.2 True Bearing: 270
2.12.3 Dimensions: 7500 ft x 150 ft
2.12.4 PCN: 91 R/B/W/T
2.12.5 Coordinates: 42-0-10.1909N / 87-53-56.6997W
2.12.6 Threshold Elevation: 663.6 ft
2.12.6 Touchdown Zone Elevation: 663.6 ft

2.12.1 Designation: 09L
2.12.2 True Bearing: 90
2.12.3 Dimensions: 7500 ft x 150 ft
2.12.4 PCN: 91 R/B/W/T
2.12.5 Coordinates: 42-0-10.1954N / 87-55-36.0339W
2.12.6 Threshold Elevation: 668 ft
2.12.6 Touchdown Zone Elevation: 668 ft

2.12.1 Designation: 27L
2.12.2 True Bearing: 270
2.12.3 Dimensions: 7967 ft x 150 ft
2.12.4 PCN: 108 R/C/W/U
2.12.5 Coordinates: 41-59-2.0405N / 87-53-20.5834W
2.12.6 Threshold Elevation: 650.1 ft
2.12.6 Touchdown Zone Elevation: 653.6 ft

2.12.1 Designation: 09R
2.12.2 True Bearing: 90
2.12.3 Dimensions: 7967 ft x 150 ft
2.12.4 PCN: 108 R/C/W/U
2.12.5 Coordinates: 41-59-2.0302N / 87-55-6.0672W
2.12.6 Threshold Elevation: 659.8 ft
2.12.6 Touchdown Zone Elevation: 659.8 ft

2.12.1 Designation: 10C
2.12.2 True Bearing: 90
2.12.3 Dimensions: 10800 ft x 200 ft
2.12.4 PCN: 96 R/C/W/T
2.12.5 Coordinates: 41-57-56.5251N / 87-55-53.4778W
2.12.6 Threshold Elevation: 669.4 ft
2.12.6 Touchdown Zone Elevation: 669.4 ft

2.12.1 Designation: 28C
2.12.2 True Bearing: 270
2.12.3 Dimensions: 10800 ft x 200 ft
2.12.4 PCN: 96 R/C/W/T
2.12.5 Coordinates: 41-57-56.7568N / 87-53-30.5171W
2.12.6 Threshold Elevation: 650.1 ft
2.12.6 Touchdown Zone Elevation: 651.1 ft

2.12.1 Designation: 10L
2.12.2 True Bearing: 90
2.12.3 Dimensions: 13000 ft x 150 ft
2.12.4 PCN: 120 R/B/W/T
2.12.5 Coordinates: 41-58-8.3816N / 87-55-53.5142W
2.12.6 Threshold Elevation: 672.1 ft
2.12.6 Touchdown Zone Elevation: 672.1 ft

2.12.1 Designation: 28R
2.12.2 True Bearing: 270
2.12.3 Dimensions: 13000 ft x 150 ft
2.12.4 PCN: 120 R/B/W/T
2.12.5 Coordinates: 41-58-8.6529N / 87-53-1.4244W
2.12.6 Threshold Elevation: 651.4 ft
2.12.6 Touchdown Zone Elevation: 651.4 ft

2.12.1 Designation: 10R
2.12.2 True Bearing: 90
2.12.3 Dimensions: 7500 ft x 150 ft
2.12.4 PCN: 104 R/B/W/U
2.12.5 Coordinates: 41-57-25.924N / 87-55-40.3004W
2.12.6 Threshold Elevation: 680 ft
2.12.6 Touchdown Zone Elevation: 680 ft

2.12.1 Designation: 28L
2.12.2 True Bearing: 270
2.12.3 Dimensions: 7500 ft x 150 ft
2.12.4 PCN: 104 R/B/W/U
2.12.5 Coordinates: 41-57-26.0865N / 87-54-1.0355W
2.12.6 Threshold Elevation: 658 ft
2.12.6 Touchdown Zone Elevation: 666.8 ft

2.12.1 Designation: 10X
2.12.2 True Bearing:
2.12.3 Dimensions: 0 ft x 0 ft
2.12.4 PCN:
2.12.5 Coordinates: -- / --
2.12.6 Threshold Elevation: ft
2.12.6 Touchdown Zone Elevation: ft

2.12.1 Designation: H1
2.12.2 True Bearing:
2.12.3 Dimensions: 200 ft x 100 ft
2.12.4 PCN:
2.12.5 Coordinates: -- / --
2.12.6 Threshold Elevation: ft
2.12.6 Touchdown Zone Elevation: ft

AD 2.13 Declared Distances
2.13.1 Designation: 22R
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available: 7300

2.13.1 Designation: 04L
2.13.2 Take-off Run Available: 7500
2.13.3 Take-off Distance Available: 7500
2.13.4 Accelerate-Stop Distance Available: 7500
2.13.5 Landing Distance Available:

2.13.1 Designation: 04R
2.13.2 Take-off Run Available: 8075
2.13.3 Take-off Distance Available: 8075
2.13.4 Accelerate-Stop Distance Available: 8075
2.13.5 Landing Distance Available: 8075

2.13.1 Designation: 22L
2.13.2 Take-off Run Available: 8075
2.13.3 Take-off Distance Available: 8075
2.13.4 Accelerate-Stop Distance Available: 8075
2.13.5 Landing Distance Available: 8075

2.13.1 Designation: 09C
2.13.2 Take-off Run Available: 11245
2.13.3 Take-off Distance Available: 11245
2.13.4 Accelerate-Stop Distance Available: 11245
2.13.5 Landing Distance Available: 11245

2.13.1 Designation: 27C
2.13.2 Take-off Run Available: 11245
2.13.3 Take-off Distance Available: 11245
2.13.4 Accelerate-Stop Distance Available: 11245
2.13.5 Landing Distance Available: 11245

2.13.1 Designation: 27R
2.13.2 Take-off Run Available: 7500
2.13.3 Take-off Distance Available: 7500
2.13.4 Accelerate-Stop Distance Available: 7500
2.13.5 Landing Distance Available: 7500

2.13.1 Designation: 09L
2.13.2 Take-off Run Available: 7500
2.13.3 Take-off Distance Available: 7500
2.13.4 Accelerate-Stop Distance Available: 7500
2.13.5 Landing Distance Available: 7500

2.13.1 Designation: 27L
2.13.2 Take-off Run Available: 7967
2.13.3 Take-off Distance Available: 7967
2.13.4 Accelerate-Stop Distance Available: 7782
2.13.5 Landing Distance Available: 7782

2.13.1 Designation: 09R
2.13.2 Take-off Run Available: 7967
2.13.3 Take-off Distance Available: 7967
2.13.4 Accelerate-Stop Distance Available: 7709
2.13.5 Landing Distance Available: 7709

2.13.1 Designation: 10C
2.13.2 Take-off Run Available: 10801
2.13.3 Take-off Distance Available: 10801
2.13.4 Accelerate-Stop Distance Available: 10540
2.13.5 Landing Distance Available: 10540

2.13.1 Designation: 28C
2.13.2 Take-off Run Available: 10801
2.13.3 Take-off Distance Available: 10801
2.13.4 Accelerate-Stop Distance Available: 10801
2.13.5 Landing Distance Available: 10801

2.13.1 Designation: 10L
2.13.2 Take-off Run Available: 13000
2.13.3 Take-off Distance Available: 13000
2.13.4 Accelerate-Stop Distance Available: 13000
2.13.5 Landing Distance Available: 12246

2.13.1 Designation: 28R
2.13.2 Take-off Run Available: 13000
2.13.3 Take-off Distance Available: 13000
2.13.4 Accelerate-Stop Distance Available: 13000
2.13.5 Landing Distance Available: 13000

2.13.1 Designation: 10R
2.13.2 Take-off Run Available: 7500
2.13.3 Take-off Distance Available: 7500
2.13.4 Accelerate-Stop Distance Available: 7500
2.13.5 Landing Distance Available: 7500

2.13.1 Designation: 28L
2.13.2 Take-off Run Available: 7500
2.13.3 Take-off Distance Available: 7500
2.13.4 Accelerate-Stop Distance Available: 7500
2.13.5 Landing Distance Available: 7500

2.13.1 Designation: 10X
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: H1
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 22R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 04L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 04R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 22L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 09C
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 27C
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 27R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 09L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 27L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 09R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 10C
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 28C
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 10L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 28R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 10R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 28L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 10X
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: H1
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ALCP
2.18.3 Channel: 252.1
2.18.5 Hours of Operation:

2.18.1 Service Designation: CD PRE TAXI CLNC
2.18.3 Channel: 121.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 121.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/S
2.18.3 Channel: 119.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 135.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 282.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND METERING
2.18.3 Channel: 121.675
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (TWR SOUTH)
2.18.3 Channel: 118.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (TWR CENTER OUTBOUND)
2.18.3 Channel: 121.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (TWR CENTER INBOUND)
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (TWR NORTH)
2.18.3 Channel: 124.125
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 226.675
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/S (TWR CENTER)
2.18.3 Channel: 134.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (TWR CENTER)
2.18.3 Channel: 120.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (TWR CENTER)
2.18.3 Channel: 121.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (TWR CENTER)
2.18.3 Channel: 126.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (TWR NORTH RWY 09L/27R)
2.18.3 Channel: 128.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (TWR CENTER)
2.18.3 Channel: 132.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (TWR SOUTH RWY 10R/28L)
2.18.3 Channel: 133
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 348
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/S (TWR CENTER)
2.18.3 Channel: 127.925
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PRM (TWR CENTER RWY 28C)
2.18.3 Channel: 119.625
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PRM (TWR CENTER RWY 10C)
2.18.3 Channel: 119.625
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PRM (TWR SOUTH RWY 28L)
2.18.3 Channel: 128.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PRM (TWR SOUTH RWY 10R)
2.18.3 Channel: 128.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: VFR ADZY
2.18.3 Channel: 126.8
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 22R. Magnetic variation: 3W
2.19.2 ILS Identification: RXZ
2.19.5 Coordinates: 41-59-46.5114N / 87-53-59.027W
2.19.6 Site Elevation: 645.1 ft

2.19.1 ILS Type: Localizer for runway 22R. Magnetic variation: 3W
2.19.2 ILS Identification: RXZ
2.19.5 Coordinates: 41-58-46.4888N / 87-54-58.3524W
2.19.6 Site Elevation: 655.5 ft

2.19.1 ILS Type: Glide Slope for runway 04R. Magnetic variation: 3W
2.19.2 ILS Identification: FJU
2.19.5 Coordinates: 41-57-16.8552N / 87-53-44.3489W
2.19.6 Site Elevation: 654.1 ft

2.19.1 ILS Type: Localizer for runway 04R. Magnetic variation: 3W
2.19.2 ILS Identification: FJU
2.19.5 Coordinates: 41-58-16.1967N / 87-52-41.7631W
2.19.6 Site Elevation: 646.6 ft

2.19.1 ILS Type: Glide Slope for runway 22L. Magnetic variation: 3W
2.19.2 ILS Identification: LQQ
2.19.5 Coordinates: 41-58-0.7989N / 87-52-52.6077W
2.19.6 Site Elevation: 645.9 ft

2.19.1 ILS Type: Localizer for runway 22L. Magnetic variation: 3W
2.19.2 ILS Identification: LQQ
2.19.5 Coordinates: 41-57-5.6133N / 87-54-5.4506W
2.19.6 Site Elevation: 653 ft

2.19.1 ILS Type: DME for runway 09C. Magnetic variation: 3W
2.19.2 ILS Identification: OYG
2.19.5 Coordinates: 41-59-22.2017N / 87-56-7.1564W
2.19.6 Site Elevation: 673 ft

2.19.1 ILS Type: Glide Slope for runway 09C. Magnetic variation: 3W
2.19.2 ILS Identification: OYG
2.19.5 Coordinates: 41-59-21.8838N / 87-55-38.906W
2.19.6 Site Elevation: 666.9 ft

2.19.1 ILS Type: Inner Marker for runway 09C. Magnetic variation: 3W
2.19.2 ILS Identification: OYG
2.19.5 Coordinates: 41-59-17.8887N / 87-56-5.0459W
2.19.6 Site Elevation: 680.3 ft

2.19.1 ILS Type: Localizer for runway 09C. Magnetic variation: 3W
2.19.2 ILS Identification: OYG
2.19.5 Coordinates: 41-59-17.9166N / 87-53-10.9825W
2.19.6 Site Elevation: 656.2 ft

2.19.1 ILS Type: DME for runway 27C. Magnetic variation: 3W
2.19.2 ILS Identification: UYJ
2.19.5 Coordinates: 41-59-22.2017N / 87-56-7.1564W
2.19.6 Site Elevation: 673 ft

2.19.1 ILS Type: Glide Slope for runway 27C. Magnetic variation: 3W
2.19.2 ILS Identification: UYJ
2.19.5 Coordinates: 41-59-21.9035N / 87-53-38.9229W
2.19.6 Site Elevation: 645.3 ft

2.19.1 ILS Type: Inner Marker for runway 27C. Magnetic variation: 3W
2.19.2 ILS Identification: UYJ
2.19.5 Coordinates: 41-59-17.9169N / 87-53-13.3661W
2.19.6 Site Elevation: 655.9 ft

2.19.1 ILS Type: Localizer for runway 27C. Magnetic variation: 3W
2.19.2 ILS Identification: UYJ
2.19.5 Coordinates: 41-59-17.888N / 87-56-7.0322W
2.19.6 Site Elevation: 681.9 ft

2.19.1 ILS Type: DME for runway 09L. Magnetic variation: 3W
2.19.2 ILS Identification: SAJ
2.19.5 Coordinates: 42-0-14.0985N / 87-55-48.2323W
2.19.6 Site Elevation: 669.5 ft

2.19.1 ILS Type: Glide Slope for runway 09L. Magnetic variation: 3W
2.19.2 ILS Identification: SAJ
2.19.5 Coordinates: 42-0-14.2182N / 87-55-20.6714W
2.19.6 Site Elevation: 651.3 ft

2.19.1 ILS Type: Inner Marker for runway 09L. Magnetic variation: 3W
2.19.2 ILS Identification: SAJ
2.19.5 Coordinates: 42-0-10.1934N / 87-55-47.4231W
2.19.6 Site Elevation: 668.8 ft

2.19.1 ILS Type: Localizer for runway 09L. Magnetic variation: 3W
2.19.2 ILS Identification: SAJ
2.19.5 Coordinates: 42-0-10.1874N / 87-53-43.3254W
2.19.6 Site Elevation: 660.9 ft

2.19.1 ILS Type: DME for runway 27R. Magnetic variation: 3W
2.19.2 ILS Identification: ABU
2.19.5 Coordinates: 42-0-14.0985N / 87-55-48.2323W
2.19.6 Site Elevation: 669.5 ft

2.19.1 ILS Type: Glide Slope for runway 27R. Magnetic variation: 3W
2.19.2 ILS Identification: ABU
2.19.5 Coordinates: 42-0-14.2137N / 87-54-11.7412W
2.19.6 Site Elevation: 648.4 ft

2.19.1 ILS Type: Inner Marker for runway 27R. Magnetic variation: 3W
2.19.2 ILS Identification: ABU
2.19.5 Coordinates: 42-0-9.9864N / 87-53-45.3008W
2.19.6 Site Elevation: 663.1 ft

2.19.1 ILS Type: Localizer for runway 27R. Magnetic variation: 3W
2.19.2 ILS Identification: ABU
2.19.5 Coordinates: 42-0-10.1939N / 87-55-50.1994W
2.19.6 Site Elevation: 668.1 ft

2.19.1 ILS Type: DME for runway 09R. Magnetic variation: 3W
2.19.2 ILS Identification: JAV
2.19.5 Coordinates: 41-59-4.7161N / 87-53-10.2316W
2.19.6 Site Elevation: 653.7 ft

2.19.1 ILS Type: Glide Slope for runway 09R. Magnetic variation: 3W
2.19.2 ILS Identification: JAV
2.19.5 Coordinates: 41-59-7.8117N / 87-54-51.2862W
2.19.6 Site Elevation: 658.2 ft

2.19.1 ILS Type: Localizer for runway 09R. Magnetic variation: 3W
2.19.2 ILS Identification: JAV
2.19.5 Coordinates: 41-59-2.0448N / 87-53-10.493W
2.19.6 Site Elevation: 642.8 ft

2.19.1 ILS Type: DME for runway 27L. Magnetic variation: 3W
2.19.2 ILS Identification: IAC
2.19.5 Coordinates: 41-59-4.7161N / 87-53-10.2316W
2.19.6 Site Elevation: 653.7 ft

2.19.1 ILS Type: Glide Slope for runway 27L. Magnetic variation: 3W
2.19.2 ILS Identification: IAC
2.19.5 Coordinates: 41-59-6.8111N / 87-53-34.3515W
2.19.6 Site Elevation: 646.5 ft

2.19.1 ILS Type: Inner Marker for runway 27L. Magnetic variation: 3W
2.19.2 ILS Identification: IAC
2.19.5 Coordinates: 41-59-1.8506N / 87-53-9.1944W
2.19.6 Site Elevation: 641.5 ft

2.19.1 ILS Type: Localizer for runway 27L. Magnetic variation: 3W
2.19.2 ILS Identification: IAC
2.19.5 Coordinates: 41-59-2.0278N / 87-55-17.975W
2.19.6 Site Elevation: 665 ft

2.19.1 ILS Type: DME for runway 10C. Magnetic variation: 3W
2.19.2 ILS Identification: SXH
2.19.5 Coordinates: 41-58-0.9714N / 87-56-9.15W
2.19.6 Site Elevation: 689.3 ft

2.19.1 ILS Type: Glide Slope for runway 10C. Magnetic variation: 3W
2.19.2 ILS Identification: SXH
2.19.5 Coordinates: 41-57-52.8465N / 87-55-39.0226W
2.19.6 Site Elevation: 663 ft

2.19.1 ILS Type: Inner Marker for runway 10C. Magnetic variation: 3W
2.19.2 ILS Identification: SXH
2.19.5 Coordinates: 41-57-56.5015N / 87-56-4.8681W
2.19.6 Site Elevation: 674.3 ft

2.19.1 ILS Type: Localizer for runway 10C. Magnetic variation: 3W
2.19.2 ILS Identification: SXH
2.19.5 Coordinates: 41-57-56.803N / 87-52-57.2925W
2.19.6 Site Elevation: 646.3 ft

2.19.1 ILS Type: DME for runway 28C. Magnetic variation: 3W
2.19.2 ILS Identification: VZE
2.19.5 Coordinates: 41-58-0.9714N / 87-56-9.15W
2.19.6 Site Elevation: 689.3 ft

2.19.1 ILS Type: Glide Slope for runway 28C. Magnetic variation: 3W
2.19.2 ILS Identification: VZE
2.19.5 Coordinates: 41-57-53.0321N / 87-53-44.3196W
2.19.6 Site Elevation: 642.4 ft

2.19.1 ILS Type: Inner Marker for runway 28C. Magnetic variation: 3W
2.19.2 ILS Identification: VZE
2.19.5 Coordinates: 41-57-58.7451N / 87-53-19.1677W
2.19.6 Site Elevation: 648 ft

2.19.1 ILS Type: Localizer for runway 28C. Magnetic variation: 3W
2.19.2 ILS Identification: VZE
2.19.5 Coordinates: 41-57-56.5013N / 87-56-6.8848W
2.19.6 Site Elevation: 676.4 ft

2.19.1 ILS Type: DME for runway 10L. Magnetic variation: 3W
2.19.2 ILS Identification: MED
2.19.5 Coordinates: 41-58-5.6721N / 87-52-41.6845W
2.19.6 Site Elevation: 656 ft

2.19.1 ILS Type: Glide Slope for runway 10L. Magnetic variation: 3W
2.19.2 ILS Identification: MED
2.19.5 Coordinates: 41-58-4.3877N / 87-55-38.7659W
2.19.6 Site Elevation: 665.3 ft

2.19.1 ILS Type: Inner Marker for runway 10L. Magnetic variation: 3W
2.19.2 ILS Identification: MED
2.19.5 Coordinates: 41-58-8.5523N / 87-56-4.8866W
2.19.6 Site Elevation: 676.8 ft

2.19.1 ILS Type: Localizer for runway 10L. Magnetic variation: 3W
2.19.2 ILS Identification: MED
2.19.5 Coordinates: 41-58-8.6818N / 87-52-39.6951W
2.19.6 Site Elevation: 644.9 ft

2.19.1 ILS Type: DME for runway 28R. Magnetic variation: 3W
2.19.2 ILS Identification: TSL
2.19.5 Coordinates: 41-58-5.6721N / 87-52-41.6845W
2.19.6 Site Elevation: 656 ft

2.19.1 ILS Type: Glide Slope for runway 28R. Magnetic variation: 3W
2.19.2 ILS Identification: TSL
2.19.5 Coordinates: 41-58-4.4701N / 87-53-15.0487W
2.19.6 Site Elevation: 648.2 ft

2.19.1 ILS Type: Inner Marker for runway 28R. Magnetic variation: 3W
2.19.2 ILS Identification: TSL
2.19.5 Coordinates: 41-58-6.1128N / 87-52-49.1235W
2.19.6 Site Elevation: 649.5 ft

2.19.1 ILS Type: Localizer for runway 28R. Magnetic variation: 3W
2.19.2 ILS Identification: TSL
2.19.5 Coordinates: 41-58-8.356N / 87-56-6.8801W
2.19.6 Site Elevation: 679.1 ft

2.19.1 ILS Type: DME for runway 10R. Magnetic variation: 4W
2.19.2 ILS Identification: BYW
2.19.5 Coordinates: 41-57-28.3399N / 87-53-27.4609W
2.19.6 Site Elevation: 669.6 ft

2.19.1 ILS Type: Glide Slope for runway 10R. Magnetic variation: 4W
2.19.2 ILS Identification: BYW
2.19.5 Coordinates: 41-57-21.909N / 87-55-25.5702W
2.19.6 Site Elevation: 671.7 ft

2.19.1 ILS Type: Localizer for runway 10R. Magnetic variation: 4W
2.19.2 ILS Identification: BYW
2.19.5 Coordinates: 41-57-31.6045N / 87-53-26.3741W
2.19.6 Site Elevation: 649.9 ft

2.19.1 ILS Type: DME for runway 28L. Magnetic variation: 4W
2.19.2 ILS Identification: VQX
2.19.5 Coordinates: 41-57-22.2251N / 87-53-34.2417W
2.19.6 Site Elevation: 656.1 ft

2.19.1 ILS Type: Glide Slope for runway 28L. Magnetic variation: 4W
2.19.2 ILS Identification: VQX
2.19.5 Coordinates: 41-57-22.0258N / 87-54-14.1801W
2.19.6 Site Elevation: 654 ft

2.19.1 ILS Type: Inner Marker for runway 28L. Magnetic variation: 4W
2.19.2 ILS Identification: VQX
2.19.5 Coordinates: 41-57-26.9517N / 87-53-47.4584W
2.19.6 Site Elevation: 650.4 ft

2.19.1 ILS Type: Localizer for runway 28L. Magnetic variation: 4W
2.19.2 ILS Identification: VQX
2.19.5 Coordinates: 41-57-25.8994N / 87-55-53.7065W
2.19.6 Site Elevation: 680.2 ft

2.19.1 ILS Type: DME for runway 10X. Magnetic variation: 4W
2.19.2 ILS Identification: IZJ
2.19.5 Coordinates: 41-57-22.2251N / 87-53-34.2417W
2.19.6 Site Elevation: 656.1 ft

2.19.1 ILS Type: Glide Slope for runway 10X. Magnetic variation: 4W
2.19.2 ILS Identification: IZJ
2.19.5 Coordinates: 41-57-22.1087N / 87-55-25.5572W
2.19.6 Site Elevation: 671.8 ft

2.19.1 ILS Type: Inner Marker for runway 10X. Magnetic variation: 4W
2.19.2 ILS Identification: IZJ
2.19.5 Coordinates: 41-57-25.9088N / 87-55-51.6695W
2.19.6 Site Elevation: 680 ft

2.19.1 ILS Type: Localizer for runway 10X. Magnetic variation: 4W
2.19.2 ILS Identification: IZJ
2.19.5 Coordinates: 41-57-26.1287N / 87-53-32.5409W
2.19.6 Site Elevation: 652.2 ft

General Remarks:

TXL BB2 CLSD TO WINGSPAN MORE THAN 118 FT

A380-800 OPR CONSTRAINTS EXIST ON RWYS, TWYS, & RAMPS - CTC ARPT OPS FOR INFO 773-686-2255.

BIRDS ON & INVOF ARPT; PYROTECHNICS & BIRD CANNONS IN USE.

BE ALERT: THE NORTHEAST/SOUTHWEST PORTION OF TWY YY IS NOT VSBL FM THE CENTER ATCT.

RWY STATUS LGTS ARE IN OPN.

MAG DEVIATION PSBL IMT W OF TWY Y & RWY 22L APCH ON TWY N.

ACFT ARE NOT PMTD TO STOP ON EITHER TWY A OR B BRIDGES.

EAST AND WEST GATES ARE MANNED 24 HRS A DAY.

BE ALERT: TWY S-1 OUTBOUND OR EASTBOUND ONLY, TWY S-2 INBOUND OR WESTBOUND ONLY, TWYS P1, P2, P3, P5, AND P6 NORTHBOUND ONLY, TWY A1 SOUTHBOUND ONLY FROM RWY 09R-27L, TWYS E1, E2, AND E4 SOUTHBOUND ONLY, TWY E3 WESTBOUND ONLY FROM RWY 09C-27C.

ALERT: DUPE ALPHA-NUMERIC TWY DESIGNATORS & TRML GATE DESIGNATIONS INVOLVING THE LTRS B, C, G, H, K, L & M.

SEE LND & HOLD SHORT OPS SECTION.

B747-8, B747-400, B777-200LR(F), B777-300ER, A350-900, A350-1000, A340-500, A340-600 & A330-900 CANNOT PASS ON TWY A & TWY B DUE TO INSUFFICIENT WINGTIP CLNC

LINE UP AND WAIT AUTHORIZATION IN EFF BTWN SS AND SR AT THE FLWG INTS: RWY 28R AT TWY GG, TWY EE AND TWY N5; RWY 10L AT TWY DD AND TWY CC AND TWY BB; RWY 27C AT TWY TT; RWY 9C AT TWY FF. THESE RWYS WILL BE USED FOR DEPS ONLY WHEN EXERCISING THE PROVISIONS OF THIS AUTHORIZATION.

ATCT IS AUZD TO CONDUCT SIMUL DEPS FM RWY 4L/4R, RWY 22R/22L, RWY 9R WITH RWY 9L OR RWY 10L, RWY 27L WITH 28R OR RWY 27R, RWY 10C WITH RWY 9R AND RWY 28C WITH RWY 27L WITH COURSE DIVERGENCE BEGINNING NO LATER THAN 4 MILES FM RY END.

PAEW NEAR VARIOUS TWYS.

ACFT WITH WINGSPAN GREATER THAN 214 FT RQR 48 HRS PPR - 773-686-2255.

B747-8 OPS NOT AUTHORIZED ON RWY 09R/27L, 09L/27R & 10R/28L.

PERIODIC FIRE DEPT TRNG AT N SECTOR OF THE ARPT.

NOISE ABATEMENT PROC IN EFFECT FM 2200 TO 0700; CTC AMGR - 773-686-2255.

DVRSN ACRS WO A PRESENCE AT ORD SHOULD CTC ARPT OPNS 773-686-2255 PRIOR TO DIVERTING TO THE EXTENT PRACTICAL AND PRVD: CO, FLIGHT OPS CTC INFO, ACFT TYPE, PERSONS OB, INTL OR DOMESTIC, ANY GND HANDLER AGRMTS IN PLACE.

PRIM RUN-UP LOCATION GROUND RUN UP ENCLOSURE; SECONDARY RUN UP LOCATIONS AVBL UPON REQ - CTC CITY OPS 773-686-2255.

ALL PART 91 & UNSKED PART 125, 133 & 135 CHARTER OPERATORS CTC SIGNATURE FLIGHT SUPPORT AT 773-686-7000 REGARDING NEW SECURITY REGULATIONS PRIOR TO DEP.

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.
