Maine

Bangor, Maine
Bangor International
ICAO Identifier KBGR

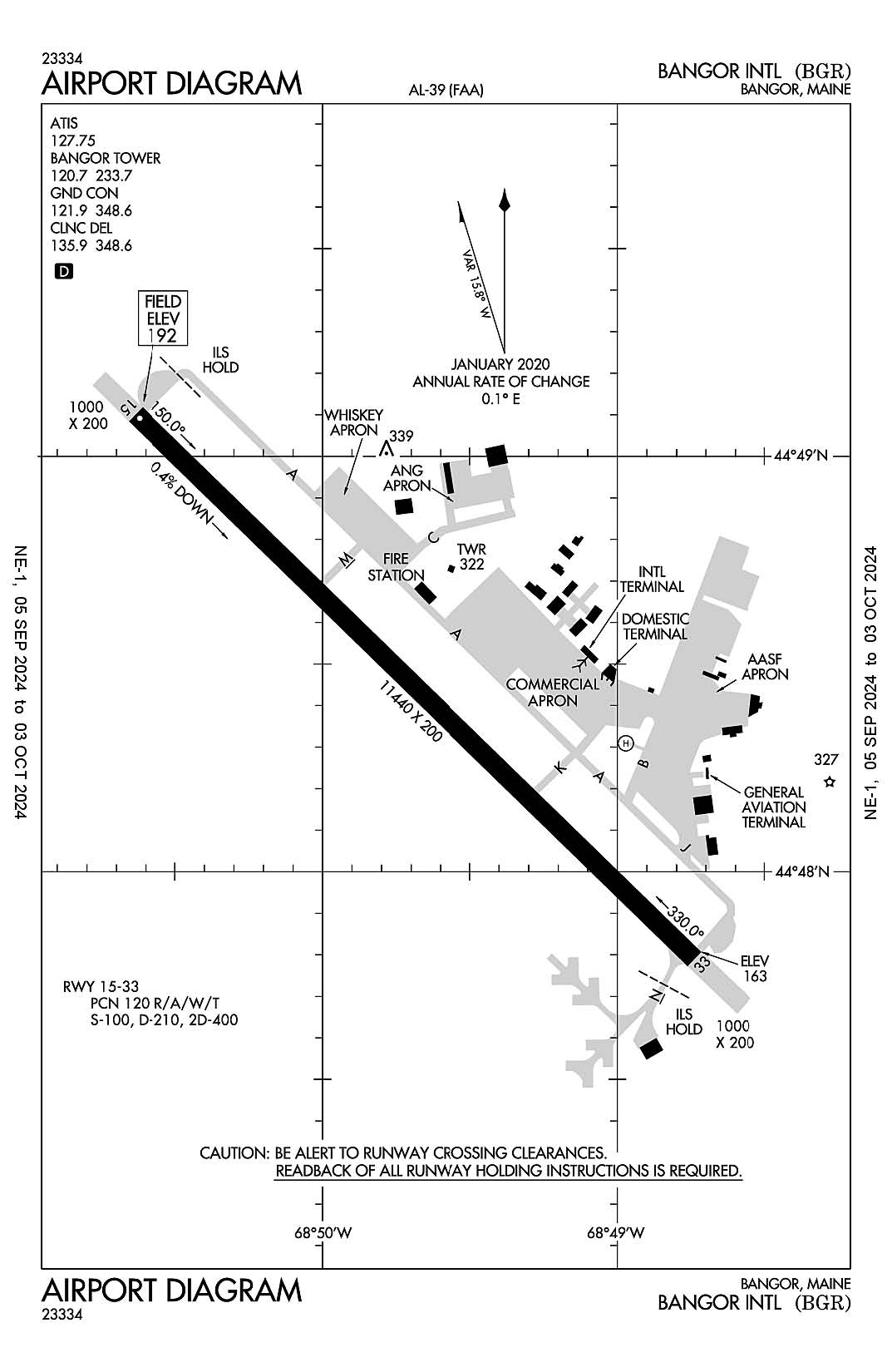

The airport diagram for Bangor International (ICAO Identifier KBGR).

Bangor, ME
Bangor Intl
ICAO Identifier KBGR

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 44-48-26.8N / 68-49-41.3W
2.2.2 From City: 3 miles W of BANGOR, ME
2.2.3 Elevation: 192.1 ft
2.2.5 Magnetic Variation: 16W (2020)
2.2.6 Airport Contact: TONY CARUSO
BANGOR INTERNATIONAL ARPT
BANGOR, ME 4401 (207-992-4600)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I B certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 15
2.12.2 True Bearing: 134
2.12.3 Dimensions: 11440 ft x 200 ft
2.12.4 PCN: 120 R/A/W/T
2.12.5 Coordinates: 44-49-6.1369N / 68-50-38.1522W
2.12.6 Threshold Elevation: 192.1 ft
2.12.6 Touchdown Zone Elevation: 192.1 ft

2.12.1 Designation: 33
2.12.2 True Bearing: 314
2.12.3 Dimensions: 11440 ft x 200 ft
2.12.4 PCN: 120 R/A/W/T
2.12.5 Coordinates: 44-47-47.4136N / 68-48-44.3618W
2.12.6 Threshold Elevation: 162.9 ft
2.12.6 Touchdown Zone Elevation: 162.9 ft

2.12.1 Designation: H1
2.12.2 True Bearing:
2.12.3 Dimensions: 100 ft x 100 ft
2.12.4 PCN:
2.12.5 Coordinates: -- / --
2.12.6 Threshold Elevation: ft
2.12.6 Touchdown Zone Elevation: ft

AD 2.13 Declared Distances
2.13.1 Designation: 15
2.13.2 Take-off Run Available: 11440
2.13.3 Take-off Distance Available: 11440
2.13.4 Accelerate-Stop Distance Available: 11440
2.13.5 Landing Distance Available: 11440

2.13.1 Designation: 33
2.13.2 Take-off Run Available: 11440
2.13.3 Take-off Distance Available: 11440
2.13.4 Accelerate-Stop Distance Available: 11440
2.13.5 Landing Distance Available: 11440

2.13.1 Designation: H1
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 15
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 33
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: H1
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P DEP/P IC
2.18.3 Channel: 118.925
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC
2.18.3 Channel: 239.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S DEP/S
2.18.3 Channel: 124.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: ATIS
2.18.3 Channel: 127.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 135.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C
2.18.3 Channel: 118.925
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C
2.18.3 Channel: 239.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C/S
2.18.3 Channel: 124.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 120.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 233.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: NG OPS
2.18.3 Channel: 41.2
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 15. Magnetic variation: 16W
2.19.2 ILS Identification: JVH
2.19.5 Coordinates: 44-47-42.4986N / 68-48-31.8082W
2.19.6 Site Elevation: 166.2 ft

2.19.1 ILS Type: Glide Slope for runway 15. Magnetic variation: 16W
2.19.2 ILS Identification: JVH
2.19.5 Coordinates: 44-49-2.1756N / 68-50-22.4761W
2.19.6 Site Elevation: 187.7 ft

2.19.1 ILS Type: Inner Marker for runway 15. Magnetic variation: 16W
2.19.2 ILS Identification: JVH
2.19.5 Coordinates: 44-49-12.0633N / 68-50-46.7197W
2.19.6 Site Elevation: 184 ft

2.19.1 ILS Type: Localizer for runway 15. Magnetic variation: 16W
2.19.2 ILS Identification: JVH
2.19.5 Coordinates: 44-47-40.3704N / 68-48-34.1931W
2.19.6 Site Elevation: 161.7 ft

2.19.1 ILS Type: Middle Marker for runway 15. Magnetic variation: 16W
2.19.2 ILS Identification: JVH
2.19.5 Coordinates: 44-49-23.6858N / 68-51-3.4639W
2.19.6 Site Elevation: 158 ft

2.19.1 ILS Type: DME for runway 33. Magnetic variation: 16W
2.19.2 ILS Identification: BGR
2.19.5 Coordinates: 44-47-42.4986N / 68-48-31.8082W
2.19.6 Site Elevation: 166.2 ft

2.19.1 ILS Type: Glide Slope for runway 33. Magnetic variation: 16W
2.19.2 ILS Identification: BGR
2.19.5 Coordinates: 44-47-53.7039N / 68-48-59.7081W
2.19.6 Site Elevation: 148.8 ft

2.19.1 ILS Type: Localizer for runway 33. Magnetic variation: 16W
2.19.2 ILS Identification: BGR
2.19.5 Coordinates: 44-49-13.6222N / 68-50-48.9786W
2.19.6 Site Elevation: 181.7 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 19W
2.19.2 Navigation Aid Identification: BGR
2.19.5 Coordinates: 44-50-30.4619N / 68-52-26.2752W
2.19.6 Site Elevation: 360.1 ft

General Remarks:

TRANSIENT ACFT MAY BE DIVERTED TO CIVILIAN SIDE DURING NON-DUTY HRS & WEEKENDS. FEE REQUIRED; NO ANG TRANSIENT ALERT.

ANG: PPR VALID +/- 1 HR UNLESS PRIOR CDN. 3 HR OUT CALL, 30 MIN OUT CALL 311.0 TO CFM CSTMS/AG AND TRAN SVC. COMMAND POST C207-404-7788 H24.

FUEL: A++ (MIL).

CAUTION: BASH PHASE II PERIOD SEP-NOV, APR-MAY. EXPECT INCREASED BIRD ACTIVITY. CONTACT BASE OPS/COMMAND POST/SOF FOR CURRENT BIRDWATCH COND.

ANG: OPR 1100-1930Z++ MON-FRI, CLSD WKEND AND HOL. PPR RQRD FOR ANG RAMP. CTC AFLD MGMT DSN 698-7232, C207-404-7232 FOR PPR DURG OPR HRS. PRE-COORD ALL TRNSPN RQMNTS AND HAZ CARGO WITH PPR REQ.

SVC TRAN ALERT: OPR 1130-0200Z++ MON-THU, 1130-1900Z++ FRI, CLSD WKEND AND HOL. UNAVBL OUTSIDE OF ANG TRAN ALERT OPR HRS WITHOUT PRIOR CDN.

SERVICE-FLUID: RMKS: FOREIGN MILITARY ONLY: ON BASE LOX SVC UNAVBL.

MISC: RWY 15-33 GROOVED.

SVC MIL-FLUID: OFF-BASE CONTRACTED LOX AVBL H24-RQR 24 HR NOTICE.

TFC PAT: RWY 33 LEFT TFC, TURBO JET TFC 2000' MSL UNLESS OTHERWISE INSTR.

ARNG: OPR 1230-2100Z++ MON-FRI EXC HOL. LTDMAINT. J8. PPR MAY-OCT SVC DSN 626-1100.
