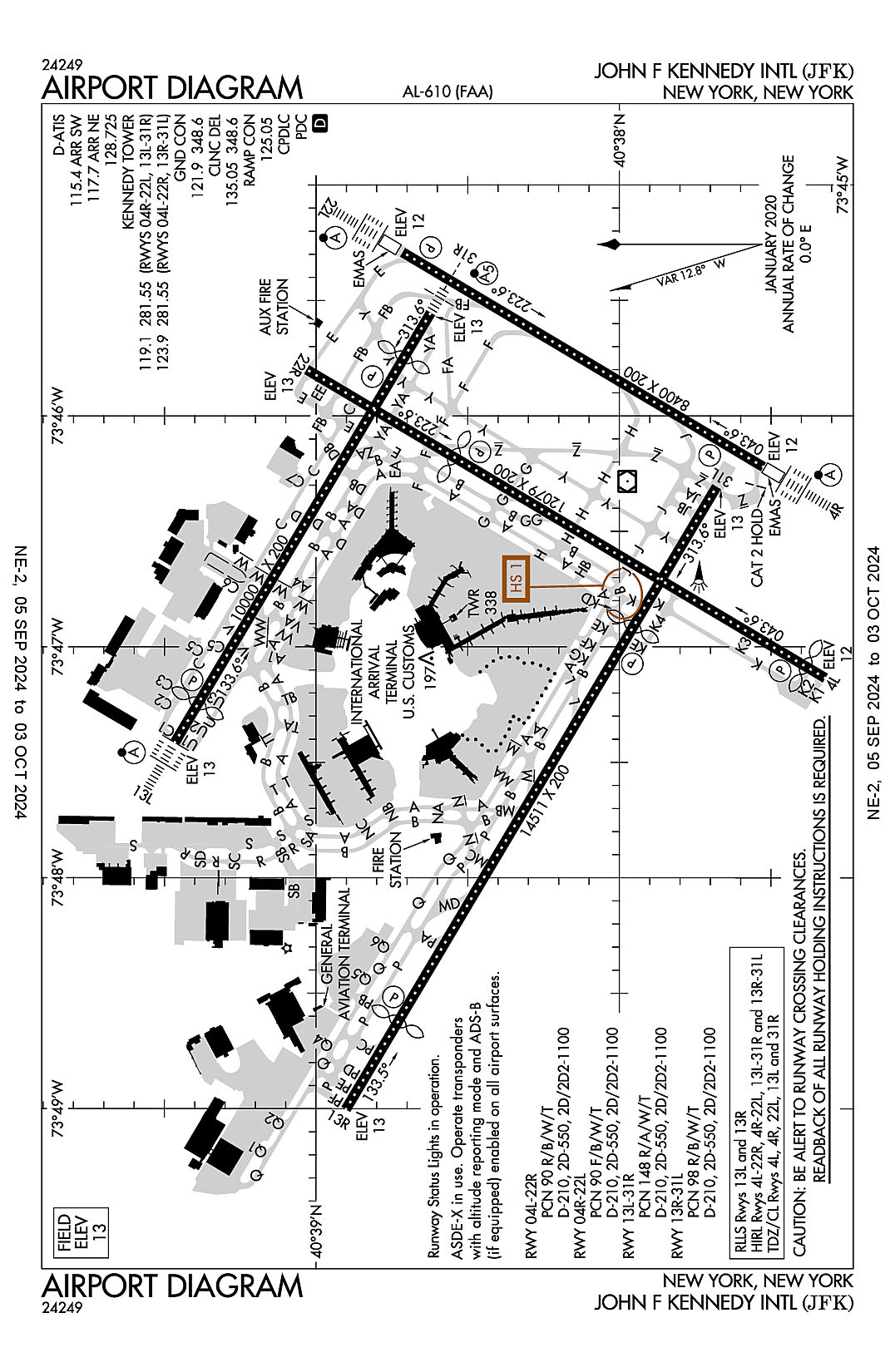

The airport diagram for John F. Kennedy International (ICAO Identifier KJFK).

New York, NY
John F Kennedy Intl
ICAO Identifier KJFK

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 40-38-23.741N / 73-46-43.292W
2.2.2 From City: 13 miles SE of NEW YORK, NY
2.2.3 Elevation: 13 ft
2.2.5 Magnetic Variation: 13W (2020)
2.2.6 Airport Contact: TERESA RIZZUTO
BLDG 14
JAMAICA, NY 11430 ((718) 244-3501)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: 100LL, A
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category: Class-I certified on 5/1/1973
2.6.2 Rescue and Firefighting Services: ARFF Index-E

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 04L
2.12.2 True Bearing: 31
2.12.3 Dimensions: 12079 ft x 200 ft
2.12.4 PCN: 90 R/B/W/T
2.12.5 Coordinates: 40-37-19.2754N / 73-47-8.1029W
2.12.6 Threshold Elevation: 11.9 ft
2.12.6 Touchdown Zone Elevation: 12.7 ft

2.12.1 Designation: 22R
2.12.2 True Bearing: 211
2.12.3 Dimensions: 12079 ft x 200 ft
2.12.4 PCN: 90 R/B/W/T
2.12.5 Coordinates: 40-39-1.8338N / 73-45-47.9596W
2.12.6 Threshold Elevation: 12.5 ft
2.12.6 Touchdown Zone Elevation: 12.7 ft

2.12.1 Designation: 04R
2.12.2 True Bearing: 31
2.12.3 Dimensions: 8400 ft x 200 ft
2.12.4 PCN: 90 F/B/W/T
2.12.5 Coordinates: 40-37-31.5418N / 73-46-13.2441W
2.12.6 Threshold Elevation: 11.9 ft
2.12.6 Touchdown Zone Elevation: 12 ft

2.12.1 Designation: 22L
2.12.2 True Bearing: 211
2.12.3 Dimensions: 8400 ft x 200 ft
2.12.4 PCN: 90 F/B/W/T
2.12.5 Coordinates: 40-38-42.8531N / 73-45-17.5027W
2.12.6 Threshold Elevation: 11.9 ft
2.12.6 Touchdown Zone Elevation: 12 ft

2.12.1 Designation: 13L
2.12.2 True Bearing: 121
2.12.3 Dimensions: 10000 ft x 200 ft
2.12.4 PCN: 148 R/A/W/T
2.12.5 Coordinates: 40-39-27.952N / 73-47-24.8606W
2.12.6 Threshold Elevation: 12.9 ft
2.12.6 Touchdown Zone Elevation: 13 ft

2.12.1 Designation: 31R
2.12.2 True Bearing: 301
2.12.3 Dimensions: 10000 ft x 200 ft
2.12.4 PCN: 148 R/A/W/T
2.12.5 Coordinates: 40-38-37.4085N / 73-45-33.3818W
2.12.6 Threshold Elevation: 12.6 ft
2.12.6 Touchdown Zone Elevation: 13 ft

2.12.1 Designation: 13R
2.12.2 True Bearing: 121
2.12.3 Dimensions: 14511 ft x 200 ft
2.12.4 PCN: 98 R/B/W/T
2.12.5 Coordinates: 40-38-54.1008N / 73-49-0.173W
2.12.6 Threshold Elevation: 12.5 ft
2.12.6 Touchdown Zone Elevation: 12.6 ft

2.12.1 Designation: 31L
2.12.2 True Bearing: 301
2.12.3 Dimensions: 14511 ft x 200 ft
2.12.4 PCN: 98 R/B/W/T
2.12.5 Coordinates: 40-37-40.7799N / 73-46-18.4107W
2.12.6 Threshold Elevation: 12.6 ft
2.12.6 Touchdown Zone Elevation: 12.7 ft

AD 2.13 Declared Distances
2.13.1 Designation: 04L
2.13.2 Take-off Run Available: 11351
2.13.3 Take-off Distance Available: 11351
2.13.4 Accelerate-Stop Distance Available: 11470
2.13.5 Landing Distance Available: 11010

2.13.1 Designation: 22R
2.13.2 Take-off Run Available: 12079
2.13.3 Take-off Distance Available: 12079
2.13.4 Accelerate-Stop Distance Available: 11219
2.13.5 Landing Distance Available: 7794

2.13.1 Designation: 04R
2.13.2 Take-off Run Available: 8400
2.13.3 Take-off Distance Available: 8400
2.13.4 Accelerate-Stop Distance Available: 8400
2.13.5 Landing Distance Available: 8400

2.13.1 Designation: 22L
2.13.2 Take-off Run Available: 8400
2.13.3 Take-off Distance Available: 8400
2.13.4 Accelerate-Stop Distance Available: 8400
2.13.5 Landing Distance Available: 8400

2.13.1 Designation: 13L
2.13.2 Take-off Run Available: 10000
2.13.3 Take-off Distance Available: 10000
2.13.4 Accelerate-Stop Distance Available: 10000
2.13.5 Landing Distance Available: 9093

2.13.1 Designation: 31R
2.13.2 Take-off Run Available: 10000
2.13.3 Take-off Distance Available: 10000
2.13.4 Accelerate-Stop Distance Available: 9513
2.13.5 Landing Distance Available: 8486

2.13.1 Designation: 13R
2.13.2 Take-off Run Available: 14511
2.13.3 Take-off Distance Available: 14511
2.13.4 Accelerate-Stop Distance Available: 14511
2.13.5 Landing Distance Available: 12468

2.13.1 Designation: 31L
2.13.2 Take-off Run Available: 14511
2.13.3 Take-off Distance Available: 14511
2.13.4 Accelerate-Stop Distance Available: 14511
2.13.5 Landing Distance Available: 11248

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 04L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 22R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 04R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 22L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 13L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 31R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 13R
2.14.2 Approach Lighting System: RLLS
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 31L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P
2.18.3 Channel: 125.7
2.18.5 Hours of Operation:

2.18.1 Service Designation: CD PRE TAXI CLNC
2.18.3 Channel: 135.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD PRE TAXI CLNC (NORTH & SOUTH)
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (FREQS 2000 FT & BLW W/N 8 NM ARE TWR CNTRLD FREQS)
2.18.3 Channel: 125.25
2.18.5 Hours of Operation:

2.18.1 Service Designation: CLASS B (FREQS 2000 FT & BLW W/N 8 NM ARE TWR CNTRLD FREQS)
2.18.3 Channel: 281.55
2.18.5 Hours of Operation:

2.18.1 Service Designation: D-ATIS (ARR-SW)
2.18.3 Channel: 115.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (ARR-NE)
2.18.3 Channel: 117.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (ARR/DEP)
2.18.3 Channel: 128.725
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/S
2.18.3 Channel: 121.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 04R/22L, 13L/31R)
2.18.3 Channel: 119.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 04L/22R, 13R/31L)
2.18.3 Channel: 123.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 04L/22R, 13R/31L)
2.18.3 Channel: 281.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 04R/22L, 13L/31R)
2.18.3 Channel: 281.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PARCH STAR
2.18.3 Channel: 125.7
2.18.5 Hours of Operation:

2.18.1 Service Designation: RAMP CTL
2.18.3 Channel: 125.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: ROBER STAR
2.18.3 Channel: 125.7
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 04L. Magnetic variation: 13W
2.19.2 ILS Identification: HIQ
2.19.5 Coordinates: 40-37-43.8179N / 73-46-40.579W
2.19.6 Site Elevation: 22.6 ft

2.19.1 ILS Type: Glide Slope for runway 04L. Magnetic variation: 13W
2.19.2 ILS Identification: HIQ
2.19.5 Coordinates: 40-37-31.0909N / 73-46-54.8905W
2.19.6 Site Elevation: 9.9 ft

2.19.1 ILS Type: Localizer for runway 04L. Magnetic variation: 13W
2.19.2 ILS Identification: HIQ
2.19.5 Coordinates: 40-39-6.9661N / 73-45-43.9445W
2.19.6 Site Elevation: 10.9 ft

2.19.1 ILS Type: DME for runway 22R. Magnetic variation: 13W
2.19.2 ILS Identification: JOC
2.19.5 Coordinates: 40-38-53.285N / 73-45-13.1901W
2.19.6 Site Elevation: 27.4 ft

2.19.1 ILS Type: Glide Slope for runway 22R. Magnetic variation: 13W
2.19.2 ILS Identification: JOC
2.19.5 Coordinates: 40-38-21.2838N / 73-46-13.9271W
2.19.6 Site Elevation: 8.7 ft

2.19.1 ILS Type: Localizer for runway 22R. Magnetic variation: 13W
2.19.2 ILS Identification: JOC
2.19.5 Coordinates: 40-37-44.4774N / 73-46-43.1068W
2.19.6 Site Elevation: 8.3 ft

2.19.1 ILS Type: DME for runway 04R. Magnetic variation: 13W
2.19.2 ILS Identification: JFK
2.19.5 Coordinates: 40-38-53.285N / 73-45-13.1901W
2.19.6 Site Elevation: 27.4 ft

2.19.1 ILS Type: Glide Slope for runway 04R. Magnetic variation: 13W
2.19.2 ILS Identification: JFK
2.19.5 Coordinates: 40-37-42.101N / 73-46-11.0314W
2.19.6 Site Elevation: 12.6 ft

2.19.1 ILS Type: Inner Marker for runway 04R. Magnetic variation: 13W
2.19.2 ILS Identification: JFK
2.19.5 Coordinates: 40-37-23.8334N / 73-46-19.1548W
2.19.6 Site Elevation: 11.9 ft

2.19.1 ILS Type: Localizer for runway 04R. Magnetic variation: 13W
2.19.2 ILS Identification: JFK
2.19.5 Coordinates: 40-38-51.5906N / 73-45-10.6721W
2.19.6 Site Elevation: 11.3 ft

2.19.1 ILS Type: DME for runway 22L. Magnetic variation: 13W
2.19.2 ILS Identification: IWY
2.19.5 Coordinates: 40-37-43.8179N / 73-46-40.579W
2.19.6 Site Elevation: 22.6 ft

2.19.1 ILS Type: Glide Slope for runway 22L. Magnetic variation: 13W
2.19.2 ILS Identification: IWY
2.19.5 Coordinates: 40-38-32.9341N / 73-45-19.9803W
2.19.6 Site Elevation: 13 ft

2.19.1 ILS Type: Inner Marker for runway 22L. Magnetic variation: 13W
2.19.2 ILS Identification: IWY
2.19.5 Coordinates: 40-38-51.125N / 73-45-11.0314W
2.19.6 Site Elevation: 9.4 ft

2.19.1 ILS Type: Localizer for runway 22L. Magnetic variation: 13W
2.19.2 ILS Identification: IWY
2.19.5 Coordinates: 40-37-27.4935N / 73-46-16.4069W
2.19.6 Site Elevation: 9.4 ft

2.19.1 ILS Type: DME for runway 13L. Magnetic variation: 13W
2.19.2 ILS Identification: TLK
2.19.5 Coordinates: 40-38-33.5365N / 73-45-18.2409W
2.19.6 Site Elevation: 29.5 ft

2.19.1 ILS Type: Glide Slope for runway 13L. Magnetic variation: 13W
2.19.2 ILS Identification: TLK
2.19.5 Coordinates: 40-39-14.7492N / 73-47-4.86W
2.19.6 Site Elevation: 10 ft

2.19.1 ILS Type: Localizer for runway 13L. Magnetic variation: 13W
2.19.2 ILS Identification: TLK
2.19.5 Coordinates: 40-38-30.6889N / 73-45-18.5787W
2.19.6 Site Elevation: 13.4 ft

2.19.1 ILS Type: DME for runway 31R. Magnetic variation: 13W
2.19.2 ILS Identification: RTH
2.19.5 Coordinates: 40-38-33.5365N / 73-45-18.2409W
2.19.6 Site Elevation: 29.5 ft

2.19.1 ILS Type: Glide Slope for runway 31R. Magnetic variation: 13W
2.19.2 ILS Identification: RTH
2.19.5 Coordinates: 40-38-50.3296N / 73-45-51.0221W
2.19.6 Site Elevation: 9.6 ft

2.19.1 ILS Type: Localizer for runway 31R. Magnetic variation: 13W
2.19.2 ILS Identification: RTH
2.19.5 Coordinates: 40-39-30.7866N / 73-47-31.1174W
2.19.6 Site Elevation: 11.5 ft

2.19.1 ILS Type: Glide Slope for runway 31L. Magnetic variation: 13W
2.19.2 ILS Identification: MOH
2.19.5 Coordinates: 40-37-59.8724N / 73-47-9.4083W
2.19.6 Site Elevation: 8.6 ft

2.19.1 ILS Type: Localizer for runway 31L. Magnetic variation: 13W
2.19.2 ILS Identification: MOH
2.19.5 Coordinates: 40-38-59.6562N / 73-49-12.4887W
2.19.6 Site Elevation: 12.4 ft

2.19.1 Navigation Aid Type: VOR/DME. Magnetic variation: 12W
2.19.2 Navigation Aid Identification: JFK
2.19.5 Coordinates: 40-37-58.3816N / 73-46-17.0103W
2.19.6 Site Elevation: 9.5 ft

General Remarks:

TWY Z BTN RWY 04L & 22R AND TWY Y CLSD UFN.

PERIODIC FIRE DEPT TRNG ADJACENT APCH END OF RWYS 22L & 22R.

CONTINUOUS TAXIWAY MAINTENANCE ACTIVITIES AT NUMEROUS LOCATIONS

JFK APN BLDG 73 RAMP CLSD TO ACFT WINGSPAN MORE THAN 171FT EXC UNDER TOW.

RY 13R HAS TWO (2) PAPI - P4L SYSTEMS. ( RY 13R) OFFSET PAPI SUPPORTS VOR OR GPS RWY 13R & PARKWAY VISUAL RY 13R.

METERING PROCEDURES IN EFFECT- CONTACT RAMP CONTROL PRIOR TO PUSHBACK 1200Z-1500Z DAILY/1900Z-0300Z DAILY.

NON-STD MARKINGS IN GA APN, CTC FBO ON UNICOM OR 347-566-6620 FOR WING WALKERS.

TWY 'H' CL LGTS BTN TWY 'A' & RY 4L/22R OTS.

TWY Q3 CNTRLN LGTS OTS.

ACFT ARE NOT PMTD TO STOP ON EITHER TWY A OR B BRIDGES.

CONVERGING OPNS ON RYS 13R AND 22L CONDUCTED VIA ARRIVAL DISTANCE WINDOW.

PARA-SAIL & BANNER TOWING OPNS 1000 FT & BLO IN UPPER & LOWER NEW YORK BAYS INCLUDING ROCKAWAY INLET INDEFLY.

FLOCKS OF BIRDS ON & INVOF ARPT.

NON-STANDARD ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 393 FT IN LENGTH BY 226 FT IN WIDTH LCTD AT THE DER 4R.

NON-STANDARD ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 405 FT IN LENGTH BY 226 FT IN WIDTH LCTD AT THE DER 22L.

A380 AND B747-800 ACFT TAX SPD RESTRICTED TO MAX 17KTS/20MPH ON ALL TWYS.

GAT HELIPAD NON-STANDARD MARKINGS & LIGHTING.

HIGH VOLUME OF LOW LEVEL VFR TRAFFIC, 500 FT AND BLO, ALONG SHORELINE SOUTH OF JFK.

SPECIAL AIR TFC RULES-PART 93 HIGH DENSITY ARPT. PROR RESERVATION REQUIRED. SEE AERONAUTICAL INFORMATION MANUAL.

TWY 'H' CL LGTS BTN TERMINAL 4 RAMP AND TWY A OTS.

RY 31R HOLDING POSITION MARKINGS AT RY 4L/22R 'SE' SIDE OBSC.

TWY NB CLSD TO SB TURNS AT TWY A.

UFN TWY 'D' BTN TWY 'C' AND HANGAR 7 CLOSED.

OBST BLDG LGT OTS 6.3 NM ESE JFK 222 FT MSL (220 FT AGL).

FOR NOISE ABATEMENT RSTRNS CALL 212-435-3782 DURG NML BUS HRS.

OBST PARKED ACFT (ASN 2020-AEA-1302-NRA) 403933 N0734749W (1.4NM NW JFK) 74 (64FT AGL) U/S 1200-0100 DLY.

RWY 31R 1000 FT DIST REMAINING SIGN MISG.

RWY STATUS LGTS IN OPS.

RLLS RY 13L USES 1000 FT LGT STN OF THE ALS ONLY WITH CRI VOR APCHS & IS ANGLED TOWARD AQUEDUCT; ALSO 5 SFL FM 1200-2000 FT & A 5 SFL GROUPING APROXLY 1 MI FM RY +1 ADJ FORMING APCH. APCH GATE ANGLED 35 DEGS S OF RY 13L CNTRLN DESIGNED TO PRVD EARLIER IDENT OF RY ENVI.

ACFT OPS & TWY RESTRICTIONS EXIST FOR A380, B747-800, B777-300ER, A340-600 AND A350-1000. PLEASE CTC JFK ARPT OPS FOR MORE INFO.

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

TWY 'A' BTN TWY 'NA' & TWY 'NB' ARCFT SPEED RESTRICTION OF 17KTS/20MPH MAXIMUM FOR A380, B747-800, B747-400, B777-300ER, B777-200, A340, A330, B787, AND A350

RY 13L HOLDING POSITION MARKINGS AT RY 4L/22R 'NW' SIDE OBSC.

Niagara Falls, New York
Niagara Falls International
ICAO Identifier KIAG

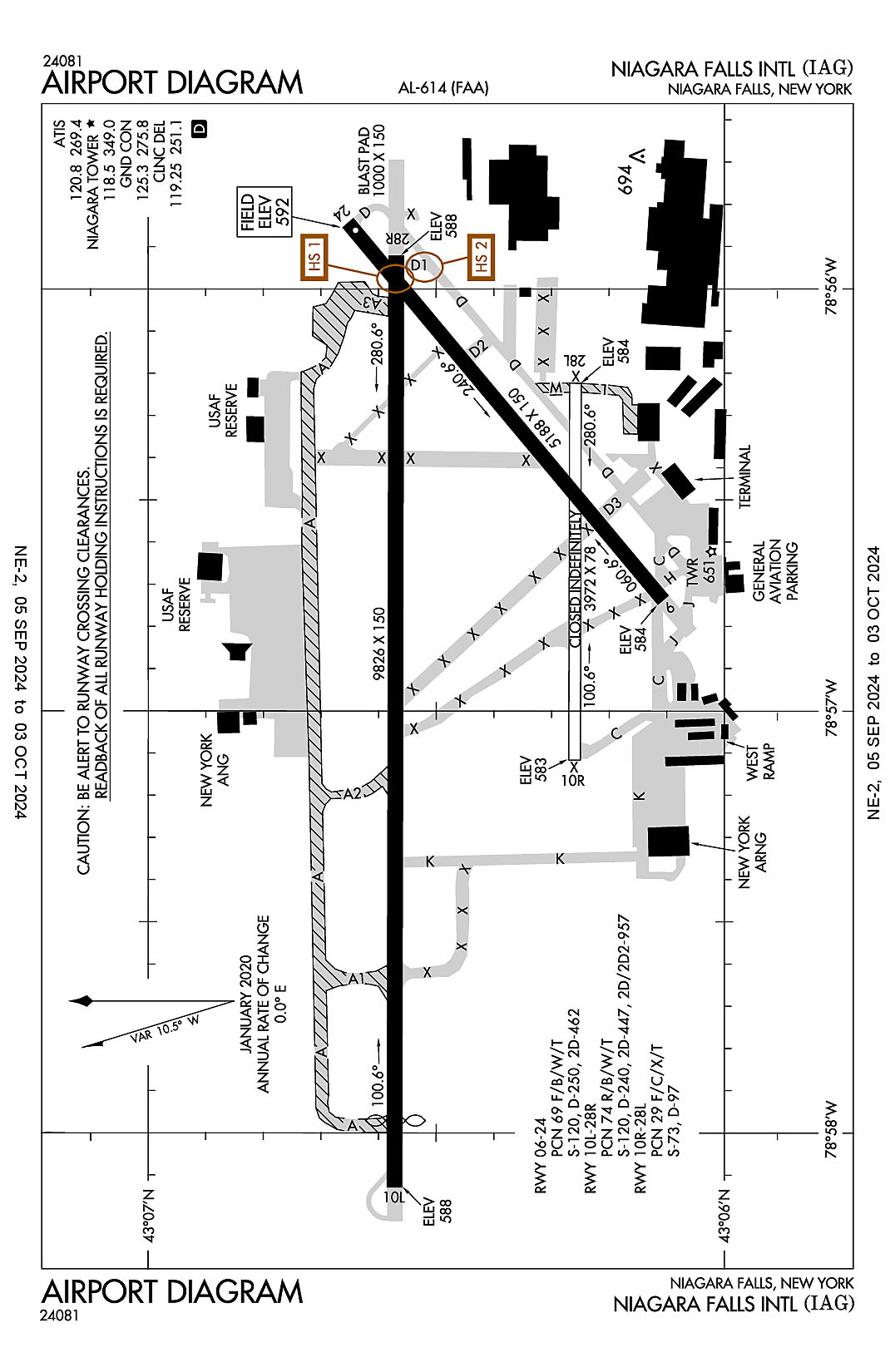

The airport diagram for Niagara Falls International (ICAO Identifier KIAG).

Niagara Falls, NY
Niagara Falls Intl
ICAO Identifier KIAG

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 43-6-27.2065N / 78-56-45.048W
2.2.2 From City: 4 miles E of NIAGARA FALLS, NY
2.2.3 Elevation: 592.3 ft
2.2.5 Magnetic Variation: 10W (1985)
2.2.6 Airport Contact: MR. ROBERT STONE
2035 NIAGARA FALLS BLVD
NIAGARA FALLS, NY 14304 ((716) 297-4494)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: 100LL, A, A+
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MINOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category: Class-I certified on 7/1/1974
2.6.2 Rescue and Firefighting Services: ARFF Index-B

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 06
2.12.2 True Bearing: 50
2.12.3 Dimensions: 5188 ft x 150 ft
2.12.4 PCN: 69 F/B/W/T
2.12.5 Coordinates: 43-6-6.3587N / 78-56-44.2955W
2.12.6 Threshold Elevation: 584.3 ft
2.12.6 Touchdown Zone Elevation: 585.8 ft

2.12.1 Designation: 24
2.12.2 True Bearing: 230
2.12.3 Dimensions: 5188 ft x 150 ft
2.12.4 PCN: 69 F/B/W/T
2.12.5 Coordinates: 43-6-39.1997N / 78-55-50.6072W
2.12.6 Threshold Elevation: 592.2 ft
2.12.6 Touchdown Zone Elevation: 592.3 ft

2.12.1 Designation: 10L
2.12.2 True Bearing: 90
2.12.3 Dimensions: 9826 ft x 150 ft
2.12.4 PCN: 74 R/B/W/T
2.12.5 Coordinates: 43-6-34.3453N / 78-58-7.7703W
2.12.6 Threshold Elevation: 588.2 ft
2.12.6 Touchdown Zone Elevation: 588.8 ft

2.12.1 Designation: 28R
2.12.2 True Bearing: 270
2.12.3 Dimensions: 9826 ft x 150 ft
2.12.4 PCN: 74 R/B/W/T
2.12.5 Coordinates: 43-6-34.1594N / 78-55-55.3156W
2.12.6 Threshold Elevation: 587.9 ft
2.12.6 Touchdown Zone Elevation: 588.3 ft

2.12.1 Designation: 10R
2.12.2 True Bearing: 90
2.12.3 Dimensions: 3972 ft x 78 ft
2.12.4 PCN: 29 F/C/X/T
2.12.5 Coordinates: 43-6-15.6025N / 78-57-7.0063W
2.12.6 Threshold Elevation: 582.6 ft
2.12.6 Touchdown Zone Elevation: 584.1 ft

2.12.1 Designation: 28L
2.12.2 True Bearing: 270
2.12.3 Dimensions: 3972 ft x 78 ft
2.12.4 PCN: 29 F/C/X/T
2.12.5 Coordinates: 43-6-15.507N / 78-56-13.4609W
2.12.6 Threshold Elevation: 584.2 ft
2.12.6 Touchdown Zone Elevation: 584.8 ft

AD 2.13 Declared Distances
2.13.1 Designation: 06
2.13.2 Take-off Run Available: 5188
2.13.3 Take-off Distance Available: 5188
2.13.4 Accelerate-Stop Distance Available: 5188
2.13.5 Landing Distance Available: 5188

2.13.1 Designation: 24
2.13.2 Take-off Run Available: 5188
2.13.3 Take-off Distance Available: 5188
2.13.4 Accelerate-Stop Distance Available: 5108
2.13.5 Landing Distance Available: 5108

2.13.1 Designation: 10L
2.13.2 Take-off Run Available: 9829
2.13.3 Take-off Distance Available: 10829
2.13.4 Accelerate-Stop Distance Available: 9829
2.13.5 Landing Distance Available: 9129

2.13.1 Designation: 28R
2.13.2 Take-off Run Available: 9829
2.13.3 Take-off Distance Available: 10529
2.13.4 Accelerate-Stop Distance Available: 9129
2.13.5 Landing Distance Available: 9129

2.13.1 Designation: 10R
2.13.2 Take-off Run Available: 3973
2.13.3 Take-off Distance Available: 3973
2.13.4 Accelerate-Stop Distance Available: 3973
2.13.5 Landing Distance Available: 3973

2.13.1 Designation: 28L
2.13.2 Take-off Run Available: 3973
2.13.3 Take-off Distance Available: 3973
2.13.4 Accelerate-Stop Distance Available: 3973
2.13.5 Landing Distance Available: 3973

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 06
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 24
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 10L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: V4L

2.14.1 Designation: 28R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 10R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P2L

2.14.1 Designation: 28L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P2L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: AFRC OPS
2.18.3 Channel: 340.24
2.18.5 Hours of Operation:

2.18.1 Service Designation: ATIS
2.18.3 Channel: 120.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: ATIS
2.18.3 Channel: 269.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 119.25
2.18.5 Hours of Operation: 0700-2300

2.18.1 Service Designation: CD/P
2.18.3 Channel: 251.1
2.18.5 Hours of Operation: 0700-2300

2.18.1 Service Designation: COMD POST (914 AW COMD POST/AFLD MGMT)
2.18.3 Channel: 340.025
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 125.3
2.18.5 Hours of Operation: 0700-2300

2.18.1 Service Designation: GND/P
2.18.3 Channel: 275.8
2.18.5 Hours of Operation: 0700-2300

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.5
2.18.5 Hours of Operation: 0700-2300

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 349
2.18.5 Hours of Operation: 0700-2300

2.18.1 Service Designation: NG OPS
2.18.3 Channel: 41
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 28R. Magnetic variation: 10W
2.19.2 ILS Identification: IAG
2.19.5 Coordinates: 43-6-30.0921N / 78-56-16.6451W
2.19.6 Site Elevation: 582.8 ft

2.19.1 ILS Type: Localizer for runway 28R. Magnetic variation: 10W
2.19.2 ILS Identification: IAG
2.19.5 Coordinates: 43-6-34.3589N / 78-58-18.8146W
2.19.6 Site Elevation: 585.1 ft

2.19.1 ILS Type: Outer Marker for runway 28R. Magnetic variation: 10W
2.19.2 ILS Identification: IAG
2.19.5 Coordinates: 43-6-32.5184N / 78-50-18.2195W
2.19.6 Site Elevation: 614.9 ft

2.19.1 Navigation Aid Type: TACAN. Magnetic variation: 10W
2.19.2 Navigation Aid Identification: IAG
2.19.5 Coordinates: 43-6-45.1638N / 78-57-36.8623W
2.19.6 Site Elevation: 591.5 ft

General Remarks:

CAUTION: HEAVY CONCENTRATIONS OF GULLS-BLACKBIRDS-STARLINGS UP TO 5000 AGL ON & INVOF ARPT. BASH PHASE II OPERATIONS AT KIAG MAR-MAY AND SEP-NOV.

FLUID: SP.

JASU: 2(A/M32A-86) 1(AM32A-60) 1(MA-1A).

FUEL: J8, A++ (MIL).

MISC: LOCAL MISSION AIRCRAFT HAVE PRIORITY FOR DEICING; FULL AIRCRAFT DEICING FOR C-17 AND C-5 AIRCRAFT NOT AVAILABLE.

INTXN DEPS RWY 24 AT TWY D1 ARE NA.

ALL MIL ACFT ONLY MINIMAL CLASSIFIED MATERIALS AVBL; AIRCREWS SHOULD ARRIVE WITH APPROPRIATE AMOUNT TO COMPLETE THEIR MISSION.

EXTSV ACFT ACTIVITY OPERATING INVOF US/CANADIAN FALLS ALL ALTS.

RWY 28R 1000 FT BY 150 FT BLAST PAD

AFLD MGMT DOES NOT ISSUE OR STORE COMSEC, FOR COMSEC STORAGE CTC COMMAND POST DSN 238-2150, C716-236-2150.

OIL: O-148(MIL).

BEARING STRENGTH RWY 06/24: ST110 TT145 SBTT281TDT415 TRT252.

PILOTS ARE REMINDED TO REVIEW ARPT HOTSPOT INFO BFR TXG FOR DEP & BFR LNDG. SEE TPP ARPT DIAGRAM AND CHART SUPPL SXN ON HOTSPOTS FOR ADDNL INFO.

REMARKS: SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.

AFRC/ANG: CSTMS/AG/IMG SVC NOT LCTD ON NIAGARA FALLS ARS. SVC AVBL H24.

AFRC/ANG: NSTD OPS APN MRKS IDENTIFYING PRKG ROW AND PRKG LCTN. NSTD MAIN APN MRKS PRKG STOP BAR AND ACFT GND EQPT (AGE) BOX.

ALL MIL ACFT ONLY OPNS RESTRICTED DURING BIRD WATCH CONDITIONS. MODERATE - TKOF & LDG PERMISSION ONLY WNEN DEP/ARR RTE AVOIDS IDENTIFIED BIRD ACTIVITY; NO LCL IFR/VFR TFC PAT ACTIVITY. SEVERE - TKOF & LDG PHOHIBITED WO OG/CC APPROVAL; CTC COMMAND POST FOR CURRENT BIRD WATCH CONDITIONS.

TWY D3 RSTRD TO 12500 LBS OR LESS.

MILITARY: MISC: FOR CURRENT MIL RWY CONDITION READING (RCR) CALL OR CTC 914 ARW COMD POST OR 914TH ARW AFLD MANAGEMENT.

PPR CTC AFLD MGT DSN: 238-2176, C716-236-2176. AFLD MGMT RQR 48 HR ADVANCE NOTICE FOR PPR AND WILL ARRANGE U.S. CUSTOMS IF NEEDED. U.S. CUSTOMS NOT ON STATION.

MILITARY: AFRC/ANG: AIRFIELD OPS SVC 1200-0400Z++ MON-FRI EXC HOL. TWYS A, A1, A2, AND A3 PAINTED MRK FADED AND RETRO-REFLECTIVITY INEFFECTIVE.

TWY A, A1, A2, A3, M & L NON-MOV AREAS.

FOR CD WHEN ATCT CLSD CTC BUFFALO ATCT ON FREQ OR 716-626-6920.

Syracuse, New York
Syracuse Hancock International
ICAO Identifier KSYR

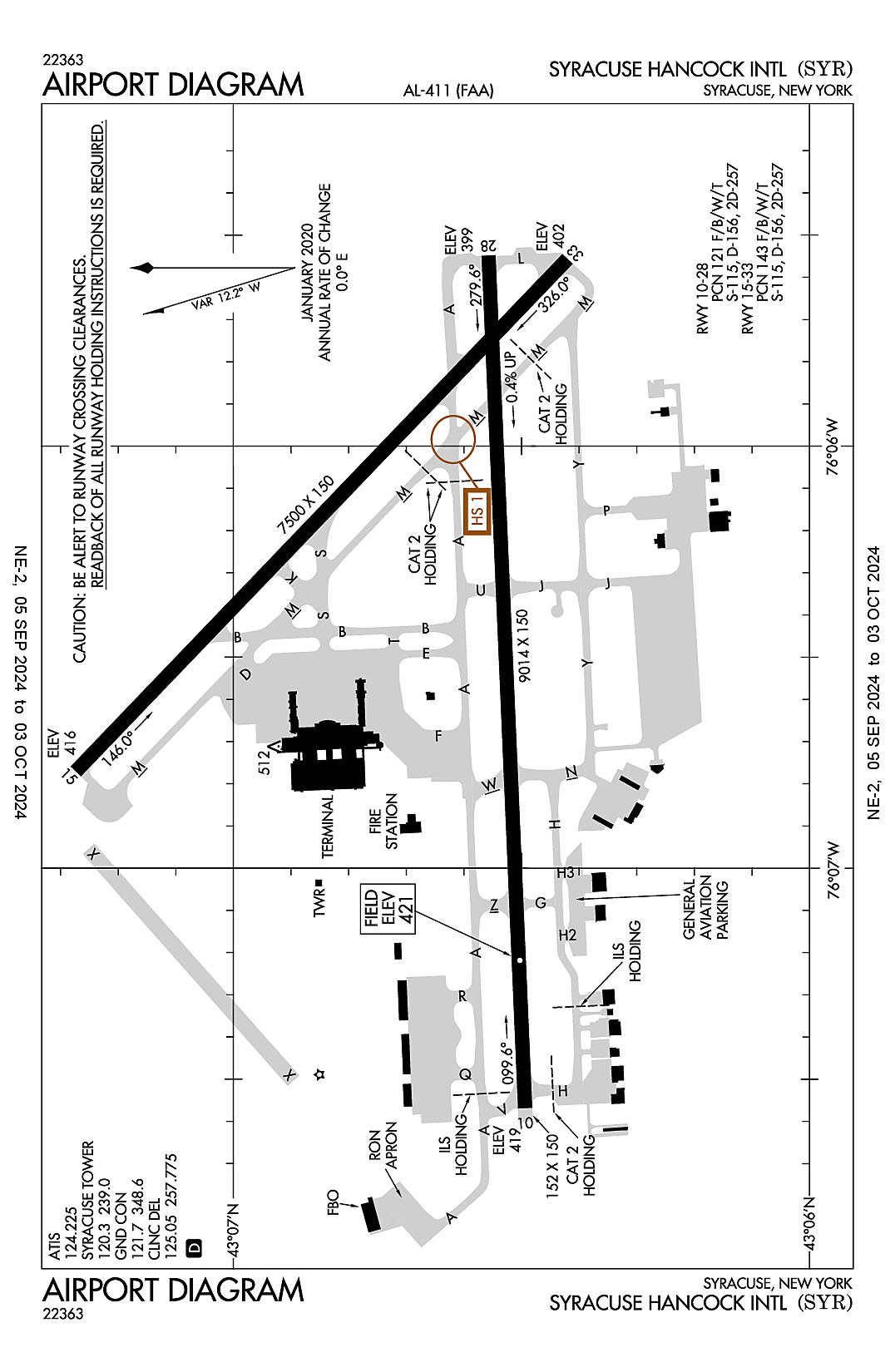

The airport diagram for Syracuse Hancock International (ICAO Identifier KSYR).

Syracuse, NY
Syracuse Hancock Intl
ICAO Identifier KSYR

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 43-6-40.252N / 76-6-22.753W
2.2.2 From City: 4 miles NE of SYRACUSE, NY
2.2.3 Elevation: 421.4 ft
2.2.5 Magnetic Variation: 13W (2000)
2.2.6 Airport Contact: JASON TERRERI
1000 COL EILEEN COLLINS BLVD
SYRACUSE, NY 13212 (315-454-3263)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: 100LL, A
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category: Class-I certified on 5/1/1973
2.6.2 Rescue and Firefighting Services: ARFF Index-C

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 10
2.12.2 True Bearing: 87
2.12.3 Dimensions: 9014 ft x 150 ft
2.12.4 PCN: 121 F/B/W/T
2.12.5 Coordinates: 43-6-29.5015N / 76-7-34.2763W
2.12.6 Threshold Elevation: 418.5 ft
2.12.6 Touchdown Zone Elevation: 421.4 ft

2.12.1 Designation: 28
2.12.2 True Bearing: 267
2.12.3 Dimensions: 9014 ft x 150 ft
2.12.4 PCN: 121 F/B/W/T
2.12.5 Coordinates: 43-6-33.4984N / 76-5-32.8925W
2.12.6 Threshold Elevation: 399 ft
2.12.6 Touchdown Zone Elevation: 412.3 ft

2.12.1 Designation: 15
2.12.2 True Bearing: 134
2.12.3 Dimensions: 7500 ft x 150 ft
2.12.4 PCN: 143 F/B/W/T
2.12.5 Coordinates: 43-7-16.4185N / 76-6-46.2005W
2.12.6 Threshold Elevation: 415.5 ft
2.12.6 Touchdown Zone Elevation: 416.8 ft

2.12.1 Designation: 33
2.12.2 True Bearing: 314
2.12.3 Dimensions: 7500 ft x 150 ft
2.12.4 PCN: 143 F/B/W/T
2.12.5 Coordinates: 43-6-25.1095N / 76-5-33.2753W
2.12.6 Threshold Elevation: 401.7 ft
2.12.6 Touchdown Zone Elevation: 409.4 ft

AD 2.13 Declared Distances
2.13.1 Designation: 10
2.13.2 Take-off Run Available: 9014
2.13.3 Take-off Distance Available: 9014
2.13.4 Accelerate-Stop Distance Available: 9014
2.13.5 Landing Distance Available: 9014

2.13.1 Designation: 28
2.13.2 Take-off Run Available: 9014
2.13.3 Take-off Distance Available: 9014
2.13.4 Accelerate-Stop Distance Available: 9014
2.13.5 Landing Distance Available: 9014

2.13.1 Designation: 15
2.13.2 Take-off Run Available: 7500
2.13.3 Take-off Distance Available: 7500
2.13.4 Accelerate-Stop Distance Available: 7500
2.13.5 Landing Distance Available: 7500

2.13.1 Designation: 33
2.13.2 Take-off Run Available: 7500
2.13.3 Take-off Distance Available: 7500
2.13.4 Accelerate-Stop Distance Available: 7500
2.13.5 Landing Distance Available: 7500

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 10
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: V4L

2.14.1 Designation: 28
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 15
2.14.2 Approach Lighting System: MALS
2.14.4 Visual Approach Slope Indicator System: V4L

2.14.1 Designation: 33
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ANG OPS
2.18.3 Channel: 379.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: APCH/P DEP/P
2.18.3 Channel: 134.275
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P
2.18.3 Channel: 279.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC
2.18.3 Channel: 126.125
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC
2.18.3 Channel: 269.125
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: AR OPS
2.18.3 Channel: 245.3
2.18.5 Hours of Operation:

2.18.1 Service Designation: ATIS
2.18.3 Channel: 124.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 125.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 257.775
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C
2.18.3 Channel: 126.125
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C
2.18.3 Channel: 269.125
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 120.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 239
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 10. Magnetic variation: 13W
2.19.2 ILS Identification: MRZ
2.19.5 Coordinates: 43-6-31.27N / 76-5-20.92W
2.19.6 Site Elevation: 390.5 ft

2.19.1 ILS Type: Glide Slope for runway 10. Magnetic variation: 13W
2.19.2 ILS Identification: MRZ
2.19.5 Coordinates: 43-6-26.02N / 76-7-20.146W
2.19.6 Site Elevation: 422.6 ft

2.19.1 ILS Type: Localizer for runway 10. Magnetic variation: 13W
2.19.2 ILS Identification: MRZ
2.19.5 Coordinates: 43-6-33.96N / 76-5-19.01W
2.19.6 Site Elevation: 395.6 ft

2.19.1 ILS Type: DME for runway 28. Magnetic variation: 13W
2.19.2 ILS Identification: SYR
2.19.5 Coordinates: 43-6-31.27N / 76-5-20.92W
2.19.6 Site Elevation: 390.5 ft

2.19.1 ILS Type: Glide Slope for runway 28. Magnetic variation: 13W
2.19.2 ILS Identification: SYR
2.19.5 Coordinates: 43-6-39.474N / 76-5-46.433W
2.19.6 Site Elevation: 404.1 ft

2.19.1 ILS Type: Inner Marker for runway 28. Magnetic variation: 13W
2.19.2 ILS Identification: SYR
2.19.5 Coordinates: 43-6-34.1N / 76-5-18.52W
2.19.6 Site Elevation: 395 ft

2.19.1 ILS Type: Localizer for runway 28. Magnetic variation: 13W
2.19.2 ILS Identification: SYR
2.19.5 Coordinates: 43-6-28.943N / 76-7-51.655W
2.19.6 Site Elevation: 416.8 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 11W
2.19.2 Navigation Aid Identification: SYR
2.19.5 Coordinates: 43-9-37.8684N / 76-12-16.4106W
2.19.6 Site Elevation: 453.2 ft

General Remarks:

DEER/COYOTE/BIRDS ON INVOF ARPT.

NON-STD MKG ON MIL RAMP.

ANG: HVY ACFT CTC ARPT COMMISSIONER FOR PRK AVBL AT C315-455-3666. ALL TRAN ACFT RQR NS ABTMT BRIEFING.

UAS OPS IN SYRACUSE APCH/DEP AIRSPACE WILL BE CONTROLLED BY SYR ATC AT ALL TIMES.

NO TSNT ACFT PARKING ON MAIN TERMINAL RAMP.

DIRECT CUSTOM NOTIFICATION IS REQUIRED. HOURS OF NOTIFICATION ARE MON-SAT 0800-1700. ARRIVALS OUTSIDE OF THESE HRS MUST MAKE ARRANGEMENTS DURING REGULAR WORK HRS; CALL 315-455-2271.

HVY ACFT CTC ARPT COMMISSIONER FOR PRK AVBL AT C315-455-3263. LIMITED METRO AVAIL AT DSN 243-2185. C315-233-2185 OR CTC OWS DSN 576-9755/9702. ALL TRAN ACFT REQ NOISE ABATEMENT BRIEFING.

NO CHARTER OPER THRU PASSENGER TERMINAL BLDG WITHOUT PRIOR PERMISSION.

RSTD: TWY J AND P SOUTH OF TWY Y CLSD TO CIV OPS.

NOISE ABATEMENT PROCEDURES IN EFFECT.

MILITARY: COMMUNICATIONS - ANG - OPS - 140.425 379.5 REMARKS: (COBRA OPS) CTC ANG OPS 15 MIN PRIOR TO ARR.

NO JET ENGINE MAINT RUNS ABOVE IDLE BTWN 2300-0600.

CAUTION: TWY J AND P SOUTH OF TWY Y AND ANG RAMP HAVE UNCTL VEH AND EQPT TFC.

UAS OPERATE WITHIN THE CONFINES OF THE SYRACUSE CLASS C, TIMES VARY.

MILITARY: ANG: OPR 1030-2100Z++ MON-THUR EXC HOL. PPR TRANS ACFT OFFL BUS ONLY. AFLD MGR DSN 243-2399, C315-233-2399, AFT DUTY HR CTC C315-233-2399. PPR REQ FOR ALL TRAN ACFT DUE LTD TRANS SVC. NTFY AFLD MGR OF ETA DELAY OVER 30 MIN OR MSN CNL IS RQR.
