Washington

Everett, Washington
Snohomish County (Paine Field)
ICAO Identifier KPAE

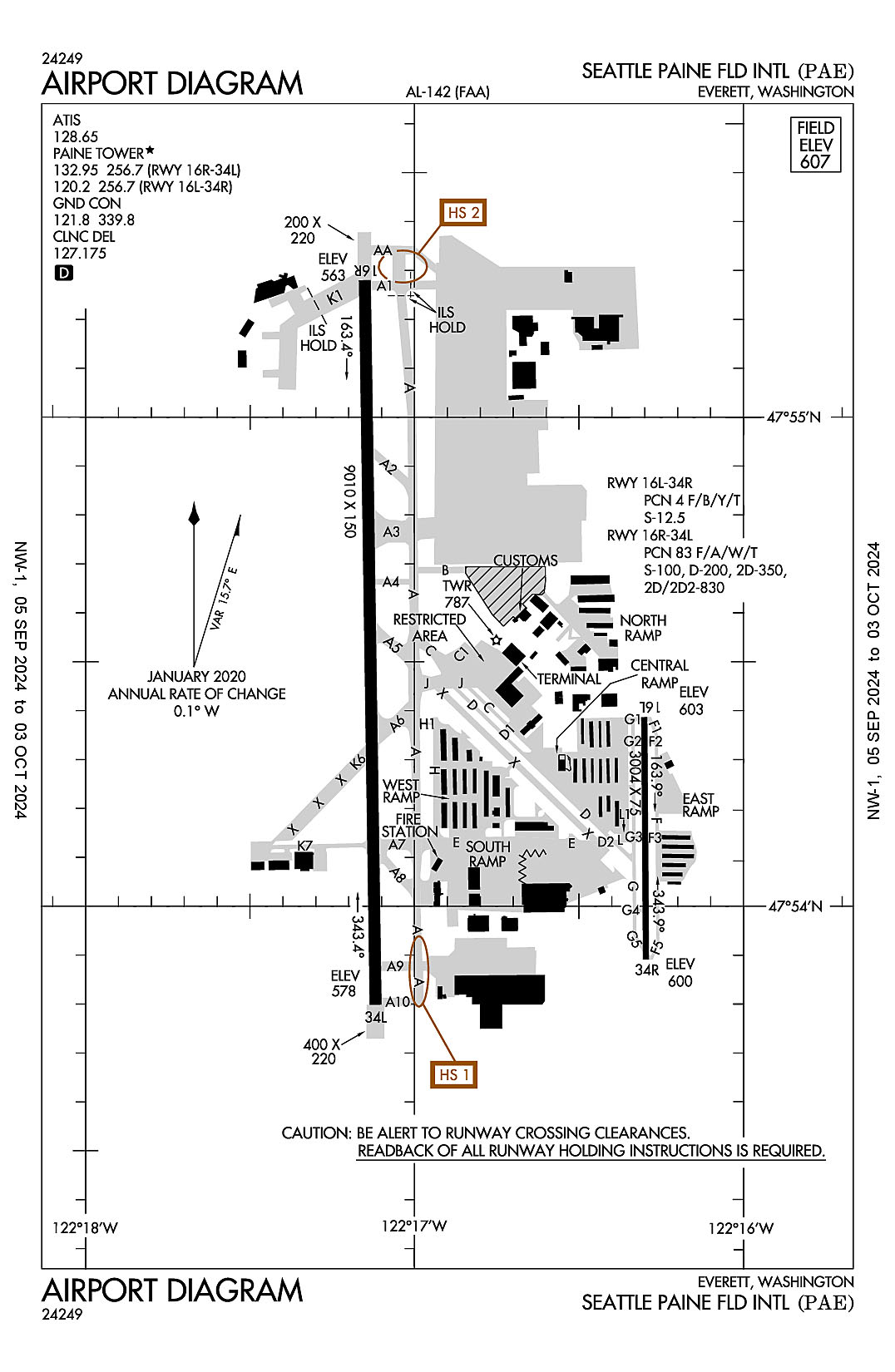

The airport diagram for Snohomish County (Paine Field) (ICAO Identifier KPAE).

Everett, WA
Snohomish County (Paine Fld)
ICAO Identifier KPAE

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 47-54-26.3425N / 122-16-55.5384W
2.2.2 From City: 6 miles SW of EVERETT, WA
2.2.3 Elevation: 607.5 ft
2.2.5 Magnetic Variation: 16E (2020)
2.2.6 Airport Contact: ARIF GHOUSE
3220 100TH ST SW
EVERETT, WA 98204 ((425) 388-5100)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 NOV-APR Months, All Days, 0700-2100 Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: NO
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I B certified on 11/1/1974

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 16L
2.12.2 True Bearing: 180
2.12.3 Dimensions: 3004 ft x 75 ft
2.12.4 PCN: 4 F/B/Y/T
2.12.5 Coordinates: 47-54-23.1294N / 122-16-18.0937W
2.12.6 Threshold Elevation: 602.8 ft
2.12.6 Touchdown Zone Elevation: 606.9 ft

2.12.1 Designation: 34R
2.12.2 True Bearing: 360
2.12.3 Dimensions: 3004 ft x 75 ft
2.12.4 PCN: 4 F/B/Y/T
2.12.5 Coordinates: 47-53-53.4884N / 122-16-17.7654W
2.12.6 Threshold Elevation: 599.7 ft
2.12.6 Touchdown Zone Elevation: 606.9 ft

2.12.1 Designation: 16R
2.12.2 True Bearing: 179
2.12.3 Dimensions: 9010 ft x 150 ft
2.12.4 PCN: 83 F/A/W/T
2.12.5 Coordinates: 47-55-16.8075N / 122-17-9.0638W
2.12.6 Threshold Elevation: 562.6 ft
2.12.6 Touchdown Zone Elevation: 570 ft

2.12.1 Designation: 34L
2.12.2 True Bearing: 359
2.12.3 Dimensions: 9010 ft x 150 ft
2.12.4 PCN: 83 F/A/W/T
2.12.5 Coordinates: 47-53-47.9027N / 122-17-7.0912W
2.12.6 Threshold Elevation: 577.7 ft
2.12.6 Touchdown Zone Elevation: 583.6 ft

AD 2.13 Declared Distances
2.13.1 Designation: 16L
2.13.2 Take-off Run Available: 3004
2.13.3 Take-off Distance Available: 3004
2.13.4 Accelerate-Stop Distance Available: 3004
2.13.5 Landing Distance Available: 3004

2.13.1 Designation: 34R
2.13.2 Take-off Run Available: 3004
2.13.3 Take-off Distance Available: 3004
2.13.4 Accelerate-Stop Distance Available: 3004
2.13.5 Landing Distance Available: 3004

2.13.1 Designation: 16R
2.13.2 Take-off Run Available: 9010
2.13.3 Take-off Distance Available: 9010
2.13.4 Accelerate-Stop Distance Available: 9010
2.13.5 Landing Distance Available: 9010

2.13.1 Designation: 34L
2.13.2 Take-off Run Available: 9010
2.13.3 Take-off Distance Available: 9010
2.13.4 Accelerate-Stop Distance Available: 9010
2.13.5 Landing Distance Available: 9010

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 16L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 34R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 16R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 34L
2.14.2 Approach Lighting System: MALSF
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: AR OPS
2.18.3 Channel: 34.1
2.18.5 Hours of Operation:

2.18.1 Service Designation: ATIS
2.18.3 Channel: 128.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 127.175
2.18.5 Hours of Operation: 0700-2100

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.8
2.18.5 Hours of Operation: 0700-2100

2.18.1 Service Designation: GND/P
2.18.3 Channel: 339.8
2.18.5 Hours of Operation: 0700-2100

2.18.1 Service Designation: LCL/P (RWY 16L/34R)
2.18.3 Channel: 120.2
2.18.5 Hours of Operation: 0700-2100

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 256.7
2.18.5 Hours of Operation: 0700-2100

2.18.1 Service Designation: LCL/P IC (RWY 16R/34L)
2.18.3 Channel: 132.95
2.18.5 Hours of Operation: 0700-2100

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 16R. Magnetic variation: 16E
2.19.2 ILS Identification: PAE
2.19.5 Coordinates: 47-55-7.3457N / 122-17-13.6176W
2.19.6 Site Elevation: 566.6 ft

2.19.1 ILS Type: Localizer for runway 16R. Magnetic variation: 16E
2.19.2 ILS Identification: PAE
2.19.5 Coordinates: 47-53-34.0274N / 122-17-6.7862W
2.19.6 Site Elevation: 569.6 ft

2.19.1 Navigation Aid Type: VOR/DME. Magnetic variation: 20E
2.19.2 Navigation Aid Identification: PAE
2.19.5 Coordinates: 47-55-11.4015N / 122-16-40.0844W
2.19.6 Site Elevation: 669.2 ft

General Remarks:

2.2.1 Reference Point: 47-54-26.3425N / 122-16-55.5384W
2.2.2 From City: 6 miles SW of EVERETT, WA
2.2.3 Elevation: 607.5 ft
2.2.5 Magnetic Variation: 16E (2020)
2.2.6 Airport Contact: ARIF GHOUSE
3220 100TH ST SW
EVERETT, WA 98204 ((425) 388-5100)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 MAY-OCT Months, All Days, 0700-2100 Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: NO
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I B certified on 11/1/1974

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 16L
2.12.2 True Bearing: 180
2.12.3 Dimensions: 3004 ft x 75 ft
2.12.4 PCN: 4 F/B/Y/T
2.12.5 Coordinates: 47-54-23.1294N / 122-16-18.0937W
2.12.6 Threshold Elevation: 602.8 ft
2.12.6 Touchdown Zone Elevation: 606.9 ft

2.12.1 Designation: 34R
2.12.2 True Bearing: 360
2.12.3 Dimensions: 3004 ft x 75 ft
2.12.4 PCN: 4 F/B/Y/T
2.12.5 Coordinates: 47-53-53.4884N / 122-16-17.7654W
2.12.6 Threshold Elevation: 599.7 ft
2.12.6 Touchdown Zone Elevation: 606.9 ft

2.12.1 Designation: 16R
2.12.2 True Bearing: 179
2.12.3 Dimensions: 9010 ft x 150 ft
2.12.4 PCN: 83 F/A/W/T
2.12.5 Coordinates: 47-55-16.8075N / 122-17-9.0638W
2.12.6 Threshold Elevation: 562.6 ft
2.12.6 Touchdown Zone Elevation: 570 ft

2.12.1 Designation: 34L
2.12.2 True Bearing: 359
2.12.3 Dimensions: 9010 ft x 150 ft
2.12.4 PCN: 83 F/A/W/T
2.12.5 Coordinates: 47-53-47.9027N / 122-17-7.0912W
2.12.6 Threshold Elevation: 577.7 ft
2.12.6 Touchdown Zone Elevation: 583.6 ft

AD 2.13 Declared Distances
2.13.1 Designation: 16L
2.13.2 Take-off Run Available: 3004
2.13.3 Take-off Distance Available: 3004
2.13.4 Accelerate-Stop Distance Available: 3004
2.13.5 Landing Distance Available: 3004

2.13.1 Designation: 34R
2.13.2 Take-off Run Available: 3004
2.13.3 Take-off Distance Available: 3004
2.13.4 Accelerate-Stop Distance Available: 3004
2.13.5 Landing Distance Available: 3004

2.13.1 Designation: 16R
2.13.2 Take-off Run Available: 9010
2.13.3 Take-off Distance Available: 9010
2.13.4 Accelerate-Stop Distance Available: 9010
2.13.5 Landing Distance Available: 9010

2.13.1 Designation: 34L
2.13.2 Take-off Run Available: 9010
2.13.3 Take-off Distance Available: 9010
2.13.4 Accelerate-Stop Distance Available: 9010
2.13.5 Landing Distance Available: 9010

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 16L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 34R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 16R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 34L
2.14.2 Approach Lighting System: MALSF
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: AR OPS
2.18.3 Channel: 34.1
2.18.5 Hours of Operation:

2.18.1 Service Designation: ATIS
2.18.3 Channel: 128.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 127.175
2.18.5 Hours of Operation: 0700-2100

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.8
2.18.5 Hours of Operation: 0700-2100

2.18.1 Service Designation: GND/P
2.18.3 Channel: 339.8
2.18.5 Hours of Operation: 0700-2100

2.18.1 Service Designation: LCL/P (RWY 16L/34R)
2.18.3 Channel: 120.2
2.18.5 Hours of Operation: 0700-2100

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 256.7
2.18.5 Hours of Operation: 0700-2100

2.18.1 Service Designation: LCL/P IC (RWY 16R/34L)
2.18.3 Channel: 132.95
2.18.5 Hours of Operation: 0700-2100

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 16R. Magnetic variation: 16E
2.19.2 ILS Identification: PAE
2.19.5 Coordinates: 47-55-7.3457N / 122-17-13.6176W
2.19.6 Site Elevation: 566.6 ft

2.19.1 ILS Type: Localizer for runway 16R. Magnetic variation: 16E
2.19.2 ILS Identification: PAE
2.19.5 Coordinates: 47-53-34.0274N / 122-17-6.7862W
2.19.6 Site Elevation: 569.6 ft

2.19.1 Navigation Aid Type: VOR/DME. Magnetic variation: 20E
2.19.2 Navigation Aid Identification: PAE
2.19.5 Coordinates: 47-55-11.4015N / 122-16-40.0844W
2.19.6 Site Elevation: 669.2 ft

General Remarks:

RWY 16L/34R LTD TO HEL 8000 LBS OR LESS.

AVOID INT DEPS FM RWY 16L/34R

IT IS REQ THAT PILOTS ADHERE TO THE FLW NOISE ABATEMENT PROC UNLESS OTRW INSTRD BY ATCT, ITNRNT ARR AND LOW APCH OF SML ACFT OVER 250 HORSEPOWER AUZ ON RWYS 16L AND 34R.

NOISE SENSITIVE ARPT; FOR NOISE ABATEMENT PROC & TFC PROC CALL ARPT OPS 425-388-5125.

TSNT HEL EXP LNDG/TKOF ON TWY B.

RWY 16R/34 TGL PROHIBITED MON-FRI FM 0700-0900.

ITNRNT DEP OF SML ACFT OVER 250 HORSEPOWER ON RWY 34R.

TRNG FLTS DISCOURAGED AFT 2200.

FOR NOISE ABATEMENT FROM 0500-1500Z++ IF ACFT PERFORMANCE/WIND ALLOWS, USE RY 16R FOR ARRIVALS AND RY 34L FOR DEPARTURES.

TWY C BTN TRML RAMP AND CNTRL RAMP RSTRD TO WINGSPAN OF 68 FT OR LESS. TWY D, F, G AND L RSTRD TO WINGSPAN LESS THAN 49 FT. TWY A4, A5, K7 & B RSTRD TO WINGSPAN LESS THAN 118 FT. TAXILANE H RSTRD TO WINGSPAN LESS THAN 49 FT.

LRG ACFT FLY W PAT OVR WTR; SML ACFT FLY E PAT OVR ARPT.

AVOID LOW LVL OVRFLT OF BOEING RAMP; NE CORNER OF ARPT DUE TO JET BLAST.

FLOCKS OF LRG & SML BIRDS INVOF ARPT.

BE ALERT TO CNVG TFC ON BASE TO FINAL LEGS RWY 16R/34L 2100-0700.

FOR CD WHEN ATCT IS CLSD CTC SEATTLE APCH AT 206-214-4722.

PAE HAS FAC CONSTRAINTS THAT LMT ITS ABILITY TO ACCOMMODATE DIVD FLTS AND MNTN THE ARPTS SAFE OPN DUR IREG OPS. ACFT OPR SHOULD CTCT THE ON-DUTY ARPT OPS PSNL (425-388-5125) TO COORD DIVD FLTS EXC IN THE CASE OF A DECLARED IN-FLT EMERG.

PPR RQRD FOR ACES ON BOEING RAMP. CTC BOEING FLT DISPATCH 206-544-5900 FOR APVL. PRIOR TO TAXI ONTO BOEING RAMP CTC BOEING RADIO TWR 123.475 OR CALL 425-342-5900.

TWY K1 CLSD TO ACFT UNDER 30000 LBS.

TKOF CLNC RWY 16R FULL LEN; ENT RWY VIA TWY A1 UNLESS TWY AA SPECIFIED.

USE CTN FOR 80 FT AGL LGT POLES SW EDGE OF BRAVO RAMP.

RWY 16L/34R CLSD BTN 0500-1500Z.

TWY A-2 RSTRD TO 30000 LBS.

EMERG FREQ 121.5 NOT MNT AT TWR. SEATTLE APP CON-TRACON MNT 121.5 FOR EVERETT (PAE).

AREAS NOT VSB FM ATCT INCL E EDGE OF S 1200 FT OF TWY A, TAXILANE E FM SE CORNER OF W HNGRS TO TWY A, TAXILANE H FROM NW EDGE OF W HNGRS TO TAXILANE E.

TAXILANE E RSTD TO WINGSPAN LESS THAN 171 FT. ACFT WINGSPAN OF 171 FT OR GREATER ON TAXILANE E, TUG OPS ONLY. EAST 500 FT OF TAXILANE E RSTD TO WINGSPAN LESS THAN 49 FT.

AIRFIELD CONDS NOT MNTD BTN 0000-0630.

Seattle, Washington
Seattle-Tacoma International
ICAO Identifier KSEA

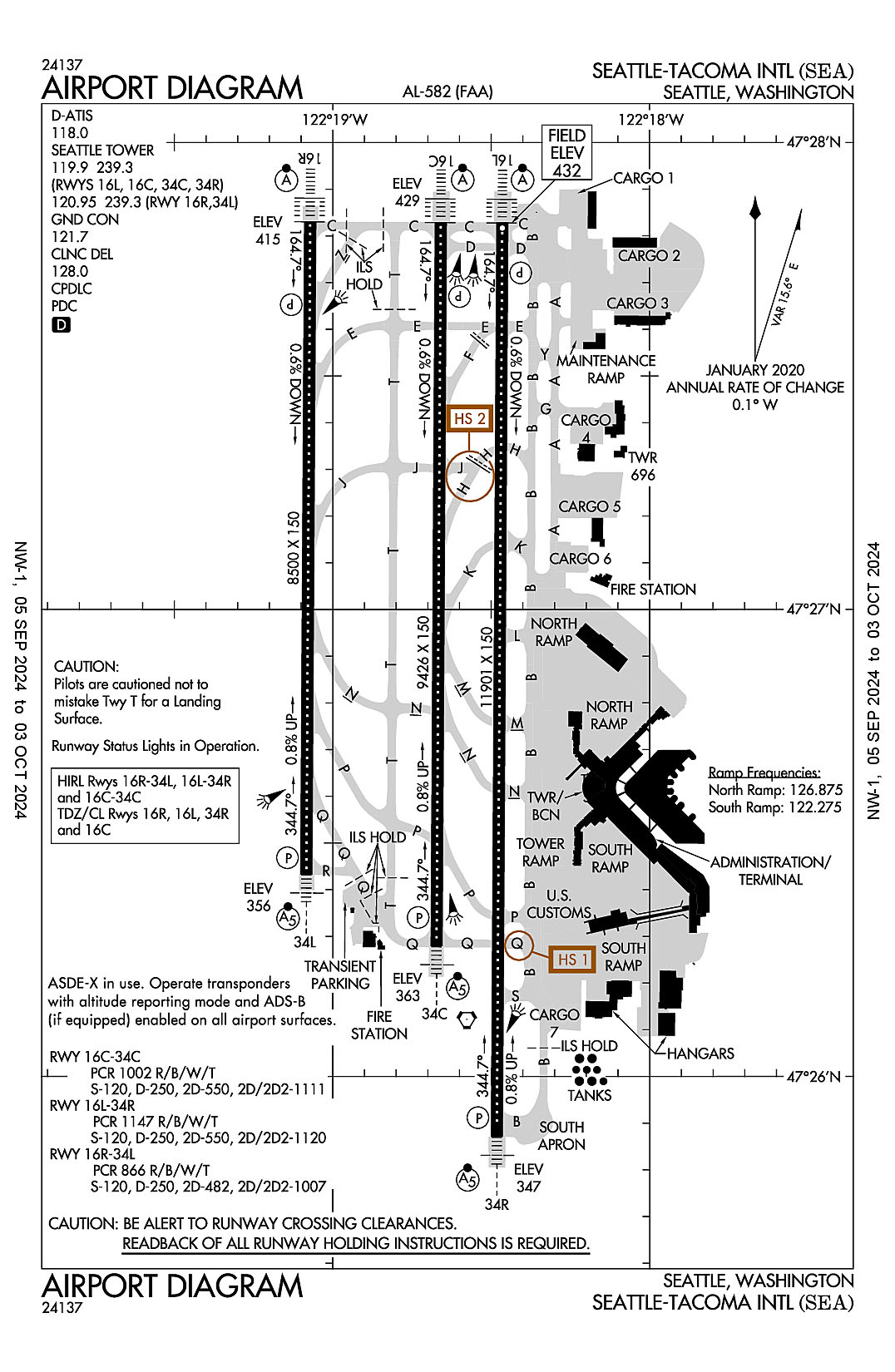

The airport diagram for Seattle-Tacoma International (ICAO Identifier KSEA).

Seattle, WA
Seattle-Tacoma Intl
ICAO Identifier KSEA

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 47-26-59.6N / 122-18-42.4W
2.2.2 From City: 10 miles S of SEATTLE, WA
2.2.3 Elevation: 432.3 ft
2.2.5 Magnetic Variation: 16E (2020)
2.2.6 Airport Contact: LANCE LYTTLE
BOX 68727
SEATTLE, WA 98168 ((206) 787-5229)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A, A1
2.4.5 Hangar Space:
2.4.6 Repair Facilities: NONE

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I E certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 16C
2.12.2 True Bearing: 180
2.12.3 Dimensions: 9426 ft x 150 ft
2.12.4 PCN: 96 R/B/W/T
2.12.5 Coordinates: 47-27-49.7155N / 122-18-39.5415W
2.12.6 Threshold Elevation: 429.4 ft
2.12.6 Touchdown Zone Elevation: 429.5 ft

2.12.1 Designation: 34C
2.12.2 True Bearing: 0
2.12.3 Dimensions: 9426 ft x 150 ft
2.12.4 PCN: 96 R/B/W/T
2.12.5 Coordinates: 47-26-16.6966N / 122-18-40.3554W
2.12.6 Threshold Elevation: 362.9 ft
2.12.6 Touchdown Zone Elevation: 387 ft

2.12.1 Designation: 34R
2.12.2 True Bearing: 0
2.12.3 Dimensions: 11901 ft x 150 ft
2.12.4 PCN: 110 R/B/W/T
2.12.5 Coordinates: 47-25-52.2202N / 122-18-28.9377W
2.12.6 Threshold Elevation: 346.7 ft
2.12.6 Touchdown Zone Elevation: 371.5 ft

2.12.1 Designation: 16L
2.12.2 True Bearing: 180
2.12.3 Dimensions: 11901 ft x 150 ft
2.12.4 PCN: 110 R/B/W/T
2.12.5 Coordinates: 47-27-49.6628N / 122-18-27.9008W
2.12.6 Threshold Elevation: 432.3 ft
2.12.6 Touchdown Zone Elevation: 432.3 ft

2.12.1 Designation: 34L
2.12.2 True Bearing: 0
2.12.3 Dimensions: 8500 ft x 150 ft
2.12.4 PCN: 89 R/B/W/T
2.12.5 Coordinates: 47-26-25.9217N / 122-19-5.009W
2.12.6 Threshold Elevation: 356.2 ft
2.12.6 Touchdown Zone Elevation: 379.3 ft

2.12.1 Designation: 16R
2.12.2 True Bearing: 180
2.12.3 Dimensions: 8500 ft x 150 ft
2.12.4 PCN: 89 R/B/W/T
2.12.5 Coordinates: 47-27-49.8109N / 122-19-4.2846W
2.12.6 Threshold Elevation: 414.8 ft
2.12.6 Touchdown Zone Elevation: 414.8 ft

AD 2.13 Declared Distances
2.13.1 Designation: 16C
2.13.2 Take-off Run Available: 9426
2.13.3 Take-off Distance Available: 9426
2.13.4 Accelerate-Stop Distance Available: 9426
2.13.5 Landing Distance Available: 9426

2.13.1 Designation: 34C
2.13.2 Take-off Run Available: 9426
2.13.3 Take-off Distance Available: 9426
2.13.4 Accelerate-Stop Distance Available: 9426
2.13.5 Landing Distance Available: 9426

2.13.1 Designation: 34R
2.13.2 Take-off Run Available: 11901
2.13.3 Take-off Distance Available: 11901
2.13.4 Accelerate-Stop Distance Available: 11901
2.13.5 Landing Distance Available: 11901

2.13.1 Designation: 16L
2.13.2 Take-off Run Available: 11901
2.13.3 Take-off Distance Available: 11901
2.13.4 Accelerate-Stop Distance Available: 11901
2.13.5 Landing Distance Available: 11901

2.13.1 Designation: 34L
2.13.2 Take-off Run Available: 8500
2.13.3 Take-off Distance Available: 8500
2.13.4 Accelerate-Stop Distance Available: 8500
2.13.5 Landing Distance Available: 8500

2.13.1 Designation: 16R
2.13.2 Take-off Run Available: 8500
2.13.3 Take-off Distance Available: 8500
2.13.4 Accelerate-Stop Distance Available: 8500
2.13.5 Landing Distance Available: 8500

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 16C
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 34C
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 34R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 16L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 34L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 16R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: CD/P
2.18.3 Channel: 128
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 118
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 16L/34R, 16C/34C)
2.18.3 Channel: 119.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 16R/34L)
2.18.3 Channel: 120.95
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 16R/34L)
2.18.3 Channel: 239.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 16L/34R, 16C/34C)
2.18.3 Channel: 239.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RAMP CTL (SOUTH RAMP)
2.18.3 Channel: 122.275
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RAMP CTL (GATE HOLD)
2.18.3 Channel: 126.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RAMP CTL (NORTH RAMP)
2.18.3 Channel: 126.875
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 16C. Magnetic variation: 16E
2.19.2 ILS Identification: SZI
2.19.5 Coordinates: 47-26-6.28N / 122-18-39.51W
2.19.6 Site Elevation: 359 ft

2.19.1 ILS Type: Glide Slope for runway 16C. Magnetic variation: 16E
2.19.2 ILS Identification: SZI
2.19.5 Coordinates: 47-27-38.687N / 122-18-45.462W
2.19.6 Site Elevation: 417.6 ft

2.19.1 ILS Type: Localizer for runway 16C. Magnetic variation: 16E
2.19.2 ILS Identification: SZI
2.19.5 Coordinates: 47-26-6.703N / 122-18-40.4438W
2.19.6 Site Elevation: 355.7 ft

2.19.1 ILS Type: DME for runway 34C. Magnetic variation: 16E
2.19.2 ILS Identification: TUC
2.19.5 Coordinates: 47-26-6.28N / 122-18-39.51W
2.19.6 Site Elevation: 359 ft

2.19.1 ILS Type: Glide Slope for runway 34C. Magnetic variation: 16E
2.19.2 ILS Identification: TUC
2.19.5 Coordinates: 47-26-25.6028N / 122-18-46.1679W
2.19.6 Site Elevation: 366.8 ft

2.19.1 ILS Type: Localizer for runway 34C. Magnetic variation: 16E
2.19.2 ILS Identification: TUC
2.19.5 Coordinates: 47-27-54.3525N / 122-18-39.5018W
2.19.6 Site Elevation: 421.8 ft

2.19.1 ILS Type: DME for runway 16L. Magnetic variation: 16E
2.19.2 ILS Identification: SNQ
2.19.5 Coordinates: 47-26-3.5974N / 122-18-22.6779W
2.19.6 Site Elevation: 369.4 ft

2.19.1 ILS Type: Glide Slope for runway 16L. Magnetic variation: 16E
2.19.2 ILS Identification: SNQ
2.19.5 Coordinates: 47-27-38.9362N / 122-18-33.8193W
2.19.6 Site Elevation: 425.2 ft

2.19.1 ILS Type: Localizer for runway 16L. Magnetic variation: 16E
2.19.2 ILS Identification: SNQ
2.19.5 Coordinates: 47-25-42.224N / 122-18-29.0263W
2.19.6 Site Elevation: 335.5 ft

2.19.1 ILS Type: DME for runway 34R. Magnetic variation: 16E
2.19.2 ILS Identification: SEA
2.19.5 Coordinates: 47-26-3.5974N / 122-18-22.6779W
2.19.6 Site Elevation: 369.4 ft

2.19.1 ILS Type: Glide Slope for runway 34R. Magnetic variation: 16E
2.19.2 ILS Identification: SEA
2.19.5 Coordinates: 47-26-3.3996N / 122-18-23.0248W
2.19.6 Site Elevation: 355.1 ft

2.19.1 ILS Type: Localizer for runway 34R. Magnetic variation: 16E
2.19.2 ILS Identification: SEA
2.19.5 Coordinates: 47-27-54.2762N / 122-18-27.8613W
2.19.6 Site Elevation: 428.1 ft

2.19.1 ILS Type: DME for runway 16R. Magnetic variation: 16E
2.19.2 ILS Identification: CJL
2.19.5 Coordinates: 47-26-15.6195N / 122-18-59.9408W
2.19.6 Site Elevation: 344.8 ft

2.19.1 ILS Type: Glide Slope for runway 16R. Magnetic variation: 16E
2.19.2 ILS Identification: CJL
2.19.5 Coordinates: 47-27-38.4647N / 122-19-0.5973W
2.19.6 Site Elevation: 405.5 ft

2.19.1 ILS Type: Localizer for runway 16R. Magnetic variation: 16E
2.19.2 ILS Identification: CJL
2.19.5 Coordinates: 47-26-15.9249N / 122-19-5.0962W
2.19.6 Site Elevation: 343.7 ft

2.19.1 ILS Type: DME for runway 34L. Magnetic variation: 16E
2.19.2 ILS Identification: BEJ
2.19.5 Coordinates: 47-26-15.6195N / 122-18-59.9408W
2.19.6 Site Elevation: 344.8 ft

2.19.1 ILS Type: Glide Slope for runway 34L. Magnetic variation: 16E
2.19.2 ILS Identification: BEJ
2.19.5 Coordinates: 47-26-34.9351N / 122-18-59.9836W
2.19.6 Site Elevation: 358.5 ft

2.19.1 ILS Type: Localizer for runway 34L. Magnetic variation: 16E
2.19.2 ILS Identification: BEJ
2.19.5 Coordinates: 47-27-59.7764N / 122-19-4.1986W
2.19.6 Site Elevation: 409.5 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 19E
2.19.2 Navigation Aid Identification: SEA
2.19.5 Coordinates: 47-26-7.3434N / 122-18-34.618W
2.19.6 Site Elevation: 348.4 ft

General Remarks:

(E94) WSO/WSFO.

RWY 16L/34R RSTD TO ACFT WITH WINGSPAN 260 FT OR LESS.

TAXILANE W RSTD TO ACFT WITH WINGSPAN 135 FT OR LESS N OF TWY N AND 167 FT OR LESS SOUTH OF TWY N. SEATTLE RAMP TWR PRVDS ADZY CTL ONLY.

AIR CARGO 5 RAMP DUAL ENG TAX ONLY

TWYS J & H E OF TWY T RSTD TO ACFT WITH WINGSPAN 167 FT OR LESS.

BTN THE HRS OF 2200-0700 THE USE OF EXTDD REVERSE THRUST IS DISCOURAGED BYD WHAT IS NECCESSARY FOR OPNL OR SAFETY REASONS. NOISE ABATEMENT PROCEDURES IN EFFECT BTN 2200-0600. FOR FURTHER INFO CONTACT SEA NOISE ABATEMENT OFFICE AT 206-787-7496.

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

TWY H E OF RWY 16L/34R RSTD TO ACFT WITH WINGSPAN 118 FT OR LESS WHEN EXITING RWY 16L/34R.

DO NOT MISTAKE TWY T FOR LNDG SFC.

ACES TO AIR CARGO 4 PRKG AND CARGO AREAS RSTD TO ACFT WITH WINGSPAN 170 FT OR LESS.

HELICOPTERS LANDING & DEPARTING AVOID OVERFLYING FUEL FARM LCTD AT THE SE CORNER OF THE ARPT.

(E110) CONTINUOUS POWER ARPT.

TWY B SOUTH OF AIR CARGO 7 RAMP RSTD TO ACFT WITH WINGSPAN 260 FT OR LESS.

TWY FOR CORPORATE HNGR RAMP RSTD TO ACFT WITH WINGSPAN 62 FT OR LESS FOR TAXI OPS. GA CUST PKNG IS VERY LTD.

RY STATUS LGTS ARE IN OPN.

TWY A SOUTH OF TWY G RSTD TO ACFT WITH WINGSPAN 225 FT OR LESS.

100LL FUEL NOT AVBL.

TWY B S OF TWY Q RSTD TO ACFT WITH WINGSPAN 260 FT OR LESS.

BIRD FLOCKS WITHIN ARPT VCNTY - CHECK LCL ADZYS.

TAXILANE ON N SIDE OF N STLT RSTD TO ACFT WITH WINGSPAN 118 FT OR LESS. TRI-TAXILANES AT N STLT: CNTR (GREEN) TAXILANE RSTD TO ACFT WITH WINGSPAN 135 FT OR LESS. WHEN AN ACFT IS ON THE CNTR (GREEN) OR OTR (ORANGE/BLUE) TAXILANES, NO OTR ACFT CAN SIMUL USE THE ADJ TAXILANE(S). ORANGE & BLUE TAXILANES ARE RSTD TO ACFT WITH WINGSPAN 118 FT OR LESS. TWO
ACFT CAN SIMUL USE THE OUTER TAXILANES.

GA LANDING FEES PAYABLE BY MAJOR CREDIT CARDS ONLY.

ACFT WITH WINGSPANS OF 171 FT. OR MORE PARKED AT PAX GATES OR CARGO 7 MUST PROVIDE 30 MIN PPR PRIOR TO PUSHBACK TO SEATTLE RAMP TWR WHEN VSBY LESS THAN 2400 RVR

FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL.

PPR FOR ALL GA PRKG AND SVC. CTC 206-433-5481. OPR HRS 0530L - 2300L, WITH A CALL OUT AVBL UPON REQ.

Spokane, Washington
Spokane International
ICAO Identifier KGEG

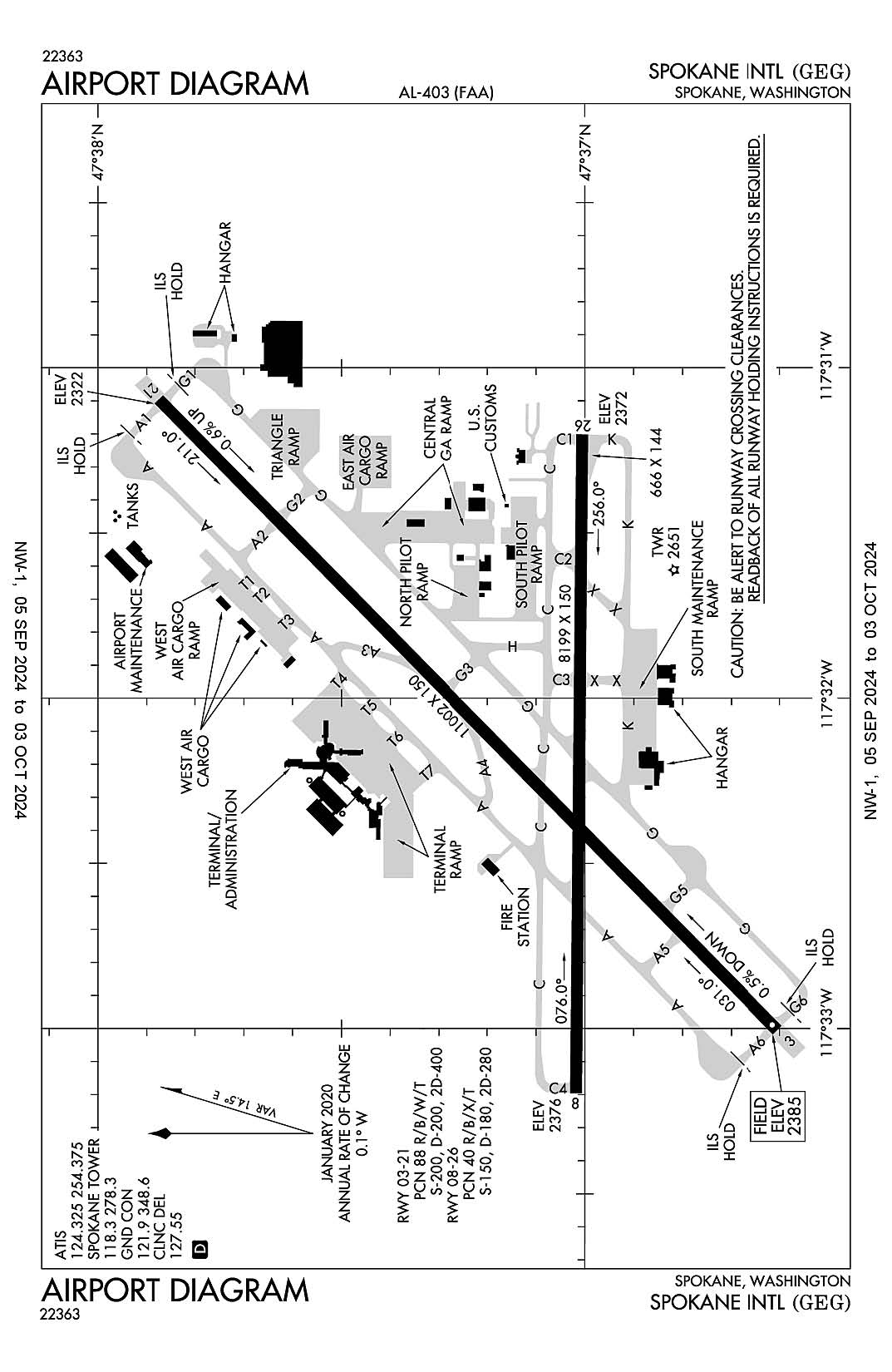

The airport diagram for Spokane International (ICAO Identifier KGEG).

Spokane, WA
Spokane Intl
ICAO Identifier KGEG

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 47-37-8.5N / 117-32-6.8W
2.2.2 From City: 5 miles SW of SPOKANE, WA
2.2.3 Elevation: 2385 ft
2.2.5 Magnetic Variation: 14E (2020)
2.2.6 Airport Contact: LAWRENCE J KRAUTER
9000 W AIRPORT DR.
SPOKANE, WA 99224 ((509) 455-6418)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I C certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 03
2.12.2 True Bearing: 45
2.12.3 Dimensions: 11002 ft x 150 ft
2.12.4 PCN: 88 R/B/W/T
2.12.5 Coordinates: 47-36-36.2909N / 117-33-0.2876W
2.12.6 Threshold Elevation: 2385 ft
2.12.6 Touchdown Zone Elevation: 2385 ft

2.12.1 Designation: 21
2.12.2 True Bearing: 225
2.12.3 Dimensions: 11002 ft x 150 ft
2.12.4 PCN: 88 R/B/W/T
2.12.5 Coordinates: 47-37-52.3811N / 117-31-5.7573W
2.12.6 Threshold Elevation: 2322.4 ft
2.12.6 Touchdown Zone Elevation: 2346.1 ft

2.12.1 Designation: 08
2.12.2 True Bearing: 90
2.12.3 Dimensions: 8199 ft x 150 ft
2.12.4 PCN: 40 R/B/X/T
2.12.5 Coordinates: 47-37-1.0687N / 117-33-11.7639W
2.12.6 Threshold Elevation: 2376.2 ft
2.12.6 Touchdown Zone Elevation: 2376.2 ft

2.12.1 Designation: 26
2.12.2 True Bearing: 270
2.12.3 Dimensions: 8199 ft x 150 ft
2.12.4 PCN: 40 R/B/X/T
2.12.5 Coordinates: 47-37-0.3642N / 117-31-12.1045W
2.12.6 Threshold Elevation: 2371.5 ft
2.12.6 Touchdown Zone Elevation: 2371.5 ft

AD 2.13 Declared Distances
2.13.1 Designation: 03
2.13.2 Take-off Run Available: 11002
2.13.3 Take-off Distance Available: 11002
2.13.4 Accelerate-Stop Distance Available: 11002
2.13.5 Landing Distance Available: 11002

2.13.1 Designation: 21
2.13.2 Take-off Run Available: 11002
2.13.3 Take-off Distance Available: 11002
2.13.4 Accelerate-Stop Distance Available: 11002
2.13.5 Landing Distance Available: 11002

2.13.1 Designation: 08
2.13.2 Take-off Run Available: 8199
2.13.3 Take-off Distance Available: 8199
2.13.4 Accelerate-Stop Distance Available: 8199
2.13.5 Landing Distance Available: 8199

2.13.1 Designation: 26
2.13.2 Take-off Run Available: 8199
2.13.3 Take-off Distance Available: 8199
2.13.4 Accelerate-Stop Distance Available: 8199
2.13.5 Landing Distance Available: 8199

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 03
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 21
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 08
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 26
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P DEP/P IC (205-025)
2.18.3 Channel: 123.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (026-204)
2.18.3 Channel: 133.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (026-204)
2.18.3 Channel: 263
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (205-025)
2.18.3 Channel: 282.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S DEP/S
2.18.3 Channel: 372.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: ATIS
2.18.3 Channel: 124.325
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: ATIS
2.18.3 Channel: 254.375
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 127.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (205-025)
2.18.3 Channel: 123.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (026-204)
2.18.3 Channel: 133.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (026-204)
2.18.3 Channel: 263
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (205-025)
2.18.3 Channel: 282.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 278.3
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 03. Magnetic variation: 14E
2.19.2 ILS Identification: OLJ
2.19.5 Coordinates: 47-36-32.05N / 117-33-15.1W
2.19.6 Site Elevation: 2380.2 ft

2.19.1 ILS Type: Glide Slope for runway 03. Magnetic variation: 14E
2.19.2 ILS Identification: OLJ
2.19.5 Coordinates: 47-36-47.5569N / 117-32-51.8755W
2.19.6 Site Elevation: 2372 ft

2.19.1 ILS Type: Localizer for runway 03. Magnetic variation: 14E
2.19.2 ILS Identification: OLJ
2.19.5 Coordinates: 47-37-59.6757N / 117-30-54.7682W
2.19.6 Site Elevation: 2315.7 ft

2.19.1 ILS Type: DME for runway 21. Magnetic variation: 14E
2.19.2 ILS Identification: GEG
2.19.5 Coordinates: 47-36-32.05N / 117-33-15.1W
2.19.6 Site Elevation: 2380.2 ft

2.19.1 ILS Type: Glide Slope for runway 21. Magnetic variation: 14E
2.19.2 ILS Identification: GEG
2.19.5 Coordinates: 47-37-48.959N / 117-31-19.4519W
2.19.6 Site Elevation: 2324.3 ft

2.19.1 ILS Type: Localizer for runway 21. Magnetic variation: 14E
2.19.2 ILS Identification: GEG
2.19.5 Coordinates: 47-36-29.2008N / 117-33-10.9524W
2.19.6 Site Elevation: 2380.1 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 21E
2.19.2 Navigation Aid Identification: GEG
2.19.5 Coordinates: 47-33-53.805N / 117-37-36.789W
2.19.6 Site Elevation: 2756.3 ft

General Remarks:

PORTIONS OF TWY K NOT VISIBLE FM ATCT.

TWY K UNLGTD ON RAMP SIDE ALONG MAINTENANCE RAMP AND IS UNAVBL BELOW 1200 RVR UNLESS UNDER ESCORT BY "FOLLOW ME".

BE ALERT TO TURBULENCE OVER SMOKE STACKS 1 MILE EAST OF ARPT.

WATERFOWL & BIRDS ON & INVOF ARPT.
