Michigan

Detroit, Michigan
Detroit Metropolitan Wayne County
ICAO Identifier KDTW

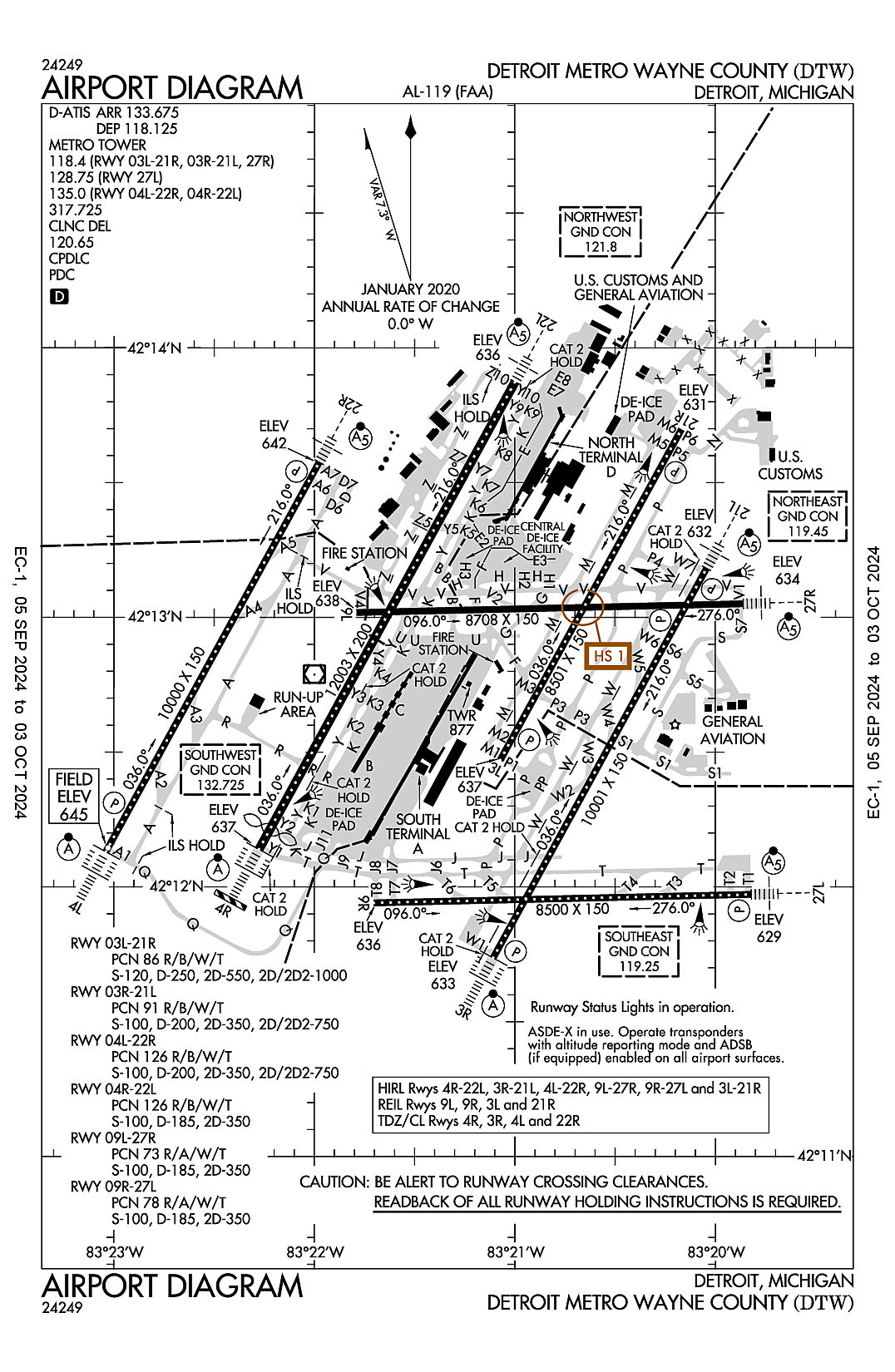

The airport diagram for Detroit Metropolitan Wayne County (ICAO Identifier KDTW).

Detroit, MI
Detroit Metropolitan Wayne County
ICAO Identifier KDTW

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 42-12-44.8N / 83-21-12.2W
2.2.2 From City: 15 miles S of DETROIT, MI
2.2.3 Elevation: 645.2 ft
2.2.5 Magnetic Variation: 7W (2020)
2.2.6 Airport Contact: CHAD NEWTON, INTERIM AMGR
11050 ROGELL DR #602
DETROIT, MI 48242 (734-942-3685)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: NONE

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I E certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 03L
2.12.2 True Bearing: 29
2.12.3 Dimensions: 8501 ft x 150 ft
2.12.4 PCN: 86 R/B/W/T
2.12.5 Coordinates: 42-12-28.207N / 83-21-4.3869W
2.12.6 Threshold Elevation: 635.7 ft
2.12.6 Touchdown Zone Elevation: 636.8 ft

2.12.1 Designation: 21R
2.12.2 True Bearing: 209
2.12.3 Dimensions: 8501 ft x 150 ft
2.12.4 PCN: 86 R/B/W/T
2.12.5 Coordinates: 42-13-41.852N / 83-20-10.1125W
2.12.6 Threshold Elevation: 631.4 ft
2.12.6 Touchdown Zone Elevation: 634.4 ft

2.12.1 Designation: 03R
2.12.2 True Bearing: 29
2.12.3 Dimensions: 10001 ft x 150 ft
2.12.4 PCN: 91 R/B/W/T
2.12.5 Coordinates: 42-11-44.2115N / 83-21-6.4868W
2.12.6 Threshold Elevation: 632.8 ft
2.12.6 Touchdown Zone Elevation: 633.1 ft

2.12.1 Designation: 21L
2.12.2 True Bearing: 209
2.12.3 Dimensions: 10001 ft x 150 ft
2.12.4 PCN: 91 R/B/W/T
2.12.5 Coordinates: 42-13-10.8552N / 83-20-2.6517W
2.12.6 Threshold Elevation: 631.8 ft
2.12.6 Touchdown Zone Elevation: 632.3 ft

2.12.1 Designation: 04L
2.12.2 True Bearing: 29
2.12.3 Dimensions: 10000 ft x 150 ft
2.12.4 PCN: 126 R/B/W/T
2.12.5 Coordinates: 42-12-7.8216N / 83-23-2.4003W
2.12.6 Threshold Elevation: 645.2 ft
2.12.6 Touchdown Zone Elevation: 645.2 ft

2.12.1 Designation: 22R
2.12.2 True Bearing: 209
2.12.3 Dimensions: 10000 ft x 150 ft
2.12.4 PCN: 126 R/B/W/T
2.12.5 Coordinates: 42-13-34.4821N / 83-21-58.6115W
2.12.6 Threshold Elevation: 642.1 ft
2.12.6 Touchdown Zone Elevation: 642.1 ft

2.12.1 Designation: 22L
2.12.2 True Bearing: 209
2.12.3 Dimensions: 12003 ft x 200 ft
2.12.4 PCN: 126 R/B/W/T
2.12.5 Coordinates: 42-13-52.3644N / 83-20-59.9655W
2.12.6 Threshold Elevation: 635.8 ft
2.12.6 Touchdown Zone Elevation: 637.4 ft

2.12.1 Designation: 04R
2.12.2 True Bearing: 29
2.12.3 Dimensions: 12003 ft x 200 ft
2.12.4 PCN: 126 R/B/W/T
2.12.5 Coordinates: 42-12-8.3656N / 83-22-16.5697W
2.12.6 Threshold Elevation: 637 ft
2.12.6 Touchdown Zone Elevation: 639.5 ft

2.12.1 Designation: 22X
2.12.2 True Bearing: 209
2.12.3 Dimensions: 0 ft x 0 ft
2.12.4 PCN:
2.12.5 Coordinates: -- / --
2.12.6 Threshold Elevation: ft
2.12.6 Touchdown Zone Elevation: ft

2.12.1 Designation: 04X
2.12.2 True Bearing: 29
2.12.3 Dimensions: 0 ft x 0 ft
2.12.4 PCN:
2.12.5 Coordinates: -- / --
2.12.6 Threshold Elevation: ft
2.12.6 Touchdown Zone Elevation: ft

2.12.1 Designation: 27R
2.12.2 True Bearing: 269
2.12.3 Dimensions: 8708 ft x 150 ft
2.12.4 PCN: 73 R/A/W/T
2.12.5 Coordinates: 42-13-3.0219N / 83-19-51.7146W
2.12.6 Threshold Elevation: 634.3 ft
2.12.6 Touchdown Zone Elevation: 634.7 ft

2.12.1 Designation: 09L
2.12.2 True Bearing: 89
2.12.3 Dimensions: 8708 ft x 150 ft
2.12.4 PCN: 73 R/A/W/T
2.12.5 Coordinates: 42-13-1.0821N / 83-21-47.4044W
2.12.6 Threshold Elevation: 638 ft
2.12.6 Touchdown Zone Elevation: 639.6 ft

2.12.1 Designation: 09R
2.12.2 True Bearing: 89
2.12.3 Dimensions: 8500 ft x 150 ft
2.12.4 PCN: 78 R/A/W/T
2.12.5 Coordinates: 42-11-56.4542N / 83-21-42.2248W
2.12.6 Threshold Elevation: 636 ft
2.12.6 Touchdown Zone Elevation: 636.1 ft

2.12.1 Designation: 27L
2.12.2 True Bearing: 269
2.12.3 Dimensions: 8500 ft x 150 ft
2.12.4 PCN: 78 R/A/W/T
2.12.5 Coordinates: 42-11-58.3372N / 83-19-49.3276W
2.12.6 Threshold Elevation: 629 ft
2.12.6 Touchdown Zone Elevation: 630.1 ft

AD 2.13 Declared Distances
2.13.1 Designation: 03L
2.13.2 Take-off Run Available: 8501
2.13.3 Take-off Distance Available: 8501
2.13.4 Accelerate-Stop Distance Available: 8501
2.13.5 Landing Distance Available: 8501

2.13.1 Designation: 21R
2.13.2 Take-off Run Available: 8501
2.13.3 Take-off Distance Available: 8501
2.13.4 Accelerate-Stop Distance Available: 8501
2.13.5 Landing Distance Available: 8501

2.13.1 Designation: 03R
2.13.2 Take-off Run Available: 10001
2.13.3 Take-off Distance Available: 10001
2.13.4 Accelerate-Stop Distance Available: 10001
2.13.5 Landing Distance Available: 10001

2.13.1 Designation: 21L
2.13.2 Take-off Run Available: 10001
2.13.3 Take-off Distance Available: 10001
2.13.4 Accelerate-Stop Distance Available: 10001
2.13.5 Landing Distance Available: 10001

2.13.1 Designation: 04L
2.13.2 Take-off Run Available: 10000
2.13.3 Take-off Distance Available: 10000
2.13.4 Accelerate-Stop Distance Available: 10000
2.13.5 Landing Distance Available: 10000

2.13.1 Designation: 22R
2.13.2 Take-off Run Available: 10000
2.13.3 Take-off Distance Available: 10000
2.13.4 Accelerate-Stop Distance Available: 10000
2.13.5 Landing Distance Available: 10000

2.13.1 Designation: 22L
2.13.2 Take-off Run Available: 12003
2.13.3 Take-off Distance Available: 12003
2.13.4 Accelerate-Stop Distance Available: 12003
2.13.5 Landing Distance Available: 12003

2.13.1 Designation: 04R
2.13.2 Take-off Run Available: 12003
2.13.3 Take-off Distance Available: 12003
2.13.4 Accelerate-Stop Distance Available: 12003
2.13.5 Landing Distance Available: 11494

2.13.1 Designation: 22X
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 04X
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 27R
2.13.2 Take-off Run Available: 8708
2.13.3 Take-off Distance Available: 8708
2.13.4 Accelerate-Stop Distance Available: 8708
2.13.5 Landing Distance Available: 8708

2.13.1 Designation: 09L
2.13.2 Take-off Run Available: 8708
2.13.3 Take-off Distance Available: 8708
2.13.4 Accelerate-Stop Distance Available: 8618
2.13.5 Landing Distance Available: 8618

2.13.1 Designation: 09R
2.13.2 Take-off Run Available: 8500
2.13.3 Take-off Distance Available: 8500
2.13.4 Accelerate-Stop Distance Available: 8500
2.13.5 Landing Distance Available: 8500

2.13.1 Designation: 27L
2.13.2 Take-off Run Available: 8500
2.13.3 Take-off Distance Available: 8500
2.13.4 Accelerate-Stop Distance Available: 8500
2.13.5 Landing Distance Available: 8500

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 03L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 21R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 03R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 21L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 04L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 22R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 22L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 04R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 22X
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 04X
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 27R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 09L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 09R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 27L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P (RWY 04L/22R, 04R/22L, 27L)
2.18.3 Channel: 124.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (RWY 03R, 21L, 27R)
2.18.3 Channel: 125.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P
2.18.3 Channel: 284
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: BARII DP (RWY 04L/22R, 04R/22L)
2.18.3 Channel: 125.525
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: BARII DP (RWY 03L/21R, 03R/21L, 27L, 27R)
2.18.3 Channel: 132.025
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: BONZZ STAR
2.18.3 Channel: 126.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CCOBB DP (RWY 03L, 03R, 04L, 04R, 21L, 21R, 22L, 22R)
2.18.3 Channel: 125.525
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CCOBB DP (RWY 27L, 27R)
2.18.3 Channel: 132.025
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD PRE TAXI CLNC
2.18.3 Channel: 120.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SW)
2.18.3 Channel: 118.95
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (NW/NE)
2.18.3 Channel: 132.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SE)
2.18.3 Channel: 134.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLVIN DP (RWY 04L/22R, 04R/22L)
2.18.3 Channel: 125.525
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLVIN DP (RWY 03L/21R, 03R/21L, 27L, 27R)
2.18.3 Channel: 132.025
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CRAKN STAR
2.18.3 Channel: 126.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CUUGR STAR
2.18.3 Channel: 126.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (DEP)
2.18.3 Channel: 118.125
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (ARR)
2.18.3 Channel: 133.675
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (PROPS/TURBOPROPS-WEST)
2.18.3 Channel: 118.95
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (TURBOJETS-WEST)
2.18.3 Channel: 125.525
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (TURBOJETS-EAST)
2.18.3 Channel: 132.025
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (PROPS/TURBOPROPS-EAST)
2.18.3 Channel: 134.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: FERRL STAR
2.18.3 Channel: 126.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GEMNI STAR
2.18.3 Channel: 126.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (SOUTHEAST)
2.18.3 Channel: 119.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (NORTHEAST)
2.18.3 Channel: 119.45
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (NORTHWEST)
2.18.3 Channel: 121.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (SOUTHWEST)
2.18.3 Channel: 132.725
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GRAYT STAR
2.18.3 Channel: 124.975
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: HANBLSTAR
2.18.3 Channel: 124.975
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: HAYLL STAR
2.18.3 Channel: 124.975
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: HHOWE DP (RWY 27L, 27R)
2.18.3 Channel: 125.525
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: HHOWE DP (RWY 03L/21R, 03R/21L, 04L/22R, 04R/22L)
2.18.3 Channel: 132.025
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: HTROD STAR
2.18.3 Channel: 126.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: KAYLN DP
2.18.3 Channel: 125.525
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: KKISS STAR
2.18.3 Channel: 124.975
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: KLYNK STAR
2.18.3 Channel: 126.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LAYKS STAR
2.18.3 Channel: 124.975
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (ARRIVAL RWY 03R/21L, 27R)
2.18.3 Channel: 118.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (DEP, ARPT DIAG RWY 03L/21R, 03R/21L, 27R)
2.18.3 Channel: 118.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (ARRIVAL RWY 04R/22L)
2.18.3 Channel: 128.125
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (DEP, ARPT DIAG RWY 27L)
2.18.3 Channel: 128.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (ARRIVAL RWY 03L/21R, 27L)
2.18.3 Channel: 128.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (ARRIVAL RWY 04L/22R)
2.18.3 Channel: 135
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (DEP, ARPT DIAG RWY 04L/22R, 04R/22L)
2.18.3 Channel: 135
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 317.725
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LECTR STAR
2.18.3 Channel: 124.975
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LIDDS DP
2.18.3 Channel: 132.025
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: MEDEVAC
2.18.3 Channel: 259.6
2.18.5 Hours of Operation:

2.18.1 Service Designation: METRO DP (WESTBOUND)
2.18.3 Channel: 118.95
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: METRO DP (EASTBOUND)
2.18.3 Channel: 134.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: MIGGY DP
2.18.3 Channel: 125.525
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: MIZAR STAR
2.18.3 Channel: 124.975
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PAVYL DP
2.18.3 Channel: 132.025
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: POLAR STAR
2.18.3 Channel: 124.975
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PRM (RWY 04L/22R)
2.18.3 Channel: 127.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PRM (RWY 04R/22L)
2.18.3 Channel: 135.775
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RKCTY STAR
2.18.3 Channel: 124.975
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: SNDRS DP (RWY 04L/22R, 04R/22L)
2.18.3 Channel: 125.525
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: SNDRS DP (RWY 03L/21R, 03R/21L, 27L, 27R)
2.18.3 Channel: 132.025
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: SPICA STAR
2.18.3 Channel: 126.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: TPGUN STAR
2.18.3 Channel: 126.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: TRMML DP (RWY 22L, 22R, 27L, 27R)
2.18.3 Channel: 125.525
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: TRMML DP (RWY 03L, 03R, 04L, 04R, 21L, 21R)
2.18.3 Channel: 132.025
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: VCTRZ STAR
2.18.3 Channel: 124.975
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: WEEDA STAR
2.18.3 Channel: 126.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: WNGNT STAR
2.18.3 Channel: 126.225
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: ZETTR DP (RWY 22L, 22R, 27L, 27R)
2.18.3 Channel: 125.525
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: ZETTR DP (RWY 03L, 03R, 04L, 04R, 21L, 21R)
2.18.3 Channel: 132.025
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 03R. Magnetic variation: 7W
2.19.2 ILS Identification: HUU
2.19.5 Coordinates: 42-11-34.2185N / 83-21-9.5792W
2.19.6 Site Elevation: 638.7 ft

2.19.1 ILS Type: Glide Slope for runway 03R. Magnetic variation: 7W
2.19.2 ILS Identification: HUU
2.19.5 Coordinates: 42-11-51.1266N / 83-20-54.979W
2.19.6 Site Elevation: 630.1 ft

2.19.1 ILS Type: Inner Marker for runway 03R. Magnetic variation: 7W
2.19.2 ILS Identification: HUU
2.19.5 Coordinates: 42-11-36.5551N / 83-21-12.137W
2.19.6 Site Elevation: 631.1 ft

2.19.1 ILS Type: Localizer for runway 03R. Magnetic variation: 7W
2.19.2 ILS Identification: HUU
2.19.5 Coordinates: 42-13-20.4082N / 83-19-55.609W
2.19.6 Site Elevation: 634 ft

2.19.1 ILS Type: DME for runway 21L. Magnetic variation: 7W
2.19.2 ILS Identification: EJR
2.19.5 Coordinates: 42-11-34.2185N / 83-21-9.5792W
2.19.6 Site Elevation: 638.7 ft

2.19.1 ILS Type: Glide Slope for runway 21L. Magnetic variation: 7W
2.19.2 ILS Identification: EJR
2.19.5 Coordinates: 42-12-58.4945N / 83-20-5.1867W
2.19.6 Site Elevation: 628.9 ft

2.19.1 ILS Type: Localizer for runway 21L. Magnetic variation: 7W
2.19.2 ILS Identification: EJR
2.19.5 Coordinates: 42-11-34.9459N / 83-21-13.3158W
2.19.6 Site Elevation: 631.1 ft

2.19.1 ILS Type: DME for runway 04L. Magnetic variation: 7W
2.19.2 ILS Identification: HJT
2.19.5 Coordinates: 42-13-41.8988N / 83-21-48.7254W
2.19.6 Site Elevation: 649.7 ft

2.19.1 ILS Type: Glide Slope for runway 04L. Magnetic variation: 7W
2.19.2 ILS Identification: HJT
2.19.5 Coordinates: 42-12-18.9498N / 83-23-0.2665W
2.19.6 Site Elevation: 640.6 ft

2.19.1 ILS Type: Inner Marker for runway 04L. Magnetic variation: 7W
2.19.2 ILS Identification: HJT
2.19.5 Coordinates: 42-12-0.3838N / 83-23-7.8811W
2.19.6 Site Elevation: 645.2 ft

2.19.1 ILS Type: Localizer for runway 04L. Magnetic variation: 7W
2.19.2 ILS Identification: HJT
2.19.5 Coordinates: 42-13-43.2279N / 83-21-52.161W
2.19.6 Site Elevation: 642 ft

2.19.1 ILS Type: DME for runway 22R. Magnetic variation: 7W
2.19.2 ILS Identification: JKI
2.19.5 Coordinates: 42-13-41.8988N / 83-21-48.7254W
2.19.6 Site Elevation: 649.7 ft

2.19.1 ILS Type: Glide Slope for runway 22R. Magnetic variation: 7W
2.19.2 ILS Identification: JKI
2.19.5 Coordinates: 42-13-27.2272N / 83-22-10.0062W
2.19.6 Site Elevation: 636.7 ft

2.19.1 ILS Type: Localizer for runway 22R. Magnetic variation: 7W
2.19.2 ILS Identification: JKI
2.19.5 Coordinates: 42-11-59.0707N / 83-23-8.842W
2.19.6 Site Elevation: 644.6 ft

2.19.1 ILS Type: DME for runway 04R. Magnetic variation: 7W
2.19.2 ILS Identification: DTW
2.19.5 Coordinates: 42-13-59.7252N / 83-20-50.3339W
2.19.6 Site Elevation: 645.3 ft

2.19.1 ILS Type: Glide Slope for runway 04R. Magnetic variation: 7W
2.19.2 ILS Identification: DTW
2.19.5 Coordinates: 42-12-23.21N / 83-22-11.85W
2.19.6 Site Elevation: 633.1 ft

2.19.1 ILS Type: Inner Marker for runway 04R. Magnetic variation: 7W
2.19.2 ILS Identification: DTW
2.19.5 Coordinates: 42-12-4.547N / 83-22-19.3737W
2.19.6 Site Elevation: 637.1 ft

2.19.1 ILS Type: Localizer for runway 04R. Magnetic variation: 7W
2.19.2 ILS Identification: DTW
2.19.5 Coordinates: 42-14-1.3028N / 83-20-53.3772W
2.19.6 Site Elevation: 636.5 ft

2.19.1 ILS Type: DME for runway 22L. Magnetic variation: 7W
2.19.2 ILS Identification: DWC
2.19.5 Coordinates: 42-13-59.7252N / 83-20-50.3339W
2.19.6 Site Elevation: 645.3 ft

2.19.1 ILS Type: Glide Slope for runway 22L. Magnetic variation: 7W
2.19.2 ILS Identification: DWC
2.19.5 Coordinates: 42-13-43.8552N / 83-21-12.2894W
2.19.6 Site Elevation: 635.6 ft

2.19.1 ILS Type: Localizer for runway 22L. Magnetic variation: 7W
2.19.2 ILS Identification: DWC
2.19.5 Coordinates: 42-11-59.5406N / 83-22-23.0644W
2.19.6 Site Elevation: 636.1 ft

2.19.1 ILS Type: DME for runway 04X. Magnetic variation: 7W
2.19.2 ILS Identification: ALA
2.19.5 Coordinates: 42-11-57.1056N / 83-23-6.1821W
2.19.6 Site Elevation: 656.5 ft

2.19.1 ILS Type: Glide Slope for runway 04X. Magnetic variation: 7W
2.19.2 ILS Identification: ALA
2.19.5 Coordinates: 42-12-19.0378N / 83-23-0.5079W
2.19.6 Site Elevation: 640.7 ft

2.19.1 ILS Type: Localizer for runway 04X. Magnetic variation: 7W
2.19.2 ILS Identification: ALA
2.19.5 Coordinates: 42-13-33.4002N / 83-21-50.9401W
2.19.6 Site Elevation: 638.5 ft

2.19.1 ILS Type: DME for runway 22X. Magnetic variation: 7W
2.19.2 ILS Identification: BZB
2.19.5 Coordinates: 42-11-57.1056N / 83-23-6.1821W
2.19.6 Site Elevation: 656.6 ft

2.19.1 ILS Type: Glide Slope for runway 22X. Magnetic variation: 7W
2.19.2 ILS Identification: BZB
2.19.5 Coordinates: 42-13-27.3517N / 83-22-10.3013W
2.19.6 Site Elevation: 636.8 ft

2.19.1 ILS Type: Localizer for runway 22X. Magnetic variation: 7W
2.19.2 ILS Identification: BZB
2.19.5 Coordinates: 42-11-56.2259N / 83-23-1.9618W
2.19.6 Site Elevation: 646.3 ft

2.19.1 ILS Type: DME for runway 27R. Magnetic variation: 7W
2.19.2 ILS Identification: DMI
2.19.5 Coordinates: 42-12-47.2915N / 83-21-59.9856W
2.19.6 Site Elevation: 636.5 ft

2.19.1 ILS Type: Glide Slope for runway 27R. Magnetic variation: 7W
2.19.2 ILS Identification: DMI
2.19.5 Coordinates: 42-12-58.3552N / 83-20-4.8574W
2.19.6 Site Elevation: 629 ft

2.19.1 ILS Type: Localizer for runway 27R. Magnetic variation: 7W
2.19.2 ILS Identification: DMI
2.19.5 Coordinates: 42-13-0.7158N / 83-22-9.2988W
2.19.6 Site Elevation: 639.3 ft

2.19.1 ILS Type: DME for runway 27L. Magnetic variation: 7W
2.19.2 ILS Identification: EPA
2.19.5 Coordinates: 42-11-53.6723N / 83-21-55.0763W
2.19.6 Site Elevation: 634.8 ft

2.19.1 ILS Type: Glide Slope for runway 27L. Magnetic variation: 7W
2.19.2 ILS Identification: EPA
2.19.5 Coordinates: 42-11-54.6653N / 83-20-2.5117W
2.19.6 Site Elevation: 625.9 ft

2.19.1 ILS Type: Localizer for runway 27L. Magnetic variation: 7W
2.19.2 ILS Identification: EPA
2.19.5 Coordinates: 42-11-56.2294N / 83-21-55.6348W
2.19.6 Site Elevation: 634.1 ft

General Remarks:

BRIGHTLY LIGHTED PARKING LOT 2.6 NM SW OF ARPT.

RWY VISUAL SCREEN 20 FT AGL 1150 FT S. AER 04R

TURNING RESTRICTION TWY B TO TWY K RESTRICTED TO AIRCRAFT WITH WINGSPAN 171 FT OR LESS.

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

PPR FOR B747-8 OPRS DUE TO CONSTRAINTS ON RWYS, TWYS AND RAMPS CTC AIRFIELD OPRS AT 734-942-3685.

TAXI ON RWY 09L/27R LTD TO: EXITING FM RWY 04R/22L, 03L/21R, & 03R/21L EXC NO TAXI BTN RWY 03L/21R & TWY W; TWO-WAY TAXI BTN TWY Y & TWY M WHEN RED STOP BAR LGTS ARE LGTD AT RWY 04R/22L & 03L/21R OR WHEN BARRICADES ARE USED INSTEAD AT THE RESPECTIVE INTS. TAXI BTN SS-SR OR IN CONDS WITH VIS LESS THAN 1 SM RQRS GREEN CNTRLN LGT TO BE OPR.

BE ALERT BIRDS, WATERFOWL, ON & INVOF ARPT.

RY STATUS LGTS ARE IN OPN.

ACFT WITH WINGSPAN GTR THAN 171 FT ARE RSTRD FM USING TWY P BTN TWY J & TWY P3.

TURNING RSTRD TO WINGSPAN 135 FT OR LESS TWY G NORTH TO TWY V EAST.

AIRCRAFT WITH WINGSPAN GREATER THAN 171 FT CANNOT PASS EACH OTHER ON TWYS Y AND K BETWEEN TWYS U AND K6 INSUFFICIENT WINGTIP CLEARANCE.

ACFT ON TWY 'F' AND TWY 'V' DO NOT BLOCK FIRE STATION EXITS.

DIVERSIONAIR CARRIERS WITHOUT A PRESENCE AT DTW SHOULD CTC AIRFIELD OPRS 734-942-3685 PRIOR TO DIVERTING TO THE EXTENT PRACTICAL AND PROVIDE COMPANY, FLT OPRS, CTC INFO, AIRCRAFT TYPE, PERSONS ONBOARD, INTERNATIONAL OR DOMESTIC, ANY GRND HANDLER AGGREEMENTS IN PLACE.

ACFT WITH WINGSPAN GTR THAN 171 FT ARE RSTRD FM USING TWY H BTN TWY K & TWY F.
