Kansas

Wichita, Kansas
Wichita Mid-Continent
ICAO Identifier KICT

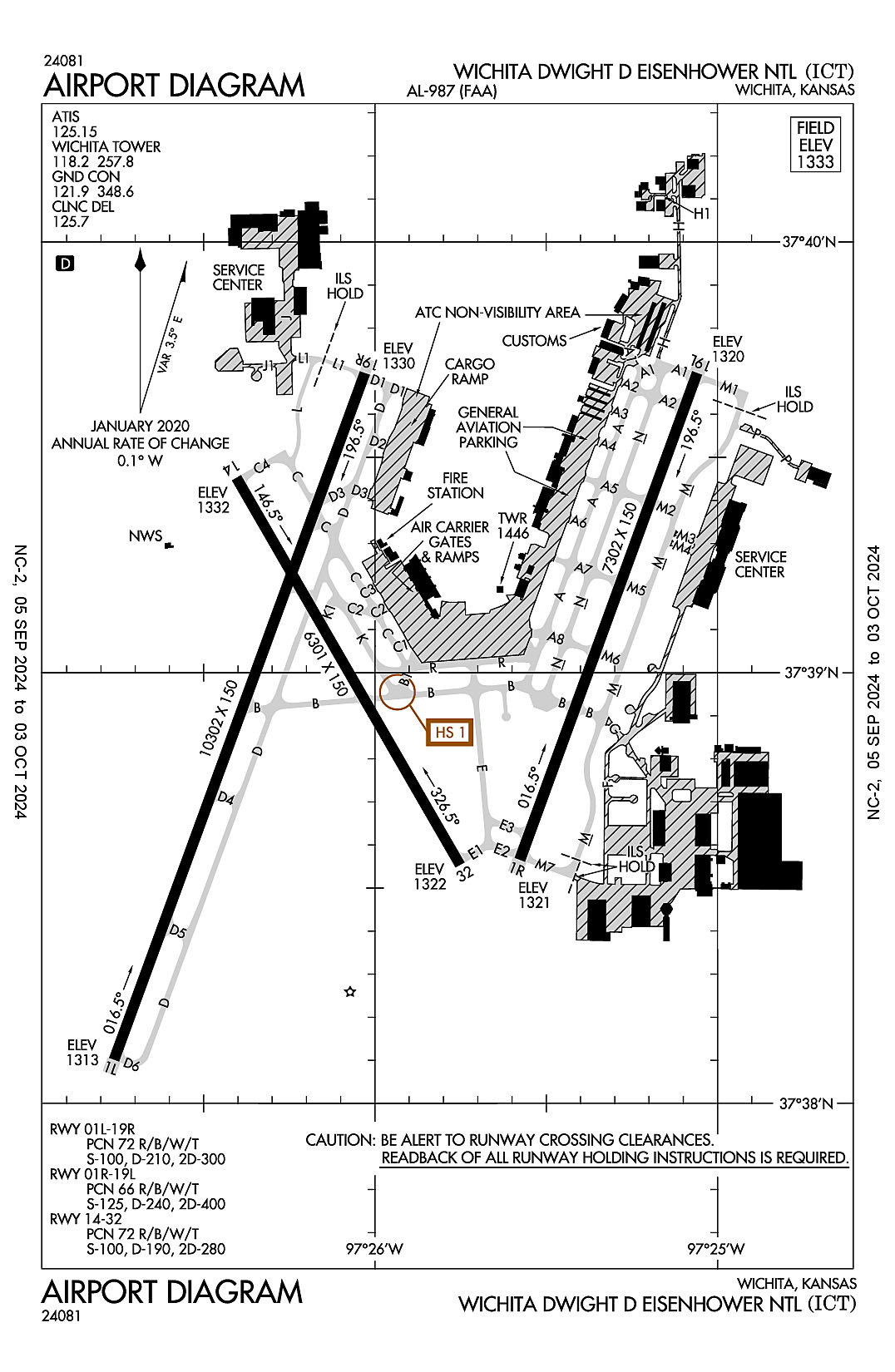

The airport diagram for Wichita Mid-Continent (ICAO Identifier KICT).

Wichita, KS
Wichita Mid-Continent
ICAO Identifier KICT

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 37-38-59.8N / 97-25-59W
2.2.2 From City: 5 miles SW of WICHITA, KS
2.2.3 Elevation: 1332.5 ft
2.2.5 Magnetic Variation: 4E (2015)
2.2.6 Airport Contact: MR. VICTOR WHITE, A.A.E.
2173 AIR CARGO ROAD
WICHITA, KS 67209 (316-946-4700)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I C certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 01L
2.12.2 True Bearing: 20
2.12.3 Dimensions: 10301 ft x 150 ft
2.12.4 PCN: 72 R/B/W/T
2.12.5 Coordinates: 37-38-6.0674N / 97-26-45.5905W
2.12.6 Threshold Elevation: 1312.6 ft
2.12.6 Touchdown Zone Elevation: 1314.2 ft

2.12.1 Designation: 19R
2.12.2 True Bearing: 200
2.12.3 Dimensions: 10301 ft x 150 ft
2.12.4 PCN: 72 R/B/W/T
2.12.5 Coordinates: 37-39-41.763N / 97-26-1.7928W
2.12.6 Threshold Elevation: 1329.7 ft
2.12.6 Touchdown Zone Elevation: 1329.7 ft

2.12.1 Designation: 19L
2.12.2 True Bearing: 200
2.12.3 Dimensions: 7301 ft x 150 ft
2.12.4 PCN: 66 R/B/W/T
2.12.5 Coordinates: 37-39-41.7681N / 97-25-3.5639W
2.12.6 Threshold Elevation: 1319.8 ft
2.12.6 Touchdown Zone Elevation: 1319.9 ft

2.12.1 Designation: 01R
2.12.2 True Bearing: 20
2.12.3 Dimensions: 7301 ft x 150 ft
2.12.4 PCN: 66 R/B/W/T
2.12.5 Coordinates: 37-38-33.9452N / 97-25-34.6273W
2.12.6 Threshold Elevation: 1320.9 ft
2.12.6 Touchdown Zone Elevation: 1320.9 ft

2.12.1 Designation: 14
2.12.2 True Bearing: 150
2.12.3 Dimensions: 6301 ft x 150 ft
2.12.4 PCN: 72 R/B/W/T
2.12.5 Coordinates: 37-39-27.1616N / 97-26-24.2724W
2.12.6 Threshold Elevation: 1332.1 ft
2.12.6 Touchdown Zone Elevation: 1332.5 ft

2.12.1 Designation: 32
2.12.2 True Bearing: 330
2.12.3 Dimensions: 6301 ft x 150 ft
2.12.4 PCN: 72 R/B/W/T
2.12.5 Coordinates: 37-38-33.2158N / 97-25-45.1013W
2.12.6 Threshold Elevation: 1321.6 ft
2.12.6 Touchdown Zone Elevation: 1321.7 ft

AD 2.13 Declared Distances
2.13.1 Designation: 01L
2.13.2 Take-off Run Available: 10301
2.13.3 Take-off Distance Available: 10301
2.13.4 Accelerate-Stop Distance Available: 10301
2.13.5 Landing Distance Available: 10301

2.13.1 Designation: 19R
2.13.2 Take-off Run Available: 10301
2.13.3 Take-off Distance Available: 10301
2.13.4 Accelerate-Stop Distance Available: 10301
2.13.5 Landing Distance Available: 10301

2.13.1 Designation: 19L
2.13.2 Take-off Run Available: 7301
2.13.3 Take-off Distance Available: 7301
2.13.4 Accelerate-Stop Distance Available: 7301
2.13.5 Landing Distance Available: 7301

2.13.1 Designation: 01R
2.13.2 Take-off Run Available: 7301
2.13.3 Take-off Distance Available: 7301
2.13.4 Accelerate-Stop Distance Available: 7301
2.13.5 Landing Distance Available: 7301

2.13.1 Designation: 14
2.13.2 Take-off Run Available: 6301
2.13.3 Take-off Distance Available: 6301
2.13.4 Accelerate-Stop Distance Available: 6301
2.13.5 Landing Distance Available: 6301

2.13.1 Designation: 32
2.13.2 Take-off Run Available: 6301
2.13.3 Take-off Distance Available: 6301
2.13.4 Accelerate-Stop Distance Available: 6301
2.13.5 Landing Distance Available: 6301

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 01L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 19R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 19L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 01R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 14
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 32
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P (270-009 BLW 5000 FT & BYD 20 NM)
2.18.3 Channel: 125.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (E IAB BLW 5000 FT)
2.18.3 Channel: 269.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (270-009 BLW 5000 FT & BYD 20 NM)
2.18.3 Channel: 325.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (010-190)
2.18.3 Channel: 134.85
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (010-190)
2.18.3 Channel: 290.275
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (191-009)
2.18.3 Channel: 126.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (191-009)
2.18.3 Channel: 353.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S DEP/S
2.18.3 Channel: 327.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: ATIS
2.18.3 Channel: 125.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 125.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (191-009)
2.18.3 Channel: 126.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (010-190 4000 FT & BLW)
2.18.3 Channel: 134.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (010-190 ABV 4000 FT)
2.18.3 Channel: 134.85
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (010-190 ABV 4000 FT)
2.18.3 Channel: 290.275
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS C (191-009)
2.18.3 Channel: 353.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 01L. Magnetic variation: 4E
2.19.2 ILS Identification: TWI
2.19.5 Coordinates: 37-38-16.7093N / 97-26-46.0112W
2.19.6 Site Elevation: 1310.4 ft

2.19.1 ILS Type: Inner Marker for runway 01L. Magnetic variation: 4E
2.19.2 ILS Identification: TWI
2.19.5 Coordinates: 37-37-57.1412N / 97-26-49.6885W
2.19.6 Site Elevation: 1317 ft

2.19.1 ILS Type: Localizer for runway 01L. Magnetic variation: 4E
2.19.2 ILS Identification: TWI
2.19.5 Coordinates: 37-39-51.3419N / 97-25-57.4083W
2.19.6 Site Elevation: 1319.9 ft

2.19.1 ILS Type: Outer Marker for runway 01L. Magnetic variation: 4E
2.19.2 ILS Identification: TWI
2.19.5 Coordinates: 37-33-33.9515N / 97-28-51.777W
2.19.6 Site Elevation: 1310 ft

2.19.1 ILS Type: Glide Slope for runway 19R. Magnetic variation: 4E
2.19.2 ILS Identification: HOV
2.19.5 Coordinates: 37-39-33.86N / 97-26-10.83W
2.19.6 Site Elevation: 1325.7 ft

2.19.1 ILS Type: Localizer for runway 19R. Magnetic variation: 4E
2.19.2 ILS Identification: HOV
2.19.5 Coordinates: 37-37-54.74N / 97-26-50.78W
2.19.6 Site Elevation: 1319.4 ft

2.19.1 ILS Type: Outer Marker for runway 19R. Magnetic variation: 4E
2.19.2 ILS Identification: HOV
2.19.5 Coordinates: 37-44-16.6132N / 97-24-0.9938W
2.19.6 Site Elevation: 1325.7 ft

2.19.1 ILS Type: DME for runway 01R. Magnetic variation: 4E
2.19.2 ILS Identification: ICT
2.19.5 Coordinates: 37-39-52.0396N / 97-25-2.8177W
2.19.6 Site Elevation: 1326.6 ft

2.19.1 ILS Type: Glide Slope for runway 01R. Magnetic variation: 4E
2.19.2 ILS Identification: ICT
2.19.5 Coordinates: 37-38-42.6371N / 97-25-24.6964W
2.19.6 Site Elevation: 1314.7 ft

2.19.1 ILS Type: Localizer for runway 01R. Magnetic variation: 4E
2.19.2 ILS Identification: ICT
2.19.5 Coordinates: 37-39-51.99N / 97-24-58.88W
2.19.6 Site Elevation: 1307 ft

2.19.1 ILS Type: Outer Marker for runway 01R. Magnetic variation: 4E
2.19.2 ILS Identification: ICT
2.19.5 Coordinates: 37-34-41.4971N / 97-27-21.0931W
2.19.6 Site Elevation:

2.19.1 ILS Type: DME for runway 19L. Magnetic variation: 4E
2.19.2 ILS Identification: MVP
2.19.5 Coordinates: 37-38-21.53N / 97-25-43.26W
2.19.6 Site Elevation: 1320 ft

2.19.1 ILS Type: Glide Slope for runway 19L. Magnetic variation: 4E
2.19.2 ILS Identification: MVP
2.19.5 Coordinates: 37-39-30.78N / 97-25-3.17W
2.19.6 Site Elevation: 1312.1 ft

2.19.1 ILS Type: Localizer for runway 19L. Magnetic variation: 4E
2.19.2 ILS Identification: MVP
2.19.5 Coordinates: 37-38-21.32N / 97-25-40.42W
2.19.6 Site Elevation: 1318.3 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 7E
2.19.2 Navigation Aid Identification: ICT
2.19.5 Coordinates: 37-44-42.9245N / 97-35-1.79W
2.19.6 Site Elevation: 1470.5 ft

General Remarks:

CALL FOR PUSHBACK NOT REQUIRED.

TWY L AND L1 CLSD TO ACFT WITH WINGSPAN MORE THAN 118FT.

TWY H CLSD TO ACFT WITH WINGSPAN MORE THAN 75 FT.TWY H CONGESTED AND NOT VISIBLE FROM ATCT; USE CAUTION.

NOTE: SEE SPECIAL NOTICES-CONTINUOUS POWER FACILITIES.

ACFT ENG RUNS ABV IDLE NOT APPROVED ON ACFT PRKG RAMPS.

TWYS F, G, H, J, P AND ALL PARKING RAMPS ARE NON-MOVEMENT AREAS.

PPR REQUIRED FOR ACFT CARRYING CLASS 1 - DIVISION 1.1; 1.2 OR 1.3 EXPLOSIVES AS DEFINED BY 49 CFR 173.50 OR AS AMENDED.

TWY P CLSD TO ACFT WITH WINGSPAN MORE THAN 79FT.

MIGRATORY BIRDS ON AND INVOF ARPT.

ATCT HAS LIMITED VISIBILITY OF TERMINAL GATES 1-8.

FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL.
