Pennsylvania

Philadelphia, Pennsylvania
Philadelphia International
ICAO Identifier KPHL

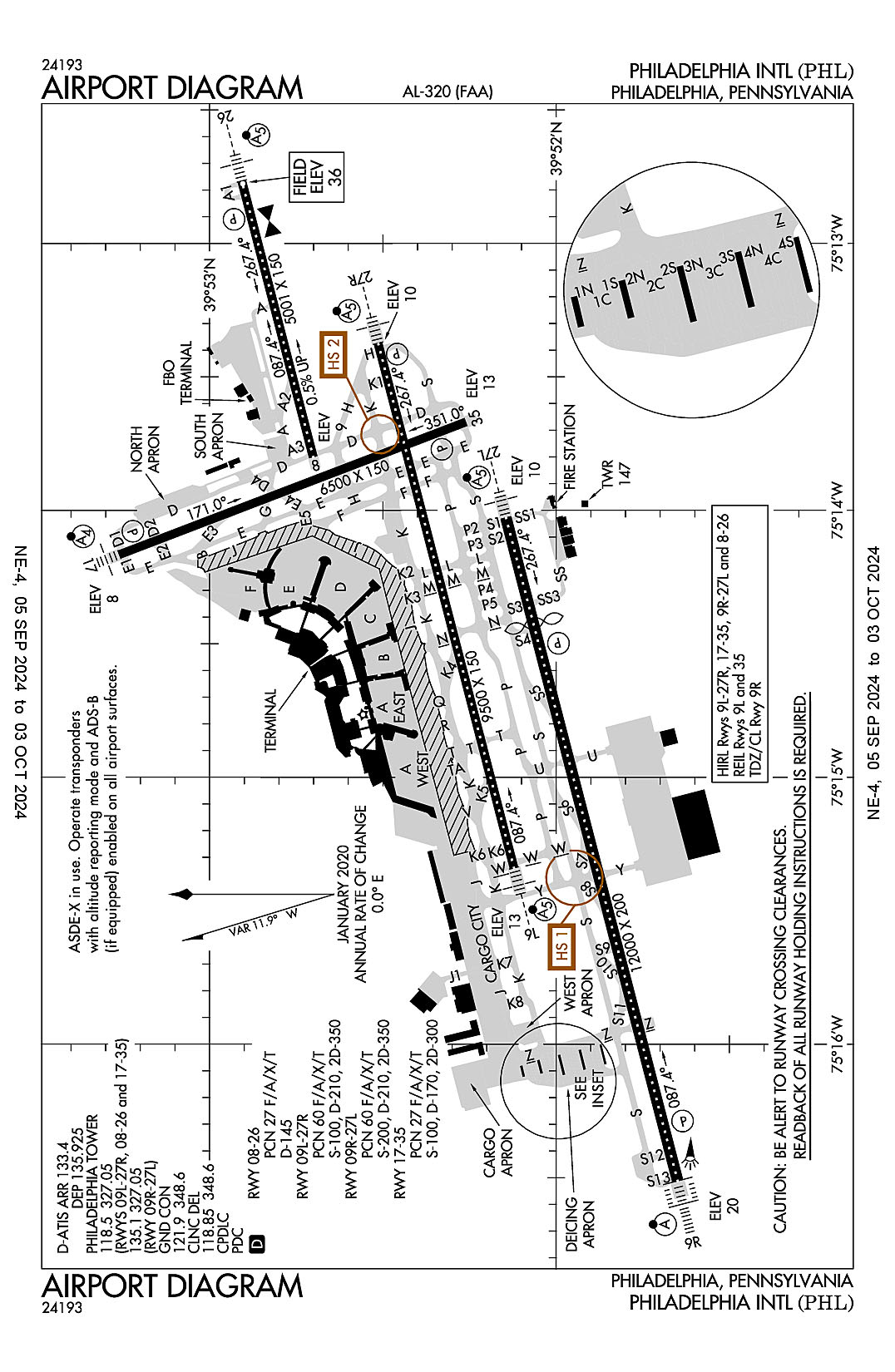

The airport diagram for Philadelphia International (ICAO Identifier KPHL).

Philadelphia, PA
Philadelphia Intl
ICAO Identifier KPHL

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 39-52-19.502N / 75-14-26.387W
2.2.2 From City: 5 miles SW of PHILADELPHIA, PA
2.2.3 Elevation: 35.9 ft
2.2.5 Magnetic Variation: 12W (2020)
2.2.6 Airport Contact: ROCHELLE CAMERON
DIV OF AVIATION TERMINAL E
PHILADELPHIA, PA 19153 (215-937-6914)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I E certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 08
2.12.2 True Bearing: 75
2.12.3 Dimensions: 5001 ft x 150 ft
2.12.4 PCN: 27 F/A/X/T
2.12.5 Coordinates: 39-52-42.0147N / 75-13-48.05W
2.12.6 Threshold Elevation: 9.3 ft
2.12.6 Touchdown Zone Elevation: 20.3 ft

2.12.1 Designation: 26
2.12.2 True Bearing: 256
2.12.3 Dimensions: 5001 ft x 150 ft
2.12.4 PCN: 27 F/A/X/T
2.12.5 Coordinates: 39-52-54.3825N / 75-12-45.9478W
2.12.6 Threshold Elevation: 35.9 ft
2.12.6 Touchdown Zone Elevation: 35.9 ft

2.12.1 Designation: 27R
2.12.2 True Bearing: 255
2.12.3 Dimensions: 9500 ft x 150 ft
2.12.4 PCN: 60 F/A/X/T
2.12.5 Coordinates: 39-52-30.7933N / 75-13-22.4291W
2.12.6 Threshold Elevation: 10.4 ft
2.12.6 Touchdown Zone Elevation: 10.5 ft

2.12.1 Designation: 09L
2.12.2 True Bearing: 75
2.12.3 Dimensions: 9500 ft x 150 ft
2.12.4 PCN: 60 F/A/X/T
2.12.5 Coordinates: 39-52-7.2582N / 75-15-20.3809W
2.12.6 Threshold Elevation: 13.2 ft
2.12.6 Touchdown Zone Elevation: 13.3 ft

2.12.1 Designation: 09R
2.12.2 True Bearing: 75
2.12.3 Dimensions: 12000 ft x 200 ft
2.12.4 PCN: 60 F/A/X/T
2.12.5 Coordinates: 39-51-38.9141N / 75-16-30.7061W
2.12.6 Threshold Elevation: 20.3 ft
2.12.6 Touchdown Zone Elevation: 20.6 ft

2.12.1 Designation: 27L
2.12.2 True Bearing: 255
2.12.3 Dimensions: 12000 ft x 200 ft
2.12.4 PCN: 60 F/A/X/T
2.12.5 Coordinates: 39-52-8.65N / 75-14-1.72W
2.12.6 Threshold Elevation: 10.6 ft
2.12.6 Touchdown Zone Elevation: 10.2 ft

2.12.1 Designation: 17
2.12.2 True Bearing: 159
2.12.3 Dimensions: 6500 ft x 150 ft
2.12.4 PCN: 27 F/A/X/T
2.12.5 Coordinates: 39-53-15.5714N / 75-14-9.9268W
2.12.6 Threshold Elevation: 8.2 ft
2.12.6 Touchdown Zone Elevation: 10.5 ft

2.12.1 Designation: 35
2.12.2 True Bearing: 339
2.12.3 Dimensions: 6500 ft x 150 ft
2.12.4 PCN: 27 F/A/X/T
2.12.5 Coordinates: 39-52-15.5777N / 75-13-40.1314W
2.12.6 Threshold Elevation: 12.9 ft
2.12.6 Touchdown Zone Elevation: 12.9 ft

AD 2.13 Declared Distances
2.13.1 Designation: 08
2.13.2 Take-off Run Available: 5001
2.13.3 Take-off Distance Available: 5001
2.13.4 Accelerate-Stop Distance Available: 5001
2.13.5 Landing Distance Available: 5001

2.13.1 Designation: 26
2.13.2 Take-off Run Available: 5001
2.13.3 Take-off Distance Available: 5001
2.13.4 Accelerate-Stop Distance Available: 5001
2.13.5 Landing Distance Available: 5001

2.13.1 Designation: 27R
2.13.2 Take-off Run Available: 9500
2.13.3 Take-off Distance Available: 9500
2.13.4 Accelerate-Stop Distance Available: 9500
2.13.5 Landing Distance Available: 8864

2.13.1 Designation: 09L
2.13.2 Take-off Run Available: 9500
2.13.3 Take-off Distance Available: 9500
2.13.4 Accelerate-Stop Distance Available: 9500
2.13.5 Landing Distance Available: 9500

2.13.1 Designation: 09R
2.13.2 Take-off Run Available: 12000
2.13.3 Take-off Distance Available: 12000
2.13.4 Accelerate-Stop Distance Available: 12000
2.13.5 Landing Distance Available: 12000

2.13.1 Designation: 27L
2.13.2 Take-off Run Available: 12000
2.13.3 Take-off Distance Available: 12000
2.13.4 Accelerate-Stop Distance Available: 11825
2.13.5 Landing Distance Available: 9912

2.13.1 Designation: 17
2.13.2 Take-off Run Available: 6500
2.13.3 Take-off Distance Available: 6500
2.13.4 Accelerate-Stop Distance Available: 6500
2.13.5 Landing Distance Available: 6500

2.13.1 Designation: 35
2.13.2 Take-off Run Available: 6500
2.13.3 Take-off Distance Available: 6500
2.13.4 Accelerate-Stop Distance Available: 6500
2.13.5 Landing Distance Available: 6500

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 08
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 26
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 27R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 09L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 09R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 27L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 17
2.14.2 Approach Lighting System: MALSF
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 35
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: 5500 & BLO (NORTH)
2.18.3 Channel: 123.8
2.18.5 Hours of Operation:

2.18.1 Service Designation: 5500 & BLO (NORTH)
2.18.3 Channel: 291.7
2.18.5 Hours of Operation:

2.18.1 Service Designation: APCH/P (001-089, 5000 FT & BLW)
2.18.3 Channel: 123.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (270-360, 5000 FT & BLW)
2.18.3 Channel: 126.85
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (090-269, 5000 FT & BLW)
2.18.3 Channel: 127.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (270-089, ABV 5000 FT)
2.18.3 Channel: 128.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (090-269, 6000-8000 FT)
2.18.3 Channel: 133.875
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (270-360, 5000 FT & BLW)
2.18.3 Channel: 263.125
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (270-089, ABV 5000 FT)
2.18.3 Channel: 272.575
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (270-089, ABV 5000 FT)
2.18.3 Channel: 273.575
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (001-089, 5000 FT & BLW)
2.18.3 Channel: 291.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (090-269, 5000 FT & BLW)
2.18.3 Channel: 317.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (090-269 6000-8000 FT)
2.18.3 Channel: 317.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC
2.18.3 Channel: 124.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC
2.18.3 Channel: 319.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: BUNTS STAR
2.18.3 Channel: 128.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: BUNTS STAR
2.18.3 Channel: 272.575
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 118.85
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CEDAR LAKE STAR
2.18.3 Channel: 133.875
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CEDAR LAKE STAR
2.18.3 Channel: 317.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SW 6000 FT & BLW)
2.18.3 Channel: 118.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SE RWY 09 ACTIVE 10000 FT & BLW)
2.18.3 Channel: 119.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SE RWY 27 ACTIVE 8500-10000 FT)
2.18.3 Channel: 119.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SOUTH/SOUTHWEST RWY 27 8500-10000 FT)
2.18.3 Channel: 119.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (NE 6500 FT & BLW)
2.18.3 Channel: 123.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (W RWY 09 ACTIVE 8500-10000 FT)
2.18.3 Channel: 124.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (NE 7000-10000 FT)
2.18.3 Channel: 124.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (NW 8000-10000 FT)
2.18.3 Channel: 124.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (W RWY 27 ACTIVE 10000 FT & BLW)
2.18.3 Channel: 124.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (5500 FT & BLW)
2.18.3 Channel: 126.85
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SE-SW 5000 FT & BLW)
2.18.3 Channel: 127.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (WEST RWY 09 ACTIVE 8000 FT & BLW)
2.18.3 Channel: 128.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (NORTH 6500-7500)
2.18.3 Channel: 128.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SOUTHEAST RWY 27 5500-7500)
2.18.3 Channel: 133.875
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (6000-8000 FT)
2.18.3 Channel: 133.875
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (5500 FT & BLW)
2.18.3 Channel: 263.125
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SOUTH/SOUTHWEST RWY 27 8500-10000 FT)
2.18.3 Channel: 269.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SE RWY 27 ACTIVE 8500-10000 FT)
2.18.3 Channel: 269.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SE RWY 09 ACTIVE 10000 FT & BLW)
2.18.3 Channel: 269.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (NORTH 6500-7500)
2.18.3 Channel: 272.575
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (WEST RWY 09 ACTIVE 8000 FT & BLW)
2.18.3 Channel: 272.575
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (N NE 6500-7500)
2.18.3 Channel: 273.575
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (W RWY 09 ACTIVE 8000 FT & BLW)
2.18.3 Channel: 273.575
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (NE RWY 27 ACTIVE 5000 FT & BLW)
2.18.3 Channel: 291.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (RWY 27, 5500-7500 FT)
2.18.3 Channel: 317.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (6000-8000 FT)
2.18.3 Channel: 317.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SE-SW 5000 FT & BLW)
2.18.3 Channel: 317.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (WEST RWY 09 ACTIVE 8500-10000 FT)
2.18.3 Channel: 319.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (NW 8000-10000 FT)
2.18.3 Channel: 319.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (NE 7000-10000 FT)
2.18.3 Channel: 319.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (SW 6000 FT & BLW)
2.18.3 Channel: 323.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (ARR)
2.18.3 Channel: 133.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (DEP)
2.18.3 Channel: 135.925
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (090-269)
2.18.3 Channel: 119.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (270-089)
2.18.3 Channel: 124.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (090-269)
2.18.3 Channel: 269.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (270-089)
2.18.3 Channel: 319.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: FINAL APCH
2.18.3 Channel: 125.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/S
2.18.3 Channel: 121.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: JIIMS STAR
2.18.3 Channel: 133.875
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: JIIMS STAR
2.18.3 Channel: 317.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 08/26, 09L/27R, 17/35)
2.18.3 Channel: 118.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 09R/27L)
2.18.3 Channel: 135.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 327.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PAATS STAR
2.18.3 Channel: 133.875
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PAATS STAR
2.18.3 Channel: 317.55
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PHL ONE DP
2.18.3 Channel: 124.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PHL ONE DP
2.18.3 Channel: 319.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PRM (RWY 27L)
2.18.3 Channel: 120.425
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: PRM (RWY 26)
2.18.3 Channel: 123.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RADAR
2.18.3 Channel: 126.6
2.18.5 Hours of Operation:

2.18.1 Service Designation: SPUDS STAR
2.18.3 Channel: 128.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: SPUDS STAR
2.18.3 Channel: 272.575
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 26. Magnetic variation: 12W
2.19.2 ILS Identification: LLH
2.19.5 Coordinates: 39-52-42.2207N / 75-13-32.3765W
2.19.6 Site Elevation: 28.9 ft

2.19.1 ILS Type: Glide Slope for runway 26. Magnetic variation: 12W
2.19.2 ILS Identification: LLH
2.19.5 Coordinates: 39-52-49.3706N / 75-12-58.3473W
2.19.6 Site Elevation: 21.3 ft

2.19.1 ILS Type: Localizer for runway 26. Magnetic variation: 12W
2.19.2 ILS Identification: LLH
2.19.5 Coordinates: 39-52-42.383N / 75-13-31.8279W
2.19.6 Site Elevation: 5.4 ft

2.19.1 ILS Type: DME for runway 09L. Magnetic variation: 12W
2.19.2 ILS Identification: VII
2.19.5 Coordinates: 39-52-35.4715N / 75-13-11.5053W
2.19.6 Site Elevation: 19.4 ft

2.19.1 ILS Type: Glide Slope for runway 09L. Magnetic variation: 12W
2.19.2 ILS Identification: VII
2.19.5 Coordinates: 39-52-6.03N / 75-15-6.06W
2.19.6 Site Elevation: 8.9 ft

2.19.1 ILS Type: Localizer for runway 09L. Magnetic variation: 12W
2.19.2 ILS Identification: VII
2.19.5 Coordinates: 39-52-33.52N / 75-13-8.777W
2.19.6 Site Elevation: 7.2 ft

2.19.1 ILS Type: DME for runway 27R. Magnetic variation: 12W
2.19.2 ILS Identification: PDP
2.19.5 Coordinates: 39-52-35.4715N / 75-13-11.5053W
2.19.6 Site Elevation: 19.4 ft

2.19.1 ILS Type: Glide Slope for runway 27R. Magnetic variation: 12W
2.19.2 ILS Identification: PDP
2.19.5 Coordinates: 39-52-24.0466N / 75-13-35.8144W
2.19.6 Site Elevation: 7.5 ft

2.19.1 ILS Type: Localizer for runway 27R. Magnetic variation: 12W
2.19.2 ILS Identification: PDP
2.19.5 Coordinates: 39-52-4.7498N / 75-15-32.9263W
2.19.6 Site Elevation: 8.8 ft

2.19.1 ILS Type: DME for runway 09R. Magnetic variation: 12W
2.19.2 ILS Identification: PHL
2.19.5 Coordinates: 39-52-7.3027N / 75-13-47.0541W
2.19.6 Site Elevation: 23.5 ft

2.19.1 ILS Type: Glide Slope for runway 09R. Magnetic variation: 12W
2.19.2 ILS Identification: PHL
2.19.5 Coordinates: 39-51-37.8234N / 75-16-15.7274W
2.19.6 Site Elevation: 13.3 ft

2.19.1 ILS Type: Inner Marker for runway 09R. Magnetic variation: 12W
2.19.2 ILS Identification: PHL
2.19.5 Coordinates: 39-51-36.7356N / 75-16-41.589W
2.19.6 Site Elevation: 7.2 ft

2.19.1 ILS Type: Localizer for runway 09R. Magnetic variation: 12W
2.19.2 ILS Identification: PHL
2.19.5 Coordinates: 39-52-11.1563N / 75-13-49.1425W
2.19.6 Site Elevation: 9 ft

2.19.1 ILS Type: DME for runway 27L. Magnetic variation: 12W
2.19.2 ILS Identification: GLC
2.19.5 Coordinates: 39-52-7.3027N / 75-13-47.0541W
2.19.6 Site Elevation: 23.5 ft

2.19.1 ILS Type: Glide Slope for runway 27L. Magnetic variation: 12W
2.19.2 ILS Identification: GLC
2.19.5 Coordinates: 39-51-57.2838N / 75-14-37.7318W
2.19.6 Site Elevation: 8.4 ft

2.19.1 ILS Type: Localizer for runway 27L. Magnetic variation: 12W
2.19.2 ILS Identification: GLC
2.19.5 Coordinates: 39-51-36.2572N / 75-16-43.9517W
2.19.6 Site Elevation: 6.8 ft

2.19.1 ILS Type: DME for runway 17. Magnetic variation: 12W
2.19.2 ILS Identification: MYY
2.19.5 Coordinates: 39-52-6.7468N / 75-13-39.3372W
2.19.6 Site Elevation: 24.5 ft

2.19.1 ILS Type: Glide Slope for runway 17. Magnetic variation: 12W
2.19.2 ILS Identification: MYY
2.19.5 Coordinates: 39-53-5.9004N / 75-14-8.6899W
2.19.6 Site Elevation: 6.2 ft

2.19.1 ILS Type: Localizer for runway 17. Magnetic variation: 12W
2.19.2 ILS Identification: MYY
2.19.5 Coordinates: 39-52-6.3204N / 75-13-35.5323W
2.19.6 Site Elevation: 12 ft

General Remarks:

ARPT IS LCTD IN A NOISE SENSITIVE AREA. AIRPORT NOISE ABATEMENT TAKEOFF PROCEDURES ARE TO BE USED.

ONLY NOSE-IN PRKG PERMITTED ON NORTH REMOTE APNS. PPR FM ARPT OPS FOR ALL ACFT PRKG ON REMOTE APNS; CTC 215-937-6914/6800.

RY 09R ROLLOUT RVR USED FOR RY 09L MIDPOINT RVR.

RYS 27L, 27R & 35 SHIP CHNL (DELAWARE RIVER) MAX HEIGHT OF SHIPS 189 FT. RY 26 SHIP CHNL (SCHUYLKILL) MAX HEIGHT OF SHIPS 149 FT.

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

ALL ACFT TRAVELING ON TWY J MUST USE MINIMUM POWER WHEN TURNING SOUTH DUE TO JETBLAST CONCERNS.

UNLGTD STACK 288 FT MSL (271 FT AGL) 2.3 NM SW OF ARPT.

TCAS EQUIPPED ACFT-TCAS ALERT MAY BE CAUSED BY TRANSPONDER EQUIPPED SHIPS LCTD PHL NAVAL BASE 3 NM E.

TWY J BTN TWYS K3 AND Q RESTRICTED TO ACFT WITH WINGSPANS 171 FT AND LESS.

ALL ENGINE RUNUPS REQUIRE PPR FM DUTY OPNS OFFICER AT 937-6914/6800; RUNUPS 20 MIN MAXIMUM.

POSSIBLE UNMARKED SHIP OBSTRUCTION TRANSITING EAST OR WESTBOUND ALONG THE DELAWARE RIVER REACHING HEIGHTS OF 189' - BE ALERT WHEN APPROACHING PHL RUNWAY 35 AND WHENEVER CIRCLING OR VISUALLY APPROACHING ALL OTHER RUNWAYS.

BIRDS ON & INVOF ARPT.

Pittsburgh, Pennsylvania
Pittsburgh International
ICAO Identifier KPIT

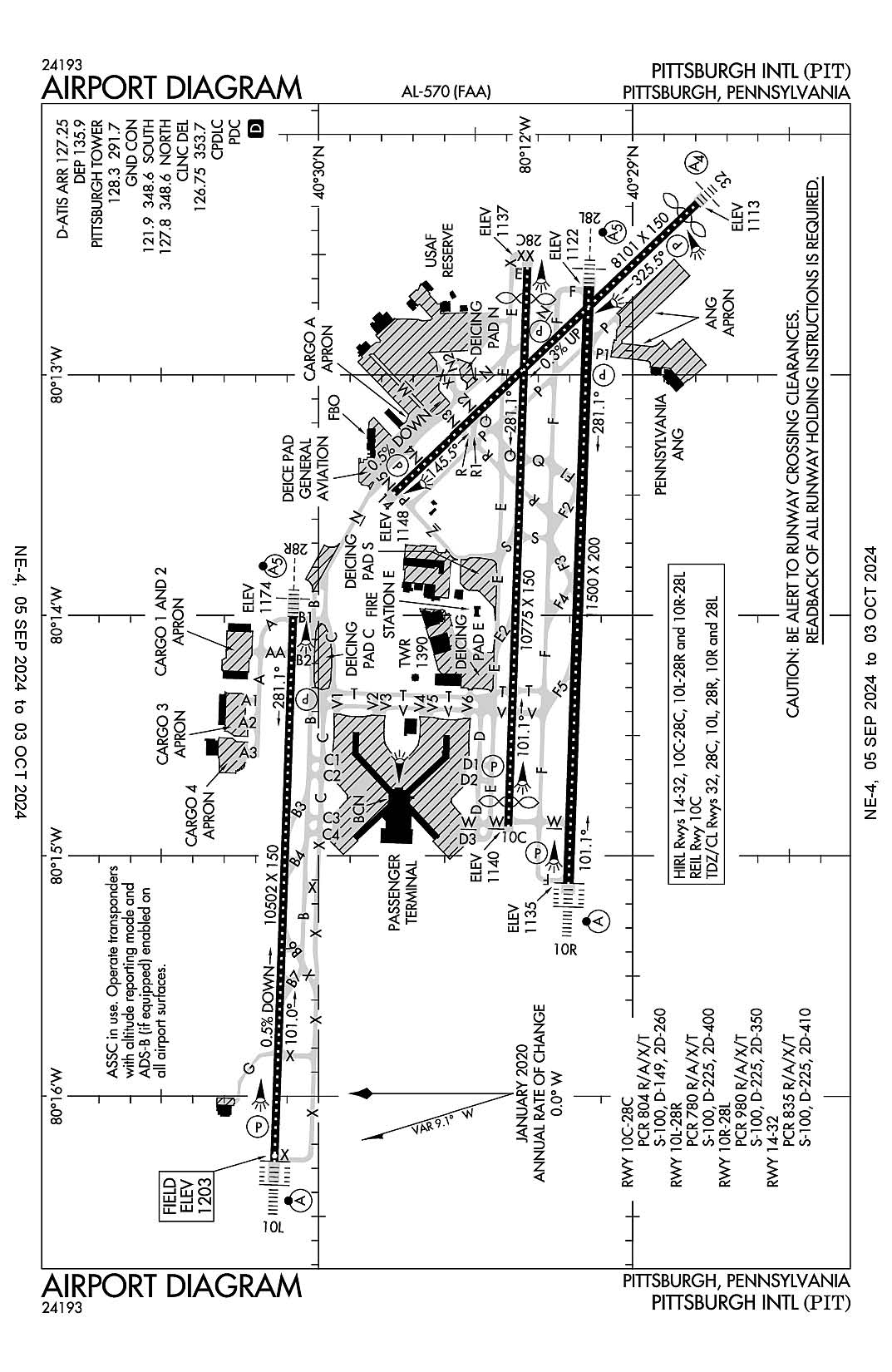

The airport diagram for Pittsburgh International (ICAO Identifier KPIT).

Pittsburgh, PA
Pittsburgh Intl
ICAO Identifier KPIT

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 40-29-29.1N / 80-13-57.7W
2.2.2 From City: 12 miles NW of PITTSBURGH, PA
2.2.3 Elevation: 1202.9 ft
2.2.5 Magnetic Variation: 9W (2020)
2.2.6 Airport Contact: CHRISTINA A. CASSOTIS
PO BOX 12370, SUITE 4000
PITTSBURGH, PA 15231 ((412) 472-3509)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MINOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I D certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 10C
2.12.2 True Bearing: 92
2.12.3 Dimensions: 10775 ft x 150 ft
2.12.4 PCN: 68 R/B/X/T
2.12.5 Coordinates: 40-29-23.6989N / 80-14-52.5475W
2.12.6 Threshold Elevation: 1140.2 ft
2.12.6 Touchdown Zone Elevation: 1141.4 ft

2.12.1 Designation: 28C
2.12.2 True Bearing: 272
2.12.3 Dimensions: 10775 ft x 150 ft
2.12.4 PCN: 68 R/B/X/T
2.12.5 Coordinates: 40-29-20.0419N / 80-12-33.1754W
2.12.6 Threshold Elevation: 1136.6 ft
2.12.6 Touchdown Zone Elevation: 1133.5 ft

2.12.1 Designation: 10L
2.12.2 True Bearing: 92
2.12.3 Dimensions: 10502 ft x 150 ft
2.12.4 PCN: 65 R/B/X/T
2.12.5 Coordinates: 40-30-8.4012N / 80-16-16.2687W
2.12.6 Threshold Elevation: 1202.9 ft
2.12.6 Touchdown Zone Elevation: 1202.9 ft

2.12.1 Designation: 28R
2.12.2 True Bearing: 272
2.12.3 Dimensions: 10502 ft x 150 ft
2.12.4 PCN: 65 R/B/X/T
2.12.5 Coordinates: 40-30-4.8667N / 80-14-0.4048W
2.12.6 Threshold Elevation: 1174.1 ft
2.12.6 Touchdown Zone Elevation: 1174.1 ft

2.12.1 Designation: 28L
2.12.2 True Bearing: 272
2.12.3 Dimensions: 11500 ft x 200 ft
2.12.4 PCN: 80 R/B/X/T
2.12.5 Coordinates: 40-29-8.3238N / 80-12-38.1249W
2.12.6 Threshold Elevation: 1121.9 ft
2.12.6 Touchdown Zone Elevation: 1125 ft

2.12.1 Designation: 10R
2.12.2 True Bearing: 92
2.12.3 Dimensions: 11500 ft x 200 ft
2.12.4 PCN: 80 R/B/X/T
2.12.5 Coordinates: 40-29-12.2249N / 80-15-6.8568W
2.12.6 Threshold Elevation: 1134.8 ft
2.12.6 Touchdown Zone Elevation: 1134.8 ft

2.12.1 Designation: 32
2.12.2 True Bearing: 316
2.12.3 Dimensions: 8101 ft x 150 ft
2.12.4 PCN: 71 R/B/X/T
2.12.5 Coordinates: 40-28-47.69N / 80-12-17.2183W
2.12.6 Threshold Elevation: 1113.4 ft
2.12.6 Touchdown Zone Elevation: 1123.6 ft

2.12.1 Designation: 14
2.12.2 True Bearing: 136
2.12.3 Dimensions: 8101 ft x 150 ft
2.12.4 PCN: 71 R/B/X/T
2.12.5 Coordinates: 40-29-45.6544N / 80-13-29.5187W
2.12.6 Threshold Elevation: 1147.6 ft
2.12.6 Touchdown Zone Elevation: 1147.6 ft

2.12.1 Designation: H1
2.12.2 True Bearing:
2.12.3 Dimensions: 53 ft x 53 ft
2.12.4 PCN:
2.12.5 Coordinates: -- / --
2.12.6 Threshold Elevation: ft
2.12.6 Touchdown Zone Elevation: ft

AD 2.13 Declared Distances
2.13.1 Designation: 10C
2.13.2 Take-off Run Available: 10775
2.13.3 Take-off Distance Available: 10775
2.13.4 Accelerate-Stop Distance Available: 10173
2.13.5 Landing Distance Available: 9708

2.13.1 Designation: 28C
2.13.2 Take-off Run Available: 10775
2.13.3 Take-off Distance Available: 10775
2.13.4 Accelerate-Stop Distance Available: 10310
2.13.5 Landing Distance Available: 9708

2.13.1 Designation: 10L
2.13.2 Take-off Run Available: 10502
2.13.3 Take-off Distance Available: 10502
2.13.4 Accelerate-Stop Distance Available: 10502
2.13.5 Landing Distance Available: 10502

2.13.1 Designation: 28R
2.13.2 Take-off Run Available: 10502
2.13.3 Take-off Distance Available: 10502
2.13.4 Accelerate-Stop Distance Available: 10102
2.13.5 Landing Distance Available: 10102

2.13.1 Designation: 28L
2.13.2 Take-off Run Available: 11500
2.13.3 Take-off Distance Available: 11500
2.13.4 Accelerate-Stop Distance Available: 11500
2.13.5 Landing Distance Available: 11500

2.13.1 Designation: 10R
2.13.2 Take-off Run Available: 11500
2.13.3 Take-off Distance Available: 11500
2.13.4 Accelerate-Stop Distance Available: 11492
2.13.5 Landing Distance Available: 11492

2.13.1 Designation: 32
2.13.2 Take-off Run Available: 8101
2.13.3 Take-off Distance Available: 8101
2.13.4 Accelerate-Stop Distance Available: 7801
2.13.5 Landing Distance Available: 7466

2.13.1 Designation: 14
2.13.2 Take-off Run Available: 8101
2.13.3 Take-off Distance Available: 8101
2.13.4 Accelerate-Stop Distance Available: 7366
2.13.5 Landing Distance Available: 7366

2.13.1 Designation: H1
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 10C
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 28C
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 10L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 28R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 28L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 10R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 32
2.14.2 Approach Lighting System: MALS
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 14
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: H1
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ANG OPS
2.18.3 Channel: 311
2.18.5 Hours of Operation:

2.18.1 Service Designation: APCH/P (271-360)
2.18.3 Channel: 121.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (001-090)
2.18.3 Channel: 124.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (181-270)
2.18.3 Channel: 133.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (270-089)
2.18.3 Channel: 279.625
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P (090-269)
2.18.3 Channel: 360.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P
2.18.3 Channel: 336.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P IC (091-180)
2.18.3 Channel: 123.95
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD PRE TAXI CLNC
2.18.3 Channel: 126.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 353.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (271-360)
2.18.3 Channel: 121.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (091-180)
2.18.3 Channel: 123.95
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (001-090)
2.18.3 Channel: 124.15
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (181-270)
2.18.3 Channel: 133.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (270-089)
2.18.3 Channel: 279.625
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CLASS B (090-269)
2.18.3 Channel: 360.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: COMD POST
2.18.3 Channel: 252.1
2.18.5 Hours of Operation:

2.18.1 Service Designation: D-ATIS (ARR)
2.18.3 Channel: 127.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (DEP)
2.18.3 Channel: 135.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (SOUTH)
2.18.3 Channel: 119.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (NORTH)
2.18.3 Channel: 124.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (090-269)
2.18.3 Channel: 285.575
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/P (NORTH)
2.18.3 Channel: 338.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/S
2.18.3 Channel: 125.275
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P (SOUTH)
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (NORTH)
2.18.3 Channel: 127.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 128.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 291.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: OPS
2.18.3 Channel: 36.35
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 10L. Magnetic variation: 9W
2.19.2 ILS Identification: LXB
2.19.5 Coordinates: 40-30-11.9236N / 80-15-59.9044W
2.19.6 Site Elevation: 1195 ft

2.19.1 ILS Type: Inner Marker for runway 10L. Magnetic variation: 9W
2.19.2 ILS Identification: LXB
2.19.5 Coordinates: 40-30-8.7927N / 80-16-27.004W
2.19.6 Site Elevation: 1175.5 ft

2.19.1 ILS Type: Localizer for runway 10L. Magnetic variation: 9W
2.19.2 ILS Identification: LXB
2.19.5 Coordinates: 40-30-4.5231N / 80-13-47.1428W
2.19.6 Site Elevation: 1160.8 ft

2.19.1 ILS Type: Glide Slope for runway 28R. Magnetic variation: 9W
2.19.2 ILS Identification: HFE
2.19.5 Coordinates: 40-30-8.7192N / 80-14-14.6252W
2.19.6 Site Elevation: 1170.6 ft

2.19.1 ILS Type: Localizer for runway 28R. Magnetic variation: 9W
2.19.2 ILS Identification: HFE
2.19.5 Coordinates: 40-30-8.7888N / 80-16-31.3335W
2.19.6 Site Elevation: 1214.2 ft

2.19.1 ILS Type: Glide Slope for runway 10R. Magnetic variation: 9W
2.19.2 ILS Identification: GUT
2.19.5 Coordinates: 40-29-15.3464N / 80-14-53.775W
2.19.6 Site Elevation: 1129.2 ft

2.19.1 ILS Type: Inner Marker for runway 10R. Magnetic variation: 9W
2.19.2 ILS Identification: GUT
2.19.5 Coordinates: 40-29-12.5381N / 80-15-18.8824W
2.19.6 Site Elevation: 1144.8 ft

2.19.1 ILS Type: Localizer for runway 10R. Magnetic variation: 9W
2.19.2 ILS Identification: GUT
2.19.5 Coordinates: 40-29-8.2188N / 80-12-34.1165W
2.19.6 Site Elevation: 1116.6 ft

2.19.1 ILS Type: Glide Slope for runway 28L. Magnetic variation: 9W
2.19.2 ILS Identification: PFS
2.19.5 Coordinates: 40-29-4.7301N / 80-12-51.2688W
2.19.6 Site Elevation: 1120.3 ft

2.19.1 ILS Type: Localizer for runway 28L. Magnetic variation: 9W
2.19.2 ILS Identification: PFS
2.19.5 Coordinates: 40-29-12.6437N / 80-15-23.0275W
2.19.6 Site Elevation: 1141.2 ft

2.19.1 ILS Type: DME for runway 32. Magnetic variation: 9W
2.19.2 ILS Identification: TQW
2.19.5 Coordinates: 40-29-48.847N / 80-13-37.583W
2.19.6 Site Elevation: 1134 ft

2.19.1 ILS Type: Glide Slope for runway 32. Magnetic variation: 9W
2.19.2 ILS Identification: TQW
2.19.5 Coordinates: 40-28-52.663N / 80-12-29.1403W
2.19.6 Site Elevation: 1112.2 ft

2.19.1 ILS Type: Localizer for runway 32. Magnetic variation: 9W
2.19.2 ILS Identification: TQW
2.19.5 Coordinates: 40-29-50.4118N / 80-13-35.4629W
2.19.6 Site Elevation: 1139.1 ft

General Remarks:

TWY AA NO TURN-OFF ONTO TWY A FOR ACFT WINGSPAN 171 FT OR GREATER EXC PPR (412) 472-5630.

[MILITARY]: CAUTION: BASH PHASE II OPS IN EFFECT 1 JUL - 31 AUG ANNUALLY. UNLESS MSN REQUIREMENTS DIRECT OTHERWISE, FLIGHTS SHOULD NOT BE SKED WITHIN +/-1HR OF SS/SR. TRAN AIRCREW SHOULD REQ BIRD WATCH COND FR AFRC (PITT OPS) ON 252.1 OR ANG OPS (STEEL CTL) ON 311.0. AIRCREW WILL BE INFORMED BY STEEL CONTROL OR PITT OPS (AS APPLICABLE) IF CURRENT BWC IS OTHER THAN LOW REGARDLESS OF BASH PHASE.

SERVICE-OIL: O-156.

TERML TAXILANES E OF CONCOURSES A & B RESTRD TO GROUP 3 ACFT & SMALLER.

ACFT USING TWY 'N' PROHIBITED TO STOP ON OVERPASS AREA DUE TO POSSIBLE EMERGENCY EVACUATION HAZARD.

ALL JETS DEPARTING RY 28R MUST BE ALIGNED WI RY PRIOR TO APPLYING TKOF POWER.

DEER & BIRDS ON & INVOF ARPT.

ANG: OPR 1130-2030Z++MON-FRI EXCP HOL. (CLSD EV OTH MON.)

ANG ACFT MUST CTC TANKER 303.0/FTR OPNS 293.7 BEFORE CROSSING RWY 28L TO OBTAIN CLNC TO ENTER.

ASSC IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

SERVICE-TRAN ALERT: NO PRIORITY BASIS.

FUEL: A++ PROVIDED BY ANG AND AFRC.(MIL).

PPR/OFFL BUS MIN 48 HR CTC AFLD MGMT DSN 277 8163, C412 474 8163. LTD TRAN SVC. AFLD MGT NML DUTY HRS 1300 0100++ MON, WED, FRI, 1300-0500++ TUE, THU, EXC HOL. UNIT TRAINING ASSEMBLY 1300 2100Z++SAT SUN.TRAN ACFT MUST HAVE APPVL OF 911OG/CC FOR PPR DUR OFF DUTY HR. NO SVC AVBL FOR SPACE AVBL PAX DUR OFF DUTY HR. CALL PITT COMD POST (IRON CITY) BY RDO PRIOR TO ENTRY TO AFRC RAMP. ALFD MGMT DOES NOT ISSUE OR STOR COMSEC. COMSEC STOR CTC COMD POST DSN 277 8146.

LDG FEE.

TRML APN UNCONTROLLED. PUSHBACK PILOT DESCRETION. DO NOT EXIT TRML APN AT TWY C1, C4, V3, V4, D1, W. CTC GC WHEN HLDG AT TWY C2, C3, V1, V2, V5, V6, D2, D3.

PUSHBACK CLNC REQUIRED FR GATES A100 AND A101 AT CARGO A. CTC GC. PUSHBACK FM THESE GATES ENTERS TWY N.

SERVICE-JASU: (ANG) (A/M32A-86) (AM 32-95; (AFRC - 2(A/M32-86 (AM32-95).

SERVICE-FLUID: LPOX LHNIT.

ATCT IS AUTHORIZED TO HAVE ACFT LINE-UP & WAIT ON RYS 28L AT TWY 'P' DURG HRS OF DARKNESS. THE SPECIFIC RY SHALL BE USED ONLY FOR DEPARTURES & THE INTXN MUST BE VSB FM ATCT.

TWY G INTXN AT RY 10L/28R RIGHT TURN NA.
