Nevada

Las Vegas, Nevada
McCarren International
ICAO Identifier KLAS

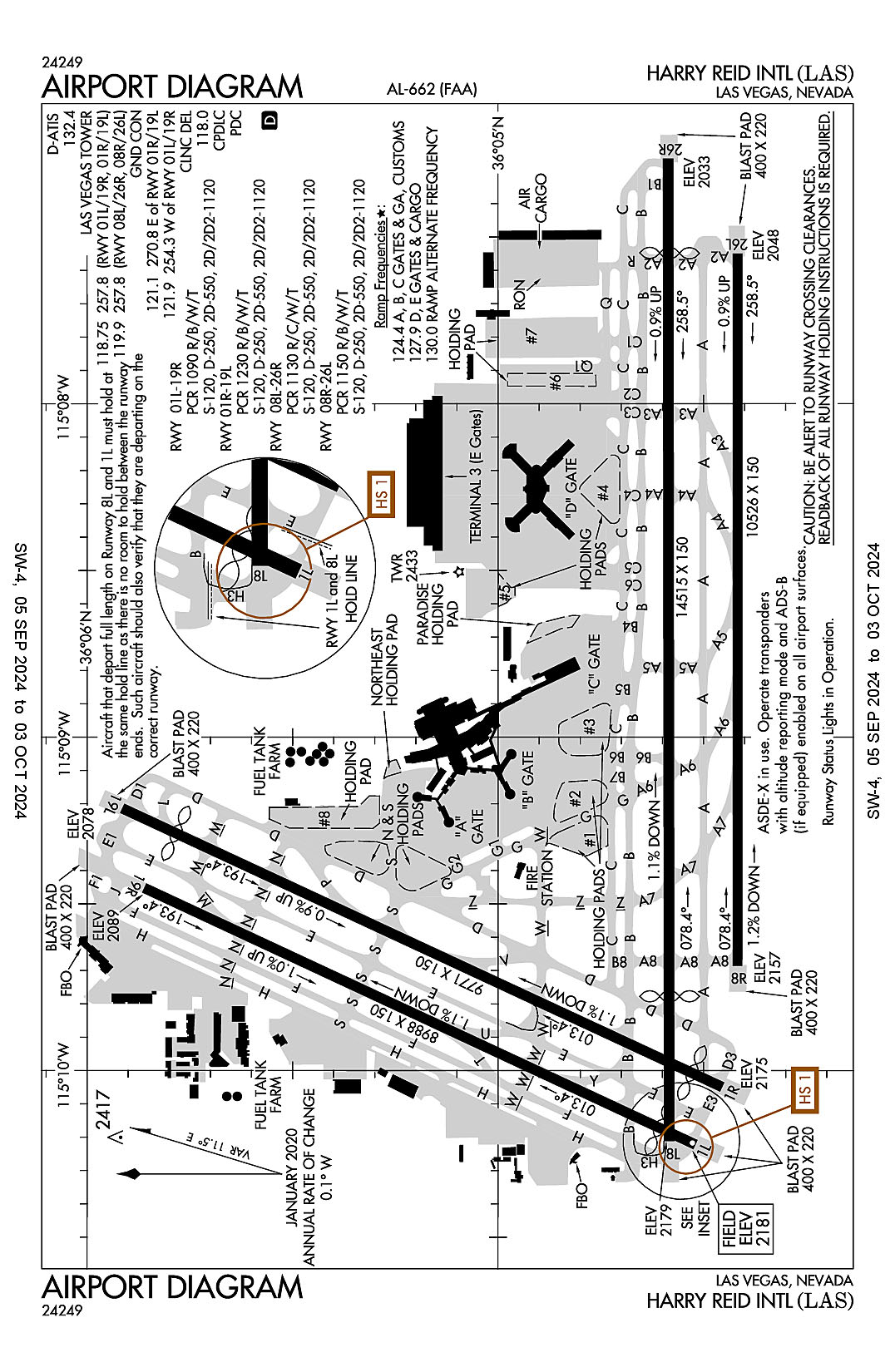

The airport diagram for McCarren International (ICAO Identifier KLAS).

Las Vegas, NV
Mc Carran Intl
ICAO Identifier KLAS

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 36-4-48.158N / 115-9-8.045W
2.2.2 From City: 5 miles S of LAS VEGAS, NV
2.2.3 Elevation: 2181.2 ft
2.2.5 Magnetic Variation: 11E (2020)
2.2.6 Airport Contact: ROSEMARY A. VASSILIADIS
5757 WAYNE NEWTON BLVD
LAS VEGAS, NV 89119 ((702) 261-4525)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A1+,100,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I E certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 01L
2.12.2 True Bearing: 25
2.12.3 Dimensions: 8988 ft x 150 ft
2.12.4 PCN: 100 R/B/W/T
2.12.5 Coordinates: 36-4-31.1684N / 115-10-13.3148W
2.12.6 Threshold Elevation: 2181.2 ft
2.12.6 Touchdown Zone Elevation: 2176.1 ft

2.12.1 Designation: 19R
2.12.2 True Bearing: 205
2.12.3 Dimensions: 8988 ft x 150 ft
2.12.4 PCN: 100 R/B/W/T
2.12.5 Coordinates: 36-5-51.7658N / 115-9-27.1851W
2.12.6 Threshold Elevation: 2088.5 ft
2.12.6 Touchdown Zone Elevation: 2116.6 ft

2.12.1 Designation: 01R
2.12.2 True Bearing: 25
2.12.3 Dimensions: 9771 ft x 150 ft
2.12.4 PCN: 100 R/B/W/T
2.12.5 Coordinates: 36-4-27.264N / 115-10-2.9581W
2.12.6 Threshold Elevation: 2175.1 ft
2.12.6 Touchdown Zone Elevation: 2169.8 ft

2.12.1 Designation: 19L
2.12.2 True Bearing: 205
2.12.3 Dimensions: 9771 ft x 150 ft
2.12.4 PCN: 100 R/B/W/T
2.12.5 Coordinates: 36-5-54.8814N / 115-9-12.8055W
2.12.6 Threshold Elevation: 2077.6 ft
2.12.6 Touchdown Zone Elevation: 2112.1 ft

2.12.1 Designation: 26R
2.12.2 True Bearing: 270
2.12.3 Dimensions: 14515 ft x 150 ft
2.12.4 PCN: 77 R/B/W/T
2.12.5 Coordinates: 36-4-35.0633N / 115-7-15.8989W
2.12.6 Threshold Elevation: 2033 ft
2.12.6 Touchdown Zone Elevation: 2067.1 ft

2.12.1 Designation: 08L
2.12.2 True Bearing: 90
2.12.3 Dimensions: 14515 ft x 150 ft
2.12.4 PCN: 77 R/B/W/T
2.12.5 Coordinates: 36-4-34.9211N / 115-10-12.6889W
2.12.6 Threshold Elevation: 2179.2 ft
2.12.6 Touchdown Zone Elevation: 2154.9 ft

2.12.1 Designation: 08R
2.12.2 True Bearing: 90
2.12.3 Dimensions: 10526 ft x 150 ft
2.12.4 PCN: 100 R/B/W/T
2.12.5 Coordinates: 36-4-25.0637N / 115-9-41.1617W
2.12.6 Threshold Elevation: 2156.9 ft
2.12.6 Touchdown Zone Elevation: 2156.9 ft

2.12.1 Designation: 26L
2.12.2 True Bearing: 270
2.12.3 Dimensions: 10526 ft x 150 ft
2.12.4 PCN: 100 R/B/W/T
2.12.5 Coordinates: 36-4-25.1671N / 115-7-32.9665W
2.12.6 Threshold Elevation: 2048.4 ft
2.12.6 Touchdown Zone Elevation: 2069 ft

AD 2.13 Declared Distances
2.13.1 Designation: 01L
2.13.2 Take-off Run Available: 8988
2.13.3 Take-off Distance Available: 8988
2.13.4 Accelerate-Stop Distance Available: 8988
2.13.5 Landing Distance Available: 8401

2.13.1 Designation: 19R
2.13.2 Take-off Run Available: 8988
2.13.3 Take-off Distance Available: 9400
2.13.4 Accelerate-Stop Distance Available: 8417
2.13.5 Landing Distance Available: 8417

2.13.1 Designation: 01R
2.13.2 Take-off Run Available: 9771
2.13.3 Take-off Distance Available: 10168
2.13.4 Accelerate-Stop Distance Available: 9276
2.13.5 Landing Distance Available: 8785

2.13.1 Designation: 19L
2.13.2 Take-off Run Available: 9771
2.13.3 Take-off Distance Available: 10171
2.13.4 Accelerate-Stop Distance Available: 9686
2.13.5 Landing Distance Available: 8808

2.13.1 Designation: 26R
2.13.2 Take-off Run Available: 14515
2.13.3 Take-off Distance Available: 15037
2.13.4 Accelerate-Stop Distance Available: 14037
2.13.5 Landing Distance Available: 12638

2.13.1 Designation: 08L
2.13.2 Take-off Run Available: 14515
2.13.3 Take-off Distance Available: 15099
2.13.4 Accelerate-Stop Distance Available: 14099
2.13.5 Landing Distance Available: 11960

2.13.1 Designation: 08R
2.13.2 Take-off Run Available: 10526
2.13.3 Take-off Distance Available: 10526
2.13.4 Accelerate-Stop Distance Available: 10526
2.13.5 Landing Distance Available: 10526

2.13.1 Designation: 26L
2.13.2 Take-off Run Available: 10526
2.13.3 Take-off Distance Available: 10526
2.13.4 Accelerate-Stop Distance Available: 10526
2.13.5 Landing Distance Available: 10526

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 01L
2.14.2 Approach Lighting System: MALSF
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 19R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 01R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 19L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 26R
2.14.2 Approach Lighting System: MALS
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 08L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 08R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 26L
2.14.2 Approach Lighting System: MALSF
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: CD/P
2.18.3 Channel: 118
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS (ARR/DEP)
2.18.3 Channel: 132.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P (E OF RWY 01R/19L)
2.18.3 Channel: 121.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (W OF RWY 01R/19L)
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (W OF RWY 01L/19R)
2.18.3 Channel: 254.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P (E OF RWY 01R/19L)
2.18.3 Channel: 270.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 01L/19R, 01R/19L)
2.18.3 Channel: 118.75
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P (RWY 08L/26R, 08R/26L)
2.18.3 Channel: 119.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RAMP ALTERNATE FREQUENCY
2.18.3 Channel: 130
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RAMP CTL (A, B, C GATES & GA, CUSTOMS.)
2.18.3 Channel: 124.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RAMP CTL (D, E GATES & CARGO.)
2.18.3 Channel: 127.9
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 01L. Magnetic variation: 11E
2.19.2 ILS Identification: CUA
2.19.5 Coordinates: 36-6-1.7244N / 115-9-25.0625W
2.19.6 Site Elevation: 2089.4 ft

2.19.1 ILS Type: Glide Slope for runway 01L. Magnetic variation: 11E
2.19.2 ILS Identification: CUA
2.19.5 Coordinates: 36-4-49.142N / 115-10-6.5151W
2.19.6 Site Elevation: 2158.4 ft

2.19.1 ILS Type: Localizer for runway 01L. Magnetic variation: 11E
2.19.2 ILS Identification: CUA
2.19.5 Coordinates: 36-6-0.8259N / 115-9-22W
2.19.6 Site Elevation: 2078.9 ft

2.19.1 ILS Type: DME for runway 26R. Magnetic variation: 11E
2.19.2 ILS Identification: LAS
2.19.5 Coordinates: 36-4-30.5228N / 115-10-19.1659W
2.19.6 Site Elevation: 2201.5 ft

2.19.1 ILS Type: Glide Slope for runway 26R. Magnetic variation: 11E
2.19.2 ILS Identification: LAS
2.19.5 Coordinates: 36-4-32.0826N / 115-7-46.6759W
2.19.6 Site Elevation: 2046.5 ft

2.19.1 ILS Type: Localizer for runway 26R. Magnetic variation: 11E
2.19.2 ILS Identification: LAS
2.19.5 Coordinates: 36-4-34.9114N / 115-10-19.1797W
2.19.6 Site Elevation: 2186.3 ft

2.19.1 ILS Type: DME for runway 26L. Magnetic variation: 11E
2.19.2 ILS Identification: RLE
2.19.5 Coordinates: 36-4-22.2517N / 115-9-53.2672W
2.19.6 Site Elevation: 2182.2 ft

2.19.1 ILS Type: Glide Slope for runway 26L. Magnetic variation: 11E
2.19.2 ILS Identification: RLE
2.19.5 Coordinates: 36-4-21.996N / 115-7-46.6672W
2.19.6 Site Elevation: 2050.4 ft

2.19.1 ILS Type: Localizer for runway 26L. Magnetic variation: 11E
2.19.2 ILS Identification: RLE
2.19.5 Coordinates: 36-4-25.0515N / 115-9-53.3413W
2.19.6 Site Elevation: 2168.2 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 15E
2.19.2 Navigation Aid Identification: LAS
2.19.5 Coordinates: 36-4-46.9253N / 115-9-35.2725W
2.19.6 Site Elevation: 2136 ft

General Remarks:

ACFT WITH WINGSPAN GTR THAN 135 FT PPR FM DEPT OF AVN TO USE TWY H.

ACFT OPER NEAR THE INT OF TWYS S, D, G AND THE N END OF TWY Z SHOULD BE ALERT AS THERE ARE CLOSELY ALIGNED TWY CNTRLN AND RADIUS TURNS.

ACFT THAT DEP FULL LENGTH OF RWYS 01L AND 08L MUST HOLD AT THE SAME HOLD LINE AS THERE IS NO ROOM TO HOLD BTN THE RWY ENDS AND SUCH ACFT SHOULD VERIFY THAT THEY ARE ON THE CORRECT RWY.

GA CUST AND IMG LCTD WEST SIDE OF AFLD BTWN FBO'S.

ACFT TAX WB ON TWY B NEAR TWY E USE CARE NOT TO ENTER THE RWY ON TWY Y, ACFT TAX WB ON TWY W NEAR TWY E USE CARE NOT TO ENTER THE RWY ON TWY U.

RWY STS LGTS ARE IN OPN.

ACFT MAY EXPERIENCE REFLECTION OF SUN FM GLASS HOTELS LCTD NW OF ARPT. REFLECTION MAY OCCUR AT VARIOUS ALTS, HDGS, & DSTCS FM ARPT.

ALL NON-STD RWY OPNS PPR FM DEPT OF AVN.

ACFT DEPG RWY 19R USE MINIMAL PWR UNTIL PASSING THE RWY THLD. RWY 19R THLD HAS STD RWY MARKINGS AND IS 780 FT S OF THE BLAST PAD.

LGTD GOLF RANGE 1400 FT S OF RWYS 01L/19R AND 01R/19L.

RWY 08L 589 FT CWY; RWY 26R 645 FT CWY.

ALL ACFT CTC RAMP CTL ON FREQ 124.4 FOR OPNS AT A, B, AND C GATES; CTC RAMP CTL ON 127.9 FOR OPNS AT D AND E GATES AND CARGO RAMP PRIOR TO ENTERING RAMP OR PUSHING BACK FROM GATE OR PRKG SPOT.

LRG NR OF BIRDS AND BATS INVOF OF ARPT BTWN SS AND SR.

TBJT DEPS NOT PMTD ON RWY 01R/19L OR RWY 01L/19R 2000-0800. XCPNS FOR WX OR OPNL NECESSITY.

EXTSV GLDR/SOARING OPNS WKENDS & HOLS; SR-SS; LAS R187/020; ALTS UP TO BUT NOT INCLG FL180. GLDRS RMN CLEAR OF THE TCA BUT OTHERWISE OPR WI THE ENTIRE SW QUAD OF THE TCA VEIL.

(E98) PLUS 64 SHELTERS & 24 SHEDS.

GA CBP RSVNS ARE RQRD TO BE SMTD A MIN OF 12 HOURS IN ADVN (OTHER CONDS APPLY). RSVNS MUST BE MADE ONLINE AT WWW.MCCARRAN.COM/GACBP . QNS CAN BE DCTD TO CBP559@MCCARRAN.COM. GA ACFT USING THE WEST SIDE CUST FAC MUST CTC RAMP CONTROL 124.4.

TIEDOWN FEE.

GA PRKG VERY LTD. FOR PRKG AVAILABILITY CTC EITHER FBO (702) 736-1830 OR (702) 739-1100.

ACFT USING FULL LEN DEP ON RWY 08L USE MINIMAL PWR TIL PASSING THE PWR-UP POINT ON RWY. PWR-UP POINT IS 348 FT EAST OF BLAST PAD AND MKD WITH SIGN AND STD MARKINGS FOR BGNG OF RWY.

ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

NMRS HOP ON WEST SIDE OF ARPT.

Reno, Nevada
Reno/Tahoe International
ICAO Identifier KRNO

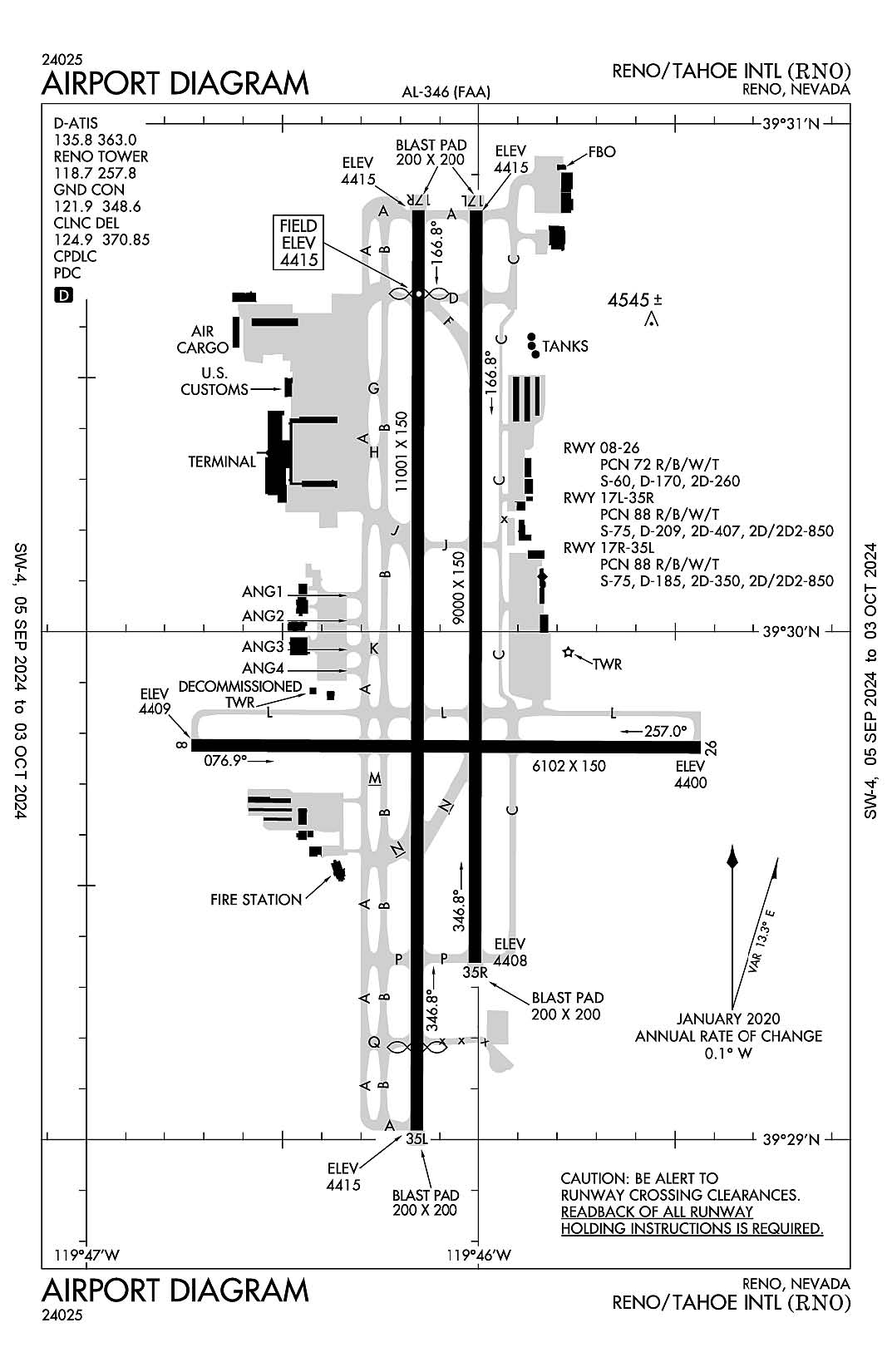

The airport diagram for Reno/Tahoe International (ICAO Identifier KRNO).

Reno, NV
Reno/Tahoe Intl
ICAO Identifier KRNO

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 39-29-56.8N / 119-46-5.2W
2.2.2 From City: 3 miles SE of RENO, NV
2.2.3 Elevation: 4414.9 ft
2.2.5 Magnetic Variation: 16E (1985)
2.2.6 Airport Contact: DAREN GRIFFIN, A.A.E.
P O BOX 12490
RENO, NV 89510 (775-328-6550)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A1+,100LL
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I C certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 25
2.12.2 True Bearing: 270
2.12.3 Dimensions: 6102 ft x 150 ft
2.12.4 PCN: 72 R/B/W/T
2.12.5 Coordinates: 39-29-46.3739N / 119-45-25.9978W
2.12.6 Threshold Elevation: 4399.6 ft
2.12.6 Touchdown Zone Elevation: 4401.8 ft

2.12.1 Designation: 07
2.12.2 True Bearing: 90
2.12.3 Dimensions: 6102 ft x 150 ft
2.12.4 PCN: 72 R/B/W/T
2.12.5 Coordinates: 39-29-46.6299N / 119-46-43.822W
2.12.6 Threshold Elevation: 4409.2 ft
2.12.6 Touchdown Zone Elevation: 4409.3 ft

2.12.1 Designation: 16L
2.12.2 True Bearing: 180
2.12.3 Dimensions: 9000 ft x 150 ft
2.12.4 PCN: 88 R/B/W/T
2.12.5 Coordinates: 39-30-49.8258N / 119-46-0.266W
2.12.6 Threshold Elevation: 4414.8 ft
2.12.6 Touchdown Zone Elevation: 4414.8 ft

2.12.1 Designation: 34R
2.12.2 True Bearing: 0
2.12.3 Dimensions: 9000 ft x 150 ft
2.12.4 PCN: 88 R/B/W/T
2.12.5 Coordinates: 39-29-20.8949N / 119-46-0.4971W
2.12.6 Threshold Elevation: 4408.3 ft
2.12.6 Touchdown Zone Elevation: 4408.3 ft

2.12.1 Designation: 34L
2.12.2 True Bearing: 0
2.12.3 Dimensions: 11001 ft x 150 ft
2.12.4 PCN: 88 R/B/W/T
2.12.5 Coordinates: 39-29-1.1337N / 119-46-9.475W
2.12.6 Threshold Elevation: 4414.5 ft
2.12.6 Touchdown Zone Elevation: 4410.2 ft

2.12.1 Designation: 16R
2.12.2 True Bearing: 180
2.12.3 Dimensions: 11001 ft x 150 ft
2.12.4 PCN: 88 R/B/W/T
2.12.5 Coordinates: 39-30-49.8381N / 119-46-9.1937W
2.12.6 Threshold Elevation: 4414.8 ft
2.12.6 Touchdown Zone Elevation: 4414.8 ft

AD 2.13 Declared Distances
2.13.1 Designation: 25
2.13.2 Take-off Run Available: 6102
2.13.3 Take-off Distance Available: 6102
2.13.4 Accelerate-Stop Distance Available: 6102
2.13.5 Landing Distance Available: 6102

2.13.1 Designation: 07
2.13.2 Take-off Run Available: 5854
2.13.3 Take-off Distance Available: 5854
2.13.4 Accelerate-Stop Distance Available: 6102
2.13.5 Landing Distance Available: 5854

2.13.1 Designation: 16L
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 9000
2.13.5 Landing Distance Available: 9000

2.13.1 Designation: 34R
2.13.2 Take-off Run Available: 9000
2.13.3 Take-off Distance Available: 9000
2.13.4 Accelerate-Stop Distance Available: 9000
2.13.5 Landing Distance Available: 9000

2.13.1 Designation: 34L
2.13.2 Take-off Run Available: 11001
2.13.3 Take-off Distance Available: 11001
2.13.4 Accelerate-Stop Distance Available: 11001
2.13.5 Landing Distance Available: 10011

2.13.1 Designation: 16R
2.13.2 Take-off Run Available: 11001
2.13.3 Take-off Distance Available: 11001
2.13.4 Accelerate-Stop Distance Available: 11001
2.13.5 Landing Distance Available: 10001

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 25
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 07
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 16L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 34R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 34L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 16R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ANG COMD POST (CALLSIGN-ROLLER OPS.)
2.18.3 Channel: 378.4
2.18.5 Hours of Operation:

2.18.1 Service Designation: ANG COMD POST (CALLSIGN-ROLLER OPS.)
2.18.3 Channel: 8780
2.18.5 Hours of Operation:

2.18.1 Service Designation: ANG OPS
2.18.3 Channel: 280
2.18.5 Hours of Operation:

2.18.1 Service Designation: ANG OPS (CALLSIGN-ROLLER OPS.)
2.18.3 Channel: 378.4
2.18.5 Hours of Operation:

2.18.1 Service Designation: ANG OPS (CALLSIGN-ROLLER OPS.)
2.18.3 Channel: 8780
2.18.5 Hours of Operation:

2.18.1 Service Designation: CD/P
2.18.3 Channel: 124.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 370.85
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 135.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 363
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 348.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.7
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 16R. Magnetic variation: 16E
2.19.2 ILS Identification: RNO
2.19.5 Coordinates: 39-28-48.3183N / 119-46-6.1675W
2.19.6 Site Elevation: 4433.4 ft

2.19.1 ILS Type: Glide Slope for runway 16R. Magnetic variation: 16E
2.19.2 ILS Identification: RNO
2.19.5 Coordinates: 39-30-28.0958N / 119-46-5.6655W
2.19.6 Site Elevation: 4408.4 ft

2.19.1 ILS Type: Localizer for runway 16R. Magnetic variation: 16E
2.19.2 ILS Identification: RNO
2.19.5 Coordinates: 39-28-49.5342N / 119-46-9.505W
2.19.6 Site Elevation: 4419.7 ft

2.19.1 ILS Type: DME for runway 34L. Magnetic variation: 16E
2.19.2 ILS Identification: AGY
2.19.5 Coordinates: 39-31-0.2724N / 119-46-12.5676W
2.19.6 Site Elevation: 4434.8 ft

2.19.1 ILS Type: Glide Slope for runway 34L. Magnetic variation: 16E
2.19.2 ILS Identification: AGY
2.19.5 Coordinates: 39-29-19.6039N / 119-46-5.3446W
2.19.6 Site Elevation: 4403.3 ft

2.19.1 ILS Type: Localizer for runway 34L. Magnetic variation: 16E
2.19.2 ILS Identification: AGY
2.19.5 Coordinates: 39-30-59.9826N / 119-46-9.1647W
2.19.6 Site Elevation: 4433.1 ft

General Remarks:

INTENSIVE GLIDER ACTIVITY INVOF ARPT AND SURROUNDING AREAS UP TO 18000 FT.

MIL ACFT: TSNT ACFT EXECUTE STRAIGHT-IN FULL STOP APCH. OVERHEAD PAT NOT AUTH FOR TSNT ACFT.

MILITARY: ANG OPS 1500-0100Z++ MON-FRI EXC HOL, OTHER TIMES BY NOTAM; DSN 830-4709.

NOISE SENSITIVE AREA ALL QUADS. PILOTS OF TBJT ACFT USE RCMDD NOISE ABATEMENT PROCS; AVBL ON REQ.

TWY C BTN TWY L & TWY D RESTRICTED TO ACFT 100000 LBS OR LESS.

WATERFOWL ALL QUADRANTS ALL SEASONS. CONCENTRATED NW OF RWY 16R AND E OF RWY 16L.

TWY A BETWEEN NORTH TWY B AND TWY D CLSD TO ACFT WITH WINGSPAN GREATER THAN 149 FT.

MIL ACFT: NOISE ABTMT CRITICAL TERMINATE AFTERBURNER ASAP THEN CLIMB TO 6500 FT MSL ASAP.

TWY M CLSD TO AIR CARRIER ACFT.

ALL COMMERCIAL AIRCRAFT CONTACT GROUND CONTROL FOR ADVISORIES PRIOR TO PUSH BACK ON THE TERMINAL RAMP.

NOISE NOTE CONT: PILOTS OF NON-TBJT ACFT USE BEST ABATEMENT PROCS AND SETTINGS. AVOID AS MUCH AS FEASIBLE FLYING OVER POPULATED AREAS.

TWY J EAST OF RY 16L/34R CLSD TO AIR CARRIER ACFT.

ACFT OVR 12500 LBS: WRITTEN PPR FOR TRG FLIGHTS; FOR FTHR INFO CTC ARPT OPS 1-877-736-6359.

TWY C BETWEEN TWY L AND TWY D CLSD TO AIR CARRIER ACFT.

24 HRS PPR FOR TSNT ACFT PARKING WITH WINGSPANS GREATER THAN 75 FT.

GLIDER/SOARING OPER 30-50 MILES SOUTH OF ARPT DURING VFR WEATHER & MOUNTAIN WAVE WIND CONDITIONS 1100 TO SS.
