Alaska

Anchorage, Alaska
Ted Stevens Anchorage International
ICAO Identifier PANC

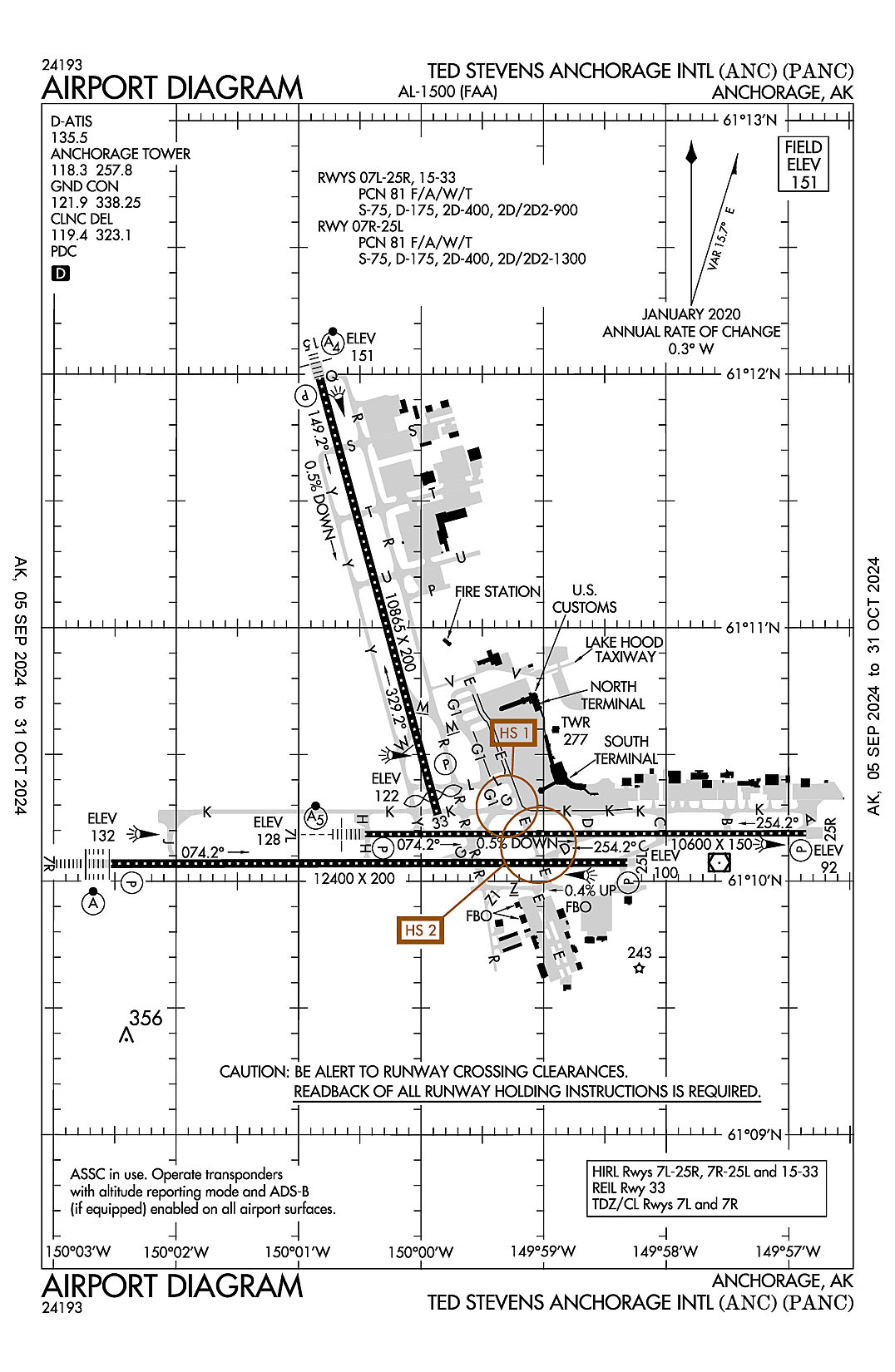

An airport diagram for Ted Stevens Anchorage International (ICAO Identifier PANC).

Anchorage, AK
Ted Stevens Anchorage Intl
ICAO Identifier PANC

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 61-10-26.705N / 149-59-53.295W
2.2.2 From City: 4 miles SW of ANCHORAGE, AK
2.2.3 Elevation: 151.4 ft
2.2.5 Magnetic Variation: 16E (2020)
2.2.6 Airport Contact: JIM SZCZESNIAK
BOX 196960
ANCHORAGE, AK 99519 (907-266-2600)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A, A1,100,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I E certified on 4/1/2005

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 07L
2.12.2 True Bearing: 90
2.12.3 Dimensions: 10600 ft x 150 ft
2.12.4 PCN: 81 F/A/W/T
2.12.5 Coordinates: 61-10-11.1539N / 150-0-29.9998W
2.12.6 Threshold Elevation: 127.6 ft
2.12.6 Touchdown Zone Elevation: 128.2 ft

2.12.1 Designation: 25R
2.12.2 True Bearing: 270
2.12.3 Dimensions: 10600 ft x 150 ft
2.12.4 PCN: 81 F/A/W/T
2.12.5 Coordinates: 61-10-11.3202N / 149-56-53.8826W
2.12.6 Threshold Elevation: 91.5 ft
2.12.6 Touchdown Zone Elevation: 91.8 ft

2.12.1 Designation: 25L
2.12.2 True Bearing: 270
2.12.3 Dimensions: 12400 ft x 200 ft
2.12.4 PCN: 81 F/A/W/T
2.12.5 Coordinates: 61-10-4.3722N / 149-58-21.535W
2.12.6 Threshold Elevation: 100.4 ft
2.12.6 Touchdown Zone Elevation: 114.6 ft

2.12.1 Designation: 07R
2.12.2 True Bearing: 90
2.12.3 Dimensions: 12400 ft x 200 ft
2.12.4 PCN: 81 F/A/W/T
2.12.5 Coordinates: 61-10-4.1216N / 150-2-34.3367W
2.12.6 Threshold Elevation: 131.7 ft
2.12.6 Touchdown Zone Elevation: 131.7 ft

2.12.1 Designation: 33
2.12.2 True Bearing: 345
2.12.3 Dimensions: 10865 ft x 200 ft
2.12.4 PCN: 81 F/A/W/T
2.12.5 Coordinates: 61-10-15.75N / 149-59-54.49W
2.12.6 Threshold Elevation: 121.7 ft
2.12.6 Touchdown Zone Elevation: 120.8 ft

2.12.1 Designation: 15
2.12.2 True Bearing: 165
2.12.3 Dimensions: 10865 ft x 200 ft
2.12.4 PCN: 81 F/A/W/T
2.12.5 Coordinates: 61-11-59.03N / 150-0-52.31W
2.12.6 Threshold Elevation: 151.3 ft
2.12.6 Touchdown Zone Elevation: 151.4 ft

AD 2.13 Declared Distances
2.13.1 Designation: 07L
2.13.2 Take-off Run Available: 10600
2.13.3 Take-off Distance Available: 10600
2.13.4 Accelerate-Stop Distance Available: 10600
2.13.5 Landing Distance Available: 10600

2.13.1 Designation: 25R
2.13.2 Take-off Run Available: 10600
2.13.3 Take-off Distance Available: 10600
2.13.4 Accelerate-Stop Distance Available: 10600
2.13.5 Landing Distance Available: 10600

2.13.1 Designation: 25L
2.13.2 Take-off Run Available: 12400
2.13.3 Take-off Distance Available: 12400
2.13.4 Accelerate-Stop Distance Available: 12000
2.13.5 Landing Distance Available: 12000

2.13.1 Designation: 07R
2.13.2 Take-off Run Available: 10900
2.13.3 Take-off Distance Available: 10900
2.13.4 Accelerate-Stop Distance Available: 10900
2.13.5 Landing Distance Available: 12400

2.13.1 Designation: 33
2.13.2 Take-off Run Available: 10865
2.13.3 Take-off Distance Available: 11965
2.13.4 Accelerate-Stop Distance Available: 10865
2.13.5 Landing Distance Available: 10400

2.13.1 Designation: 15
2.13.2 Take-off Run Available: 10865
2.13.3 Take-off Distance Available: 10865
2.13.4 Accelerate-Stop Distance Available: 10000
2.13.5 Landing Distance Available: 10000

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 07L
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 25R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 25L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 07R
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 33
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4R

2.14.1 Designation: 15
2.14.2 Approach Lighting System: MALSF
2.14.4 Visual Approach Slope Indicator System: P4R

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: CD/P
2.18.3 Channel: 119.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 323.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/S
2.18.3 Channel: 128.65
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: D-ATIS
2.18.3 Channel: 135.5
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 338.25
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 07L. Magnetic variation: 16E
2.19.2 ILS Identification: TGN
2.19.5 Coordinates: 61-10-14.0636N / 149-56-33.0327W
2.19.6 Site Elevation: 105.5 ft

2.19.1 ILS Type: Glide Slope for runway 07L. Magnetic variation: 16E
2.19.2 ILS Identification: TGN
2.19.5 Coordinates: 61-10-13.93N / 150-0-9.62W
2.19.6 Site Elevation: 122.8 ft

2.19.1 ILS Type: Localizer for runway 07L. Magnetic variation: 16E
2.19.2 ILS Identification: TGN
2.19.5 Coordinates: 61-10-11.3329N / 149-56-32.6534W
2.19.6 Site Elevation: 84.7 ft

2.19.1 ILS Type: DME for runway 07R. Magnetic variation: 16E
2.19.2 ILS Identification: ANC
2.19.5 Coordinates: 61-10-2.0211N / 149-57-58.3996W
2.19.6 Site Elevation: 112 ft

2.19.1 ILS Type: Glide Slope for runway 07R. Magnetic variation: 16E
2.19.2 ILS Identification: ANC
2.19.5 Coordinates: 61-10-8.1823N / 150-2-12.4572W
2.19.6 Site Elevation: 124.9 ft

2.19.1 ILS Type: Localizer for runway 07R. Magnetic variation: 16E
2.19.2 ILS Identification: ANC
2.19.5 Coordinates: 61-10-4.3906N / 149-57-55.495W
2.19.6 Site Elevation: 97.7 ft

2.19.1 ILS Type: DME for runway 15. Magnetic variation: 16E
2.19.2 ILS Identification: BSC
2.19.5 Coordinates: 61-10-0.0069N / 149-59-40.3379W
2.19.6 Site Elevation: 134.7 ft

2.19.1 ILS Type: Glide Slope for runway 15. Magnetic variation: 16E
2.19.2 ILS Identification: BSC
2.19.5 Coordinates: 61-11-46.76N / 150-0-54.42W
2.19.6 Site Elevation: 151.3 ft

2.19.1 ILS Type: Localizer for runway 15. Magnetic variation: 16E
2.19.2 ILS Identification: BSC
2.19.5 Coordinates: 61-9-59.9158N / 149-59-45.6352W
2.19.6 Site Elevation: 120.9 ft

General Remarks:

RIGHT TURN OUT OF RAMP PARKING AREA R-2 THROUGH R-4 PROHIBITED.

UNLGTD 489 FT TWR 2 1/2 MILES NORTHEAST.

NOISE SENSITIVE AREA IN EFFECT; CTC APRT OPNS 907-266-2600 FOR FURTHER INFO.

MIGRATORY BIRDS INVOF ARPT SPRING THROUGH FALL.

FAA RAMP PPR - CTC ANC FIFO FREQ 135.85, 907-271-2414 OR AVN 405-954-9780 MON-FRI 0600-1430L.

ASSC IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.

NO COMPASS CALIBRATION PAD.

TO COORDINATE NON-TRANSPONDER OR NON-RADIO OPNS CTC ANC ATCT AT 907-271-2700 DURG ADMIN HRS (0730-1600 WKDAYS). DURG NON-ADMIN HRS & HOLIDAYS CTC FAA AT 907-271-5936.

TWY J STOP BAR NON-STANDARD. LEAD ON LIGHTS REMAIN ON WHEN ACTIVATED.

RWY 07R: BACK-TAXING FM TWY J FOR DEP PROHIBITED.

TWY S, EAST OF TWY R NOT LIGHTED.

TWY V SECURITY GATE EAST OF TWY E; KEY 121.75 5 TIMES TO ACTVT.TWY V RESTRICTED TO ACFT WEIGHING 12500 LBS OR LESS. SUBJECT TO JET BLAST WEST OF TWY E.

FOR WSO PHONE 907-266-5105.

ALL TURBOJET/TURBOFAN ACFT DEPARTING RWYS 7R/7L DURING A RWY 15/33 CLOSURE WILL EMPLOY THE FAA CLOSE-IN NADP OR ICAO PROCEDURE B NADP WHEN SAFETY PERMITS.

USE FREQ 122.55 (RCO) FOR FILING, ACTIVATING & CANCELING FLIGHT PLANS IN THE ANCHORAGE BOWL AREA.

RWY END 25L HAS 200 FT BLAST PAD.

PORTIONS OF TWY K BTN TWY H & TWY J NOT VIS FROM ATCT.

ONE HR PPR FOR NON-TRANSPONDER ACFT OPNS. PPR FOR NON-RADIO ACFT OPNS. NO NIGHTTIME NON-RADIO ACFT OPNS PERMITTED. PILOTS MUST PROVIDE AN ETA & REMAIN WITHIN PLUS OR MINUS 15 MINUTES OF ETA.

ANCHORAGE WX CAMERA AVBL ON INTERNET AT HTTP://AVCAMS.FAA.GOV

TRANSIENT MILITARY ACFT PPR.

Anchorage, Alaska
Elmendorf AFB
ICAO Identifier PAED

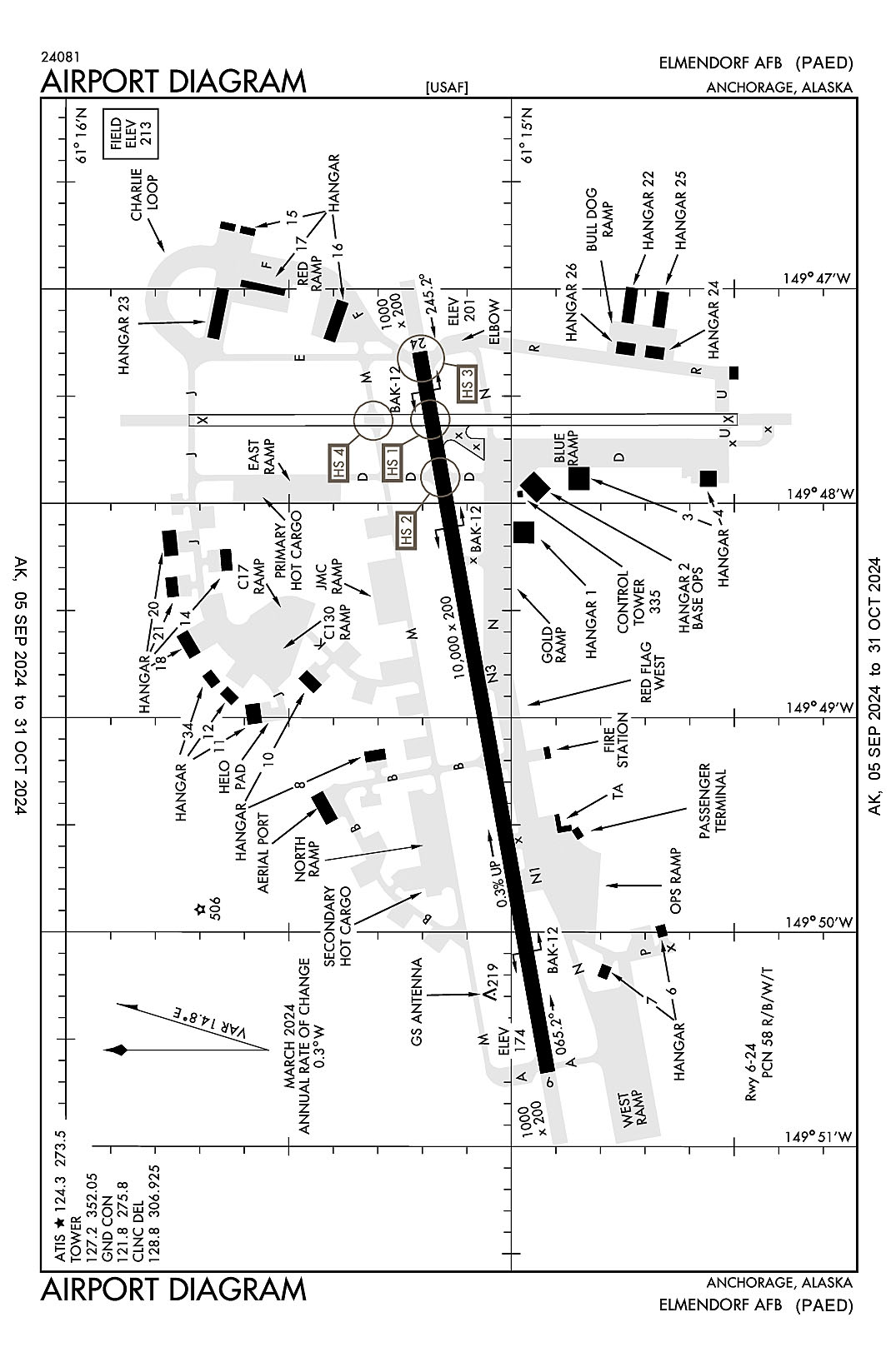

An airport diagram for Elmendorf AFB (ICAO Identifier PAED).

Anchorage, AK
Elmendorf AFB
ICAO Identifier PAED

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 61-15-4.8715N / 149-48-23.4924W
2.2.2 From City: 3 miles NE of ANCHORAGE, AK
2.2.3 Elevation: 213 ft
2.2.5 Magnetic Variation: 18E (2015)
2.2.6 Airport Contact: AIRFIELD MGR
300SS/DOFJ
ELMENDORF AFB, AK 99506 (907-552-2444)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types:
2.4.5 Hangar Space:
2.4.6 Repair Facilities: NONE

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: None

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 06
2.12.2 True Bearing: 80
2.12.3 Dimensions: 10000 ft x 200 ft
2.12.4 PCN: 58 R/B/W/T
2.12.5 Coordinates: 61-14-55.08N / 149-50-39.34W
2.12.6 Threshold Elevation: 174.5 ft
2.12.6 Touchdown Zone Elevation: 174.5 ft

2.12.1 Designation: 24
2.12.2 True Bearing: 260
2.12.3 Dimensions: 10000 ft x 200 ft
2.12.4 PCN: 58 R/B/W/T
2.12.5 Coordinates: 61-15-12.16N / 149-47-18.02W
2.12.6 Threshold Elevation: 201.3 ft
2.12.6 Touchdown Zone Elevation: 201.3 ft

2.12.1 Designation: 16
2.12.2 True Bearing: 180
2.12.3 Dimensions: 7493 ft x 150 ft
2.12.4 PCN: 55 F/A/W/T
2.12.5 Coordinates: 61-15-43.43N / 149-47-36.52W
2.12.6 Threshold Elevation: 212.5 ft
2.12.6 Touchdown Zone Elevation: 212.4 ft

2.12.1 Designation: 34
2.12.2 True Bearing: 360
2.12.3 Dimensions: 7493 ft x 150 ft
2.12.4 PCN: 55 F/A/W/T
2.12.5 Coordinates: 61-14-29.64N / 149-47-36.57W
2.12.6 Threshold Elevation: 184.9 ft
2.12.6 Touchdown Zone Elevation: 194.1 ft

AD 2.13 Declared Distances
2.13.1 Designation: 06
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 24
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 16
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 34
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 06
2.14.2 Approach Lighting System: ALSF1
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 24
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 16
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 34
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ATIS
2.18.3 Channel: 124.3
2.18.5 Hours of Operation: 0700-2300

2.18.1 Service Designation: ATIS
2.18.3 Channel: 273.5
2.18.5 Hours of Operation: 0700-2300

2.18.1 Service Designation: CD/P
2.18.3 Channel: 128.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 306.925
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 275.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 127.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 352.05
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: OPS (11AF RESCUE COORD CNTR)
2.18.3 Channel: 123.1
2.18.5 Hours of Operation:

2.18.1 Service Designation: OPS (11AF RESCUE COORD CNTR)
2.18.3 Channel: 282.8
2.18.5 Hours of Operation:

2.18.1 Service Designation: OPS (11AF COMD CEN)
2.18.3 Channel: 381
2.18.5 Hours of Operation:

2.18.1 Service Designation: OPS (ARTIC WARRIOR OPS)
2.18.3 Channel: 381
2.18.5 Hours of Operation:

2.18.1 Service Designation: PMSV METRO
2.18.3 Channel: 346.6
2.18.5 Hours of Operation:

2.18.1 Service Designation: PTD
2.18.3 Channel: 134.8
2.18.5 Hours of Operation:

2.18.1 Service Designation: PTD
2.18.3 Channel: 372.2
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 06. Magnetic variation: 18E
2.19.2 ILS Identification: EDF
2.19.5 Coordinates: 61-15-1.2N / 149-50-17W
2.19.6 Site Elevation: 169.2 ft

2.19.1 ILS Type: Localizer for runway 06. Magnetic variation: 18E
2.19.2 ILS Identification: EDF
2.19.5 Coordinates: 61-15-14.33N / 149-46-52.29W
2.19.6 Site Elevation: 212.3 ft

2.19.1 Navigation Aid Type: TACAN. Magnetic variation: 18E
2.19.2 Navigation Aid Identification: EDF
2.19.5 Coordinates: 61-15-18.03N / 149-46-9.03W
2.19.6 Site Elevation: 226.2 ft

General Remarks:

DURING VMC DEPS/MISSED APCHS/GO AROUNDS; ACFT SHALL MAINTAIN AT OR BLW 1200 FT MLS UNTIL DEP END OF RWY 06.

RWY 34 HAS A 500 FT DISPLACED THLD ALLOWING 7993 FT USABLE FOR TKFS (RWY 34 TKFS ONLY). ACFT REQG TO USE THE ADDITIONAL 500 FT FOR RWY 34 TKF MUST CTC ATC.

EXTENSIVE SVC DELAY FOR FUEL.

RWY 16/34 RUBBER ACCUM NORTH & SOUTH 1000 FT.

CAUTION: UNLIT TERRAIN 0 FT AGL/341 FT MSL, 1909 FT PRIOR TO THLD, 1914 FT RIGHT OF COURSE.

RWY 34 DEPARTURES FOR ACFT WITH WINGSPANS GREATER THAN 98 FT RQR PRIOR COORD WITH AMC, ATC TWR, OR ALD MGT.

TRAN ALERT ACFT SVC LTD TO POL SERVICING, INTAKE INSPECTIONS, MAGNETIC CHIP DETECTOR INSPECTIONS AND EOR INSPECTIONS.

QUIET HR 0630-1400Z WKDAYS; 0630-1600Z WKEND & HOLS, AMC ACFT EXEMPT.

PREVENTIVE MAINT: TACAN WED AND FRI 1600-1700Z; ILS TUE AND THR 1500-1700Z; PAR SAT-SUN 1800-2000Z; ASR SAT-SUN 2000-2200.

LIMITED MAINTENANCE CAPABILITIES ON WKEND.

JOAP & LOW & HIGH PRESURE NITROGEN SERVICING FURNISHED DURING NORMAL DUTY HOURS, OTR TIMES ON REQUEST.

OIL: O-123, O-128, O-133, O-148, O-156, JOAP.

HGR SPACE & WARM STORAGE EXTREMELY LMTD OCT-MAY.

FOR CURRENT RCR/RSC'S ON RWY 06/24 AND RWY 16/34, AND AFLD RCRS CTC TWR.

CHANGE JET AIRCRAFT STARTING UNITS (JASU) TO, (A/M32A-86), MC-1A), (MC-2A), (AM32A-60A). (AM32-95)150 +/-5 LBS/MIN (2055 +/-68CFM) AT 51 +/-02 PSIA. LASS 150 +/-5 LBS/MIN @ 49 +/-2 PSIA.

ACFT REQUIRING CABLES DE-RIGGED MUST CTC BASE OPS 24 HR PRIOR TO ARR OR MAKE REQ PRIOR TO PPR BEING ISSUED.

IF EXP TO USE RWY 16 FOR DEP OR RWY 34 FOR LDG SEE JBER CARTEE AIRSPACE DESCRIPTION IN NOTICES SEC OF THIS SUPPLEMENT.

ALL FTR ACFT ON ARR EXPECT REDUCED SEPARATION; SAME TYPE ACFT AND DAY 3000 FT; DISSIMILAR ACFT AND/OR NIGHT 6000 FT; AHEAD/BEHIND FORMATION LDG-6000 FT.

ALL NON-AMC ACFT RQR 732 AMS MAINT/SVC MAY EXPERIENCE LOGISTICAL DELAYS DUE TO MISSION NECESSITIES.

FREQUENT ACTIVITY IN R2203. WHEN UNABLE TO AVOID CTC ATCT.

SPECIAL AIR TRAFFIC RULES FAR PART 93, SEE REGULATORY NOTICES IN THE SUPPLEMENT.

FLUID: PRESAIR, DE-ICE, NITROGEN-LHNIT.

NORMAL BARRIER CONFIGURATION DUR FTR FLY WINDOW LEAVES 5675 FT BTN CABLES ON RWY 06/24, OUTSIDE OF FTR FLY WINDOWS THERE IS 7658 FT BTN CABLES.

DV SPOTS 1 AND 3 LTD TO ACFT WITH WINGSPANS OF 136 FT OR LESS.

ALL VIP ACFT CTC BASE OPS 30 MIN PRIOR TO ARR ON PTD 372.2 OR 134.1 OR C907-552-2107.

ALL TRAN AIRCREWS OPERATING AT ELMENDORF AIRFIELD MUST DROP OFF A COPY OF THEIR CREW ORDERS TO AFLD MGMT UPON ARR.

UNITS DEPLOYING TO, STAGING OUT OF, OR FLYING LCL SORTIES AT ELMENDORF AFB MUST DEPLOY WITH MAINT PERS REQUIRED TO COMPLETE OPS TO INCLUDE DE-ICE QUALIFIED CREWMEMBERS DUR COLD WX OPS.

ANY DEPLOYED OR STAGED ACFT WILL NOT RCV TA SUPPORT BYD INITIAL BLOCK IN.

UNLESS PARTICIPATING IN MAJCOM SPONSORED EXER AT ELMENDORF; DEPLOYED OR STAGED UNITS MUST CTC 3 WG SCHEDULING AT DSN 317-552-2406 OR C907-552-2406 AS EARLY AS POSSIBLE TO COORD LOCAL AREA ORIENTATION BRIEFING, MAINT SPONSORSHIP IF APPLICABLE, AND 3 OG/CC APVL PRIOR TO LCL AREA OPS.

C17/C130 OVERT LIGHTS AVBL ON RWY 16/34. C17/C130 COVERT LIGHTS AVBL ON RWY 16.

NO SIGNS OR PAINTED HOLD SHORT LINES ON INTERSECTING RYS.

CAUTION: MOOSE ON & INVOF RWY.

LNDG RWY 16 NOT RCMND FOR JET ACFT EXCPT DURG DAY VFR DUE OBSTRN 337 FT MSL LCTD 1950 FT FM THR & 574 FT W OF CNGRLN.

WX OPR H24; DSN 317-552-4903/4397, C907-552-4903/4397. AUGMENTED SFC VIS RSTD E-SW BY BLDG.
EAST RAMP HOT SPOT 19 LTD, EXPLOSIVES CATS 1.1 AND 1.2 GREATER THAN OR EQUAL TO 450 LBS N.E.W. RQR EVAC OF BLDGS 16521 & 16519 FOR DURATION OF HOT ON HS19. FOR BLDG EVAC CTC 907-552-2577.

IFF SVC AVBL.

CAUTION: NUMEROUS ACFT WILL BE OPR IFR BETWEEN 1500-2000 MSL FROM BGQ 092/10 INTO R2203 TO EDF 320/07 INVOF BIG LAKE, PALMER, BIRCHWOOD, GOOSEBAY AND WASILLA, AK., MON-SAT 0300-0800Z++, AND TUES AND THU 1800-2200Z++.

CAUTION: WHEN RWY 16 VGSI INOP, STR-IN TO RWY 16 ONLY AUTHORIZED AT NIGHT WITH MAJCOM A3 APVL.

RWY 16/34 RWY DIST REMAINING (RDR) SIGNS NOT LCTD IN CORRECT LCTN. AT RWY 16 - 2 RDR 2487 FT OF RWY REMAINING. AT RWY 16 -1 RDR 1487 FT OF RWY REMAINING.

NOTICE: A RIDGE EXTENDING FROM APPROXIMATELY 260-020 DEGS ONE TO TWO MILES FROM THE TOWER PREVENTS OBSERVATION OF FOG OVER KNIK ARM. VISIBILITY MAY DROP RAPIDLY AS FOG POURS OVER RIDGE.

FUEL: J8

AFLD MGMT DOES NOT HAVE COMSEC STORAGE AVBL, FOR COMSEC STORAGE CTC COMMAND POST DSN 317-552-3000.

AMC ACFT ON AN AMC ASGN MSN CAN EXP TO HAVE MAINT SVC ACCOMPLISHED BY 732 AMS.

ALL ACFT MAINTAIN IDLE POWER ON OUTBOARD ENG WHILE TAXIING.

NVD OPS ON RWY 16/34 & RWY 06/24 MON-FRI FROM 0400-1000Z++.

JOAP, JOINT OIL ANALYSIS PROGRAM AVBL. LHNIT, LOW & HIGH PRESSURE NITROGEN SERVICING AVBL. DE-ICE, TYPE 1 DE-ICE LIFTOFF P-88; TYPE 4 ANTI-ICE CLARIANT SAFEWING MP-LAUNCH.

PPRS WILL BE ISSUED NO EARLIER THAN 7 DAYS PRIOR TO ARR.

PPR REQUIRED FOR ALL NON JBER ASSIGNED ACFT EXCEPT NON-EXPLOSIVE LADEN AMCC ACFT UNLESS CONDUCTING LCL TRNG.

ACFT REQUIRING CUSTOMS AND AG INSPECTIONS ARE RQR TO CTC BASE OPS NO LATER THAN 90 MIN PRIOR TO ARR.

TWYS N2, N4 & N5 PERM CLOSED.

SUBMIT ALL PPR REQUESTS UTILIZING THE PAED PPR REQUEST FORM LOCATED IN THE PAED GIANT REPORT STIF TO BASEOPS3@US.AF.MIL NO EARLIER THAN 30 DAYS PRIOR AND NO LATER THAN 48 HOURS PRIOR TO ARRIVAL TO BEGIN COORDINATION FOR PPR.

Cold Bay, Alaska
Cold Bay
ICAO Identifier PACD

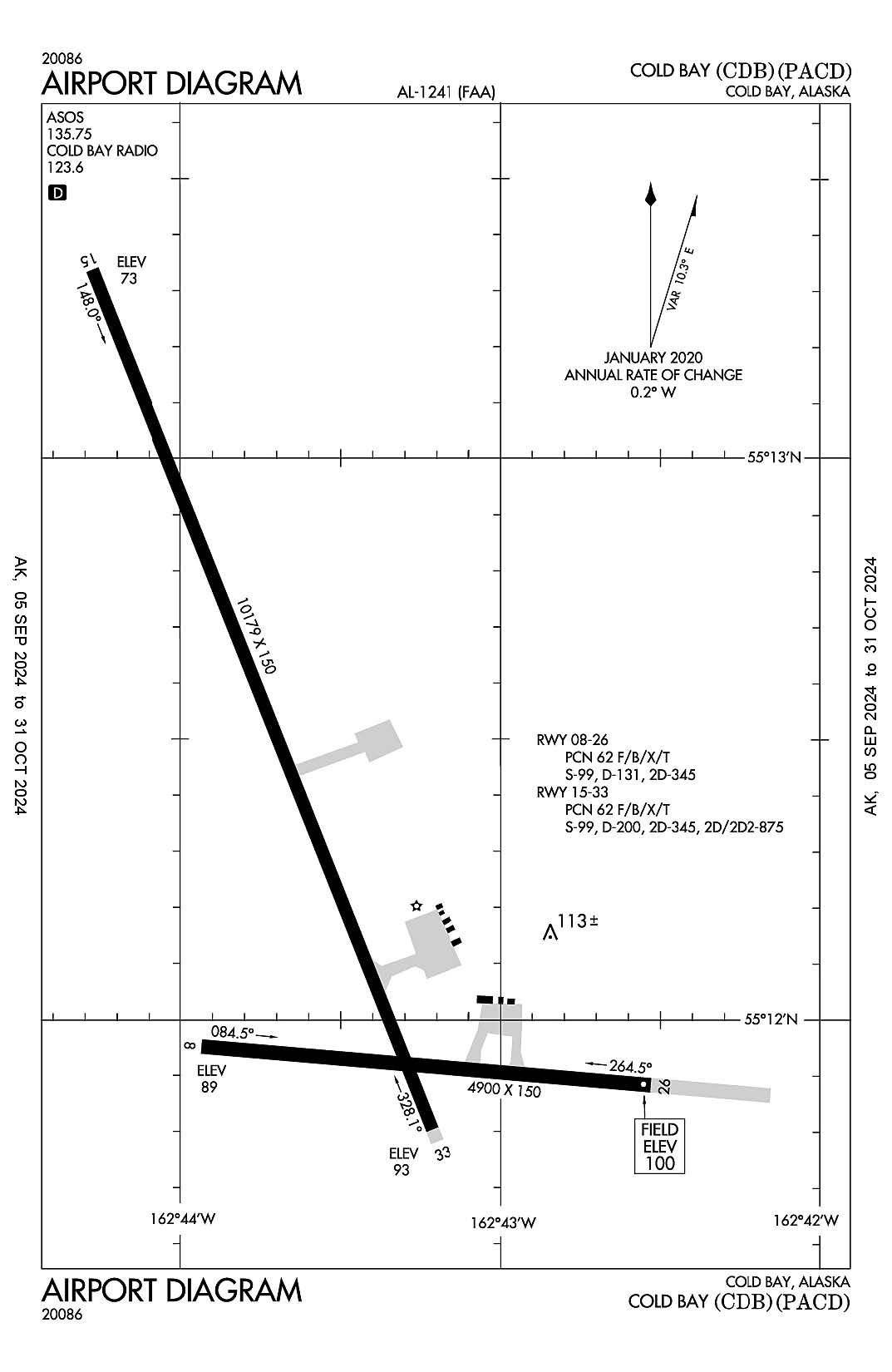

An airport diagram for Cold Bay (ICAO Identifier PACD).

Cold Bay, AK
Cold Bay
ICAO Identifier PACD

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 55-12-21.3N / 162-43-34.5W
2.2.2 From City: 0 miles N of COLD BAY, AK
2.2.3 Elevation: 99.5 ft
2.2.5 Magnetic Variation: 12E (2015)
2.2.6 Airport Contact: HAROLD KREMER
BOX 97
COLD BAY, AK 99571 (907-532-5000)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, MON - SAT Days, 0700 - 1800 Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: 100LL, A
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: NONE

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I B certified on 4/1/2005

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 08
2.12.2 True Bearing: 95
2.12.3 Dimensions: 4900 ft x 150 ft
2.12.4 PCN: 62 F/B/X/T
2.12.5 Coordinates: 55-11-57.1589N / 162-43-56.7308W
2.12.6 Threshold Elevation: 88.9 ft
2.12.6 Touchdown Zone Elevation: 95.2 ft

2.12.1 Designation: 26
2.12.2 True Bearing: 275
2.12.3 Dimensions: 4900 ft x 150 ft
2.12.4 PCN: 62 F/B/X/T
2.12.5 Coordinates: 55-11-53.1425N / 162-42-32.588W
2.12.6 Threshold Elevation: 99.5 ft
2.12.6 Touchdown Zone Elevation: 99.5 ft

2.12.1 Designation: 15
2.12.2 True Bearing: 158
2.12.3 Dimensions: 10179 ft x 150 ft
2.12.4 PCN: 62 F/B/X/T
2.12.5 Coordinates: 55-13-20.4998N / 162-44-16.4235W
2.12.6 Threshold Elevation: 72.5 ft
2.12.6 Touchdown Zone Elevation: 75 ft

2.12.1 Designation: 33
2.12.2 True Bearing: 338
2.12.3 Dimensions: 10179 ft x 150 ft
2.12.4 PCN: 62 F/B/X/T
2.12.5 Coordinates: 55-11-47.2428N / 162-43-11.707W
2.12.6 Threshold Elevation: 93.3 ft
2.12.6 Touchdown Zone Elevation: 93.4 ft

AD 2.13 Declared Distances
2.13.1 Designation: 08
2.13.2 Take-off Run Available: 4900
2.13.3 Take-off Distance Available: 4900
2.13.4 Accelerate-Stop Distance Available: 4900
2.13.5 Landing Distance Available: 4900

2.13.1 Designation: 26
2.13.2 Take-off Run Available: 4900
2.13.3 Take-off Distance Available: 4900
2.13.4 Accelerate-Stop Distance Available: 4900
2.13.5 Landing Distance Available: 4900

2.13.1 Designation: 15
2.13.2 Take-off Run Available: 10180
2.13.3 Take-off Distance Available: 10180
2.13.4 Accelerate-Stop Distance Available: 10180
2.13.5 Landing Distance Available: 10180

2.13.1 Designation: 33
2.13.2 Take-off Run Available: 10180
2.13.3 Take-off Distance Available: 10180
2.13.4 Accelerate-Stop Distance Available: 10180
2.13.5 Landing Distance Available: 10180

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 08
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 26
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 15
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 33
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 15. Magnetic variation: 12E
2.19.2 ILS Identification: CDB
2.19.5 Coordinates: 55-13-12.7692N / 162-44-3.6464W
2.19.6 Site Elevation: 71 ft

2.19.1 ILS Type: Localizer for runway 15. Magnetic variation: 12E
2.19.2 ILS Identification: CDB
2.19.5 Coordinates: 55-11-40.9813N / 162-43-7.3592W
2.19.6 Site Elevation: 95.9 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 10E
2.19.2 Navigation Aid Identification: CDB
2.19.5 Coordinates: 55-16-2.2606N / 162-46-26.3866W
2.19.6 Site Elevation: 98.5 ft

General Remarks:

TWR 4.8 NM NW OF ARPT UNLGTD, TWR 0.9 NM S OF ARPT UNLGTD AND TWR 0.4 NM N OF ARPT UNLGTD.

ARPT SAND LARGER GRADATION THAN FAA RECOMMENDED/SEE AC150/5200-30.

WX CAMERA AVBL ON INTERNET AT HTTP://AVCAMS.FAA.GOV

BRAKELOCK TURNS NOT ALLOWED ON RYS.

NO CUSTOMS AVBL; WRITTEN PERMISSION REQUIRED FOR REFUELING STOPS 24-48 HRS IN ADVANCE IF ARRIVING FROM A FOREIGN COUNTY; FAX 907-271-2684 OR 907-271-2686.

ROTG BCN OPS UNMONITORED WHEN CDB FSS UNMANNED.

REMARK: NWS WEATHER BALLOON LAUNCH FACILITY LOCATED ON AIRPORT, SEE INSIDE BACK COVER FOR OPERATIONS DETAILS.

PERSONNEL AND EQUIPMENT MAY BE WORKING ON THE RY AT ANY TIME.

LARGE BIRDS NEAR APCH ENDS OF ALL RYS.

CFR INDEX B. INDEX MAY BE REDUCED FOR ACFT LESS THAN 90'.

SNOW & ICE REMOVAL AND ARPT HAZ RPRTG ONLY PERFORMED DURG DUTY HRS UNLESS BY PRIOR ARNGMT IN WRITING WITH AMGR.

Fairbanks, Alaska
Eielson AFB
ICAO Identifier PAEI

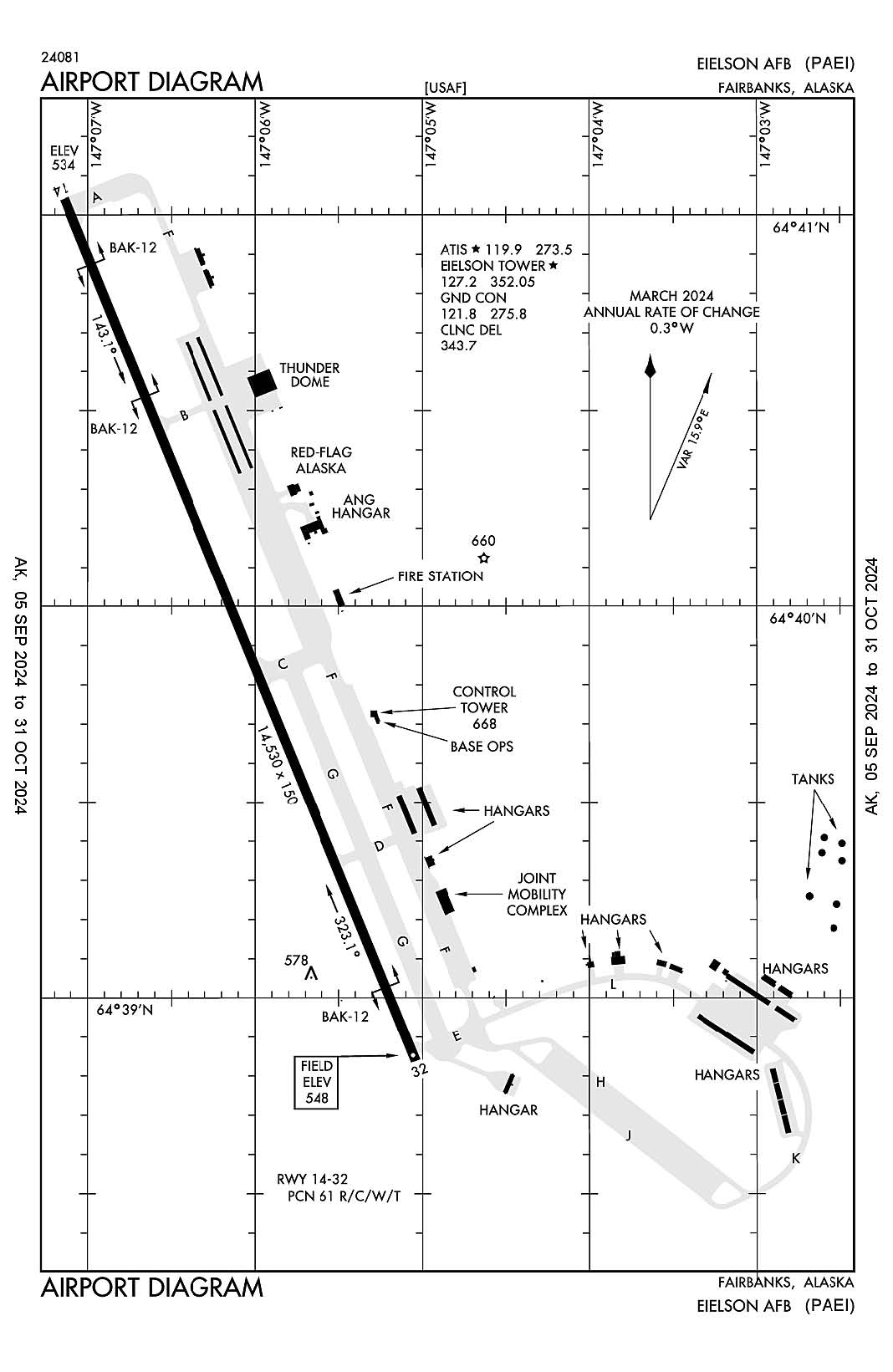

An airport diagram for Eielson AFB (ICAO Identifier PAEI).

Fairbanks, AK
Eielson AFB
ICAO Identifier PAEI

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 64-39-56.32N / 147-6-5.18W
2.2.2 From City: 17 miles SE of FAIRBANKS, AK
2.2.3 Elevation: 547.5 ft
2.2.5 Magnetic Variation: 19E (2015)
2.2.6 Airport Contact: CHIEF AIRFIELD MANAGEMENT
343 CSG/OTM
EIELSON AFB, AK 99702 (907-377-3201)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, 1600-0800Z++ Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: NO
2.4.2 Fuel Types:
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: NONE

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: None

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 32
2.12.2 True Bearing: 339
2.12.3 Dimensions: 14530 ft x 150 ft
2.12.4 PCN: 61 R/C/W/T
2.12.5 Coordinates: 64-38-49.48N / 147-5-5.85W
2.12.6 Threshold Elevation: 547.5 ft
2.12.6 Touchdown Zone Elevation: 547.5 ft

2.12.1 Designation: 14
2.12.2 True Bearing: 159
2.12.3 Dimensions: 14530 ft x 150 ft
2.12.4 PCN: 61 R/C/W/T
2.12.5 Coordinates: 64-41-3.14N / 147-7-4.52W
2.12.6 Threshold Elevation: 533.9 ft
2.12.6 Touchdown Zone Elevation: 536.8 ft

AD 2.13 Declared Distances
2.13.1 Designation: 32
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 14
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 32
2.14.2 Approach Lighting System: ALSF1
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 14
2.14.2 Approach Lighting System: ALSF1
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ATIS
2.18.3 Channel: 119.9
2.18.5 Hours of Operation: 1600-0800Z++

2.18.1 Service Designation: ATIS
2.18.3 Channel: 273.5
2.18.5 Hours of Operation: 1600-0800Z++

2.18.1 Service Designation: CD/P
2.18.3 Channel: 343.7
2.18.5 Hours of Operation: 1600-0800Z++

2.18.1 Service Designation: COMD POST (IGLOO OPS)
2.18.3 Channel: 259.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: COMD POST (IGLOO OPS, HAVE QUICK)
2.18.3 Channel: 289.4
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.8
2.18.5 Hours of Operation: 1600-0800Z++

2.18.1 Service Designation: GND/P
2.18.3 Channel: 275.8
2.18.5 Hours of Operation: 1600-0800Z++

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 127.2
2.18.5 Hours of Operation: 1600-0800Z++

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 352.05
2.18.5 Hours of Operation: 1600-0800Z++

2.18.1 Service Designation: OPS (SOURDOUGH)
2.18.3 Channel: 139.6
2.18.5 Hours of Operation:

2.18.1 Service Designation: OPS (168 ANG OPS)
2.18.3 Channel: 238.3
2.18.5 Hours of Operation:

2.18.1 Service Designation: OPS (168 ANG OPS)
2.18.3 Channel: 293.6
2.18.5 Hours of Operation:

2.18.1 Service Designation: OPS (SOURDOUGH)
2.18.3 Channel: 359.15
2.18.5 Hours of Operation:

2.18.1 Service Designation: PMSV METRO
2.18.3 Channel: 346.6
2.18.5 Hours of Operation:

2.18.1 Service Designation: PTD
2.18.3 Channel: 139.3
2.18.5 Hours of Operation:

2.18.1 Service Designation: PTD
2.18.3 Channel: 372.2
2.18.5 Hours of Operation:

2.18.1 Service Designation: RANGE CTL (SUAIS RADIO)
2.18.3 Channel: 125.3
2.18.5 Hours of Operation:

2.18.1 Service Designation: SFA
2.18.3 Channel: 118.6
2.18.5 Hours of Operation:

2.18.1 Service Designation: SFA
2.18.3 Channel: 259.1
2.18.5 Hours of Operation:

2.18.1 Service Designation: SFA
2.18.3 Channel: 318.2
2.18.5 Hours of Operation:

2.18.1 Service Designation: SFA
2.18.3 Channel: 320.1
2.18.5 Hours of Operation:

2.18.1 Service Designation: SFA
2.18.3 Channel: 324.3
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 14. Magnetic variation: 19E
2.19.2 ILS Identification: EIL
2.19.5 Coordinates: 64-40-51.59N / 147-7-6.54W
2.19.6 Site Elevation: 532 ft

2.19.1 ILS Type: Localizer for runway 14. Magnetic variation: 19E
2.19.2 ILS Identification: EIL
2.19.5 Coordinates: 64-38-33.05N / 147-4-51.27W
2.19.6 Site Elevation: 548 ft

2.19.1 ILS Type: Glide Slope for runway 32. Magnetic variation: 19E
2.19.2 ILS Identification: EAF
2.19.5 Coordinates: 64-38-58.93N / 147-5-25.28W
2.19.6 Site Elevation: 540 ft

2.19.1 ILS Type: Localizer for runway 32. Magnetic variation: 19E
2.19.2 ILS Identification: EAF
2.19.5 Coordinates: 64-41-22.13N / 147-7-21.41W
2.19.6 Site Elevation: 528 ft

2.19.1 Navigation Aid Type: TACAN. Magnetic variation: 19E
2.19.2 Navigation Aid Identification: EIL
2.19.5 Coordinates: 64-39-13.67N / 147-5-38.21W
2.19.6 Site Elevation: 542.4 ft

General Remarks:

ALASKA ANG 168TH AREFS OPS DSN (317-377-8800, C 907-377-8800) ANG OPR 24 HRS. AIRFIELD MANAGEMENT DSN 317-377-1861/3201.

DEP ACFT REMAIN AT OR BLW 1500 FT TIL DEP END OF RWY.

SEE AP1 SUPPLEMENTARY ARPT RMKS. LIMITED SECRET AND COMSEC STORAGE AVBL AT AIRFIELD MANAGEMENT.

OVERHEAD TFC PAT ALT 2000 FT MSL; RECTANGULAR TFC PAT ALT 1500 FT MSL.

QUIET HRS DLY 0700-1500Z-, NO TKOF, LDG, LO APCH, OR TGL, EXCEPTIONS RQR OPS GROUP COMMANDER APPROVAL. UNCONTROLLED TKOF/LDG NOT AUTH.

ALL CONTINGENCY OPER CTC AMGR FOR COORDINATION.

TRAN ALERT: TRANSIENT MAINT LMTD TO F16 SVCG UPON AIRCREW REQ. THRU FLIGHT/BPO/PREFLIGHT ISNP OF F16 NOT AVBL.

DURING BIRD WATCH CONDITION MODERATE LCL PATTERN WORK LIMITED TO MIN RQR WITH OG/CC APPROVAL, NO TGL, FORMATION TKOF/LNDG PROHIBITED AND LOW APCH LIMITED TO 300 FT AGL. DURING BIRD WATCH CONDITION SEVERE; TKOF, PATTERN, AND LNDG PROHIBITED WITHOUT OG/CC APPROVAL, EXCP FOR EMERG.

NO ENGINE RUNNING ON-LOADS/OFF-LOADS (ERO) SERVICES AVAILABLE FOR AMC AIRCRAFT.

NSTD RWY EDGE LGTS.

FOR FLT ADVISORIES OR STATUS OF RESTRICTED & MOAS CTC EIELSON RANGE CTL ON SAUIS RADIO 125.3 OR CALL 1-800-758-8723.

AIR TERMINAL AND GROUND HANDLING SVC OPRS 1630-0030Z++ WEEKDAYS. ACFT REQUIRING TERMINAL AND GROUND HANDLING SVC ARE REQUIRED TO PROVIDE ADVANCE NOTICE OR DELAYS IN SVC MAY BE EXPERIENCED. ACFT REQUIRING SVC SHOULD MAKE PRIOR COORDINATION WITH AIRFIELD MANAGEMENT.

N & S BARRIER RUNOUT REDUCED TO 950 FT.

MOOSE HAVE BEEN SPOTTED ON OR NEAR THE RWY ENVIRONMENT ALL HRS OF THE DAY.

PRE-COORDINATE WITH MAINT OPS CENTER DSN 317-377-1205 NO LATER THAN 48 HRS FROM ETA. ANY DEPLOYED OR STAGED ACFT WILL NOT RECEIVE TA SUPPORT BYD INITIAL BLOCK IN/FINAL BLOCK OUT, UNLESS PARTICIPATING IN MAJCOM SPONSORED EXER AT EIELSON. UHF IS THE PREF PATTERN FREQ.

VHF PTD FREQUENCY IS UNMONITORED.

MILITARY-FLUID DE-ICE AVBL, ANTI-ICE UNAVBL.

CTC AIRFIELD MANAGEMENT DSN 317-377-1861, C907-377-1861 FOR PPR NUMBER NO EARLIER THAN 5 DAYS AND NO LATER THAN 24 HR PRIOR TO ARR. PPR GOOD FOR +/- 30 MIN OF PPR TIME. COORD OF PPR OUTSIDE OF TIME BY PHONE IS REQ OR PPR NR WILL BE CONSIDERED CNL. EXP ARR TIME RESTRICTION FOR ALL ACFT EXC AIR EVAC AND DV CODE 7 OR HIGHER.

BASH PHASE II MONTHS ARE APR, MAY, AUG AND SEPT. DURING PERIODS OF STANDING WATER ON THE AIRFIELD, GULLS, DUCKS, GEESE AND OTHER BIRDS POSE A SIGNIFICANT HAZARD TO ACFT. REPORT ALL BIRD AND ANIMAL STRIKES ON & INVOF EILSON TO AIRFIELD MANAGEMENT, DSN 317-377-186, PTD OR 354 FW/SE DSN 317-377-4110.

TRANS ALERT SVC AVBL 0700-0000 MON-FRI EXCP HOL; OTHER TIMES PPR THROUGH BASOPS.

CAUTION: NSTD LGT, 2000 FT OF RWY EDGE LGT BTN DELTA-CHARLIE TWYS LCTD 12 FT FR RWY EDGE.

AUGMENTATION CAPABLE 1600-0800Z-. DUR EVAC OF WX STN CTC OP WX SQDN AT NR ABV. ALT WX LCTN VIS SEVERELY LTD DUE TO BLDG AND PRK ACFT.

PAEW ON RWY 14-32 WHEN TWR UNMANNED.

TRANS BILLETING EXTREMELY LTD/EXTENSIVE FUEL DELAYS DUR RED FLAG ALASKA EXERCISE (APR-OCT).

AIRPORT RMKS: RWY 300 FT WIDE ENTIRE LENGTH, CENTER 150 FT USABLE.

UNMONITORED WHEN PAEI TWR CLSD. WX SUPPORT OPR H24, DSN 317-377-3140/1160 FR 1600-0800Z-; FR 0800-1600Z- PLEASE CALL COMD POST FOR AFTERHOURS DSN 317-377-1500. SVC PRIORITY GIVEN TO LCL FLYING SCHEDULE. WX BRIEFING AVBL DSN 317-377-3140/1160.

PORTIONS OF APRON 'O' ROW AND SOUTH RAMP NOT VISIBLE FROM TWR.

LOOP TWY EAST OF CORROSION/ HANGAR 1348 THROUGH THE 4/8 BAY AREA RESTRICTED TO ACFT W/WINGSPAN OF 45 FT OR SMALLER.

EDGE LGT NSTD RWY 32/14 AT TWY A RWY EDGE LGT AT TWY A ENTRANCE ON THE EAST SIDE OF THE RWY; RESULTING GAP BTN LGT IS 446 FT.

BASE OPS DOES NOT HAVE COMSEC RESPONSIBILITIES. BASE OPS WILL NOT ISSUE COMSEC.

TO AVOID DELAY FILE FLIGHT PLAN AT LEAST 2 HRS PRIOR TO ESTIMATED TIME OF DEPARTURE. ARRIVALS REQUIRING CUSTOMS MUST NOTIFY COMMAND POST 1.5 HRS PRIOR TO LANDING. U.S. IMMIGRATION SVC NOT AVBL. AIR TERMINAL AND GROUND HANDLING SVC OPRS 1630-0030Z++ WEEKDAYS.

CARGO & PSGR CARRYING ACFT CALL COMMAND POST 3 HRS PROIR TO LNDG AND 30 MIN PROIR TO LNDG AND STATE NUMBER OF PASSENGERS.

PMSV: METRO BELOW 3000 FT RECEPTION FROM 300-090 IS LIMITED BEYOND 15NM BY TERRAIN, BELOW 15000 FT LIMITED BEYOND 75NM, NO LIMITATIONS WITHIN 100NM AT 20000 FT.

EDGE LGT NSTD RWY 32/14 AT TWY C RWY EDGE LGT AT TWY C ENTRANCE ON THE EAST SIDE OF THE RWY; RESULTING GAP BTN LGT IS 400 FT.

AIRCREW BE ADVISED FLD COND NOTAM (FICON) AND RWY COND CODE (RWYCC) NOT REPORTED BY AMOPS.

ALL PACAF FTR ACFT ON ARR EXPECT REDUCED RWY SEPARATION; SIMILAR FTR TYPE/DAY - 3000 FT; DISSIMILAR FTR TYPE AND/OR NGT WET RWY OR RCR RPT LESS THAN 17 - 6000 FT; BEHIND FORMATION LNDG - 6000 FT; FTR TYPE LDG BEHIND NON-FTR TYPE - 9000 FT; RCR VALIDATED AS CONDITIONS WARRANT.

AVOID SMALL ARMS RANGE LCTD 2.5 NM E OF APCH END RWY 32. SMALL ARM RANGE ACTIVE WKD 1700-0100Z++, SFC TO 3500 FT AGL.

CRYPTO MATERIALS NOT AVBL TRAN CREW. ALL ACFT WITH VIP CTC AIRFIELD MANAGEMENT 20-30 MINUTES PRIOR TO ETA WITH FIRM CHOCK TIME. LTD FLEET SVC AVBL, NO POTABLE WATER.

LIMITED SECRET AND COMSEC STORAGE AVBL AT BASE OPS. AIRFIELD MANAGEMENT DOES NOT HAVE COMSEC RESPONSIBILITIES. FOR TOP SECRET AND COMSEC ISSUE/STORAGE CTC COMMAND COMMAND POST DSN 317-377-1500.

RWY 14 & 32 PAPI GS NOT COINCIDENTAL WITH ILS GS.

FAIRBANKS FSS LC 474-0137. FOR FLIGHT ADVISORIES OR STATUS OF RESTRICTED AND MILITARY OPERATING AREAS, CTC EIELSON RANGE CONTROL ON SUAIS RADIO 125.3 OR TELEPHONE 1-800-758-8723.

PHONE PATCH CAPABILITY THROUGH 354 FW/CP AT 907-377-1500. FMQ19 907-377-5846.

ARFF STATUS CRITICAL LVL OF SVC (CLS) 62% FOR USAF CAT 10; AND REDUCED LVL OF SVC (RLS) 81% FOR USAF CAT 9.

BRIEFING FOR TRANSIENT AIRCREWS BEYOND NORMAL OPERATING HRS VIA 17TH OWS AT JOINT BASE PEARL HARBOR-HICKAM DSN 315-449-8333/7950 C808-449-8333/7950 OR DSN 315-448-3809, C808-448-3809.

RWY 14/32 BAK-12 DEP END CABLES IN RAISED POSITION; BAK-12 AER 14/32 AVBL WITH 20 MIN PRIOR NOTICE. NORTH BARRIER RUNOUT REDUCED TO 950 FT, HOOK EQUIPPPED ACFT BE ALERT.

CAUTION: FIRE HYDRANTS LCTD 64 FT NE OF TWY H CNTLN.

AIRPORT RMKS: PRIME KNGHT NOT AVBL.

ARPT OPR 1600-0800Z++.

RADIO/NAV/WEATHER REMARKS - (F) 1500-0700Z ++ DAILY.

Fairbanks, Alaska
Fairbanks International
ICAO Identifier PAFA

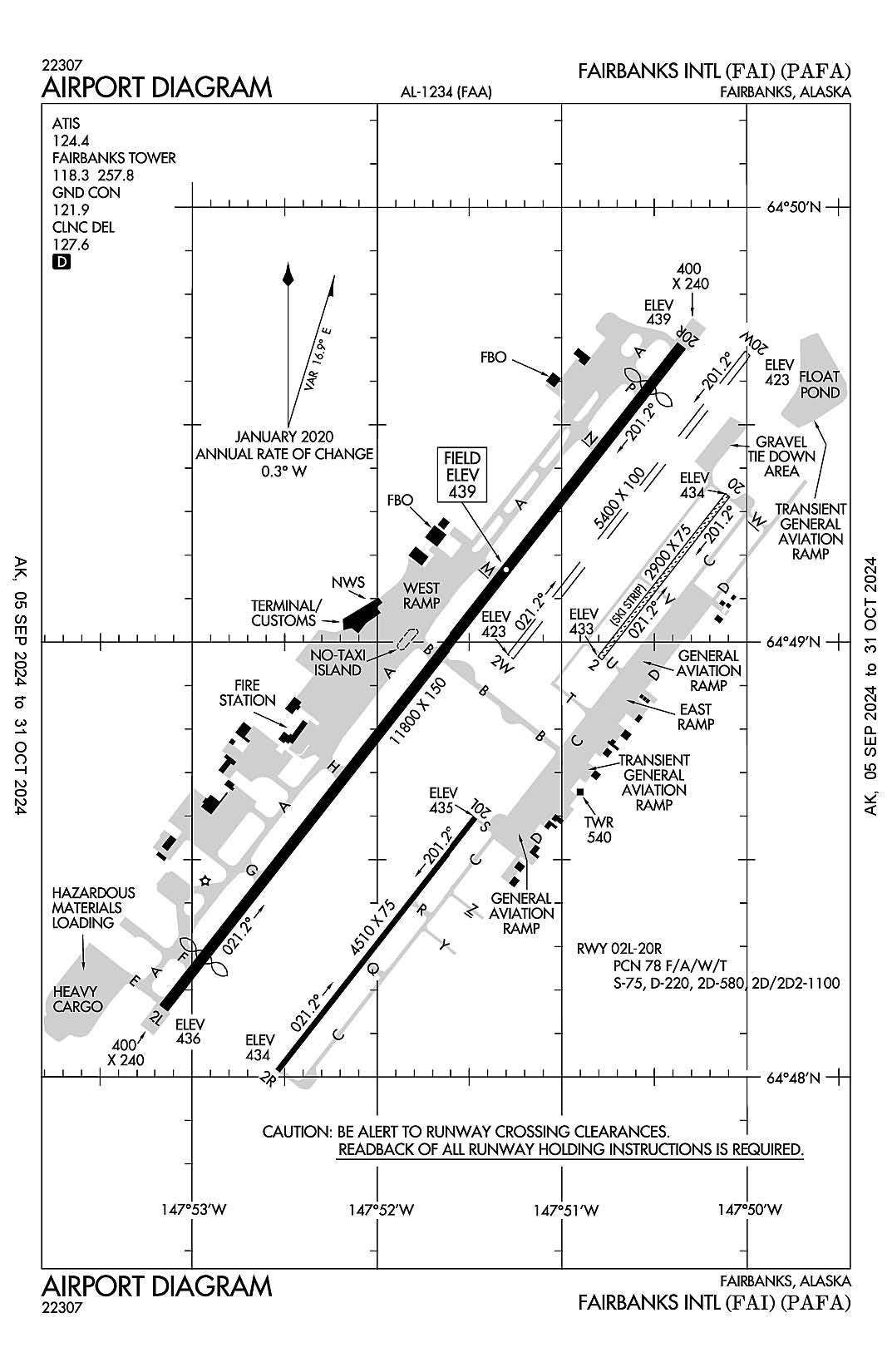

An airport diagram for Fairbanks International (ICAO Identifier PAFA).

Fairbanks, AK
Fairbanks Intl
ICAO Identifier PAFA

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 64-48-54.4N / 147-51-23.2W
2.2.2 From City: 3 miles SW of FAIRBANKS, AK
2.2.3 Elevation: 439 ft
2.2.5 Magnetic Variation: 18E (2020)
2.2.6 Airport Contact: ANGIE SPEAR
6450 AIRPORT WAY - SUITE 1
FAIRBANKS, AK 99709 (907-474-2500)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A1,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I C certified on 3/1/2005

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 02
2.12.2 True Bearing: 38
2.12.3 Dimensions: 2900 ft x 75 ft
2.12.4 PCN:
2.12.5 Coordinates: 64-48-57.8002N / 147-50-47.5998W
2.12.6 Threshold Elevation: 433 ft
2.12.6 Touchdown Zone Elevation: 434.6 ft

2.12.1 Designation: 20
2.12.2 True Bearing: 218
2.12.3 Dimensions: 2900 ft x 75 ft
2.12.4 PCN:
2.12.5 Coordinates: 64-49-20.2644N / 147-50-6.2715W
2.12.6 Threshold Elevation: 433.6 ft
2.12.6 Touchdown Zone Elevation: 434.6 ft

2.12.1 Designation: 20R
2.12.2 True Bearing: 218
2.12.3 Dimensions: 11800 ft x 150 ft
2.12.4 PCN: 78 F/A/W/T
2.12.5 Coordinates: 64-49-40.9108N / 147-50-21.1293W
2.12.6 Threshold Elevation: 438.9 ft
2.12.6 Touchdown Zone Elevation: 439 ft

2.12.1 Designation: 02L
2.12.2 True Bearing: 38
2.12.3 Dimensions: 11800 ft x 150 ft
2.12.4 PCN: 78 F/A/W/T
2.12.5 Coordinates: 64-48-9.4756N / 147-53-9.1838W
2.12.6 Threshold Elevation: 435.6 ft
2.12.6 Touchdown Zone Elevation: 438.6 ft

2.12.1 Designation: 02R
2.12.2 True Bearing: 38
2.12.3 Dimensions: 6501 ft x 100 ft
2.12.4 PCN:
2.12.5 Coordinates: 64-48-0.8635N / 147-52-32.2371W
2.12.6 Threshold Elevation: 433.2 ft
2.12.6 Touchdown Zone Elevation: 433.2 ft

2.12.1 Designation: 20L
2.12.2 True Bearing: 218
2.12.3 Dimensions: 6501 ft x 100 ft
2.12.4 PCN:
2.12.5 Coordinates: 64-48-51.2387N / 147-50-59.6666W
2.12.6 Threshold Elevation: 433.1 ft
2.12.6 Touchdown Zone Elevation: 434.2 ft

2.12.1 Designation: 20W
2.12.2 True Bearing: 218
2.12.3 Dimensions: 5400 ft x 100 ft
2.12.4 PCN:
2.12.5 Coordinates: 64-49-39.8349N / 147-49-59.6293W
2.12.6 Threshold Elevation: 423.4 ft
2.12.6 Touchdown Zone Elevation: 423.4 ft

2.12.1 Designation: 02W
2.12.2 True Bearing: 38
2.12.3 Dimensions: 5400 ft x 100 ft
2.12.4 PCN:
2.12.5 Coordinates: 64-48-58.0039N / 147-51-16.5892W
2.12.6 Threshold Elevation: 423.4 ft
2.12.6 Touchdown Zone Elevation: 423.4 ft

AD 2.13 Declared Distances
2.13.1 Designation: 02
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 20
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 20R
2.13.2 Take-off Run Available: 11800
2.13.3 Take-off Distance Available: 12800
2.13.4 Accelerate-Stop Distance Available: 11800
2.13.5 Landing Distance Available: 11050

2.13.1 Designation: 02L
2.13.2 Take-off Run Available: 11800
2.13.3 Take-off Distance Available: 12800
2.13.4 Accelerate-Stop Distance Available: 11800
2.13.5 Landing Distance Available: 11050

2.13.1 Designation: 02R
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 20L
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 20W
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 02W
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 02
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 20
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 20R
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 02L
2.14.2 Approach Lighting System: ALSF2
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 02R
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 20L
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 20W
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 02W
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: APCH/P DEP/P (360-179)
2.18.3 Channel: 127.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P (360-179)
2.18.3 Channel: 251.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (180-359)
2.18.3 Channel: 125.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/P DEP/P IC (180-359)
2.18.3 Channel: 363.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: APCH/S
2.18.3 Channel: 119.85
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: ATIS
2.18.3 Channel: 124.4
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 127.6
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: DEP/S
2.18.3 Channel: 327.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: EMERG
2.18.3 Channel: 121.5
2.18.5 Hours of Operation:

2.18.1 Service Designation: EMERG
2.18.3 Channel: 243
2.18.5 Hours of Operation:

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.3
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 257.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: RADAR
2.18.3 Channel: 253.525
2.18.5 Hours of Operation:

2.18.1 Service Designation: RADAR
2.18.3 Channel: 338.275
2.18.5 Hours of Operation:

2.18.1 Service Designation: RADAR
2.18.3 Channel: 353.525
2.18.5 Hours of Operation:

2.18.1 Service Designation: TRSA (180-359)
2.18.3 Channel: 125.35
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: TRSA (360-179)
2.18.3 Channel: 127.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: TRSA (360-179)
2.18.3 Channel: 251.1
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: TRSA (180-359)
2.18.3 Channel: 363.2
2.18.5 Hours of Operation: 24

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 02L. Magnetic variation: 18E
2.19.2 ILS Identification: CNA
2.19.5 Coordinates: 64-49-50.7376N / 147-50-15.0194W
2.19.6 Site Elevation: 434.8 ft

2.19.1 ILS Type: Glide Slope for runway 02L. Magnetic variation: 18E
2.19.2 ILS Identification: CNA
2.19.5 Coordinates: 64-48-21.0041N / 147-52-36.2974W
2.19.6 Site Elevation: 431.4 ft

2.19.1 ILS Type: Inner Marker for runway 02L. Magnetic variation: 18E
2.19.2 ILS Identification: CNA
2.19.5 Coordinates: 64-48-7.6611N / 147-53-12.5267W
2.19.6 Site Elevation: 429.8 ft

2.19.1 ILS Type: Localizer for runway 02L. Magnetic variation: 18E
2.19.2 ILS Identification: CNA
2.19.5 Coordinates: 64-49-49.8419N / 147-50-4.688W
2.19.6 Site Elevation: 438.1 ft

2.19.1 ILS Type: DME for runway 20R. Magnetic variation: 18E
2.19.2 ILS Identification: FAI
2.19.5 Coordinates: 64-48-2.289N / 147-53-30.754W
2.19.6 Site Elevation: 430 ft

2.19.1 ILS Type: Glide Slope for runway 20R. Magnetic variation: 18E
2.19.2 ILS Identification: FAI
2.19.5 Coordinates: 64-49-24.4215N / 147-50-39.7123W
2.19.6 Site Elevation: 434.3 ft

2.19.1 ILS Type: Localizer for runway 20R. Magnetic variation: 18E
2.19.2 ILS Identification: FAI
2.19.5 Coordinates: 64-48-1.4733N / 147-53-23.8771W
2.19.6 Site Elevation: 429.1 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 21E
2.19.2 Navigation Aid Identification: FAI
2.19.5 Coordinates: 64-48-0.2537N / 148-0-43.1132W
2.19.6 Site Elevation: 1526.4 ft

General Remarks:

NWS WEATHER BALLOON LAUNCH SITE 2000 FEET WEST OF MIDFIELD RUNWAY 02L/20R. LAUNCHES ARE TWICE DAILY AT 1100 AND 2300 HOURS UTC.

MILITARY CONTRACT FUEL AVBL.

COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -32C.

FOR AVBLTY OF SUMMER GRAVEL STRIP RWY 02/20 AND WINTER SKI STRIP RWY 02/20 CONSULT LOCAL NOTAMS AND CTC TWR PRIOR TO ARRIVAL /DEPARTURE.

WX CAMERA AVBL ON INTERNET AT HTTP://AVCAMS.FAA.GOV

FOR TRANSIENT HELICOPTER PARKING CALL ARPT OPS 907-451-2300.

FOR FLIGHTS IN MOAS EAST OF FAIRBANKS RECOMMEND CONTACTING EIELSON RANGR CONTROL ON 125.3/126.3 OR CALL 1-800-758-8723 FOR INFORMATION ON MILITARY ACTIVITES.

SPB CONTROLLED BY FAIRBANKS INTL ATCT. CTC ATCT ON FREQ 118.3 AS SOON AS PRACTICAL AFTER START UP FOR TAXI ON THE POND. FLOAT POND TFC AS ASSIGNED BY FAIRBANKS ATCT. LIMITED TRANSIENT FLOAT PLANE PARKING AVBL, CTC REPUBLIC PARKING SYSTEM, LLC 907-455-4571 FOR INFORMATION. SFC FROZEN IN WINTER, NOT MONITORED.

ATCT LOCATED AT 64-48-39.438N 147-50-55.722W, ELEVATION 538 FT MSL.

BE ALERT FOR SNOW REMOVAL EQUIPMENT OPNS FM 1 OCT TO 15 MAY.

TRANSIENT PARKING EAST RAMP FOR ACFT WITH WINGSPAN LESS THAN 79 FT. NO TRANSIENT ACFT PARKING ON WEST RAMP, CTC APT OPS 907-451-2300 FOR INFO & MEDIVAC PARKING.

ALL RWY HOLD LINES AND COMPASS ROSE AT TWY W OBSCURED OCTOBER 1 THRU APRIL 1.

NOISE ABATEMENT PROCEDURES IN EFECT FM 2200-0800 ALL LARGE ACFT, TURBINE ENGINE, AND HEAVY ACFT UTILIZE RWY 02L FOR ARRS AND RWY 20R FOR DEPS WHEN WIND IS NOT AN OPERATIOINAL FACTOR. CTC APRT OPNS FOR ENGINE RUN-UP LOCATIONS.

N/S TAXIWAY (TWY A) IS WEST AND PARALLEL TO RWY 02L/20R. BE ALERT TO AVOID LANDING ON TAXIWAY.

NE COMPASS ROSE CLSD TO HELICOPTERS OVER 12500 LBS. FROST HEAVES SOUTH 2600 FT RWY 02R/20L CONTACT ARPT OPS 907-451-2300 WITH SAFETY CONCERNS.

SEE ADDITIONAL PAGES UNDER NOTICES FOR TRSA AND FAIRBANKS AREA INFORMATION.

RWY 02R/20L IS LIMITED FOR USE BY ACFT DESIGN GROUP B II, ACFT OR SMALLER.

Juneau, Alaska
Juneau International
ICAO Identifier PAJN

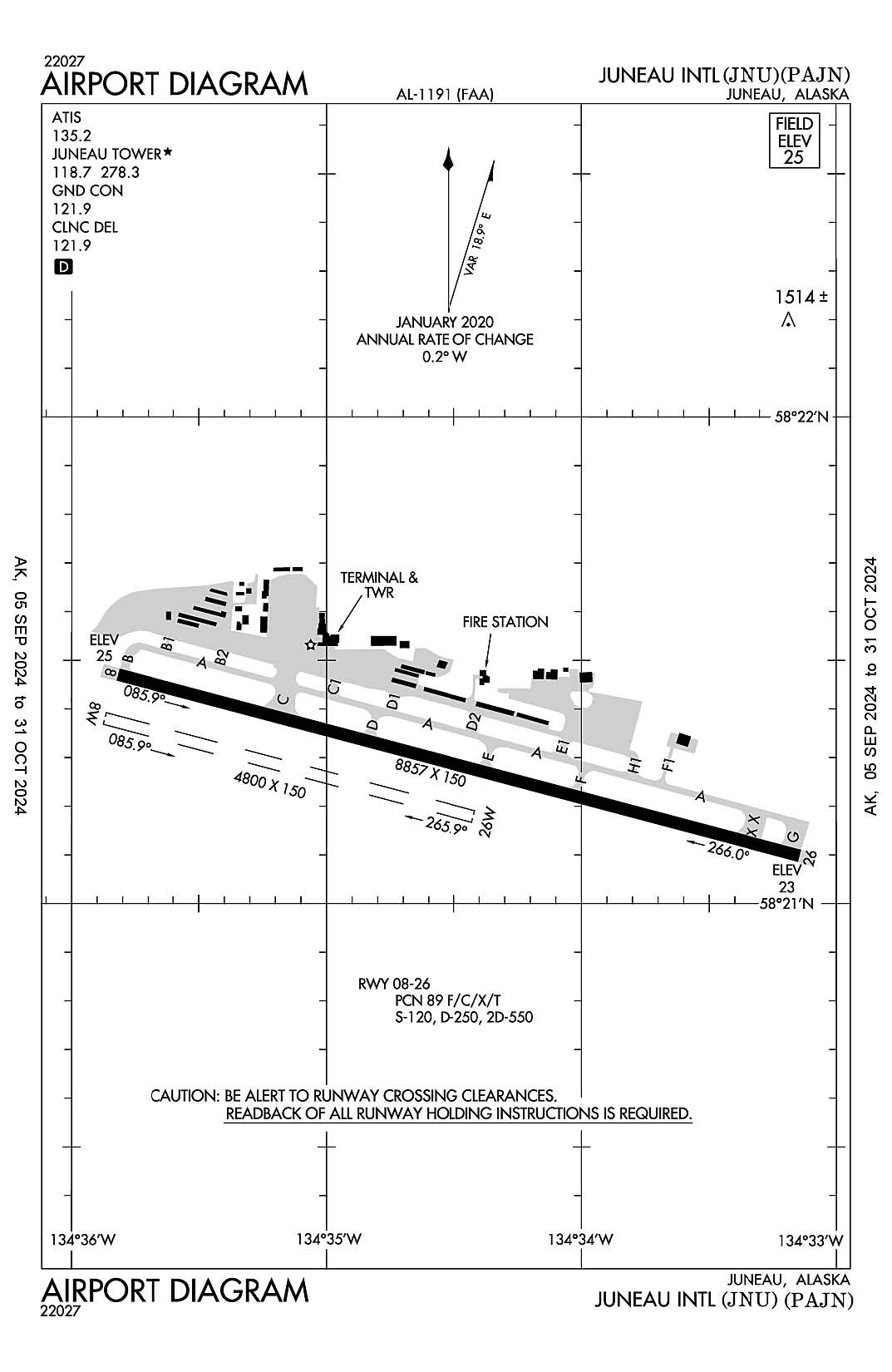

An airport diagram for Juneau International (ICAO Identifier PAJN).

Juneau, AK
Juneau Intl
ICAO Identifier PAJN

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 58-21-16.9625N / 134-34-42.4939W
2.2.2 From City: 7 miles NW of JUNEAU, AK
2.2.3 Elevation: 25.3 ft
2.2.5 Magnetic Variation: 20E (2015)
2.2.6 Airport Contact: PATTY WAHTO
1873 SHELL SIMMONS DR, SUITE 200
JUNEAU, AK 99801 (907-789-7821)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, All Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A1+,100LL
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I C certified on 4/1/2005

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 08
2.12.2 True Bearing: 105
2.12.3 Dimensions: 8857 ft x 150 ft
2.12.4 PCN: 89 F/C/X/T
2.12.5 Coordinates: 58-21-28.25N / 134-35-49.09W
2.12.6 Threshold Elevation: 25 ft
2.12.6 Touchdown Zone Elevation: 25.3 ft

2.12.1 Designation: 26
2.12.2 True Bearing: 285
2.12.3 Dimensions: 8857 ft x 150 ft
2.12.4 PCN: 89 F/C/X/T
2.12.5 Coordinates: 58-21-5.88N / 134-33-8.63W
2.12.6 Threshold Elevation: 23.4 ft
2.12.6 Touchdown Zone Elevation: 23.4 ft

2.12.1 Designation: 08W
2.12.2 True Bearing:
2.12.3 Dimensions: 4600 ft x 150 ft
2.12.4 PCN:
2.12.5 Coordinates: 58-21-22.82N / 134-35-52.23W
2.12.6 Threshold Elevation: ft
2.12.6 Touchdown Zone Elevation: ft

2.12.1 Designation: 26W
2.12.2 True Bearing:
2.12.3 Dimensions: 4600 ft x 150 ft
2.12.4 PCN:
2.12.5 Coordinates: 58-21-10.71N / 134-34-25.26W
2.12.6 Threshold Elevation: ft
2.12.6 Touchdown Zone Elevation: ft

AD 2.13 Declared Distances
2.13.1 Designation: 08
2.13.2 Take-off Run Available: 8857
2.13.3 Take-off Distance Available: 8857
2.13.4 Accelerate-Stop Distance Available: 8457
2.13.5 Landing Distance Available: 8457

2.13.1 Designation: 26
2.13.2 Take-off Run Available: 8857
2.13.3 Take-off Distance Available: 8857
2.13.4 Accelerate-Stop Distance Available: 8457
2.13.5 Landing Distance Available: 8457

2.13.1 Designation: 08W
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 26W
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 08
2.14.2 Approach Lighting System: MALSF
2.14.4 Visual Approach Slope Indicator System: V2L

2.14.1 Designation: 26
2.14.2 Approach Lighting System: MALS
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 08W
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 26W
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ATIS
2.18.3 Channel: 135.2
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: CD/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 1 APR - SEP 30 0600 - 2300, 1 OCT - MAR 31, 0700 - 2000.

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 1 APR - SEP 30 0600 - 2300, 1 OCT - MAR 31, 0700 - 2000.

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.7
2.18.5 Hours of Operation: 1 APR - SEP 30 0600 - 2300, 1 OCT - MAR 31, 0700 - 2000.

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 278.3
2.18.5 Hours of Operation: 1 APR - SEP 30 0600 - 2300, 1 OCT - MAR 31, 0700 - 2000.

2.18.1 Service Designation: LCL/S (SEASONAL USE ONLY)
2.18.3 Channel: 120.7
2.18.5 Hours of Operation: 1 APR - SEP 30 0600 - 2300, 1 OCT - MAR 31, 0700 - 2000.

2.18.1 Service Designation: NG OPS
2.18.3 Channel: 64.7
2.18.5 Hours of Operation:

2.18.1 Service Designation: NG OPS
2.18.3 Channel: 124.65
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 08. Magnetic variation: 20E
2.19.2 ILS Identification: JDL
2.19.5 Coordinates: 58-21-31.0221N / 134-38-10.216W
2.19.6 Site Elevation: 179.8 ft

2.19.1 ILS Type: Localizer for runway 08. Magnetic variation: 20E
2.19.2 ILS Identification: JDL
2.19.5 Coordinates: 58-21-32.035N / 134-38-10.3944W
2.19.6 Site Elevation: 165 ft

2.19.1 ILS Type: Outer Marker for runway 08. Magnetic variation: 20E
2.19.2 ILS Identification: JDL
2.19.5 Coordinates: 58-21-33.5717N / 134-41-58.0236W
2.19.6 Site Elevation: 57.9 ft

General Remarks:

FOR LCL CALL TO JUNEAU FSS CALL 907-789-7380.

TRANSIENT DOCK AVBL FOR PUBLIC USE FOR UP TO SIX ACFT, SW CORNER.

RY 08/26 SAND USED TO ENHANCE RY FRICTION MAY NOT MEET FAA SPECS.

TPA 1500 AGL FOR LARGE TURBINE ACFT; 1000 FT AGL FOR FIXED WING ACFT; 500 FT AGL FOR HELICOPTERS.

APRON TERMINAL RAMP CLSD TO ROTORCRAFT. APRON US CUSTOMS RAMP CLSD TO ACFT WITH WINGSPAN MORE THAN 79 FT INTL ACFT WITH WINGSPAN MORE THAN 79 FT AND ALL INTL ROTORCRAFT USE E-1 RAMP (NTL GUARD RAMP).

WILDLIFE & BIRDS ON & INVOF ARPT.

BATTLESHIP ISLAND RLLS GROUPING; CENTER LIGHT 582132.88N 1344012.22W. IJDL-LOCALIZER RLLS GROUPING; CENTER LIGHT 582132.02N 1343810.39W.

COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -0C.

PARAGLIDING ACTIVITY 3 MILES N OF ARPT INVOF THUNDER MOUNTAIN & OVER GASTINEAU CHANNEL NEARS DOWNTOWN APR 15-OCT 1 6000 FT & BLO.

INCREASED HELICOPTER/LIGH ACFT ACTIVITY APR 15-OCT 1 ENTIRE LENGTH ON GASTINEAU CHANNEL & WITHIN 5 MILES OF ARPT.

NATIONAL GUARD 24 HR PPR DUE TO LIMITED PARKING C907-789-3366. 0730-1600 WEEKDAYS CONTACT GUARD OPS 10 MIN PRIOR TO LANDING ON 124.65.

SEE SPECIAL NOTICES AND GENERAL NOTICES FOR ADDITIONAL INFORMATION ON OPNS IN JUNEAU AREA.

LENA POINT, PEDERSON HILL AND SISTERS ISLAND WX CAMERAS AVBL ON INTERNET AT HTTP://AVCAMS.FAA.GOV

King Salmon, Alaska
King Salmon
ICAO Identifier PAKN

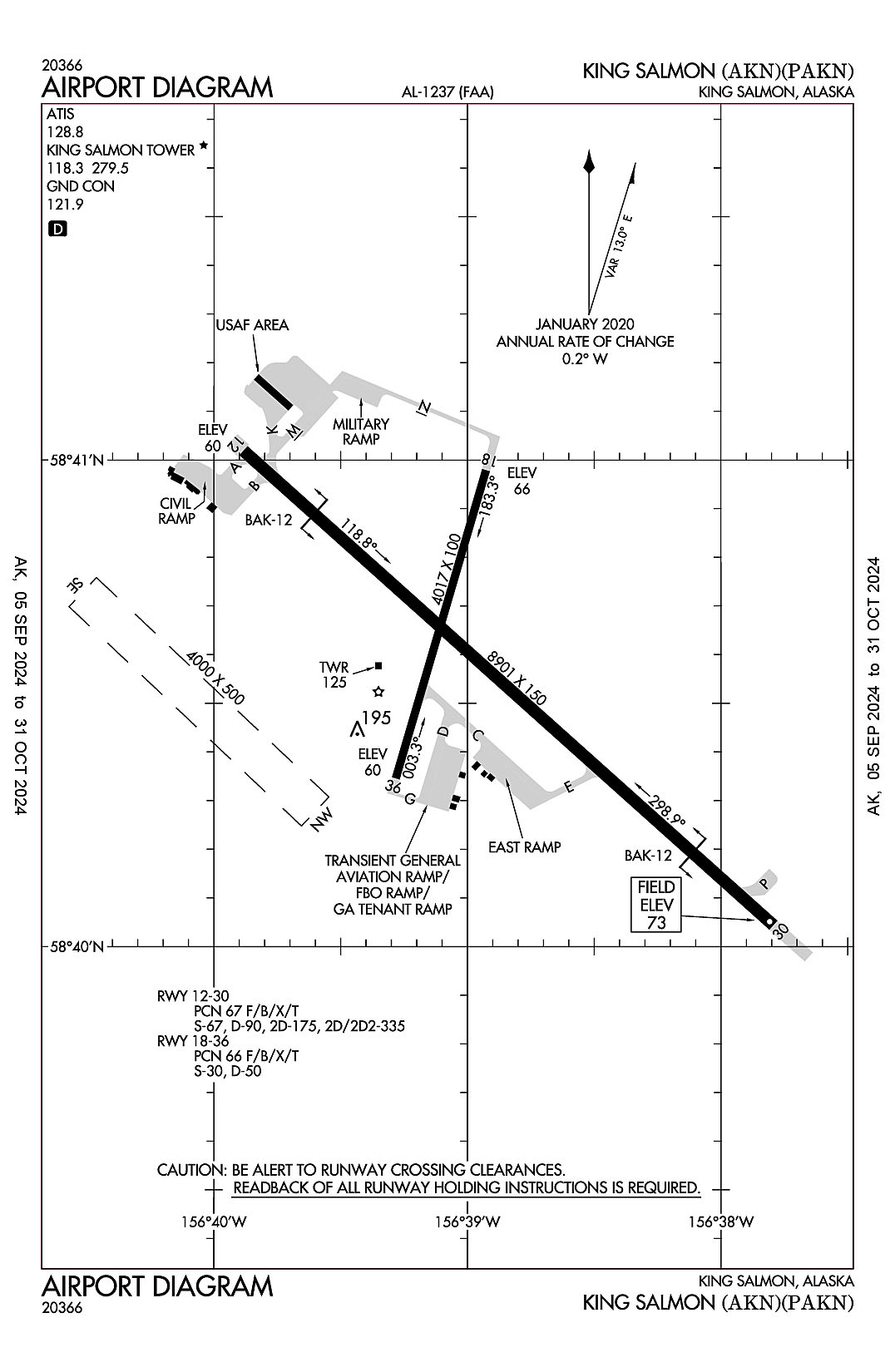

An airport diagram for King Salmon (ICAO Identifier PAKN).

King Salmon, AK
King Salmon
ICAO Identifier PAKN

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 58-40-35.3765N / 156-38-55.2876W
2.2.2 From City: 0 miles SE of KING SALMON, AK
2.2.3 Elevation: 73.4 ft
2.2.5 Magnetic Variation: 11E (2025)
2.2.6 Airport Contact: FLOYD WILSON
PO BOX 65
KING SALMON, AK 99613 (907-246-3325)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, 0800-1800 Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES
2.4.2 Fuel Types: A,100LL
2.4.5 Hangar Space:
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I B certified on 3/21/2005

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 12
2.12.2 True Bearing: 132
2.12.3 Dimensions: 8901 ft x 150 ft
2.12.4 PCN: 67 F/B/X/T
2.12.5 Coordinates: 58-41-2.184N / 156-39-53.0154W
2.12.6 Threshold Elevation: 59.9 ft
2.12.6 Touchdown Zone Elevation: 61.8 ft

2.12.1 Designation: 30
2.12.2 True Bearing: 312
2.12.3 Dimensions: 8901 ft x 150 ft
2.12.4 PCN: 67 F/B/X/T
2.12.5 Coordinates: 58-40-3.68N / 156-37-47.63W
2.12.6 Threshold Elevation: 73.4 ft
2.12.6 Touchdown Zone Elevation: 73.4 ft

2.12.1 Designation: 36
2.12.2 True Bearing: 16
2.12.3 Dimensions: 4017 ft x 100 ft
2.12.4 PCN: 66 F/B/X/T
2.12.5 Coordinates: 58-40-21.7997N / 156-39-16.9583W
2.12.6 Threshold Elevation: 59.9 ft
2.12.6 Touchdown Zone Elevation: 65.2 ft

2.12.1 Designation: 18
2.12.2 True Bearing: 196
2.12.3 Dimensions: 4017 ft x 100 ft
2.12.4 PCN: 66 F/B/X/T
2.12.5 Coordinates: 58-40-59.7835N / 156-38-55.6139W
2.12.6 Threshold Elevation: 66.1 ft
2.12.6 Touchdown Zone Elevation: 66.1 ft

2.12.1 Designation: SE
2.12.2 True Bearing:
2.12.3 Dimensions: 4000 ft x 500 ft
2.12.4 PCN:
2.12.5 Coordinates: -- / --
2.12.6 Threshold Elevation: ft
2.12.6 Touchdown Zone Elevation: ft

2.12.1 Designation: NW
2.12.2 True Bearing:
2.12.3 Dimensions: 4000 ft x 500 ft
2.12.4 PCN:
2.12.5 Coordinates: -- / --
2.12.6 Threshold Elevation: ft
2.12.6 Touchdown Zone Elevation: ft

AD 2.13 Declared Distances
2.13.1 Designation: 12
2.13.2 Take-off Run Available: 8901
2.13.3 Take-off Distance Available: 8901
2.13.4 Accelerate-Stop Distance Available: 8501
2.13.5 Landing Distance Available: 8501

2.13.1 Designation: 30
2.13.2 Take-off Run Available: 8901
2.13.3 Take-off Distance Available: 8901
2.13.4 Accelerate-Stop Distance Available: 8501
2.13.5 Landing Distance Available: 8501

2.13.1 Designation: 36
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: 18
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: SE
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

2.13.1 Designation: NW
2.13.2 Take-off Run Available:
2.13.3 Take-off Distance Available:
2.13.4 Accelerate-Stop Distance Available:
2.13.5 Landing Distance Available:

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 12
2.14.2 Approach Lighting System: SSALR
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 30
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 36
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 18
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: SE
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: NW
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

AD 2.18 Air Traffic Services Communication Facilities
2.18.1 Service Designation: ATIS
2.18.3 Channel: 128.8
2.18.5 Hours of Operation: 24

2.18.1 Service Designation: GND/P
2.18.3 Channel: 121.9
2.18.5 Hours of Operation: 0800-2000 1 AUG-14 JUN. 0800-2200 15 JUN- 31 JUL.

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 118.3
2.18.5 Hours of Operation: 0800-2000 1 AUG-14 JUN. 0800-2200 15 JUN- 31 JUL.

2.18.1 Service Designation: LCL/P
2.18.3 Channel: 279.5
2.18.5 Hours of Operation: 0800-2000 1 AUG-14 JUN. 0800-2200 15 JUN- 31 JUL.

2.18.1 Service Designation: PTD
2.18.3 Channel: 372.2
2.18.5 Hours of Operation:

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 12. Magnetic variation: 11E
2.19.2 ILS Identification: AKN
2.19.5 Coordinates: 58-39-59.6N / 156-37-31.7W
2.19.6 Site Elevation: 78 ft

2.19.1 ILS Type: Glide Slope for runway 12. Magnetic variation: 11E
2.19.2 ILS Identification: AKN
2.19.5 Coordinates: 58-40-57.3435N / 156-39-29.887W
2.19.6 Site Elevation: 63.5 ft

2.19.1 ILS Type: Localizer for runway 12. Magnetic variation: 11E
2.19.2 ILS Identification: AKN
2.19.5 Coordinates: 58-39-56.5549N / 156-37-32.3734W
2.19.6 Site Elevation: 77.7 ft

2.19.1 Navigation Aid Type: VORTAC. Magnetic variation: 16E
2.19.2 Navigation Aid Identification: AKN
2.19.5 Coordinates: 58-43-28.9653N / 156-45-8.4483W
2.19.6 Site Elevation: 94.6 ft

General Remarks:

FLOCKS OF LARGE MIGRATORY BIRDS IN VCNTY DURG SEASON.

LANDING AREA RWY NW/SE ALSO USED BY BOATS.

TSA REGULATED ARPT. SEE 49 CFR 1542. ALL GATES AND DOORS MUST BE SECURED AT ALL TIMES. TRANSIENT OR UNFAMILIAR PILOTS CONTACT ARPT MGR WITH QUESTIONS.

PRIVATE JETS MAY PARK ON THE SE SECTION OF E RAMP; CALL AMGR AT 907-246-3325 FOR INFO.

WX CAMERA AVBL ON INTERNET AT HTTP://AVCAMS.FAA.GOV

ONE INCH DIP ON CNTRLN 1850 FT FM AER 36 EXTDS TO THREE INCH DIP 25 FT WIDE ON WEST EDGE.

MILITARY FTRS/EMERGENCY DIVERTS CALL WARRIOR SOF/ELMENDORF SOF ON UHF AT 395.15.NON-EMERG/NON-FTR ACFT CALL KING SALMON OPS; 24 HR POINT NORMALLY MONITORS CTAF DURING OPR HRS.

RCR UPDATED AS REQUIRED DURING 11TH AF FTR FLYING WINDOW. AIRCREWS COORD RCR CHECKS WITH KING SALMON OPS - 907-439-3001 OR 907-439-6000. ACFT OPNS RSTRD TO LOW APCH/FULL STOP LNDG ONLY.

600 FT SAFETY AREA APCH END RWY 12.

ALL FTR ACFT ON ARR EXP REDUCED SEPARATION; SIMILAR APCH CHARACTERISTICS AND DAY - 3000 FT; DISSIMILAR APCH CHARACTERISTICS AND/OR NIGHT - 6000 FT; AHEAD/BEHIND FORMATION LANDING - 6000 FT.

APRON SPOTS 4, 5, 6, 7 NORTH OF MILITARY HANGARS CLSD EXC PROP ACFT. TWY P CLSD.

NWS WEATHER BALLOON LAUNCH FACILITY LOCATED ON AIRPORT, SEE INSIDE BACK COVER FOR OPERATION DETAILS.

OFF PAVEMENT OPERATIONS BY ACFT; INCLUDING HELICOPTERS; NOT AUTHORIZED AT THE ACR APRON. NO LANDING; PARKING OR TKOFS PERMITTED FROM DIRT OR GRASS.

LOCKED WHEEL TURNS PROHIBITED ON ANY SURFACE.

ARFF EQUIPMENT STAFFED DURING PERIODS OF ACR ACTIVITY ONLY.

RWY 18/36 NOT INSPECTED FOR MIL OPERATIONS.

FLIGHTS ORIG OUTSIDE ALASKA REFER TO USAF FCG. NO CSTMS AVBL.

CIVILIAN TRANSIENT PARKING ON SE RAMP ONLY; OTHER PARKING LONGER THAN 48 HRS REQUIRES PERMIT.

GENERAL AVIATION APRON, PAVEMENT CRUMBLING, POSSIBLE FOD HAZARD. JET AIRCRAFT BE ALERT DURING RUN-UP TO AVOID DAMAGE WITH JET WASH.

USAF FACILITIES MINIMALLY OPR BY CIVILIAN CONTRACTORS WITH LIMITED SUPPORT CAPABILITY. CALL TO CONFIRM OPR HRS NOT LATER THAN 24 HRS IN ADVANCE OF EXPECTED ARRIVAL. MIL AIRCRAFT NEED TO CONFIRM FUEL REQUIREMENTS 24-48 HOURS IN ADVANCE.

SNOW, ICE REMOVAL & ARPT HAZ COND PERFORMED & RPRTD DURING ATTENDANCE SCHEDULE.
ARFF IS AVBL FOR PART 121 CARRIERS INVOLVED IN ETOPS OPERATIONS WITH 30 MINUTES NOTICE.
