Virgin Islands

Charlotte Amalie St. Thomas, Virgin Islands
Cyril E King
ICAO Identifier TIST

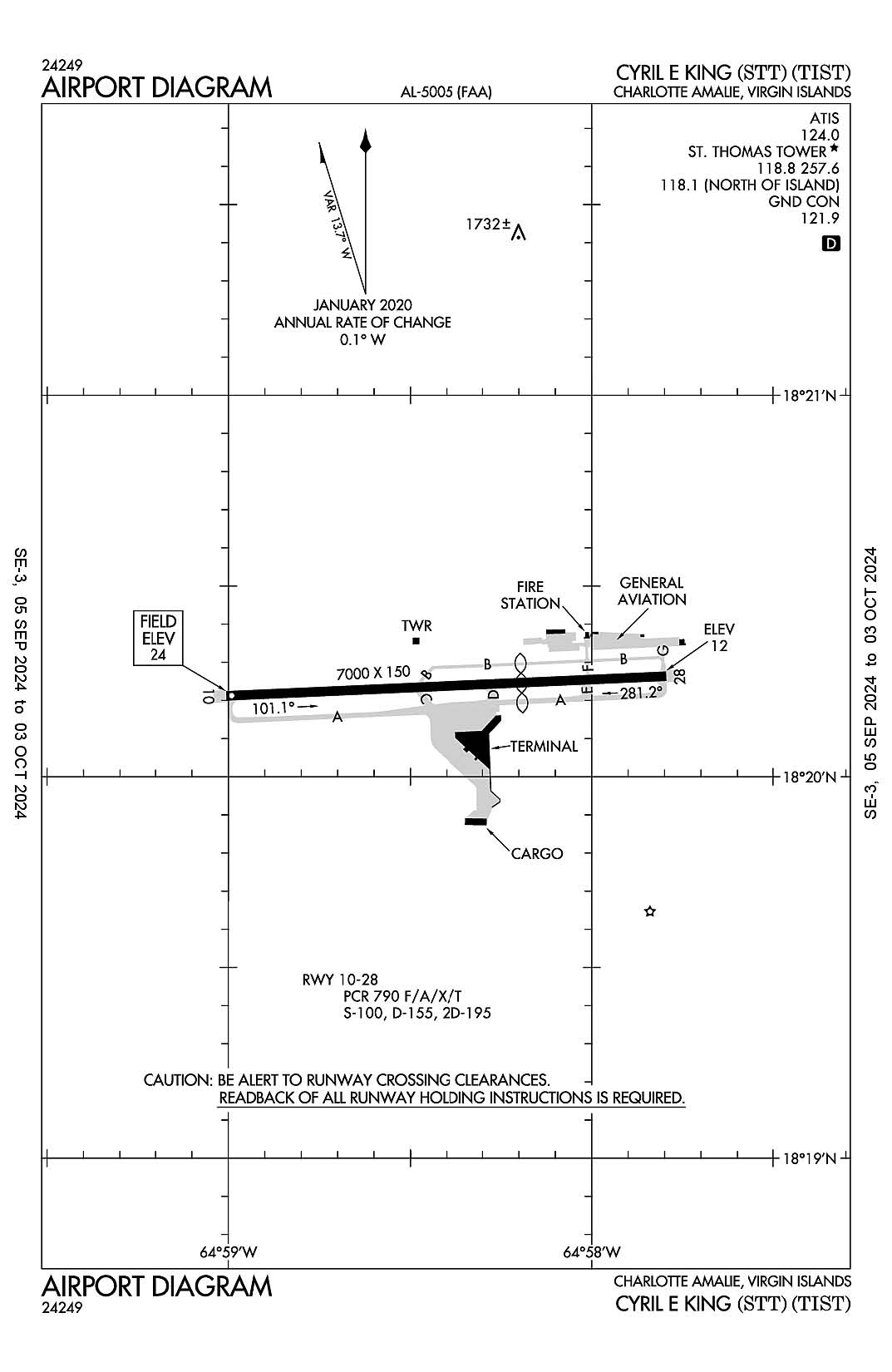

The airport diagram for Cyril E King (ICAO Identifier TIST).

Charlotte Amalie, VI
Cyril E King

ICAO Identifier TIST

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 18-20-14.3N / 64-58-24W
2.2.2 From City: 2 miles W of CHARLOTTE AMALIE, VI
2.2.3 Elevation: 23.6 ft
2.2.5 Magnetic Variation: 13W (2000)
2.2.6 Airport Contact: JEROME SHERIDAN
CYRIL E. KING AIRPORT
ST THOMAS, VI 802
((340) 774-6660)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, 0700-2300 Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: YES

2.4.2 Fuel Types: 100LL,A
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MINOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I C certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 28

2.12.2 True Bearing: 267
2.12.3 Dimensions: 7000 ft x 150 ft
2.12.4 PCN: 88 F/A/W/T
2.12.5 Coordinates: 18-20-15.8124N / 64-57-47.7382W
2.12.6 Threshold Elevation: 11.7 ft
2.12.6 Touchdown Zone Elevation: 16.5 ft

2.12.1 Designation: 10
2.12.2 True Bearing: 87
2.12.3 Dimensions: 7000 ft x 150 ft
2.12.4 PCN: 88 F/A/W/T
2.12.5 Coordinates: 18-20-12.7247N / 64-59-0.3371W
2.12.6 Threshold Elevation: 23.5 ft
2.12.6 Touchdown Zone Elevation: 23.6 ft

AD 2.13 Declared Distances
2.13.1 Designation: 28

2.13.2 Take-off Run Available: 7000
2.13.3 Take-off Distance Available: 7000
2.13.4 Accelerate-Stop Distance Available: 6000
2.13.5 Landing Distance Available: 3700

2.13.1 Designation: 10
2.13.2 Take-off Run Available: 7000
2.13.3 Take-off Distance Available: 7000
2.13.4 Accelerate-Stop Distance Available: 7000
2.13.5 Landing Distance Available: 7000

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 28

2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System:

2.14.1 Designation: 10
2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: DME for runway 10. Magnetic variation: 13W

2.19.2 ILS Identification: TMN
2.19.5 Coordinates: 18-20-18.78N / 64-57-39.88W
2.19.6 Site Elevation: 22.6 ft

2.19.1 ILS Type: Glide Slope for runway 10. Magnetic variation: 13W
2.19.2 ILS Identification: TMN
2.19.5 Coordinates: 18-20-10.62N / 64-58-48.29W
2.19.6 Site Elevation: 15.1 ft

2.19.1 ILS Type: Localizer for runway 10. Magnetic variation: 13W
2.19.2 ILS Identification: TMN
2.19.5 Coordinates: 18-20-16.26N / 64-57-37.22W
2.19.6 Site Elevation: 17 ft

2.19.1 Navigation Aid Type: VOR/DME. Magnetic variation: 10W
2.19.2 Navigation Aid Identification: STT
2.19.5 Coordinates: 18-21-20.9431N / 65-1-28.3968W
2.19.6 Site Elevation: 679.2 ft

General Remarks:

LGTS ON HILL 4 NM SE OF ARPT MAY BE MISTAKEN FOR RY 10/28 WHEN MAKING A VISUAL APCH FROM THE SOUTH.

ACFT THAT BACK TAXI FOR DEP ON RY 28 SHALL MAKE THEIR 180 DEG TURN CCLKWS.

NOISE SENSITIVE AREA: AVOID OVERFLIGHTS OF WATER ISLAND LOCATED 2 MI SE OF ARPT.

ARFF UNAVBL 2300-0630.

RY 10 DEPS MAINTAIN RY HDG UNTIL REACHING DEP END OF RY BFR TURNING ON COURSE OR ASSIGNED HDG UNLESS OTRW AUZD BY ATCT.

WHEN TWR CLSD CTC SAN JUAN CERAP AT 787-253-8664/8665

PILOTS CTC GND CTL PRIOR TO PUSHBACK.

PILOTS MAY ENCTR FALSE ILLUSORY INDICATIONS DURG NGT VISUAL APCHS TO RY 10 WHEN USING VISUAL CUES FOR VERTICAL GUIDANCE; RCMD USE OF THE ILS GS & FQT CROSS REF WITH THE ACFT ALTM TO MAINT THE PROPER APCH PROFILE.

OBSTRUCTION SAILBOAT MAST 100FT WEST OF APPROACH END OF RWY 10 50FT AGL.

Christiansted St. Croix
Henry E Rohlsen
ICAO Identifier TISX

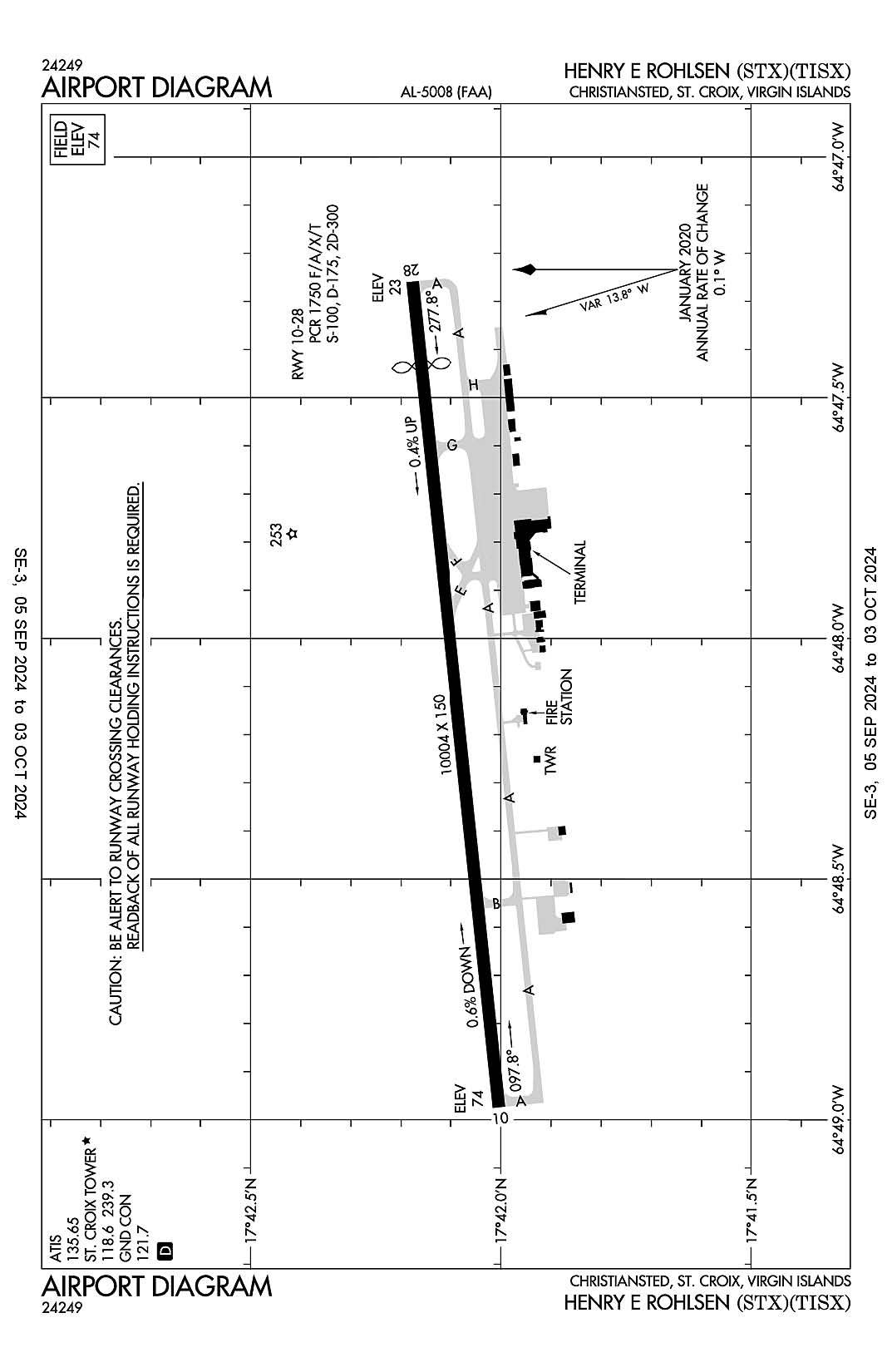

The airport diagram for Henry E Rohlsen (ICAO Identifier TISX).

Christiansted, VI
Henry E Rohlsen
ICAO Identifier TISX

AD 2.2 Aerodrome geographical and administrative data
2.2.1 Reference Point: 17-42-5.416N / 64-48-6.9945W
2.2.2 From City: 6 miles SW of CHRISTIANSTED, VI
2.2.3 Elevation: 74.1 ft
2.2.5 Magnetic Variation: 13W (2000)
2.2.6 Airport Contact: JEROME SHERIDAN
P.O. BOX 1134
ST CROIX, VI 821
((340) 719-6207)
2.2.7 Traffic: IFR/VFR

AD 2.3 Attendance Schedule
2.3.1 All Months, All Days, 0500-2300 Hours

AD 2.4 Handling Services and Facilities
2.4.1 Cargo Handling Facilities: NO

2.4.2 Fuel Types: 100LL,A1+
2.4.5 Hangar Space: YES
2.4.6 Repair Facilities: MAJOR

AD 2.6 Rescue and Firefighting Services
2.6.1 Aerodrome Category for Firefighting: ARFF Index I C certified on 5/1/1973

AD 2.12 Runway Physical Characteristics
2.12.1 Designation: 28

2.12.2 True Bearing: 264
2.12.3 Dimensions: 10004 ft x 150 ft
2.12.4 PCN: 62 F/C/W/T
2.12.5 Coordinates: 17-42-10.62N / 64-47-15.544W
2.12.6 Threshold Elevation: 22.5 ft
2.12.6 Touchdown Zone Elevation: 40 ft

2.12.1 Designation: 10
2.12.2 True Bearing: 84
2.12.3 Dimensions: 10004 ft x 150 ft
2.12.4 PCN: 62 F/C/W/T
2.12.5 Coordinates: 17-42-0.212N / 64-48-58.445W
2.12.6 Threshold Elevation: 73.7 ft
2.12.6 Touchdown Zone Elevation: 74.1 ft

AD 2.13 Declared Distances
2.13.1 Designation: 28

2.13.2 Take-off Run Available: 10004
2.13.3 Take-off Distance Available: 10004
2.13.4 Accelerate-Stop Distance Available: 10004
2.13.5 Landing Distance Available: 9003

2.13.1 Designation: 10
2.13.2 Take-off Run Available: 10004
2.13.3 Take-off Distance Available: 10004
2.13.4 Accelerate-Stop Distance Available: 9003
2.13.5 Landing Distance Available: 9003

AD 2.14 Approach and Runway Lighting
2.14.1 Designation: 28

2.14.2 Approach Lighting System:
2.14.4 Visual Approach Slope Indicator System: P4L

2.14.1 Designation: 10
2.14.2 Approach Lighting System: MALSR
2.14.4 Visual Approach Slope Indicator System: P4L

AD 2.18 Air Traffic Services Communication Facilities

AD 2.19 Radio Navigation and Landing Aids
2.19.1 ILS Type: Glide Slope for runway 10. Magnetic variation: 13W

2.19.2 ILS Identification: STX
2.19.5 Coordinates: 17-41-58.77N / 64-48-45.5W
2.19.6 Site Elevation: 63.5 ft

2.19.1 ILS Type: Localizer for runway 10. Magnetic variation: 13W
2.19.2 ILS Identification: STX
2.19.5 Coordinates: 17-42-11.36N / 64-47-8.28W
2.19.6 Site Elevation: 26.4 ft

2.19.1 ILS Type: Outer Marker for runway 10. Magnetic variation: 13W
2.19.2 ILS Identification: STX
2.19.5 Coordinates: 17-41-30.92N / 64-53-4.74W
2.19.6 Site Elevation: 40 ft

General Remarks:

APCH TO RY 28 SMTMS OBSCD BY SMOKE FM LANDFILL LCTD E OF ARPT.

TAXI INTO POSITION AND HOLD PROCEDURES NO LONGER IN EFFECT.

BIRDS & WILDLIFE ON & INVOF ARPT.

WHEN TWR CLSD CTC SAN JUAN CERAP AT 787-253-8664/8665

RY 10 AND 28 100' X 200' BLAST PAD.
